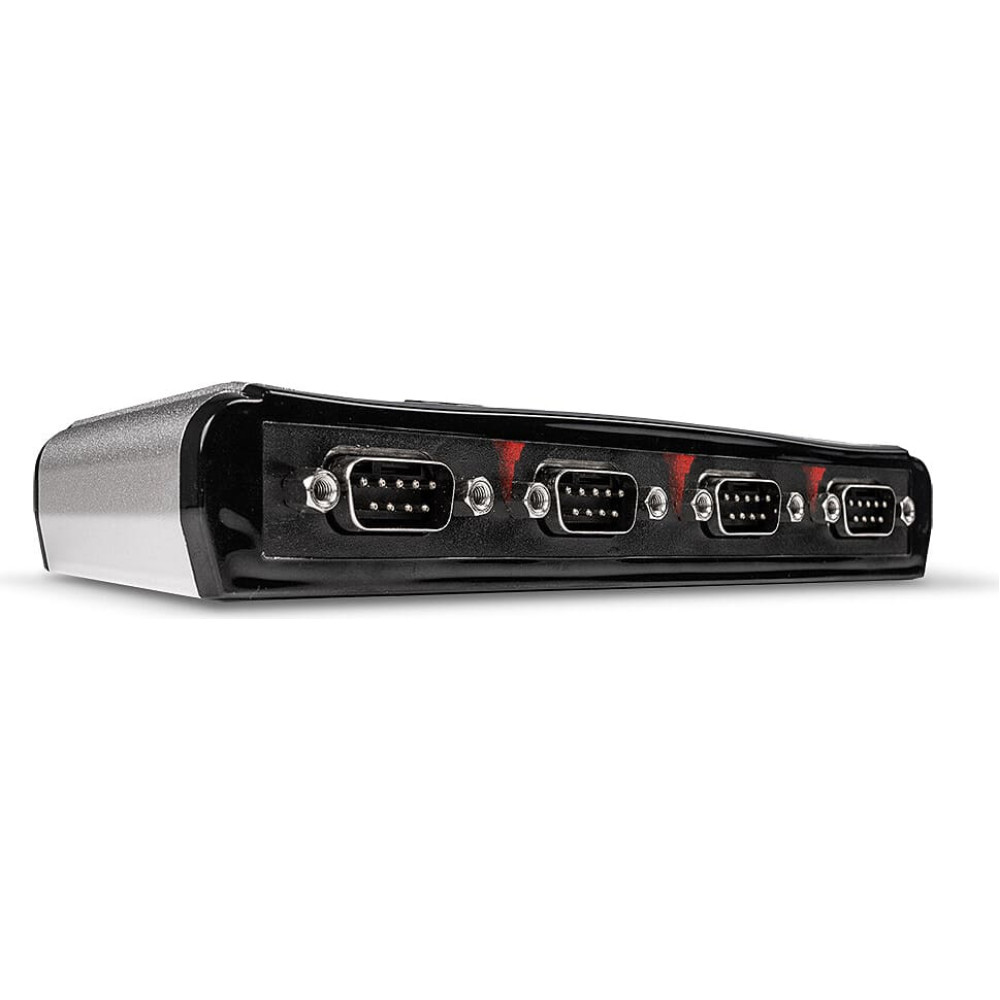

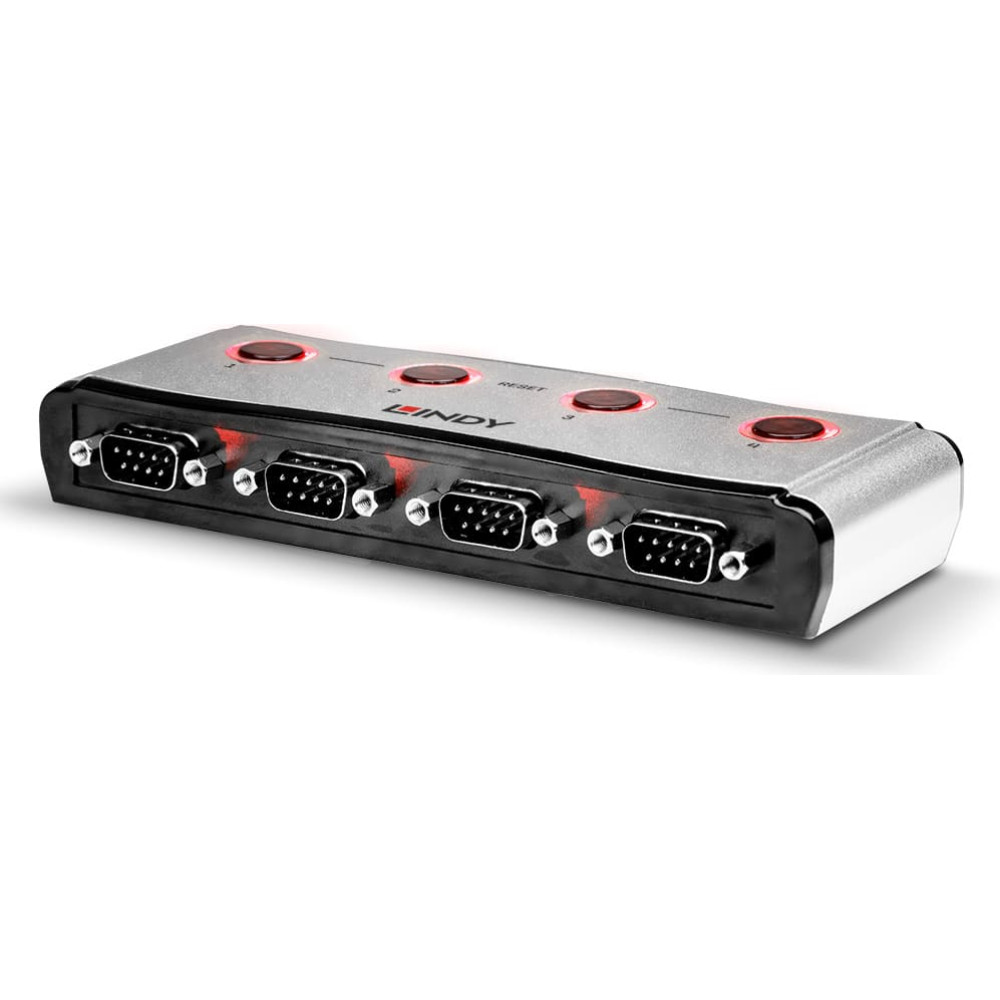

Lindy Konverter USB Seriell 4 Port

LINDY

Lindy Konverter USB Seriell 4 Port

Product Code: 42858
Barcode 4002888428583

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
baud rate: 921 Kbit/s
certification: CE, UKCA, FCC, RoHS & REACH
chipset: FTDI
connector gender: Male/Female
depth: 62 mm
height: 25 mm
host interface: USB 1.1
led indicators: Yes
mac compatibility: Yes
maximum cable length: 1.8 m
operating relative humidity (h-h): 0 - 80%
operating temperature (t-t): 0 - 50 °C
output interface: RS-232
package depth: 156 mm
package height: 68 mm
package weight: 379 g
package width: 196 mm
power consumption: 380 mA
product colour: Black, Silver
serial ports quantity: 4
storage temperature (t-t): -20 - 70 °C
weight: 172 g
width: 163 mm
windows operating systems supported: Yes
Description

Specifications

  • Interface: USB to 4 x RS232 Serial
  • Interface Standard: USB 1.1, RS232
  • Supported Bandwidth: 12Mbps, 3Mbaud
  • Chipset: FTDI
  • Compatibility: USB Type A equipped computers
  • Power Delivery: -
  • Special Features: -

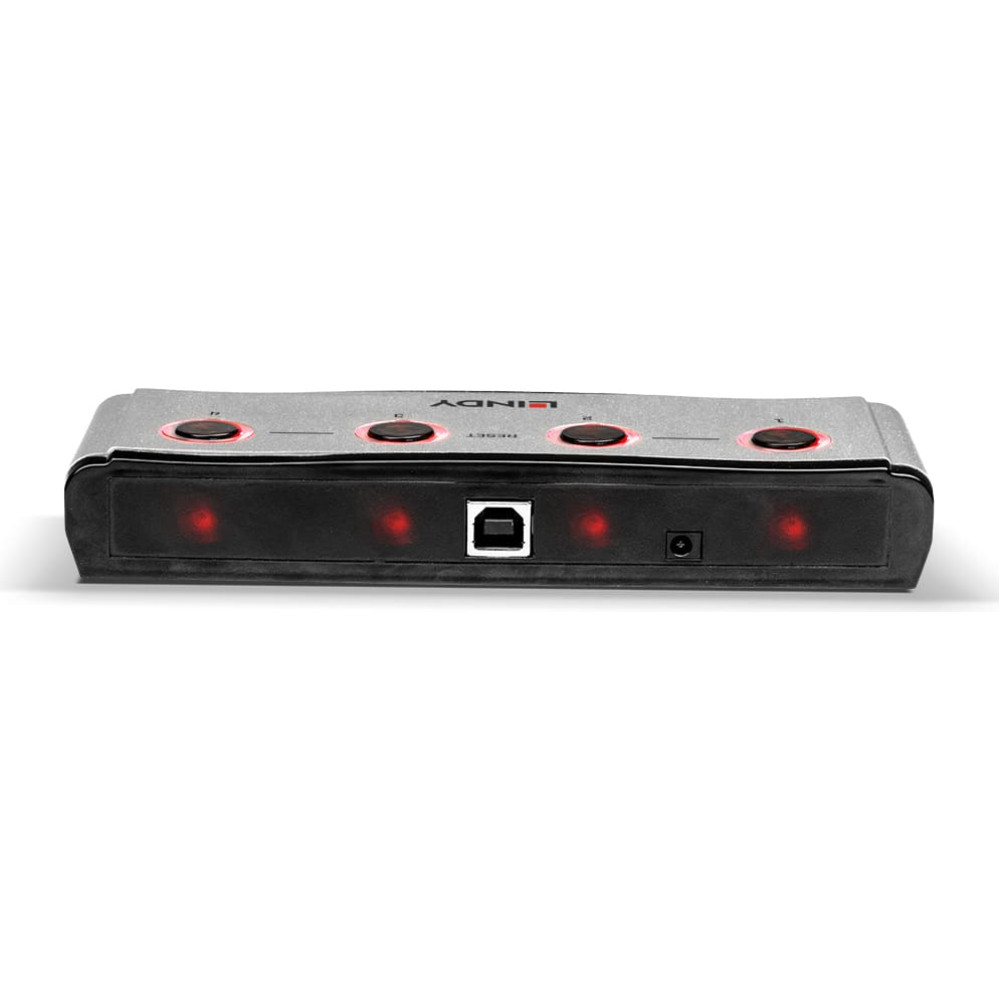

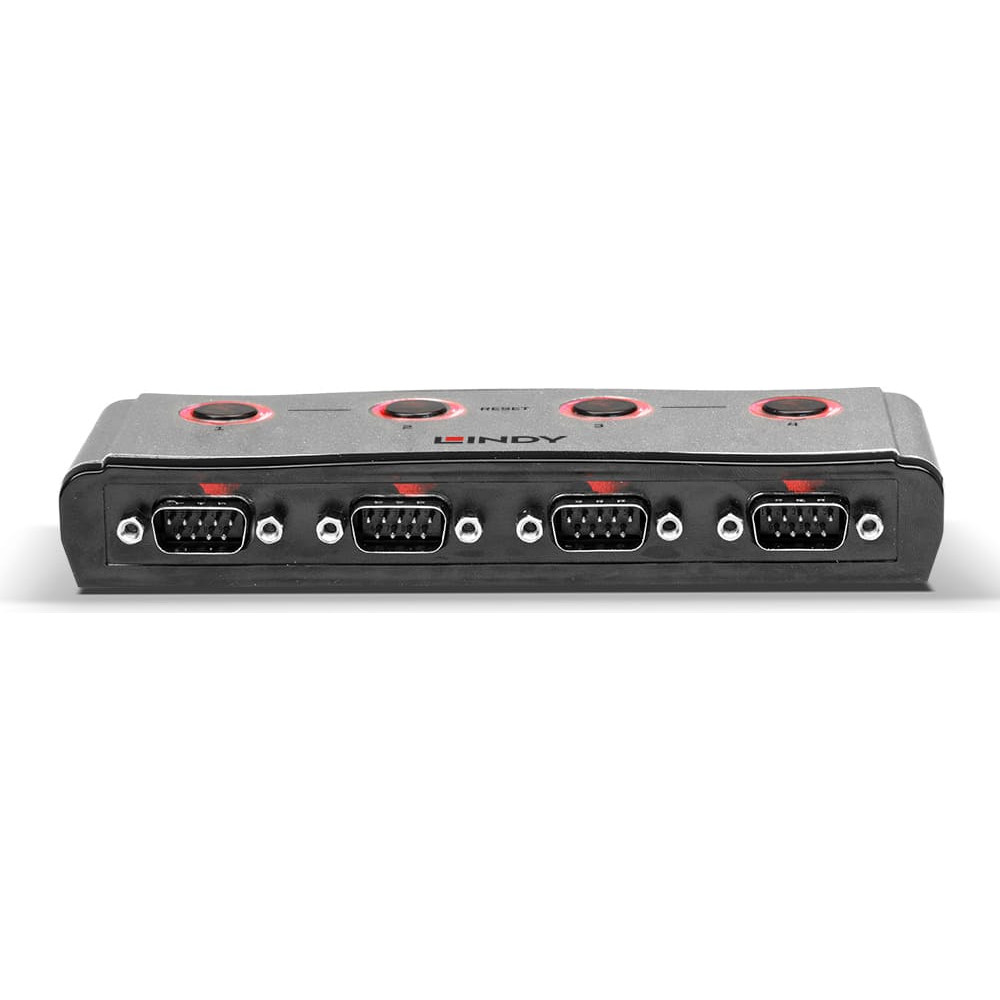

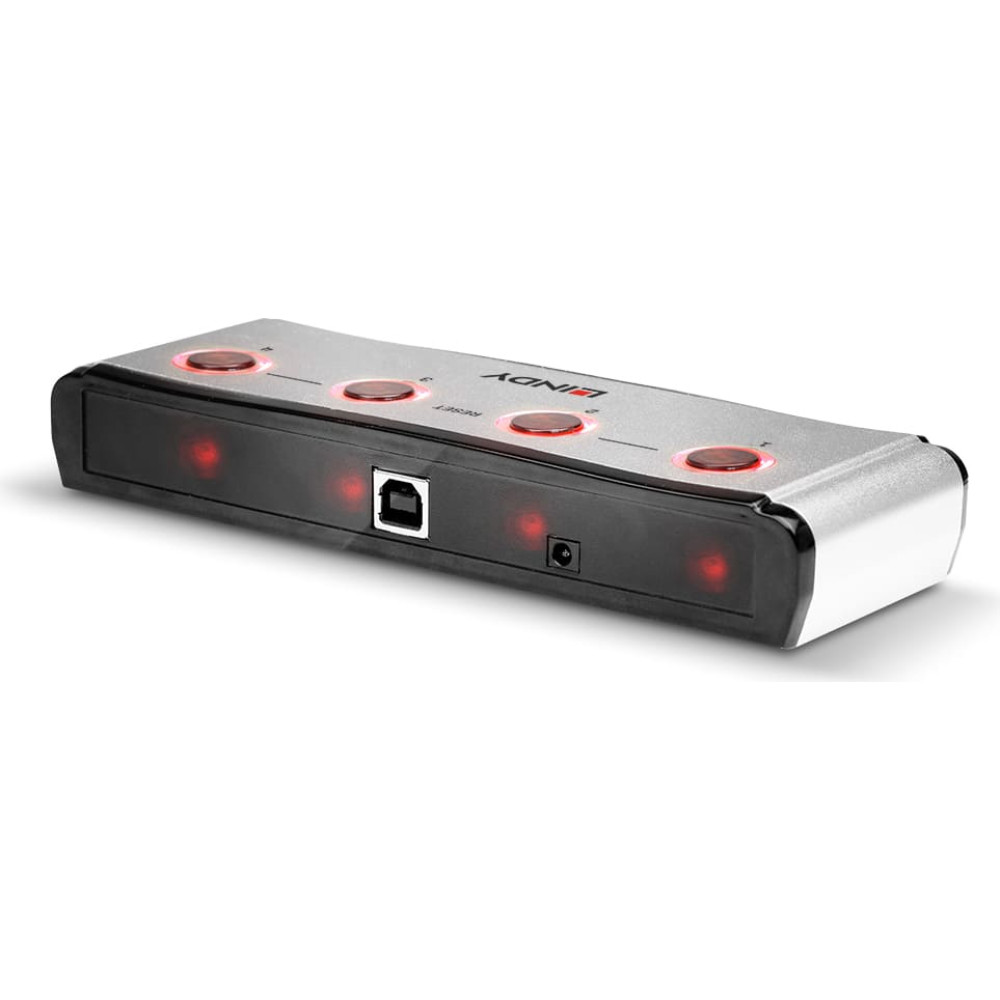

Connectors

  • Inputs: 1 x USB Type B (Female)
  • Outputs: 4 x RS232 9 way (Male)
  • Power: 3.5/1.35mm DC socket



Physical Properties

  • Dimensions WxDxH: 163x62x25mm (6.5x2.44x0.98in)
  • Cable Length: -
  • Housing Material: Plastic
  • Net Weight: 0.172kg (0.38lb)
  • Operating Temperature: 0°C - 50°C (32°F -122°F)
  • Storage Temperature: -20°C - 70°C (-4°F - 158°F)
  • Humidity: 0 - 80% RH (non-condensing)
  • Power Requirements: 380mA
  • Colour: Silver, black



Miscellaneous

  • Packaging Type: Polybag
  • Packaging Dimensions: 196 x 156 x 68mm (7.72x6.14x2.68in)
  • Gross Weight: 0.379kg (0.84lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS & REACH, California Proposition 65



Package Contents

  • USB to 4 Port Serial Converter
  • 1.8m USB Type A to B cable
  • Lindy Manual



Purchasing information

  • No.: 42858
  • EAN: 4002888428583
