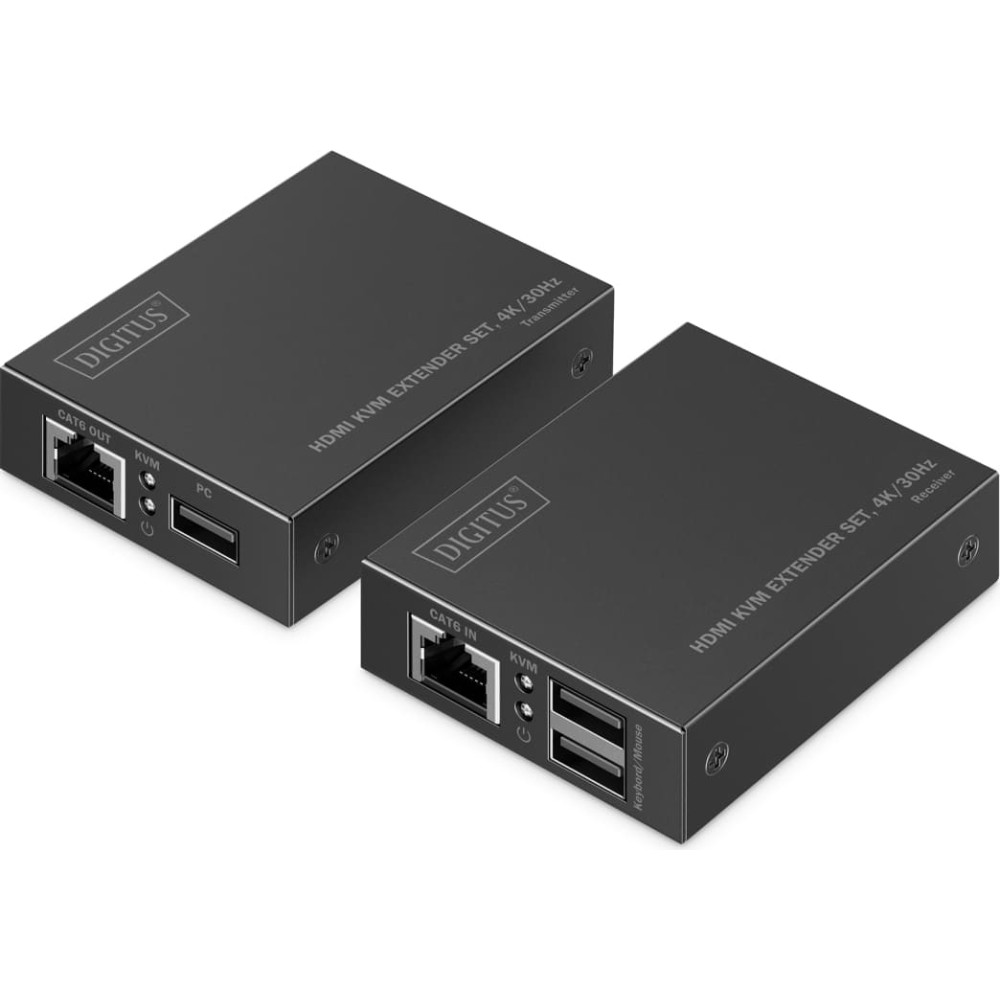

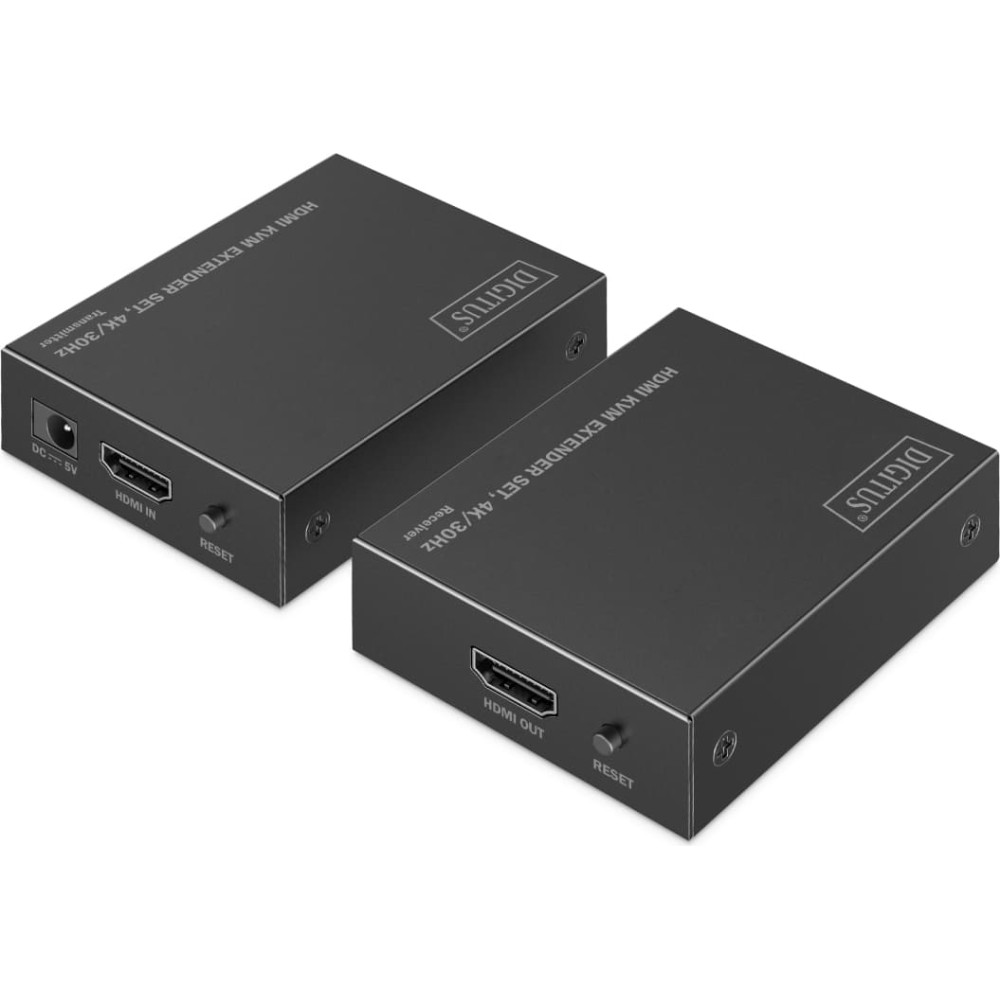

Digitus HDMI KVM Extender Set, 4K/30Hz
To purchase this product you must be registered in our system.
Specification
country of origin: CN
depth: 0.000
height: 0.000
height(cm): 7.7
length(cm): 15
volume(cm3): 1351.35
width: 0.000
width(cm): 11.7
Description

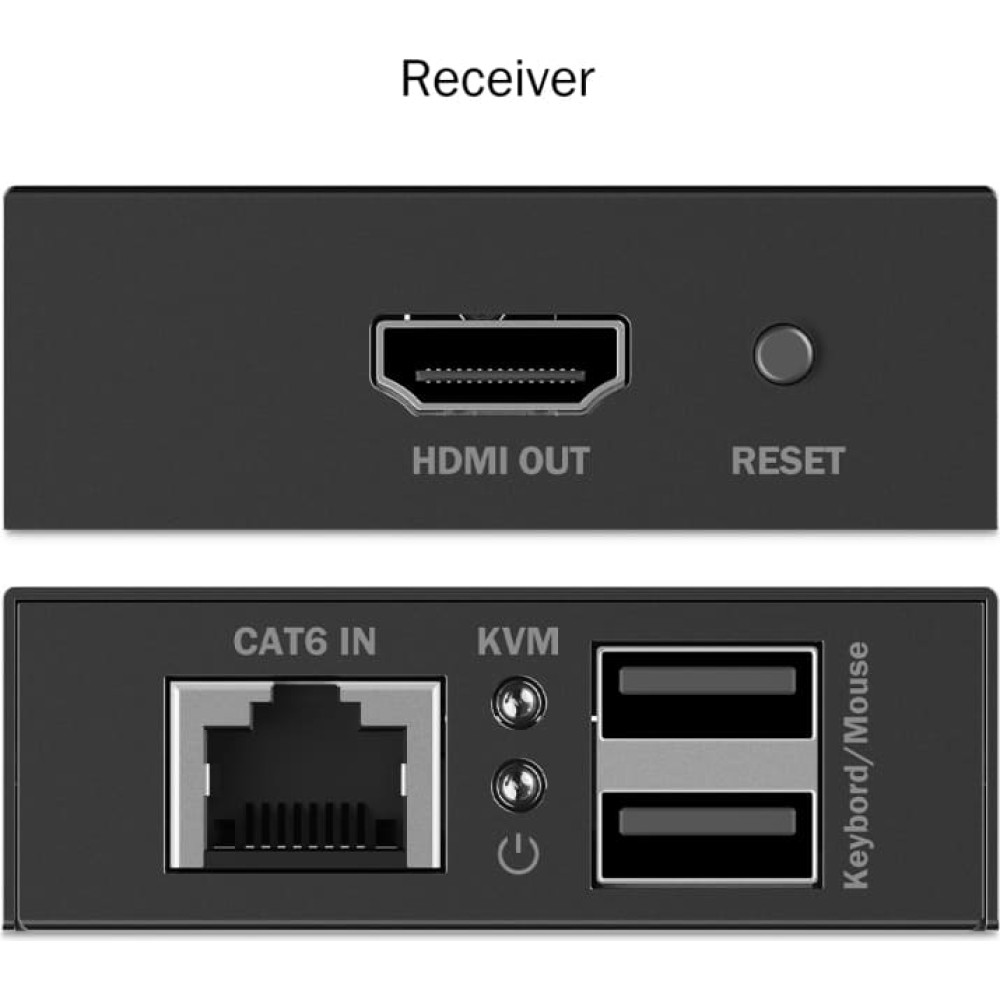

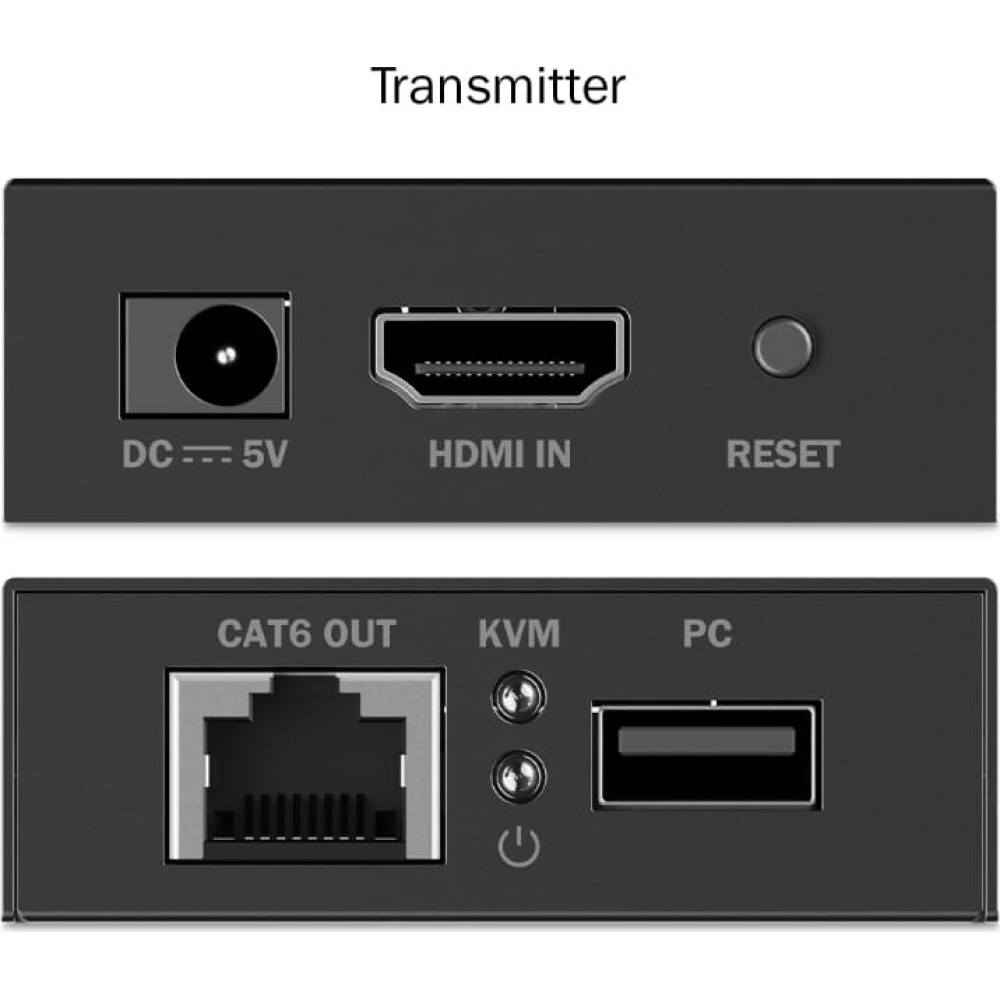

| HDMI KVM Extender Set, 4K/30Hz 40/70 m, PoC, CAT, Black Enables AV signal transmission in UHD resolution (4K/30Hz) over a distance of up to 40 m via a CAT6 (or higher) network cable and offers KVM function (keyboard, video, mouse) as well as PoC (Power over Cable) on the receiver side Loss-free HDMI signal transmission in UHD 4K/30Hz (3840x2160p) up to 40 m via CAT6 (or higher) network cable Loss-free HDMI signal transmission in Full HD (1080p/60Hz) up to 70 m via CAT6 (or higher) network cable Ultra Low Latency - Virtually latency-free image reproduction (10-20 ms) and uncompressed AV signal transmission Additional connectivity & control: KVM function for connecting mouse & keyboard on the receiver side Flexible installation thanks to PoC support: only the transmitter unit needs to be supplied with power via an external power supply unit Supports point-to-point connections Supports CAT6 (or higher) network cables Plug & Play installation The HDMI KVM Extender Set (4K/30Hz) enables lossless and virtually latency-free (10-20 ms) transmission of AV signals in Ultra HD resolution (4K/30Hz) over a distance of up to 40 meters using a CAT6 or higher-quality network cable. Thanks to the integrated KVM function, the mouse and keyboard can be connected directly to the receiver side, enabling convenient remote control. The system supports both uncompressed HDMI signal transmission in 4K/30Hz over 40 meters and Full HD (1080p/60Hz) transmissions over a distance of up to 70 meters. The ultra-low latency technology ensures virtually lag-free image playback (10-20 ms latency) and a seamless user experience. For easy and flexible installation, the set offers PoC (Power over Cable) support so that only the transmitter unit needs to be supplied with a power supply unit. Thanks to Plug & Play installation, quick and uncomplicated commissioning is guaranteed. The HDMI KVM Extender Set is the ideal solution for professional applications, conference rooms, industrial control systems or home theater setups that require high-resolution signal transmission with additional control options. HDTV Resolution max.: 3840 x 2160 Pixel, 30Hz HDTV Standard: Ultra HD 4K Category: CAT 6 Distance: 40 m KVM: true PoE (Power over Ethernet): false Transmission technology: CAT Video connection ports: HDMI Max. Resolution: Ultra HD 4K/30Hz (3840x2160p) Max. Range 4K/30Hz (3840x2160p): 40 m Max. Range 1080p/60Hz: 70 m Supports CAT6 or higher network cables HDMI 1.4 HDCP 1.4 Max. Video bandwidth: 10.2 Gbps Latency: 10-20 ms Supports HDR10 (High Dynamic Range) Max. HDMI cable length: 5 m Protection against ESD (electrostatic discharge) Transmitter unit (TX) connections: 1x HDMI input (4K/30Hz) - Signal source connection 1x RJ45 output (Gigabit Ethernet) - CAT transmission cable connection 1x USB-A (1.1) - Signal source connection (PC) 1x power supply connection (DC 5V/2A) - external power supply connection 1x reset button 2x status LED Receiver unit connections (RX): 1x HDMI output (4K/30Hz) - Display connection 1x RJ45 input (Gigabit Ethernet) - CAT transmission cable connection 2x USB-A (1.1) - Mouse & keyboard connection 1x reset button 2x status LED Operating temperature: -20° - 60° C Power consumption: TX + RX approx. 10 W Dimensions (1 unit): L 7.5 x W 6.0 x H 2.0 cm Weight (1 unit): 123 g Housing: Metal Color: Black Package content: 1x Transmitter unit 1x Receiver unit 1x Mains adapter, EU plug (DC 5V/2A, 1.2 m) 1x USB cable (1.2 m) 1x Operating instructions |
