Home Multimedia / Peripherals Videoswitches / Videoselectors Roline HDMI Splitter, 8K60Hz, 1x2

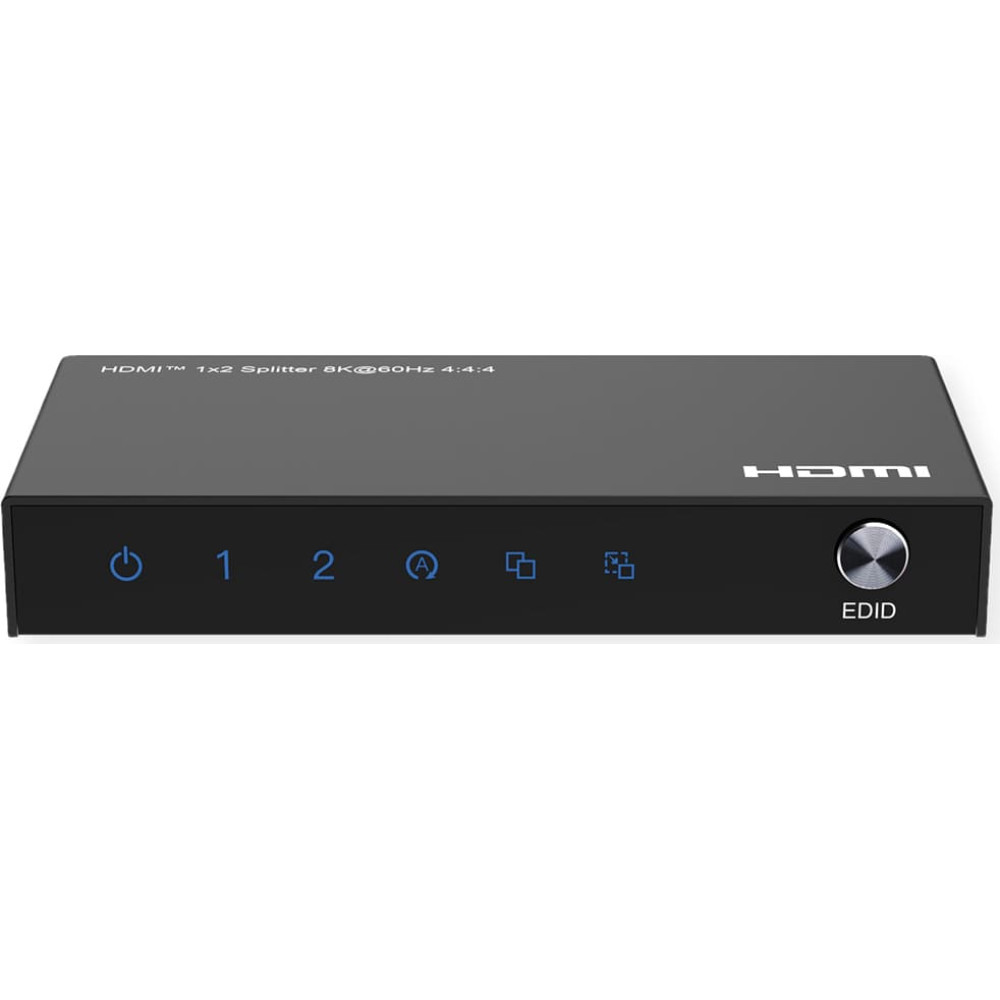

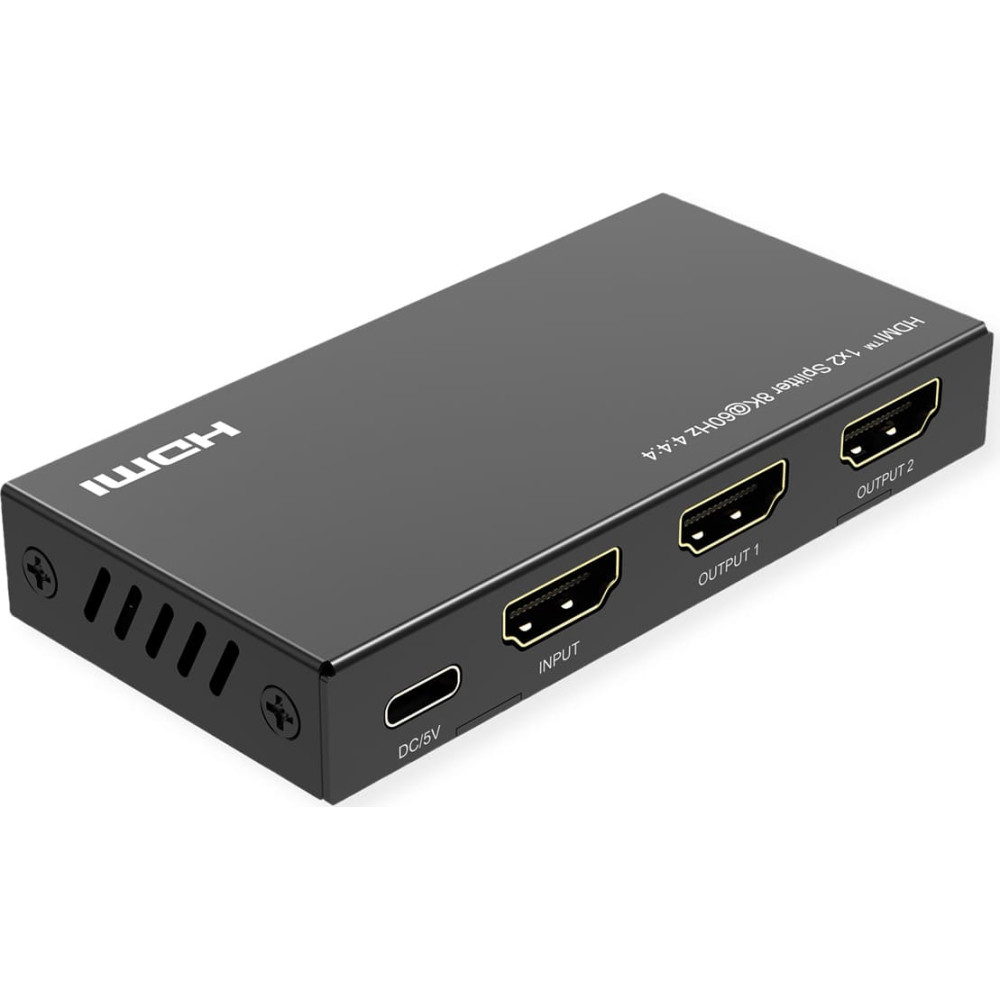

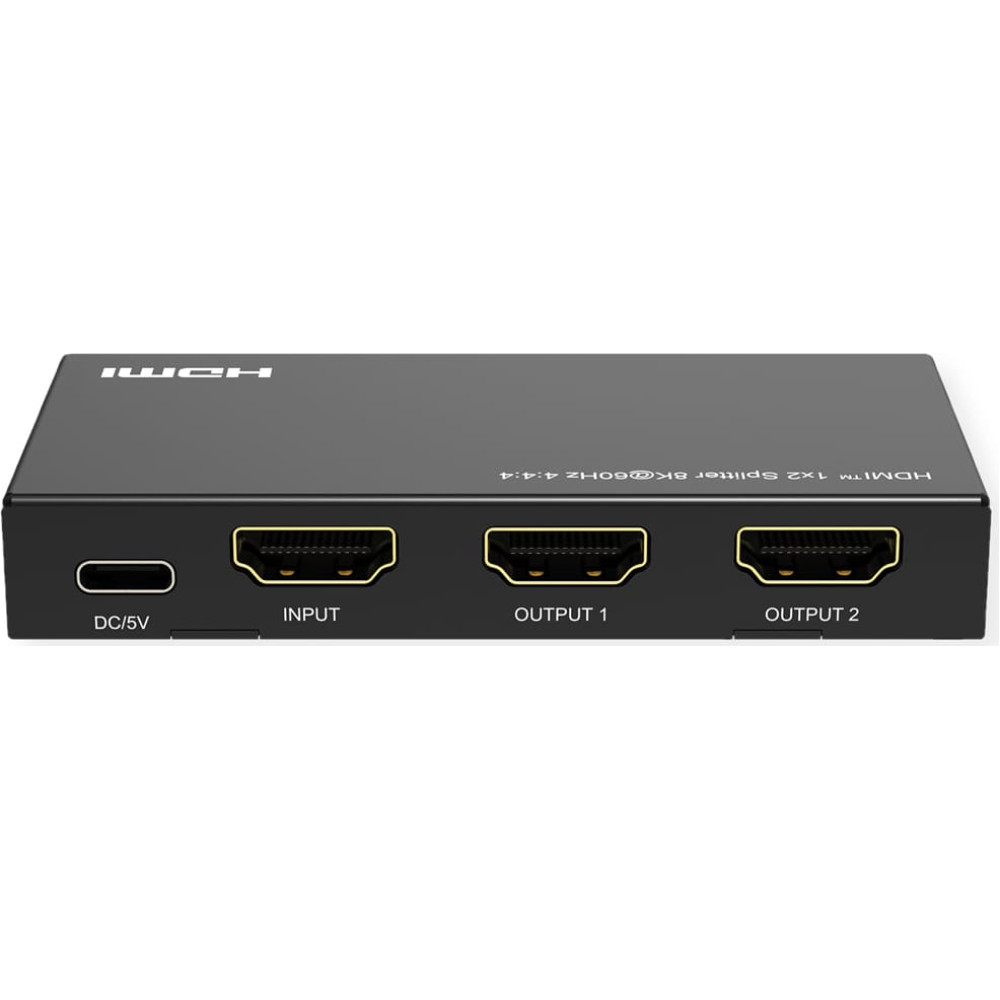

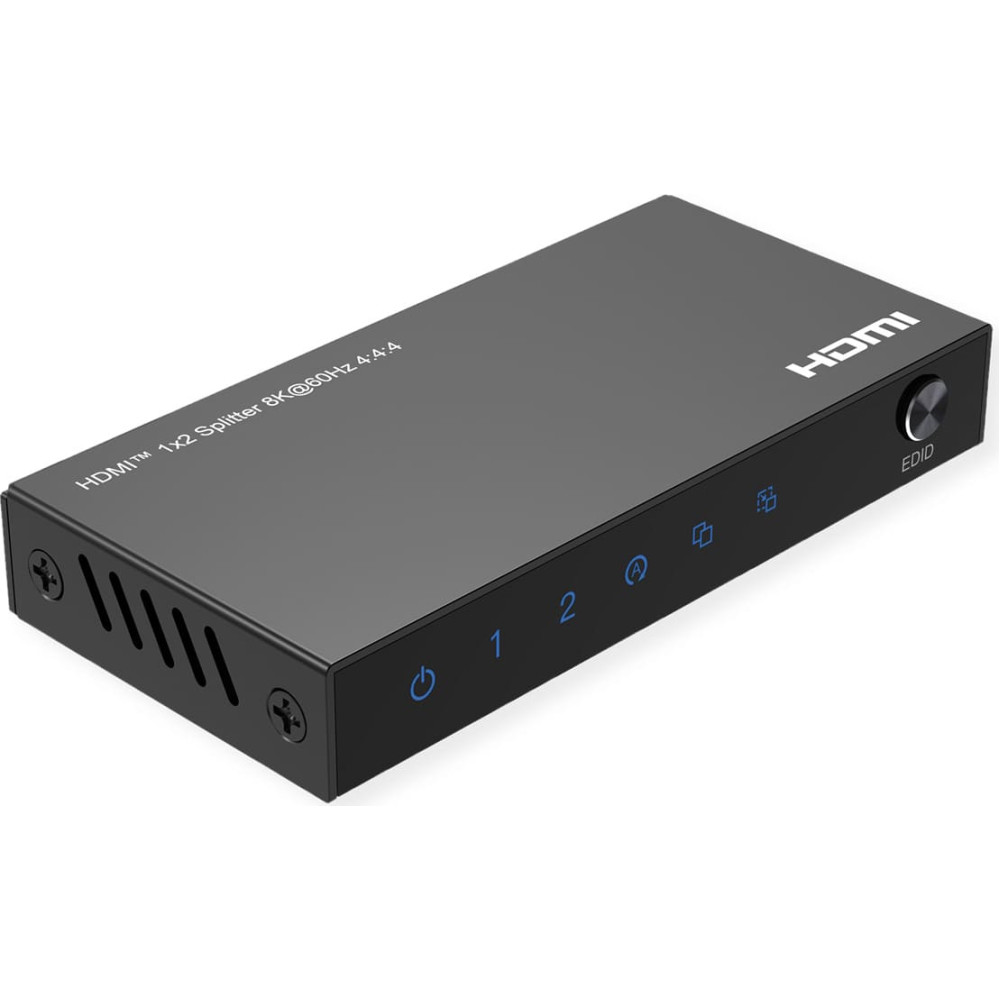

Roline HDMI Splitter, 8K60Hz, 1x2

ROLINE

Roline HDMI Splitter, 8K60Hz, 1x2

Product Code: 14.01.3558
Barcode 7630049673311

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
colour: black
current catalog edition: C25-New.11
depth: 44 mm
depth of packaging (single piece): 130 mm
dimensions (hxwxd): 14 x 90 x 44 mm
gross weight: 0.1
height: 14 mm
height of packaging (single piece): 20 mm
inputs: 1
interface: HDMI
manufacturer: ROLINE
max. resolution: 7680 x 4320 @60Hz (8K, UHD-2)
operating temperature max.: 70 °C
operating temperature min.: 0 °C
outputs: 2
package weight (single piece): 0.1 kg
product group: Splitters and selectors
product type: HDMI-Video-Splitter
scope of delivery: HDMI Splitter, USB Power Cable Type A - C, User Manual
video input: 1x HDMI Female
video output: 2x HDMI Female
weight: 87 g
width: 90 mm
width of packaging (single piece): 90 mm
Description

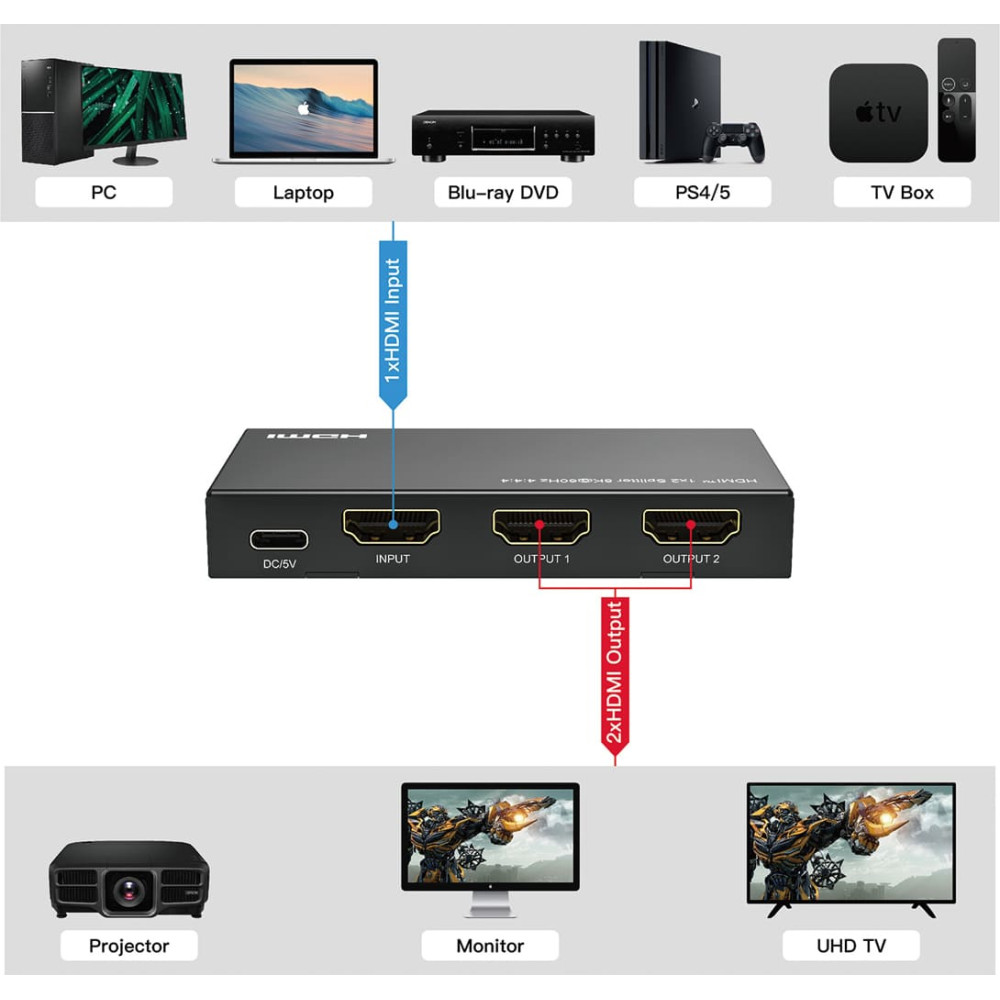

ROLINE HDMI Splitter for connecting up to two HDMI capable end devices (monitor, projector, etc) with 8K resolution at 60 Hz.

  • For use in presentations or for training purposes
  • Maximum resolution: 7680 x 4320 @60Hz
  • Full 3D video format
  • High definition resolution 8K@60Hz 4:4:4, 4K@120Hz and 1080P@240Hz
  • HDCP 2.3, and backwards compatible with HDCP 2.2 and HDCP 1.4
  • Uncompressed audio such as LPCM
  • Compressed audio such as DTS, Dolby Digital (including DTS-HD Master Audio™ and Dolby TrueHD)
  • High Dynamic Range (HDR) video pass-through, such as HDR10/HDR10+/Dolby vision etc.
  • Power supply via USB cable Type A-C (included)
