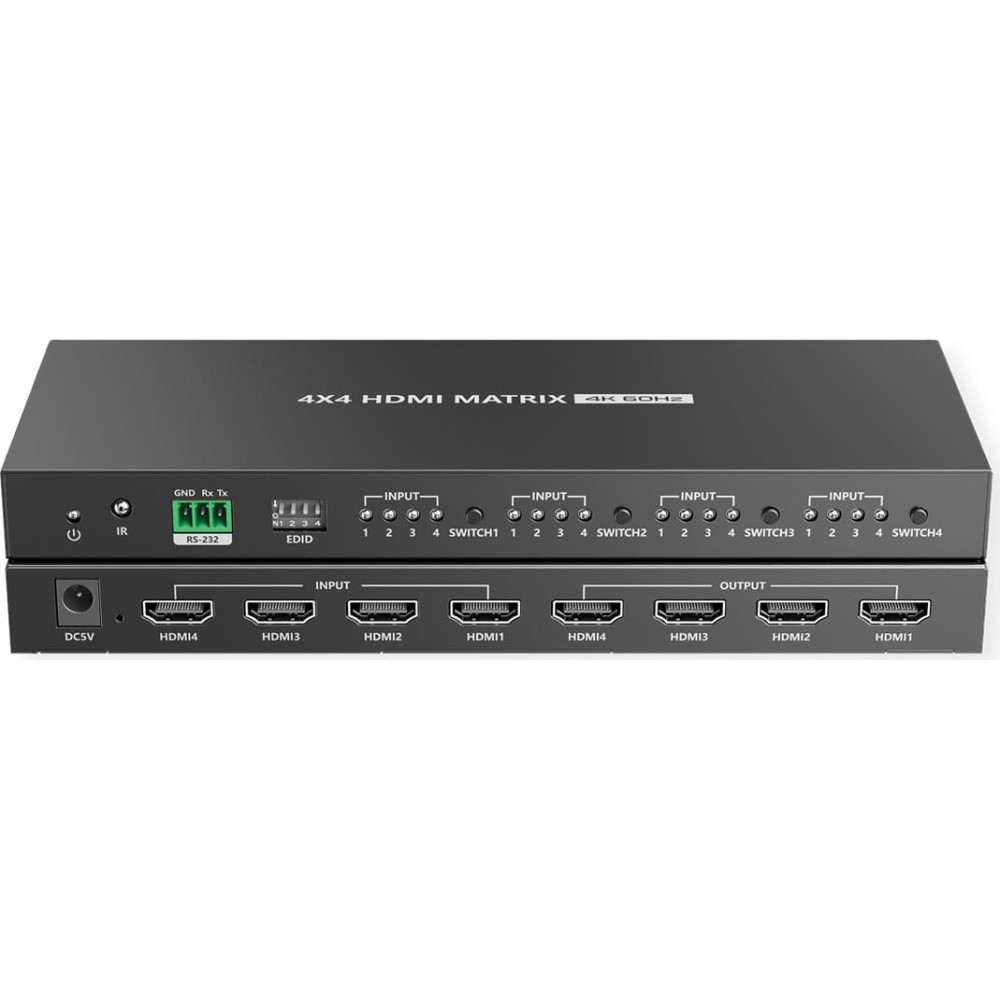

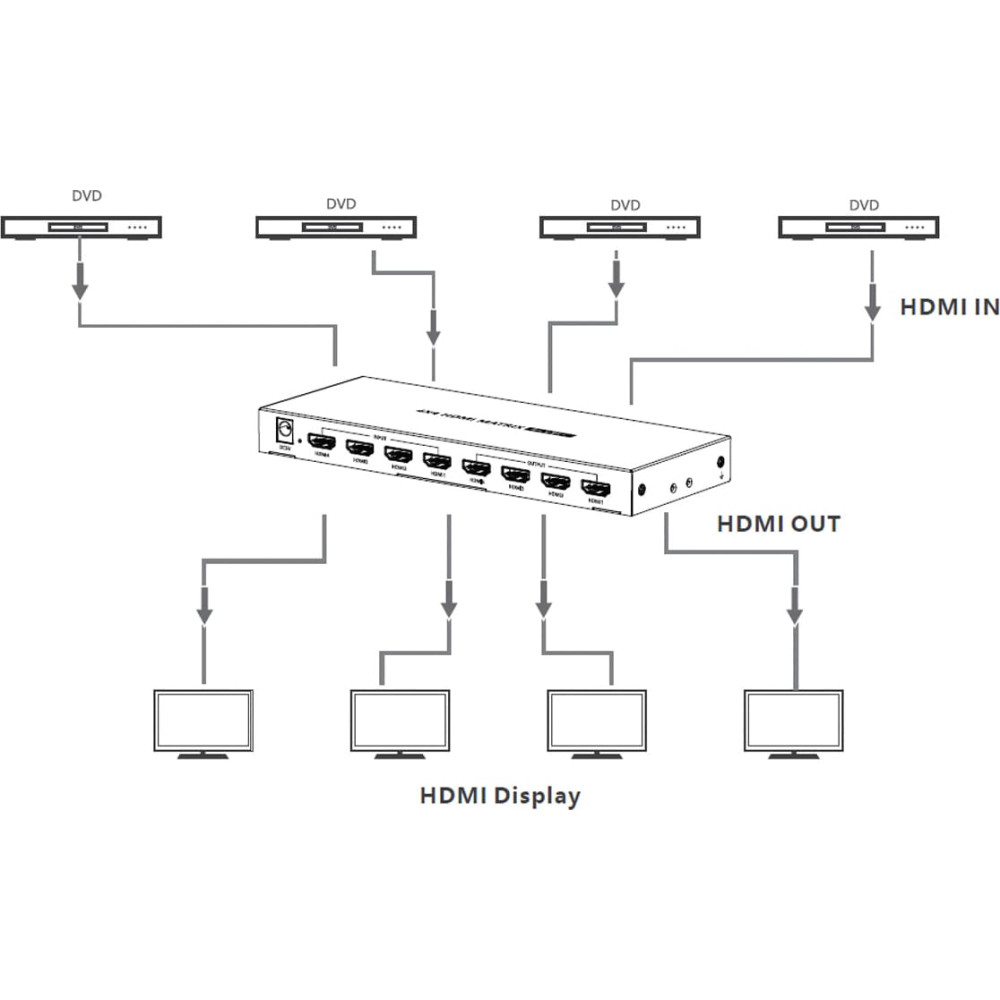

This 4 in 4 out HDMI Matrix can switch 4 HDMI input signals (PC, notebook, etc.) to 4 HDMI displays (monitor, projector, etc.) with resolutions up to 4096x2160@60Hz. It supports multiple switching methods (buttons on the matrix, IR remote control and RS232). Any two of the four HDMI outputs support automatic down-scaling. This matrix can be used in security surveillance, education, training, exhibitions, trade shows, broadcasting, command centers and many other applications.

• Four HDMI input signals can be switched to four HDMI output devices
• Up to 4K (4096 x 2160 @60Hz) resolution and backwards compatible
• Compatible with HDCP 2.2 and HDCP 1.4
• Any two of the four HDMI outputs support auto down-scaling.
• Supported digital audio formats: DTS-HD/Dolby-TrueHD/LPCM7.1/DTS/Dolby-Atmos

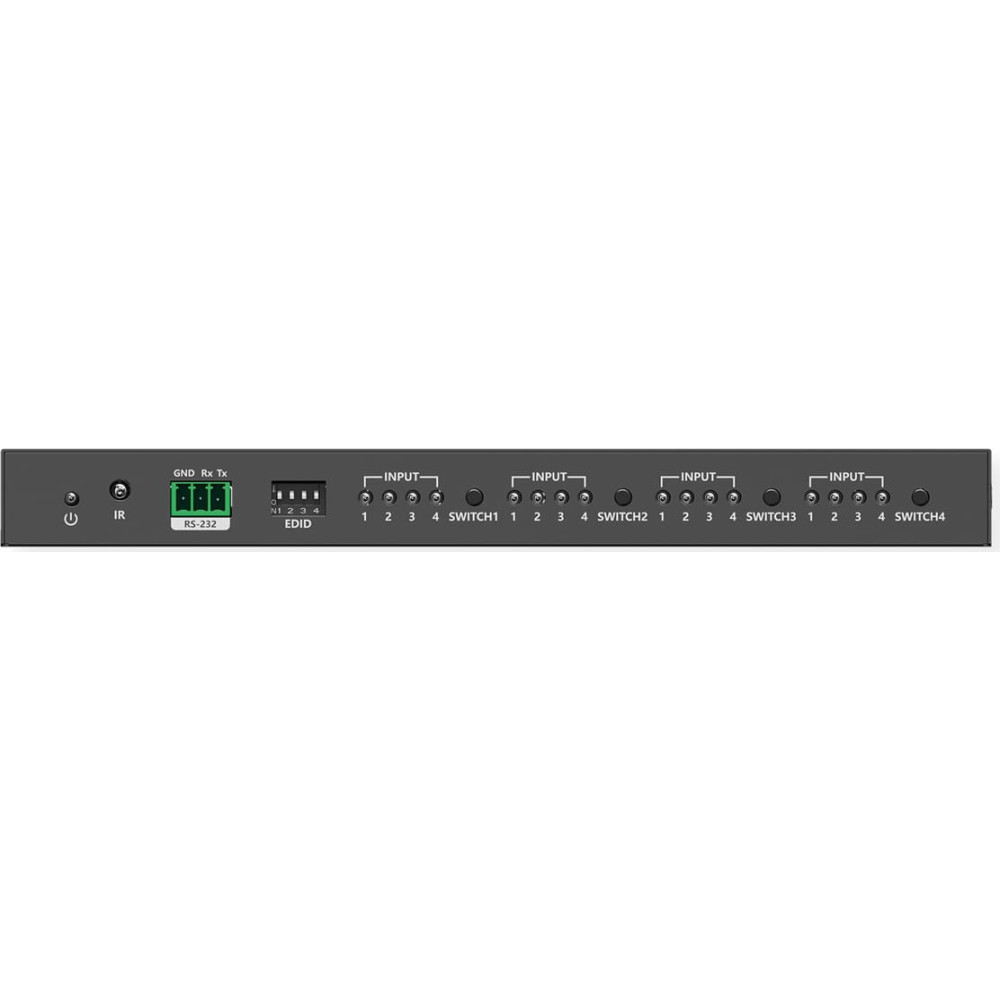

• Input devices can be switched by push buttons on the switch, IR remote control or by RS-232
• 16 different EDID states / resolutions can be set with the DIP switch

• Contents: HDMI Matrix Switch, Power Supply, Remote Control, Mounting Ears (2x), Terminal Block, User Manual
