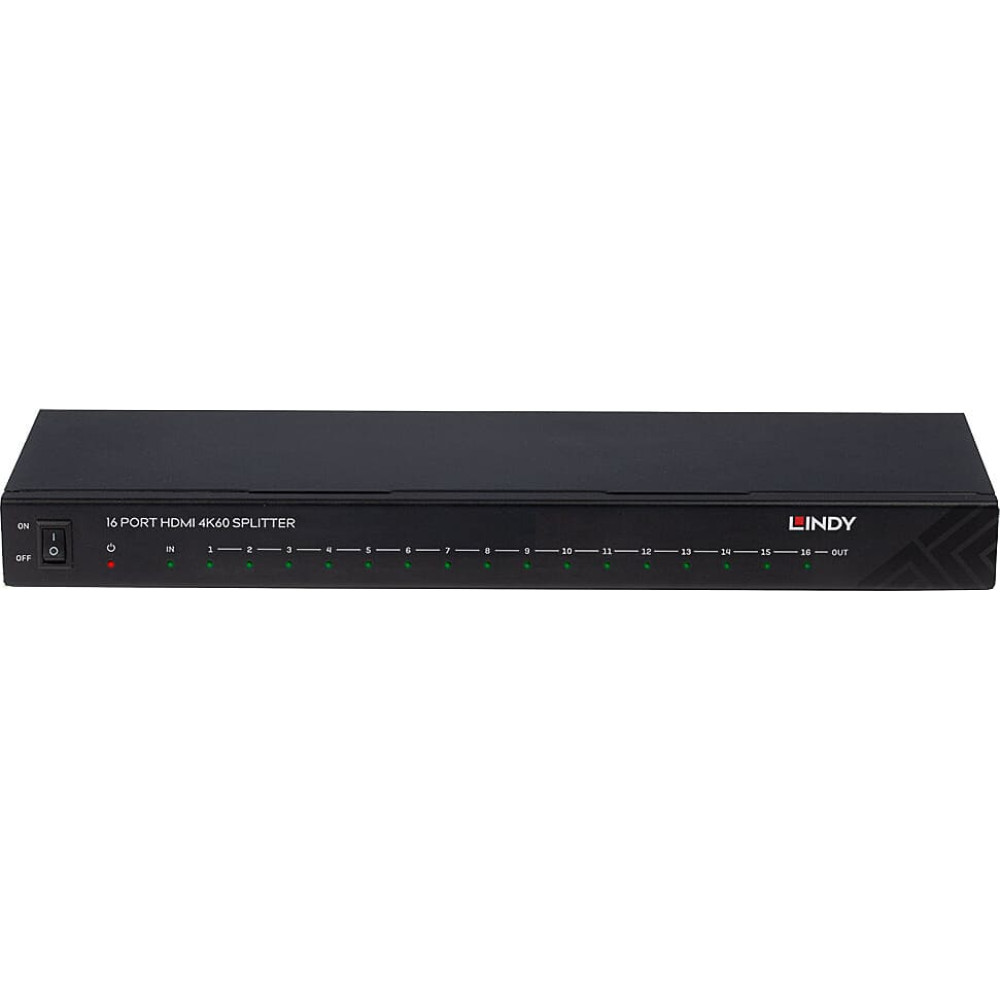

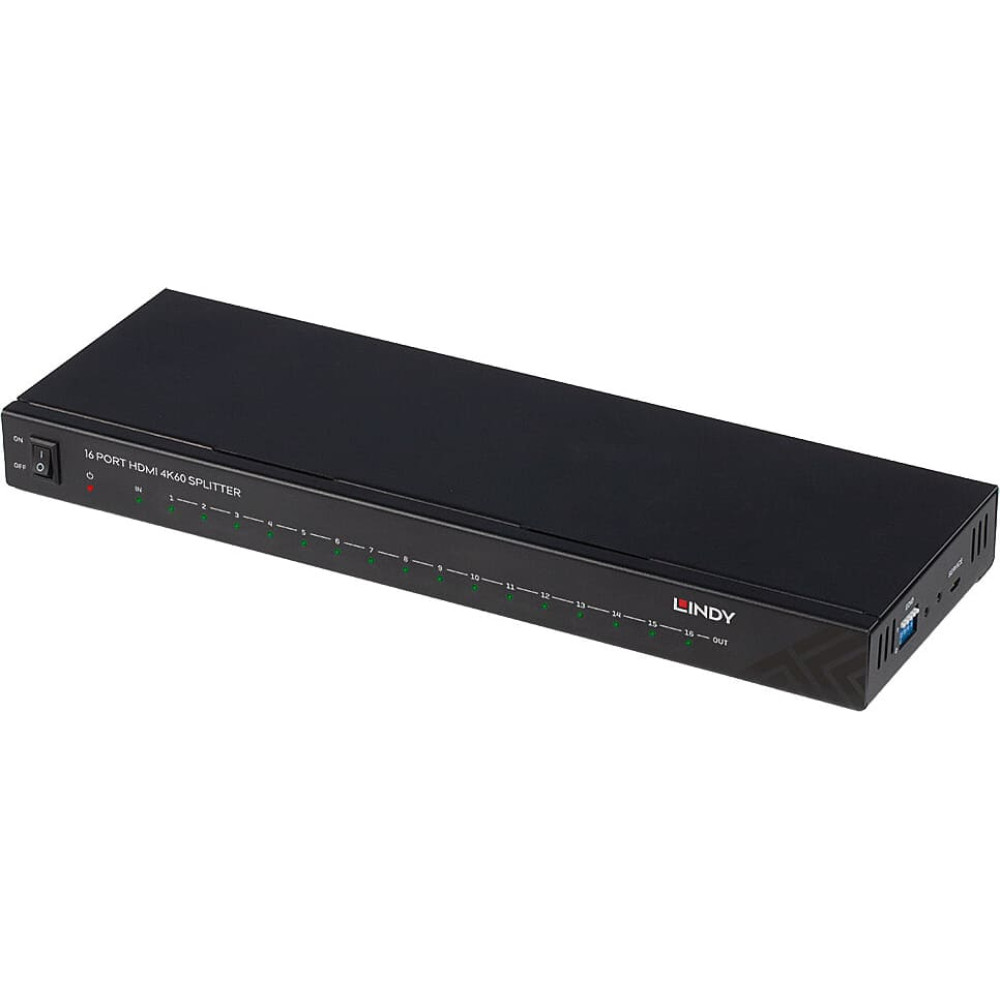

Lindy 16 Port HDMI 4K60 Splitter

Product Code: 38239

Barcode 4002888382397

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

ce doc: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/c3/1e/87/63/63871ec34a1fd1a42515d9fc/CE_DoC_DE_38239.pdf

ce docs: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/c3/1e/87/63/63871ec34a1fd1a42515d9fc/CE_DoC_DE_38239.pdf

connector 1: 16 x HDMI Type A

connector 2: HDMI Type A

country of origin: CN

easy to install: Yes

gross weight: 1.28

hd type: 4K Ultra HD

hdcp: Yes

hdcp version: 2.2

hdmi version: 2.0

led indicators: Yes

manual: Yes

maximum refresh rate: 60 Hz

maximum resolution: 3840 x 2160 pixels

net weight: 0.90

packaging height: 2.80

packaging lenght: 10.00

packaging width: 30.00

product colour: Black

quantity per pack: 1 pc(s)

video out: 16x HDMI

video port type: HDMI

video ports quantity: 1

warranty: 2

Description

Specifications

AV Interface: HDMI®
Interface Standard: HDMI® 2.0
Supports Bandwidth: 18Gbps
Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
HDCP Support: 2.2
Supported Audio: Audio Pass-through
Separate Audio Ports: -
CEC Support: -
Serial Interface: -
Special Features: EDID Management

Connectors

Input: HDMI® Type A (Female)
Output: 16 x HDMI® Type A (Female)
Control: -
Power : 5.5/2.1mm

Physical Properties

Dimensions (approx.) WxDxH: 300x100x28mm (11.81x3.94x1.1in)
Housing Material: Metal
Net Weight: 0.9kg (1.98lb)
Operating Temperature: 0°C - 40°C (32°F - 104°F)
Storage Temperature: -20°C - 60°C (-4°F - 140°F)
Humidity: 20 - 90% RH (non-condensing)
Power Requirements: 12VDC 3A
Colour: Black

Miscellaneous

Packaging Type: Carton Box
Packaging Dimensions: 350x220x60mm (13.78x8.66x2.36in)
Gross Weight: 1.28kg (2.82lb)
Warranty (Years): 2
Certificated: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

Package Contents

16 Port HDMI® 4K60 Splitter
Multi-Country Power Supply (EU, UK, US & AUS)
Lindy Manual

Purchasing Information

No.: 38239
EAN: 4002888382397

CE Doc: CE_DoC_DE_38239.pdf
