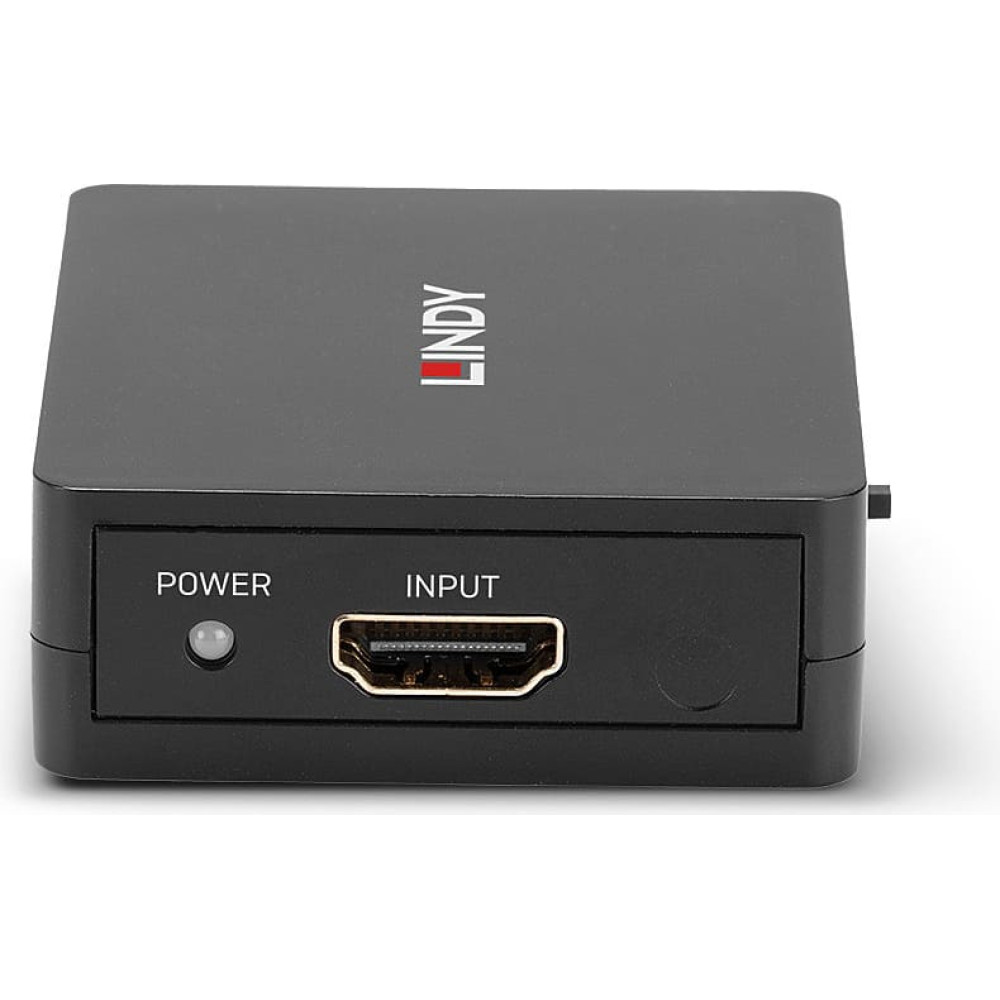

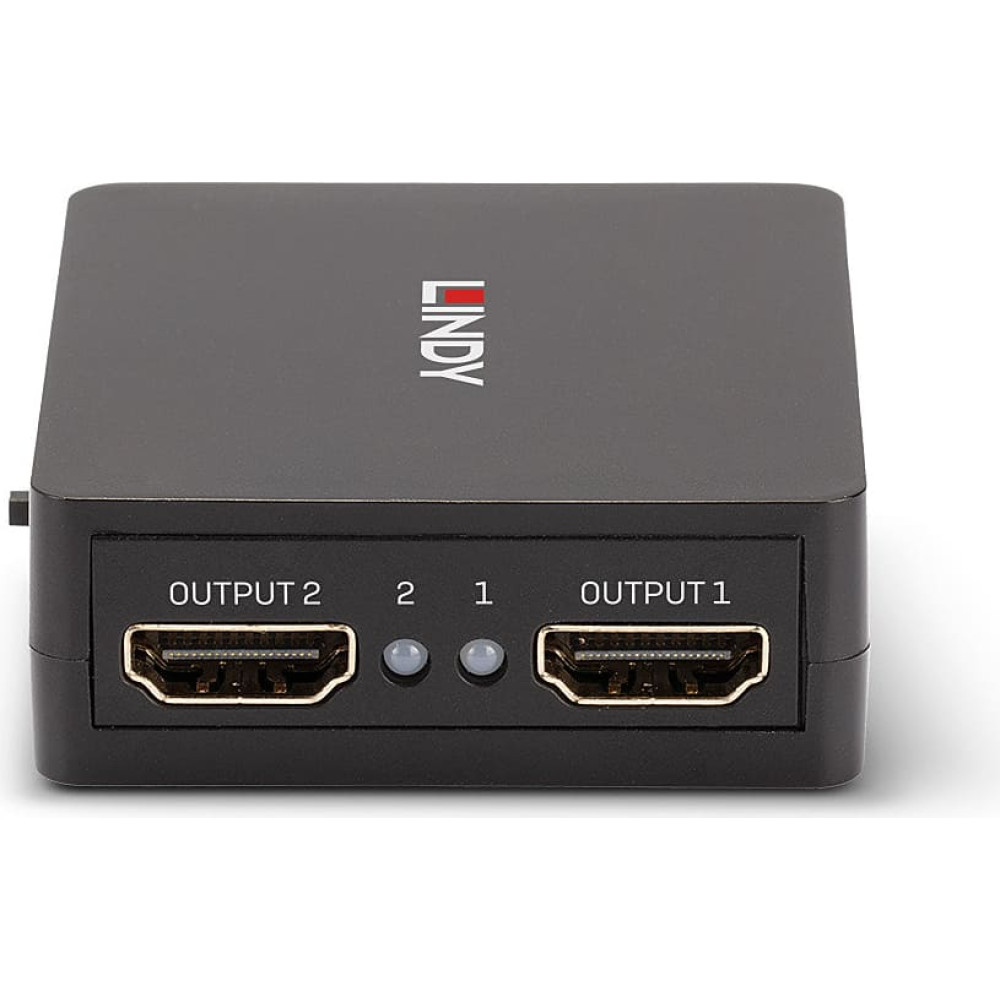

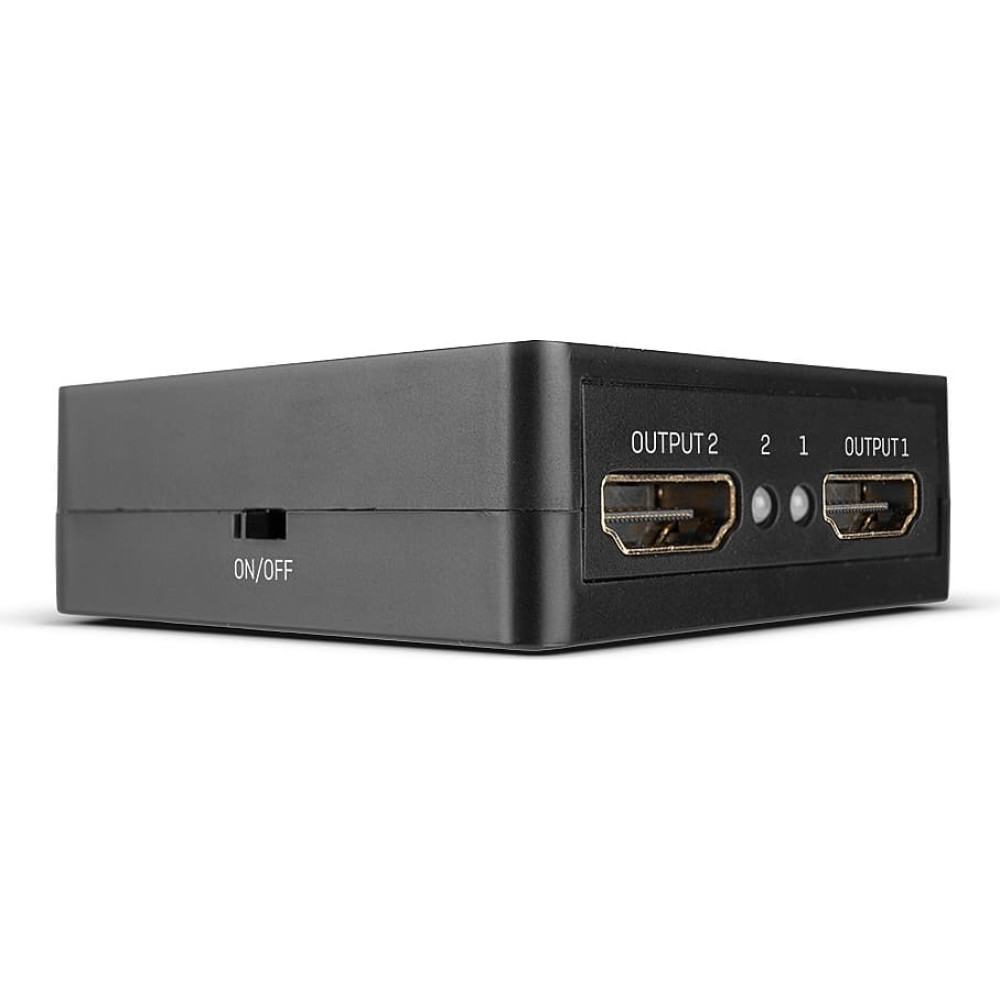

Lindy 2 Port HDMI 18G Splitter, Compact

Product Code: 38358

Barcode 4002888383585

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

cables included: USB

country of origin: CN

depth: 54 mm

gross weight: 0.09

harmonized system (hs) code: 85176990

hdcp: Yes

hdcp version: 2.2

hdmi version: 2.0

height: 20.5 mm

housing material: Metal

manual: Yes

manuals: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/92/67/97/62/62976792999c8d635dc13d39/Lindy_38358_Man_0121.pdf

maximum resolution: 3840 x 2160 pixels

net weight: 0.06

operating relative humidity (h-h): 5 - 95%

operating temperature (t-t): 0 - 70 °C

package depth: 105 mm

package height: 24 mm

package type: Box

package weight: 105 g

package width: 133 mm

packaging height: 2.50

packaging lenght: 13.50

packaging width: 10.50

product colour: Black

storage temperature (t-t): -10 - 80 °C

usb powered: Yes

video out: 2x HDMI

video port type: HDMI

video ports quantity: 3

warranty: 2

weight: 42 g

width: 60.5 mm

Description

Specifications

AV Interface: HDMI®
Interface Standard: HDMI® 2.0
Supports Bandwidth: 18Gbps
Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
HDCP Support: 2.2
Supported Audio: Audio Pass-through

Connectors

Input: HDMI® Type A (Female)
Output: 2 x HDMI® Type A (Female)
Power : Mini-B (Female)

Physical Properties

Dimensions (approx.) WxDxH: 60.5x54x20.5mm (2.38x2.13x0.81in)
Housing Material: Plastic
Net Weight: 0.058kg (0.13lb)
Operating Temperature: 0°C - 70°C (32°F - 158°F)
Storage Temperature: -10°C - 80°C (14°F - 176°F)
Humidity: 5% to 90% RH (no condensation)
Power Requirements: 5VDC 1A
Colour: Black

Miscellaneous

Packaging Type: Carton Box
Packaging Dimensions: 133x105x24mm (5.24x4.13x0.94in)
Gross Weight: 0.083kg (0.18lb)
Warranty (Years): 2
Product Compliance: CE, FCC, RoHS, REACH & California Proposition 65

Package Contents

2 Port HDMI® 18G Splitter
USB to Mini-B Cable, 0.76m
Lindy Manual

Purchasing Information

No.: 38358
EAN: 4002888383585

Manuals: Lindy_38358_Man_0121.pdf
