Bachmann 19" socket strip 7-fold with ÜS with switch

Product Code: 333.405
Barcode 4016514014484

To purchase this product you must be registered in our system.



Specification
colour: various
colour (design profile): Aluminium
connection cable: H05VV-F 3G 1,5mm²

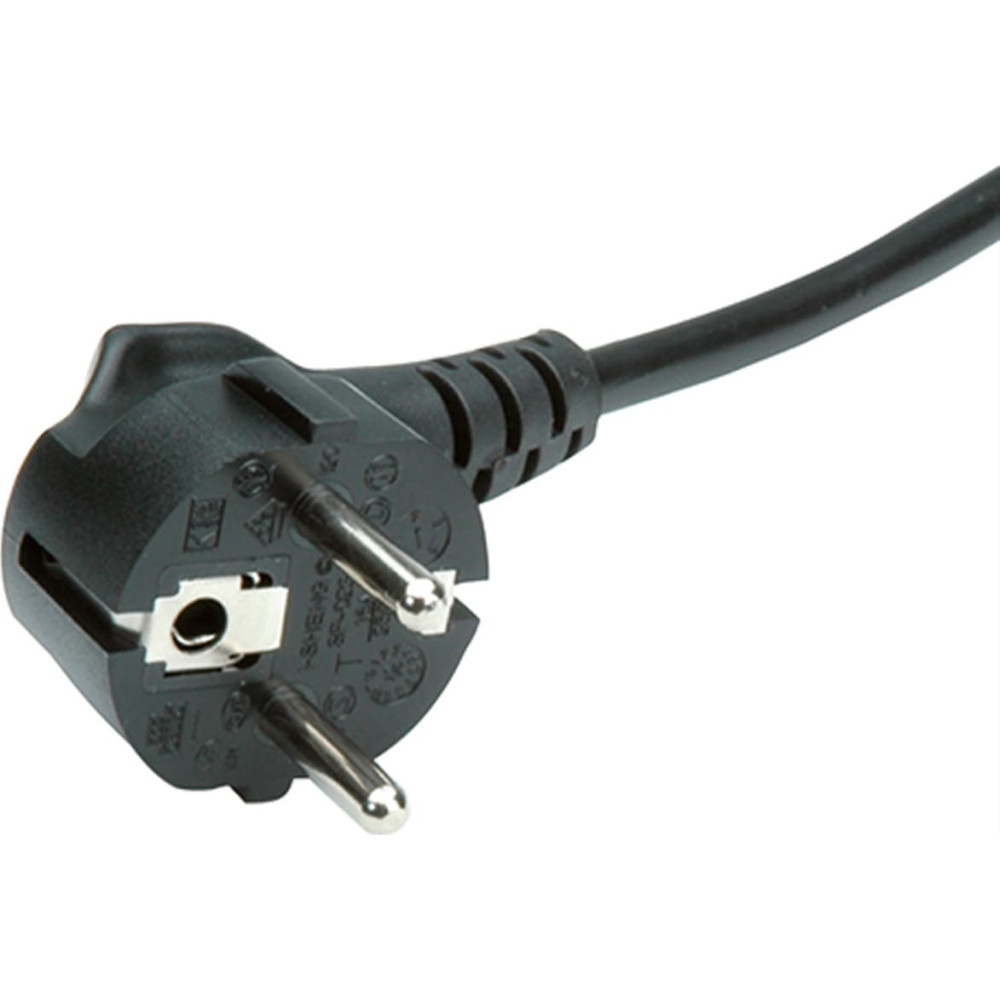

connector plug: Schuko
current catalog edition: 24.1
current catalog page: 10.19
depth: 44 mm
depth of packaging (single piece): 480 mm
function: 19" socket strip
gross weight: 0.892
height: 44 mm
height of packaging (single piece): 50 mm
length: 2 m
length: 2 m
manufacturer: BACHMANN
material (casing): Aluminium
max. capacitance: 3600W
max. voltage: 250V AC
mounting form: 19" Rackmount
number of socket pots: 7
on/off switch: yes
output alignment: Reihe
package weight (single piece): 0.892 kg
product group: Power Bars
product type: 19" power strip with surge protection
quantity of outputs/angles: 7 / 45°
regional use: Germany, Austria, Netherlands
switch type: 2 pol. beleuchtet
technical particularity: 10A Sicherung
weight: 0.88 kg
width: 440 mm
width of packaging (single piece): 100 mm

Description

19" socket strip for installation in 19" cabinets

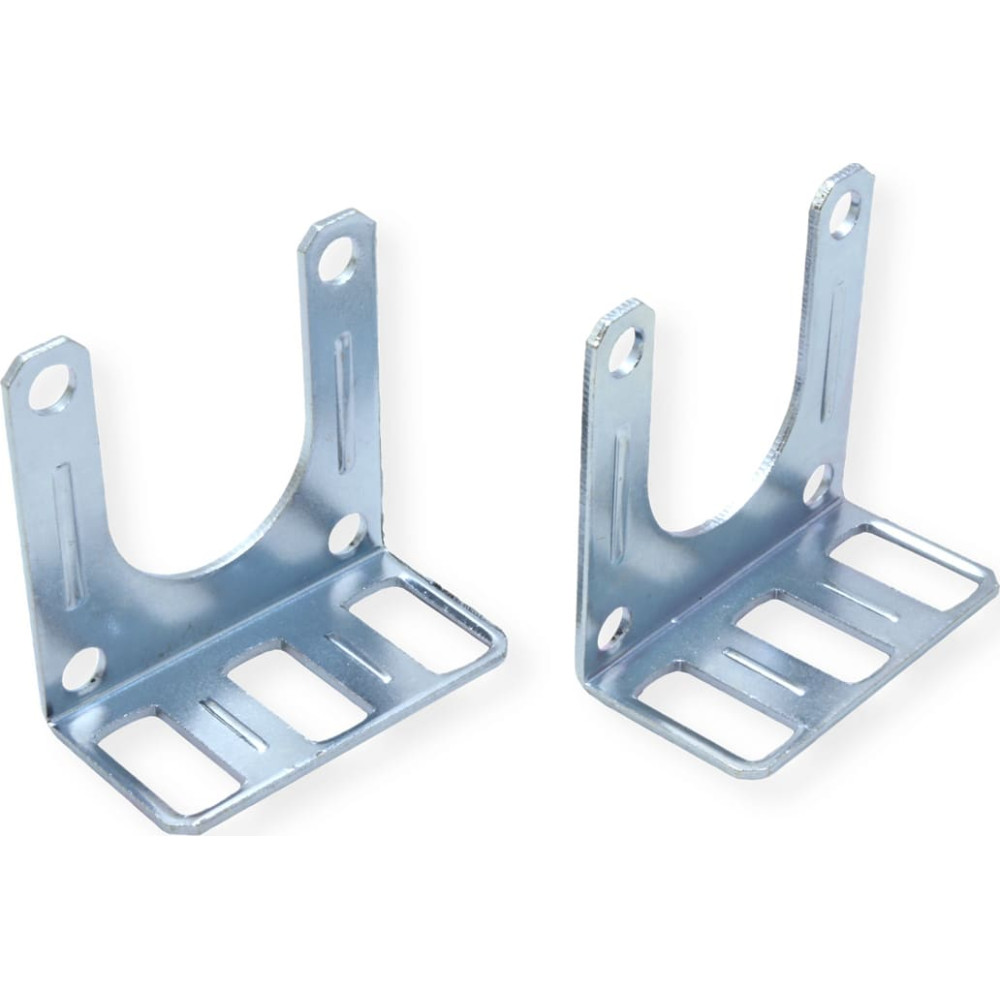

- 19" socket strip 1 U for installation in 19" cabinets, incl. installation bracket - Socket outlet arrangement 35° - Suitable for 16 A, with varistors, thermal fuse, gas discharge tube, visual function and failure indicator - Profile made of anodised aluminium
