Delock 19″ DIN Rail Bracket 4U, black

Product Code: 42632

Barcode 4043619426324

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

depth: 0.440

height: 0.055

width: 0.095

Description

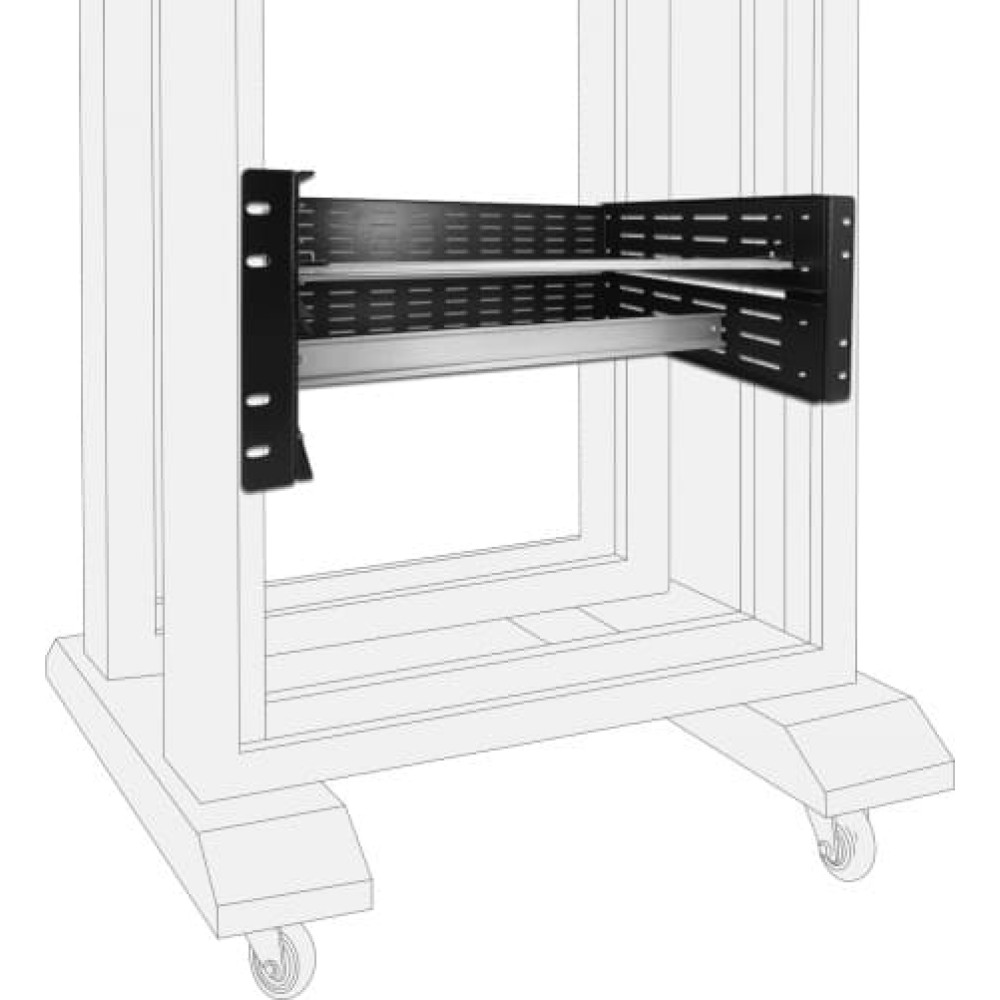

This DIN rail bracket by Delock can be mounted in a 19″ rack. The two included DIN rails 35 mm can be mounted vertically or horizontally. The lateral oblong holes also allow free mounting of the DIN rails to match the user's own requirements.

Individual assembly
With the help of Delock's DIN rail bracket it is possible to integrate devices such as automatic circuit breakers, residual current circuit breakers, power sockets or similar into a 19″ rack.

System requirements:
• 19″ rack with free 4U

Specification:
• For mounting in 19″ racks, 4U
• DIN rail 35 mm
• Colour: black
• Dimensions (LxWxH): ca. 485 x 306 x 176 mm

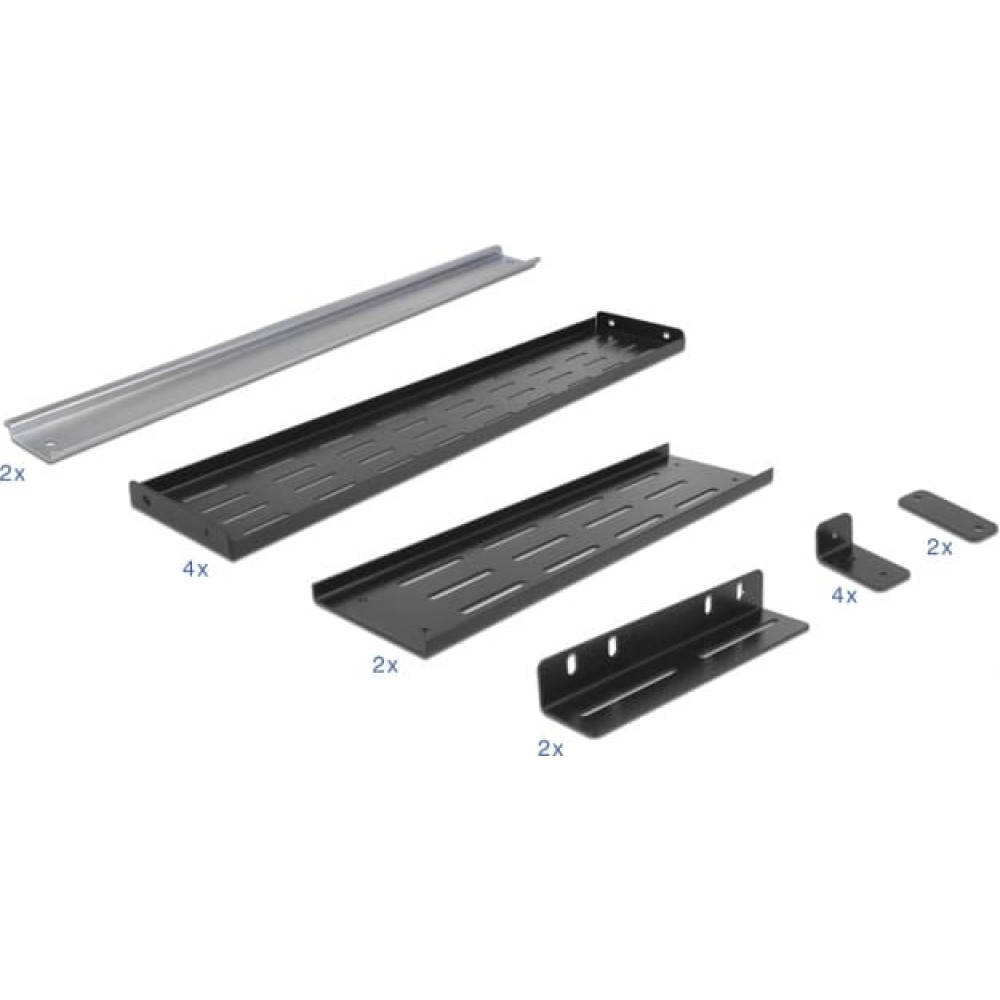

Package content:
• 19″ DIN rail bracket
• 2 x DIN rail 35 mm
• 4 x screws
• 4 x caged nuts

Data sheet:
http://www.delock.de/produkt/42632/pdf.html?sprache=en
