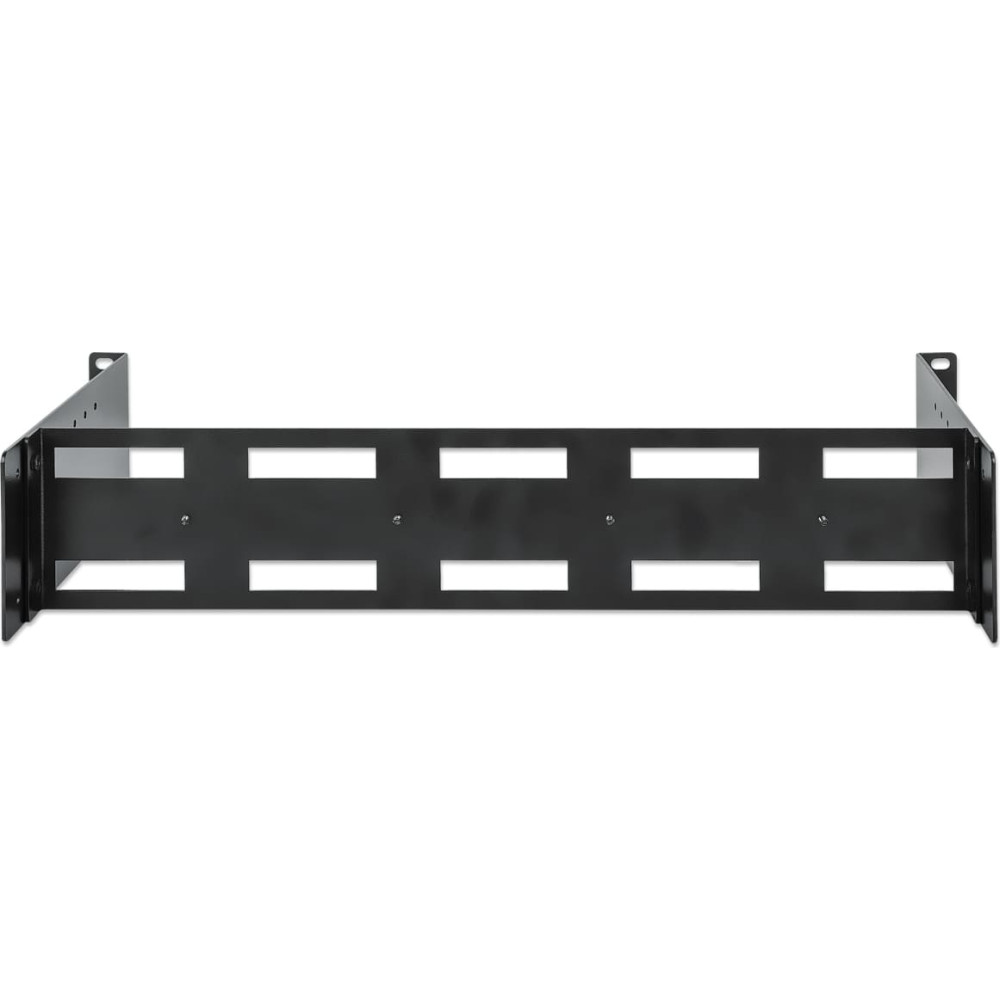

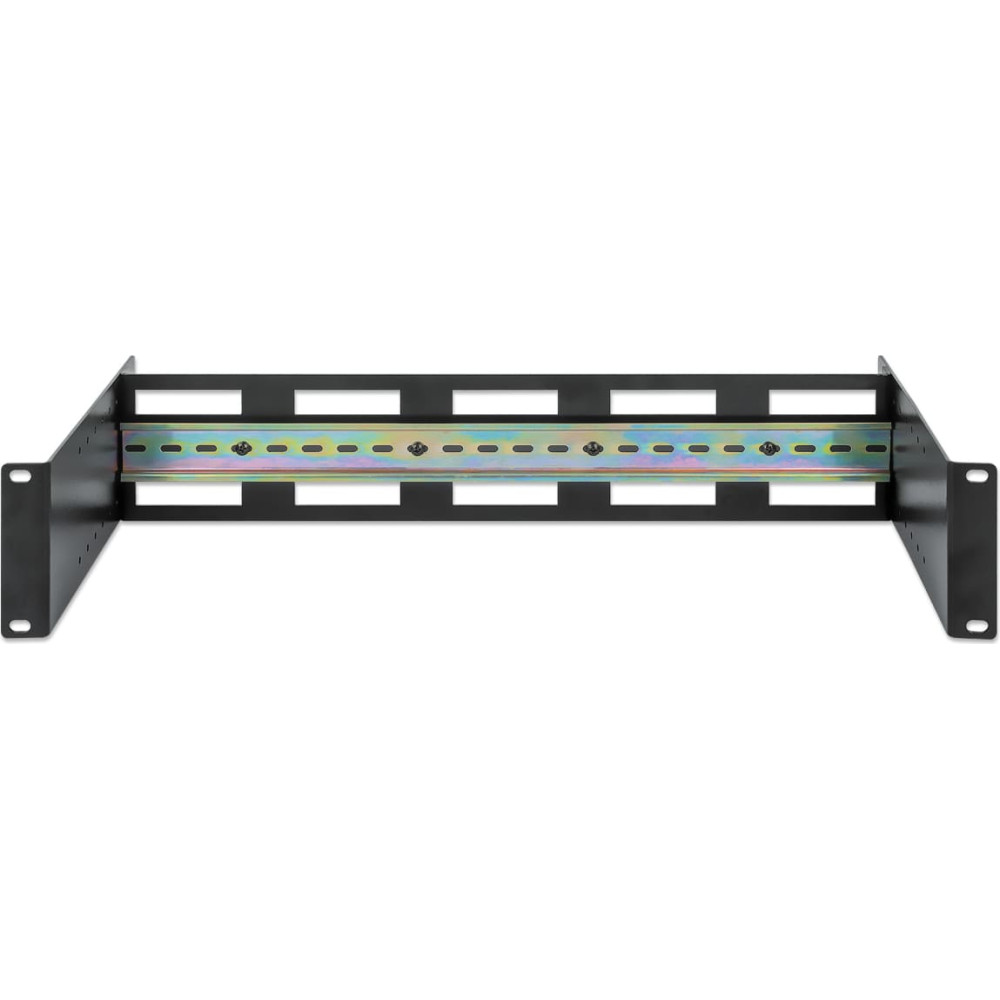

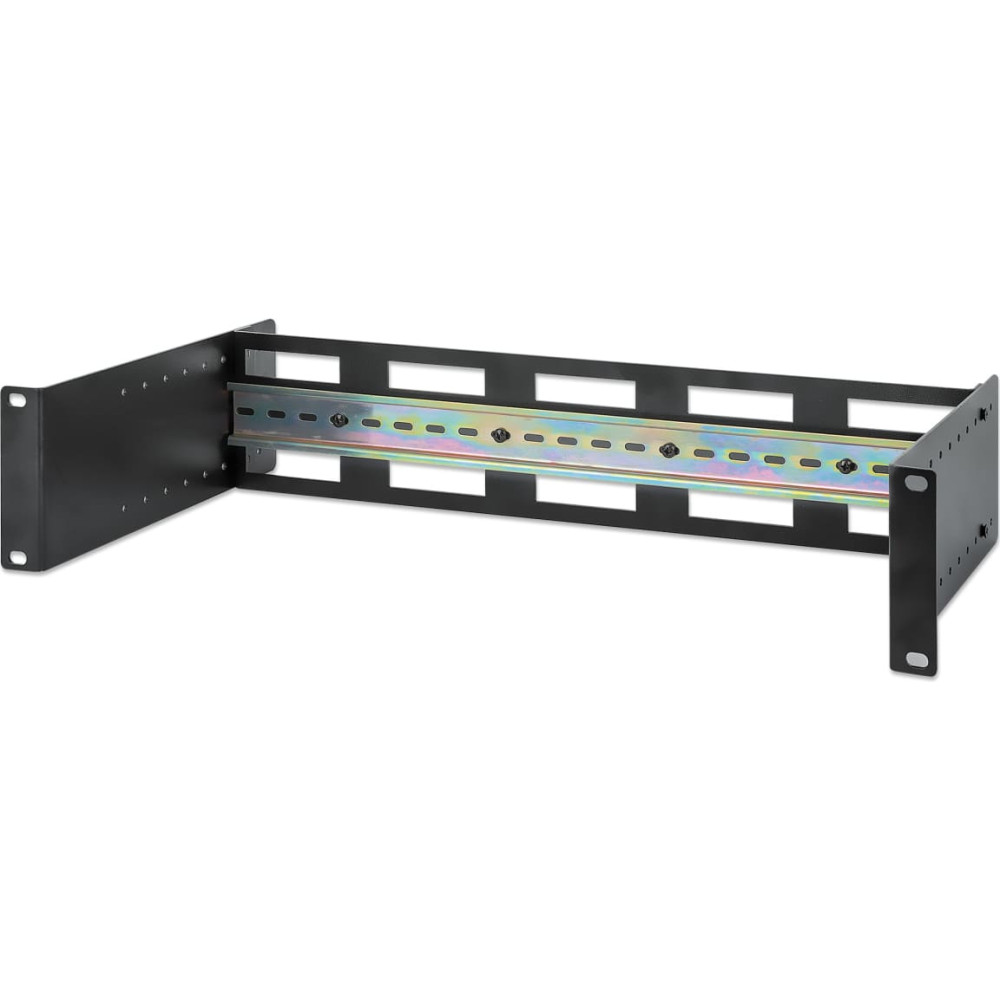

Intellinet Tiefenverstellbarer 19"DIN-Hutschienenträger 2HE
To purchase this product you must be registered in our system.
Specification
certification: ANSI/EIA 310-E
IEC 60297-3
IEC/EN 60715
compliance certificates: RoHS
depth: 210 mm
height: 89 mm
housing material: Aluminium
material thickness: 2 mm
maximum weight capacity: 9 kg
mounting kit: Yes
package weight: 1.55 kg
product colour: Black
quantity per pack: 1 pc(s)
rack capacity: 2U
sustainability compliance: Yes
type: Rack rail
weight: 1.3 kg
width: 487 mm
Description
| Depth-Adjustable DIN Rail Rack-Mount Kit to Easily Mount Your Top Hat Equipment in a 19-inch Cabinet The Adjustable 19" Rackmount DIN Rail Kit, 2U from Intellinet Network Solutions allows for seamless integration of your top hat DIN rail equipment into a 19 in. network enclosure, open frame rack or server cabinet. Tailor Your Space with Depth Adjustment With eight adjustable levels ranging from 48 to 174 mm (1.89 to 6.85 in.), it accommodates a wide spectrum of products. Whether it's industrial PoE switches, media converters, power supplies, circuit breakers, terminal blocks, or more – this kit adapts to your needs. Compliant and Compatible Meeting EIA 310 / IEC 60297 standards, it fits into all standard 19 in. / 482.6 mm racks. The DIN-rail, in accordance with IEC/EN 60715 standards, ensures a perfect fit for your equipment. Durable Construction Built to Last Crafted with heavy-duty anodized 2 mm thick aluminum, our kit is built to withstand the test of time. It offers great strength and stability, providing a maximum load capacity of 9 kg (20 lbs.). Everything You Need Included We've got you covered with a package that includes four M6x12 screws, four M6 cage nuts, and four M6 plastic washers for 19" mounting straight out of the box. |
