Bachmann IT PDU ALU 1U 20xC13 4xC19 2xLS CEE 32A blue
To purchase this product you must be registered in our system.
Specification
colour: Aluminium
colour (cable): black
colour (design profile): Aluminium
connection cable: 3ph Zuleitung 3,0m CEE 16A
connector plug: CEE
current catalog edition: 24.1
depth: 47 mm
depth of packaging (single piece): 1450 mm
function: 19" socket strip
gross weight: 3.536
height: 1119 mm
height of packaging (single piece): 150 mm
length: 3 m
length: 3 m
manufacturer: BACHMANN
material (casing): Aluminium
max. voltage: 230V AC
mounting form: Vertikal
number of socket pots: 20
on/off switch: no
package weight (single piece): 3.536 kg
plug type: CEE red 32A 3P+N+PE 400V
product group: Power Bars
product type: Vertikal IT PDU
quantity of outputs/angles: 20
regional use: Without restriction
socket type: IEC320 C13, 10A
weight: 5 kg
width: 44 mm
width of packaging (single piece): 140 mm
Description

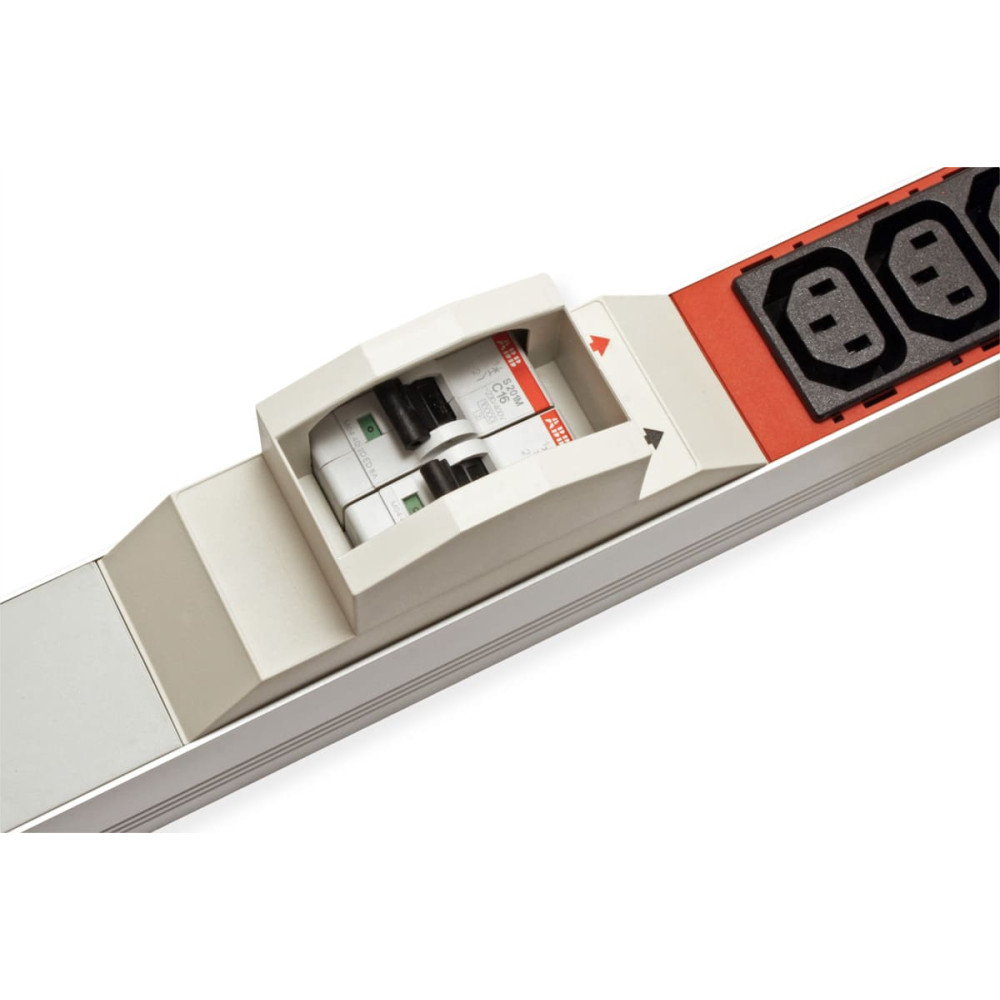

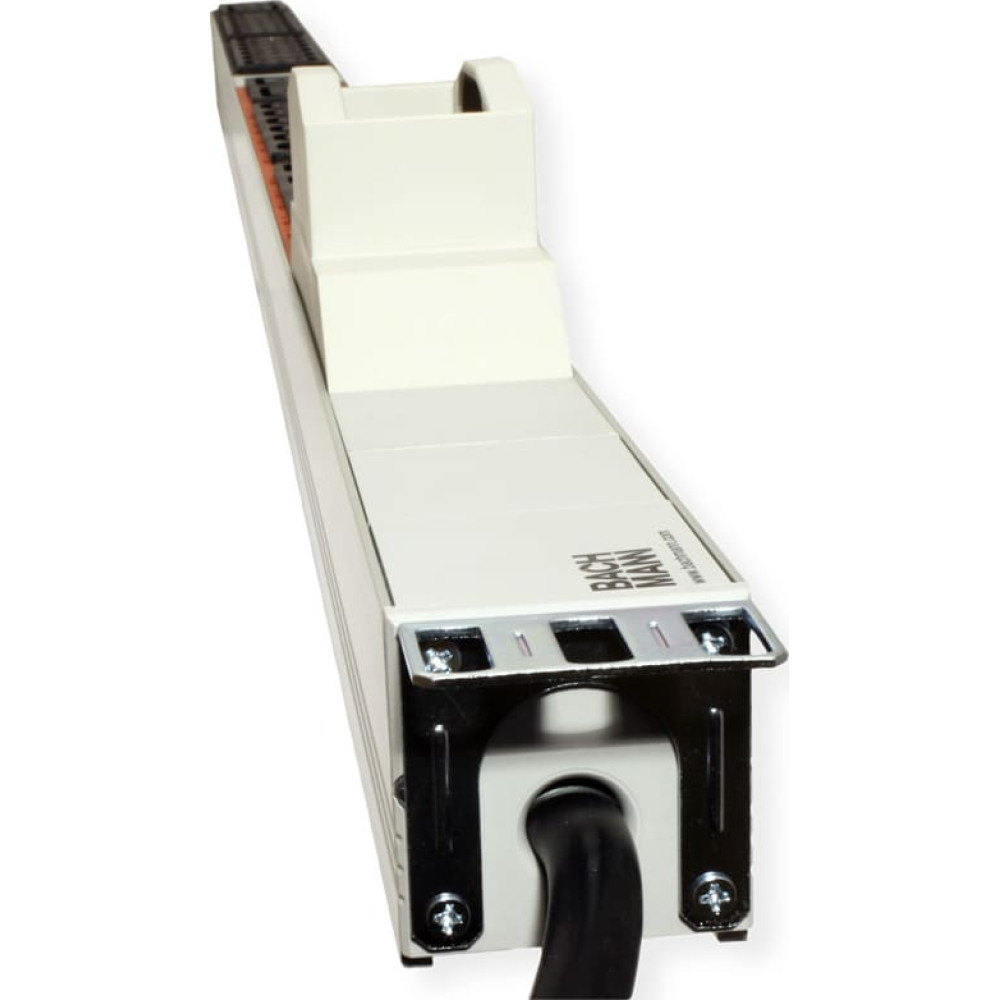

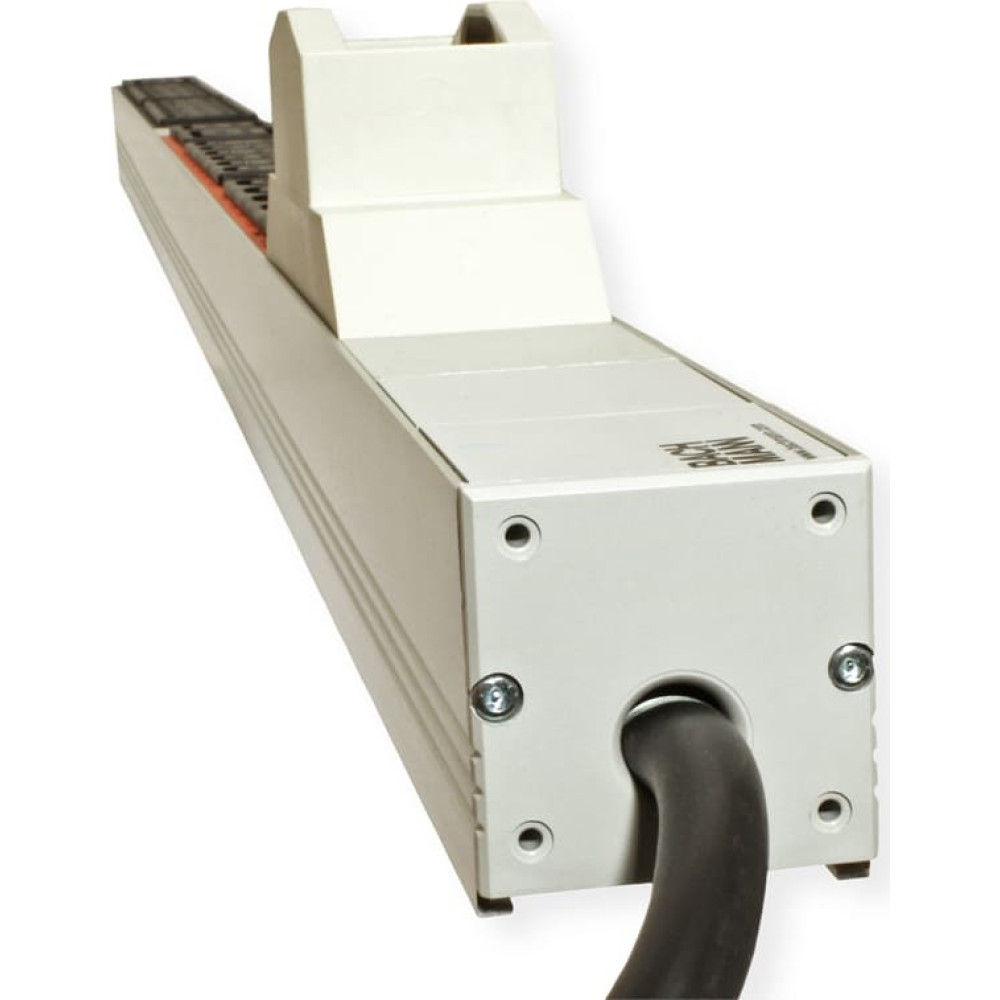

For future-oriented, highly efficient power distribution in data centres, server racks and network racks.The dimensions of the high-quality and very stable aluminium profile are a compact 44 x 47 mm. - The space-saving design offers space for data cabling and air routing for air conditioning the server rack. - Aluminium socket strip, 1U profile 44 x 47mm for vertical mounting - Installation height in the cabinet 1119mm - 20x C13 cold appliance sockets, lockable - 4x C19 cold appliance sockets, lockable - 2x miniature circuit breakers - Supply cable: 3.0m H05VV-F 3G4mm² with CEE plug 1-phase 32A - incl. mounting bracket packed in cardboard box - |
