Bachmann 19" 1.5U 6xCEE7/3 1xswitch 1xSPD-Plus 2.0m CEE7/7

BACHMANN

Bachmann 19" 1.5U 6xCEE7/3 1xswitch 1xSPD-Plus 2.0m CEE7/7

Product Code: 800.3937
Barcode 4057298137389

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
colour: black /silver
connector plug: Schutzkontaktwinkelstecker
current catalog edition: 24.1
depth: 0.44 m
depth of packaging (single piece): 500 mm
gross weight: 0.904
height: 0.04 m
height of packaging (single piece): 80 mm
length: 2 m
length: 2 m
manufacturer: BACHMANN
number of socket pots: 6
package weight (single piece): 0.904 kg
plug type: 3P. German, CEE 7/7, Type-E/F
product group: Power Bars
product type: IT power strip
regional use: Germany, Austria, Netherlands
socket type: 3P. German, CEE 7/3, Type-F
weight: 0.85 kg
width: 0.05 m
width of packaging (single piece): 90 mm
Description

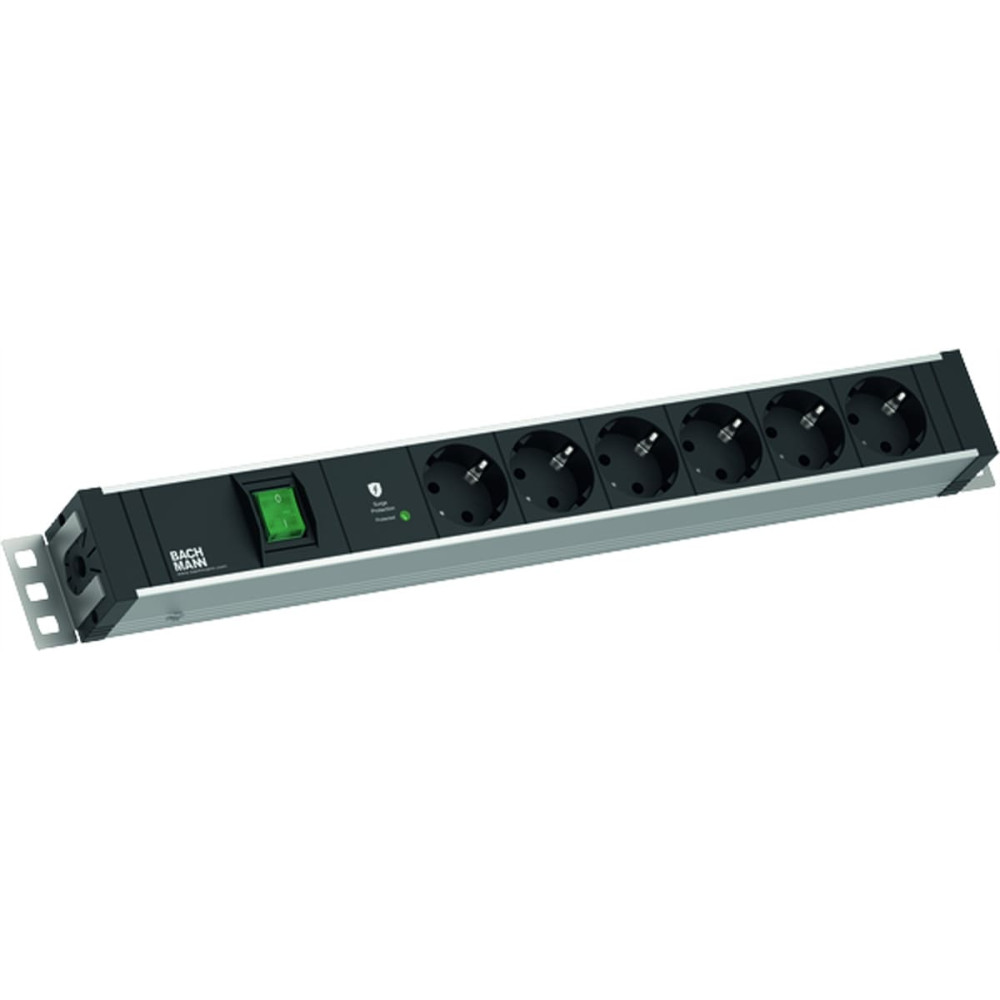

19" 1.5U 6xCEE7/3 1xswitch 1xSPD-Plus 2.0m CEE7/7

19" 1.5U socket strip Length: approx. 440mm, 6xprotected contact sockets 35° white 1xswitch green 1xovervoltage protection plus end pieces riveted, cannot be opened, supply cable 2.0m H05VV-F3G1.5mm² white with angled safety plug, with BACHMANN logo incl. mounting bracket packed in cardboard box
