Lindy Receiver HDMI & USB over IP 4K

LINDY

Lindy Receiver HDMI & USB over IP 4K

Product Code: 38267
Barcode 4002888382670

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
country of origin: TW
packaging height: 26.0
packaging lenght: 29.0
packaging width: 7.0
warranty: 2.0
Description

Specifications

  • AV Interface: HDMI & VGA
  • Console Interface: USB
  • Interfaces Standard: HDMI 2.0, USB (HID) and USB 2.0
  • Supported Bandwidth: 10.2Gbps
  • Maximum Distance: 100m (393.7ft) (Point to Point)
  • Maximum Resolution: 3840x2160 60Hz 4:2:0 8bit (VGA Max 1920x1200 60Hz)
  • HDCP Support: HDCP 1.4 and 2.2
  • Supported Audio: Audio supported over HDMI signal and 2 analog bidirectional (1 x Audio and 1 x Microphone)
  • Separate Audio Ports: 2 x 3.5mm (Female), 1 x SPDIF Optical
  • Transmission Protocol: IP
  • Transmission Medium: Cat.6
  • Laser Class (only for Fibre): -
  • Wavelength (only for Fibre): -
  • Video Codec: Motion JPEG
  • Latency: 33ms Approx.

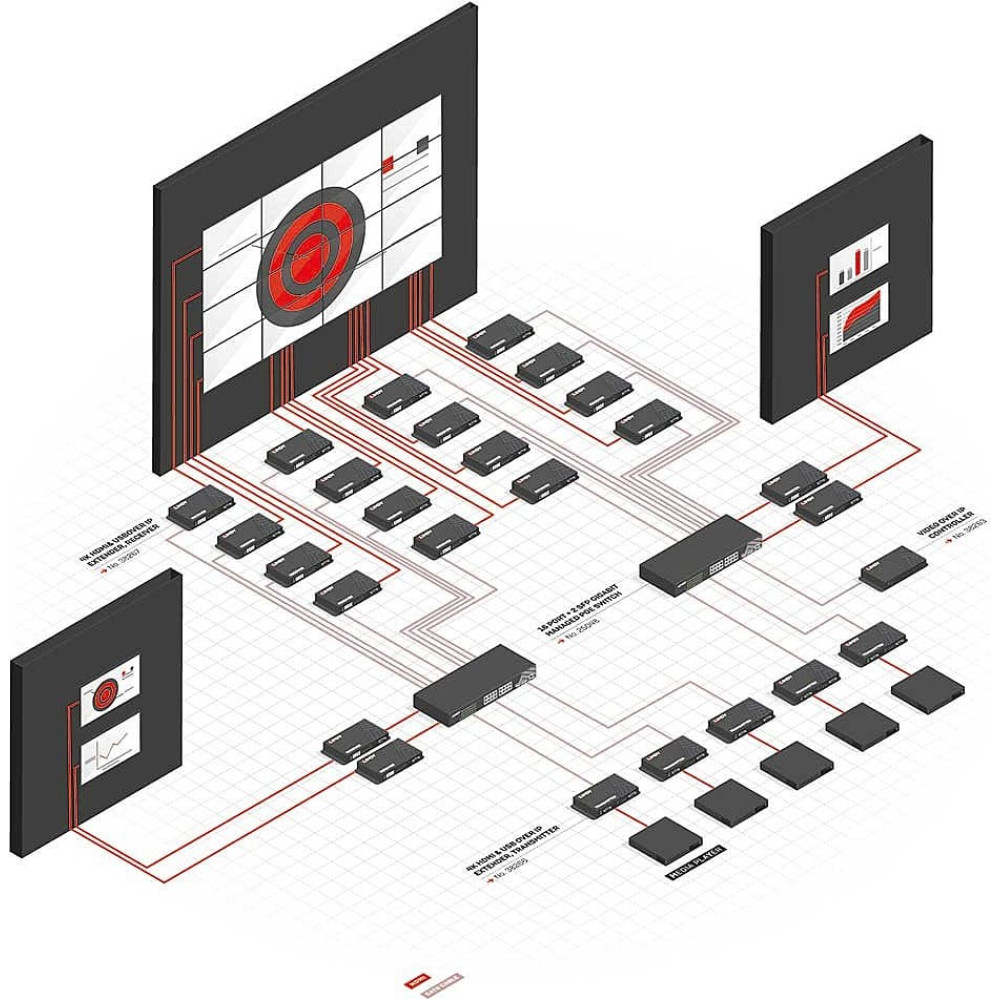

  • Special Features: PoE, Video Wall Function (up to 16x16 screens), VGA Input & Output support (max. resolution 1920x1440), Bidirectional IR and Serial RS232 Extension



Connectors

  • Transmitter KVM Interfaces: -
  • Transmitter Extension Port: -

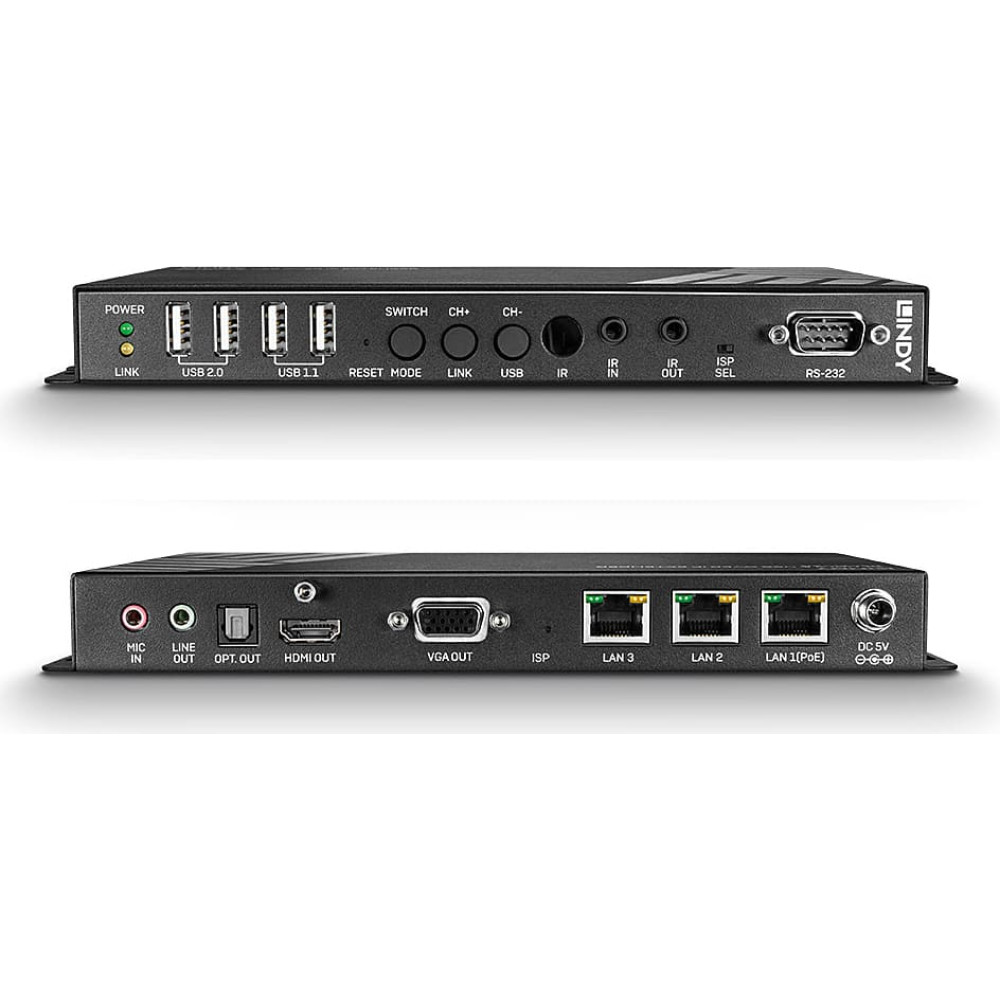

  • Receiver Consolle Interface: HDMI (Female), 2 x VGA (Female),  2 x USB 2.0 Type A (Female), 2 x USB HID Type A (Female), 2 x 3.5mm Audio (Female)
  • Receiver Extension Port: RJ45 Gigabit Ethernet (PoE support)
  • Bidirectonal Ports: 1 x DB9 (Male) for RS232
  • Other Interfaces: 2 x 3.5mm (Female) for bidirectional IR, 1 x SPDIF Optical for Digital Audio, 2 x RJ45 Ethernet Ports
  • Power: 5.5/2.1 mm DC socket



Physical Properties

  • Dimensions (approx.) WxDxH: 232x25x108mm (9.13x0.98x4.25in)
  • Housing Material: Metal
  • Net Weight: 0.67kg (1.48lb)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 20 - 90% RH (non-condensing)
  • Power Requirements: 5VDC 4A
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton box
  • Packaging Dimensions: 225x190x80mm (8.86x7.48x3.15in)
  • Gross Weight: 1.398kg (3.08lb)
  • Warranty: 2
  • Certificated: CE, UKCA, FCC, RoHS & REACH



Package Contents

  • 1x 4K HDMI & USB Over IP Extender - Receiver
  • 1x IR Receiver
  • 1x IR Transmitter
  • 1 x Multi-Country Power Supply (EU, UK, US, AUS)
  • LINDY Manual



Purchasing Information

  • No.: 38267
  • EAN: 4002888382670
