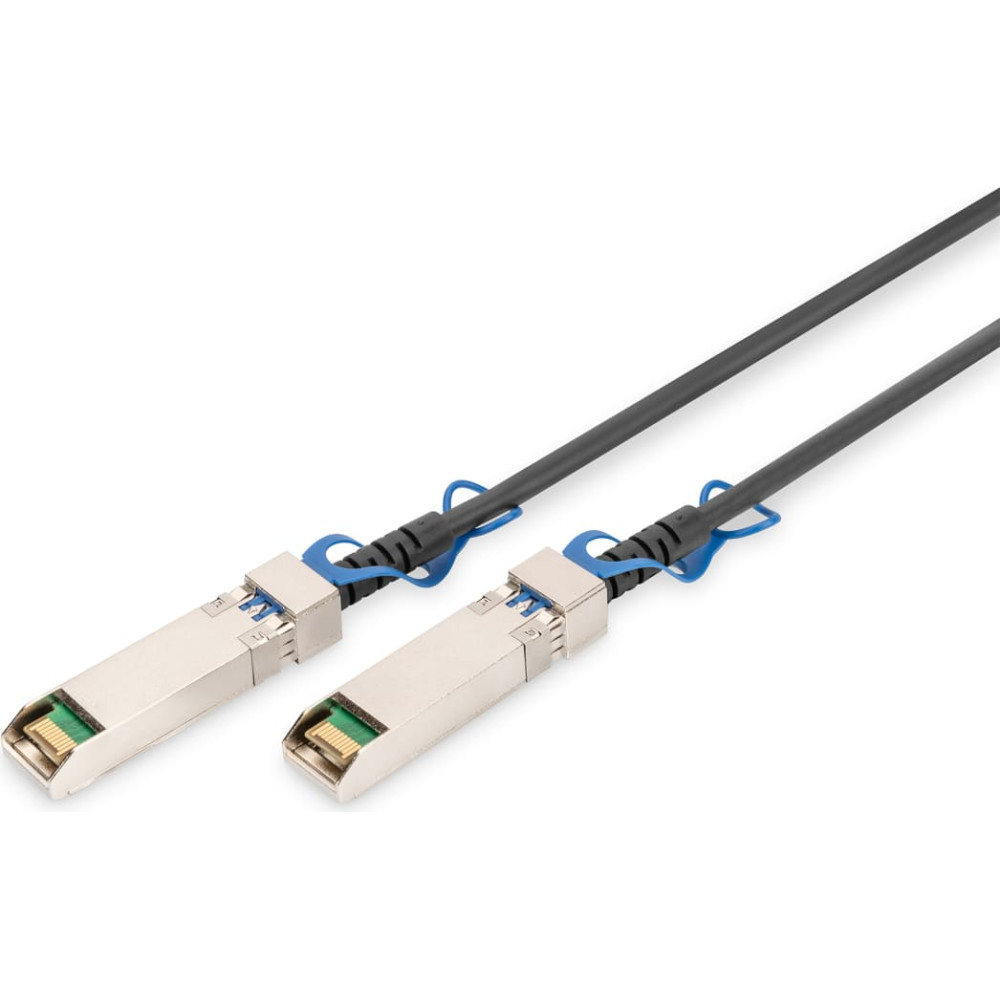

Digitus SFP28 25G 3m DAC Cable
To purchase this product you must be registered in our system.
Specification
country of origin: CN
depth: 0.235
height: 0.020
height(cm): 4
length(cm): 26
volume(cm3): 2704
weight(kg): 0.15
width: 0.225
width(cm): 26
Description
| DAC Cable SFP28 3 M DAC Cable 25 G 3m The SFP28 25G cable is suitable for connections between two SFP28 ports in 25G network components 3 m maximum distance AWG 30 Twinax Cable data rates of up to 25.88 Gbps supported Hot-plug capable SFP 20 PIN connection Temperature range: 0 to 70°C Improved pluggable form factor (IPF) Power: +3.3 V supply voltage Compatible with the SFF-8432 specifications 25G SFP28 DAC Twinax cables are a powerful, energy-saving solution for 25G Ethernet applications, switches, high-performance computer, data acquisition systems and telecommunications systems. It consists of a shielded Twinax copper cable with pluggable connections on both ends. Passive DAC cables have no electrical components in the cable and are suitable for short transmission distances. DDM Support: false Transmission channels: RX and TX Connections: SFP28 data rates of up to 25.88 Gbps supported Temperature range: 0 to 70°C Storage temperature range: -40 to 85°C Power: +3.3 V supply voltage Power consumption: 0.5 W Compatible with MSA SFP28 Electrical interface: 20-pole connector plug Management interface: Serial, I²C The connection is compatible with the SFF-8432 specification Compatible with the following manufacturers: Allnet, CISCO, 3COM, D-LINK, Dell, Edimax, Etherwan, ENTERASYS, EXTREME, FINISAR, FORCE 10, Fortinet, HUAWEI, IBM, JUNIPER, LINKSYS, NETGEAR, NORTEL, RIVERSTONE, ZTE, ZYXEL Package content: SFP28 25G DAC Cable 3 m |
