Home Network products GBIC Modules Digitus QSFP28 100G 3m DAC cable

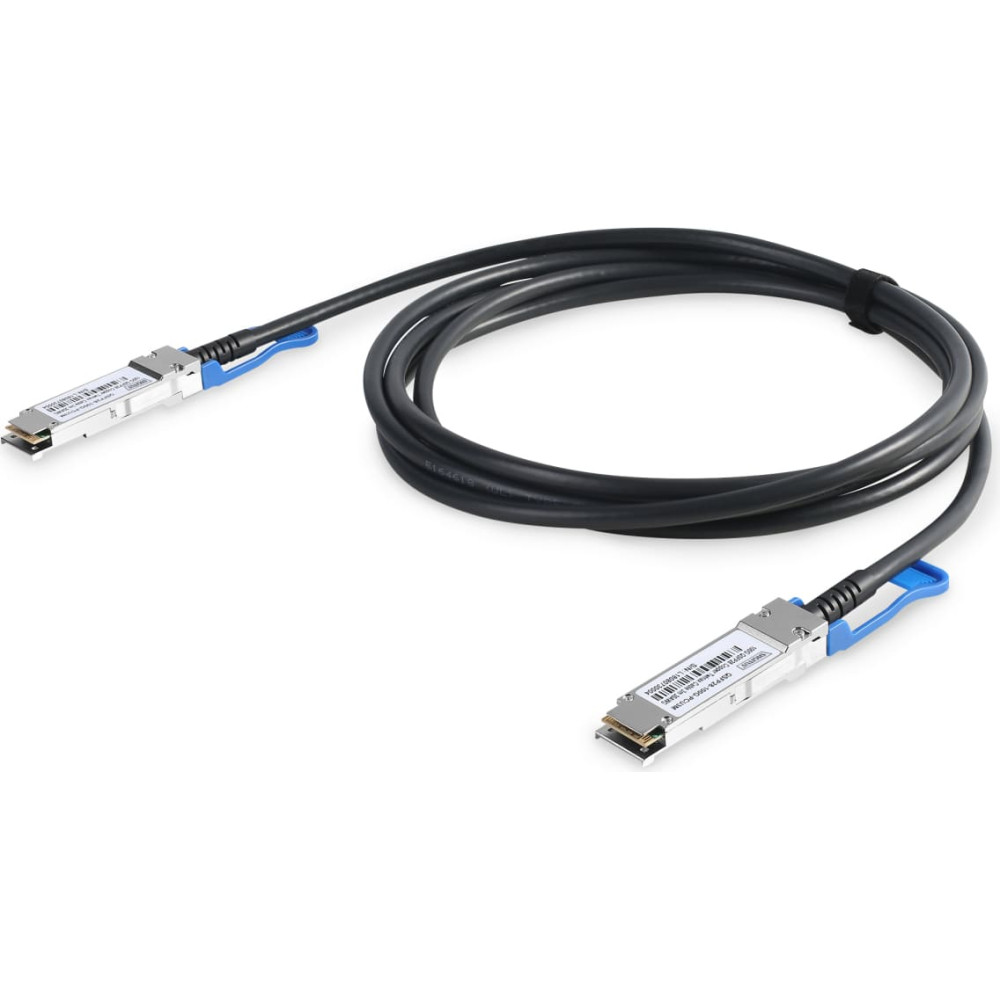

Digitus QSFP28 100G 3m DAC cable

Product Code: DN-81603

Barcode 4016032481096

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

country of origin: CN

depth: 0.300

height: 0.020

height(cm): 3

length(cm): 26

volume(cm3): 2028

weight(kg): 0.01875

width: 0.270

width(cm): 26

Description

100G QSFP28 Direct Attach Cable Up to 28.3125Gbps data rate per channel 3m

100G QSFP28 DAC Cable 3m, AWG 26

QSFP+ 100G 3m DAC
Maximum aggregate data rate: 100Gb/s (4 x 25Gb/s)
100G QSFP28 to QSFP28
AWG 26 Twinax cable

The Digitus® QSFP28 100G DAC cables are the ideal connection between switches in the backbone area. The 100G QSFP28 to QSFP28 Direct Attach Cable copper cable assemblies(DAC) are a low cost alternative for short reach applications. It is compliant with 100G Ethernet (100GBASE-CR4) specifications. It contains four high-speed copper pairs, each operating at data rates of up to 25GbE. So the QSFP28 DAC cable assembly is suitable for power-efficient connectivity for short distance interconnects, such as Data center, enterprise storage systems and High-Performance Computing.

DDM Support: false
3 m maximum distance
Maximum supported data rate 100 Gbps
Maximum supported data rate per channel 28.3125 Gbps
The connector is compatible with the SFF-8665 specification
Power: + 3.3V supply voltage
AWG: 26
Connection A: QSFP28
Connection B: QSFP28
Temperature range: 0-70 ° C
Storage temperature range: -40 to 85 °C
Compatible brands: Allnet, CISCO, 3COM, D-LINK, Dell, Edimax, Etherwan, ENTERASYS, EXTREME, FINISAR, FORCE 10, Fortinet, HUAWEI, IBM, JUNIPER, LINKSYS, NETGEAR, NORTEL, RIVERSTONE, ZTE, ZYXEL

Package content:
QSFP28 100G DAC cable 3m
