Level One LevelOne SFP-3411 tīkla raiduztvērēja modulis Optiskā škiedra 1250 Mbit/s 1310 nm
To purchase this product you must be registered in our system.
Specification
certification: EMC Directive 2014/53/EU
IEC 61000-4-3 / IEC 61000-4-2
compliance certificates: RoHS
copper ethernet cabling technology: 1000BASE
country of origin: China
depth: 12 mm
digital diagnostics monitoring (ddm): Yes
fiber cable diameters supported (core/cladding): 9/125 µm
fiber optic connector: LC
harmonized system (hs) code: 85369010
height: 14 mm
hot-swap: Yes
input voltage: 3.3 V
interface type: SFP
link budget: 20 dB
maximum current: 0.25 A
maximum data transfer rate: 1250 Mbit/s
maximum transfer distance: 40000 m
multi-mode fiber (mmf) supported: No
networking standards: IEEE 802.3z
operating relative humidity (h-h): 0 - 85%
operating temperature (t-t): 0 - 70 °C
package depth: 20 mm
package height: 65 mm
package type: Box
package weight: 40 g
package width: 106 mm
product colour: Silver
quantity per pack: 1 pc(s)
receive power: -25 - - 2 dBmW
rx power (max): -2 dBmW
rx power (min): -25 dBmW
safety: EMI compatible with FCC Part 15 Class B, EN55022 Class B (CISPR 22B) VCCI Class B, Class 1 Laser Eye Safety compatible with FDA 21CFR 1040.10 and 1040.11 EN60950, EN (IEC)60825-1/2
sfp transceiver standard: LX
sfp transceiver type: Fiber optic
single-mode fiber (smf) supported: Yes
storage relative humidity (h-h): 0 - 85%
storage temperature (t-t): -40 - 85 °C
tx power (max): 0 dBmW
tx power (min): -5 dBmW
user guide: Yes
wavelength: 1310 nm
weight: 22 g
width: 57 mm
Description

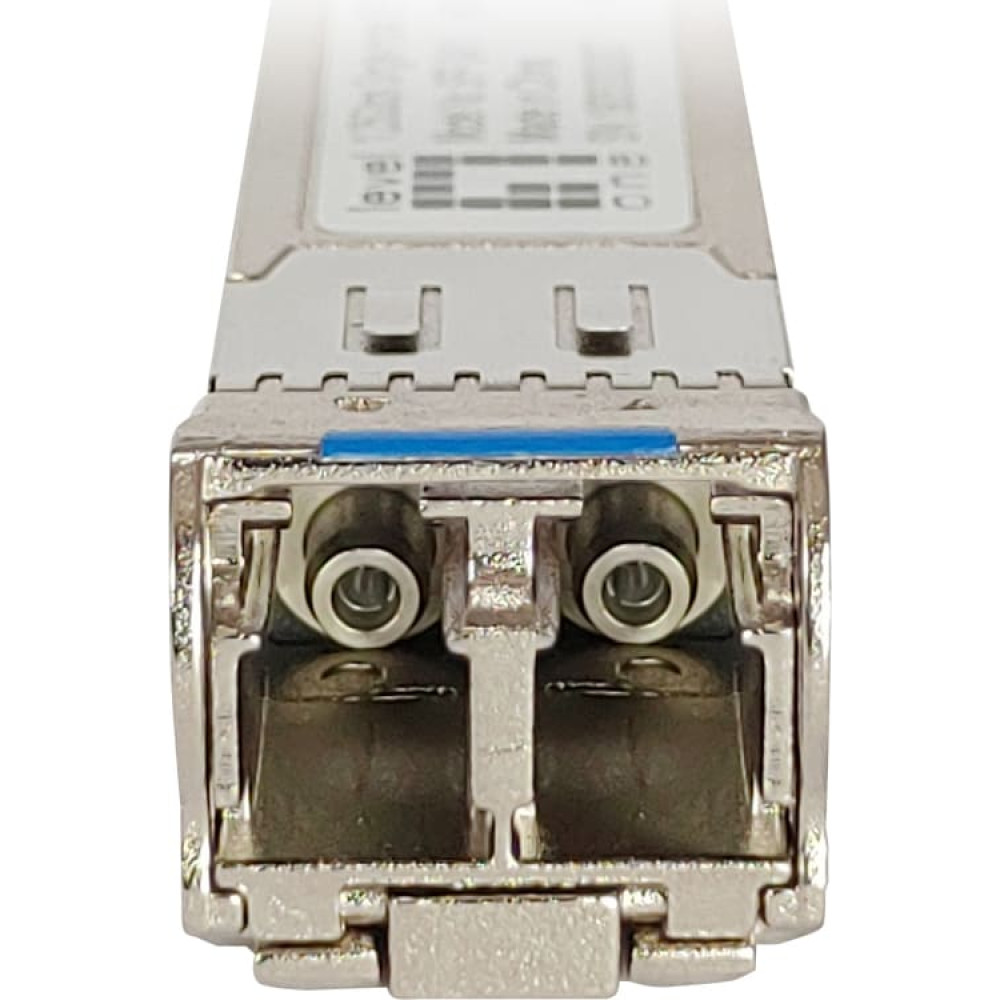

| The LevelOne SFP-3411 is a high performance and cost-effective single-mode SFP transceiver. Intended for use with Gigabit Ethernet, it provides up to 1.25 Gbps bidirectional data transfer rate on a single duplex fiber core. For use with 9 and 125 micron fiber cables, it can reach a distance of up to 40km. The SFP-3411 transceiver operates using a wavelength of 1310nm with a FP Laser Diode light source and has an LC port. |
