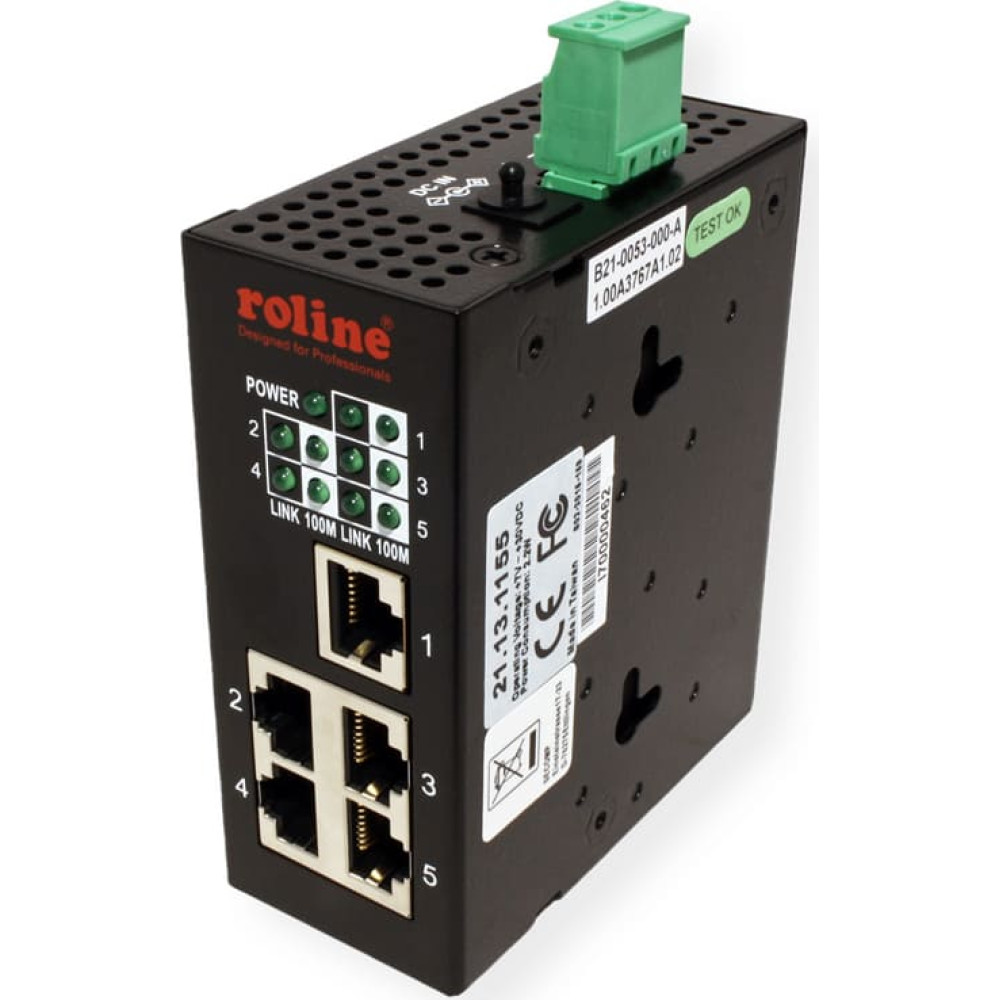

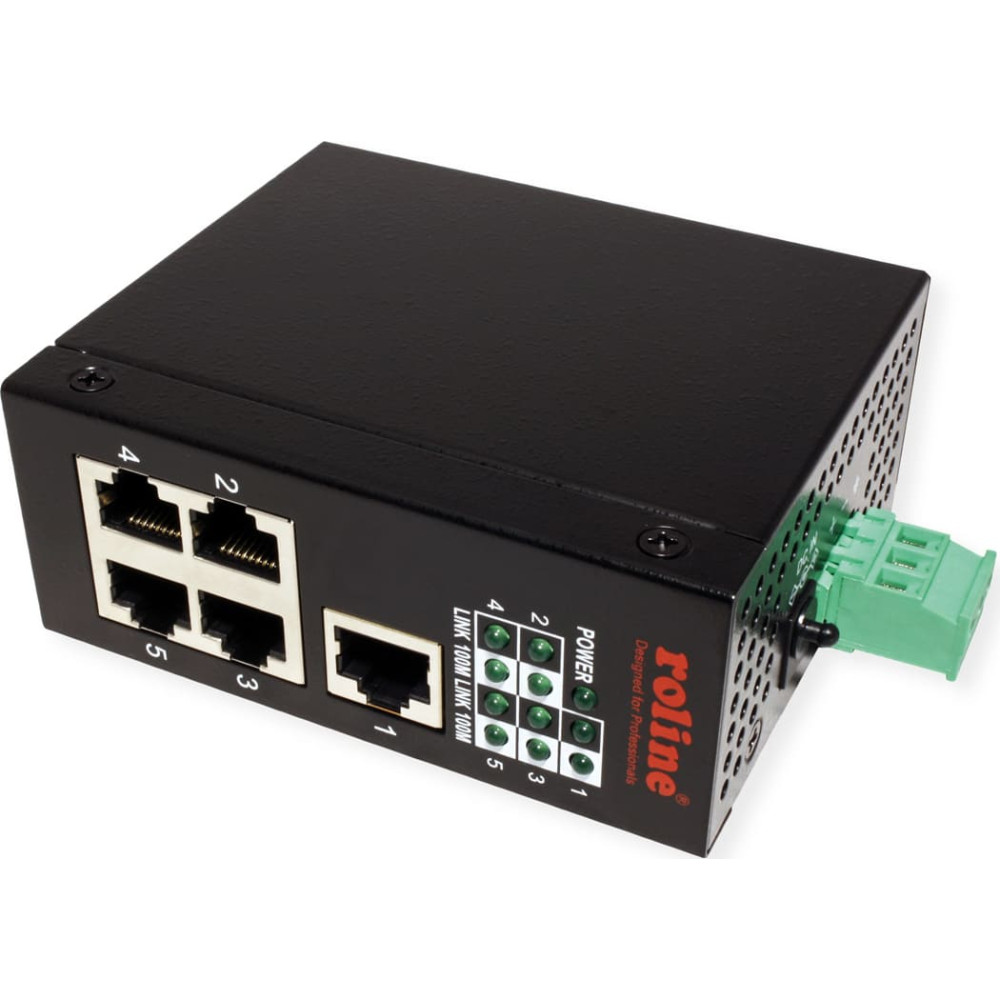

Roline Industrial Switch, 5x RJ-45, unmanaged

ROLINE

Roline Industrial Switch, 5x RJ-45, unmanaged

Product Code: 21.13.1155
Barcode 7611990189151

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
colour: black
current catalog edition: C25-01.10
current catalog page: 1.07
depth: 80 mm
depth of packaging (single piece): 160 mm
dimensions (hxwxd): 95 x 40 x 80 mm
fast ethernet ports rj-45: 5
gross weight: 0.274
height: 95 mm
height of packaging (single piece): 70 mm
lan (mbps): 10/100
mains connection: Loose cable / screw terminals
management: no
manufacturer: ROLINE
mounting form: DIN Rail
network standard: Fast Ethernet
operating temperature max.: 70 °C
operating temperature min.: -10 °C
package weight (single piece): 0.274 kg
power supply unit (internal/external): External
product group: Network Switches
product type: Fast Ethernet Switch
quantity of ports: 5
scope of delivery: Switch
stackable: no
weight: 281.09 g
width: 40 mm
width of packaging (single piece): 140 mm
Description
  • Fast Ethernet switch with 5 shielded 10/100 Base-T copper ports
  • Wide operating temperature range for temperature critical environment
  • Auto MDI/MDI-X crossover function
  • Supports IEEE 802.3x flow control for full-duplex operation
  • Supports Back-pressure flow control for half-duplex operation

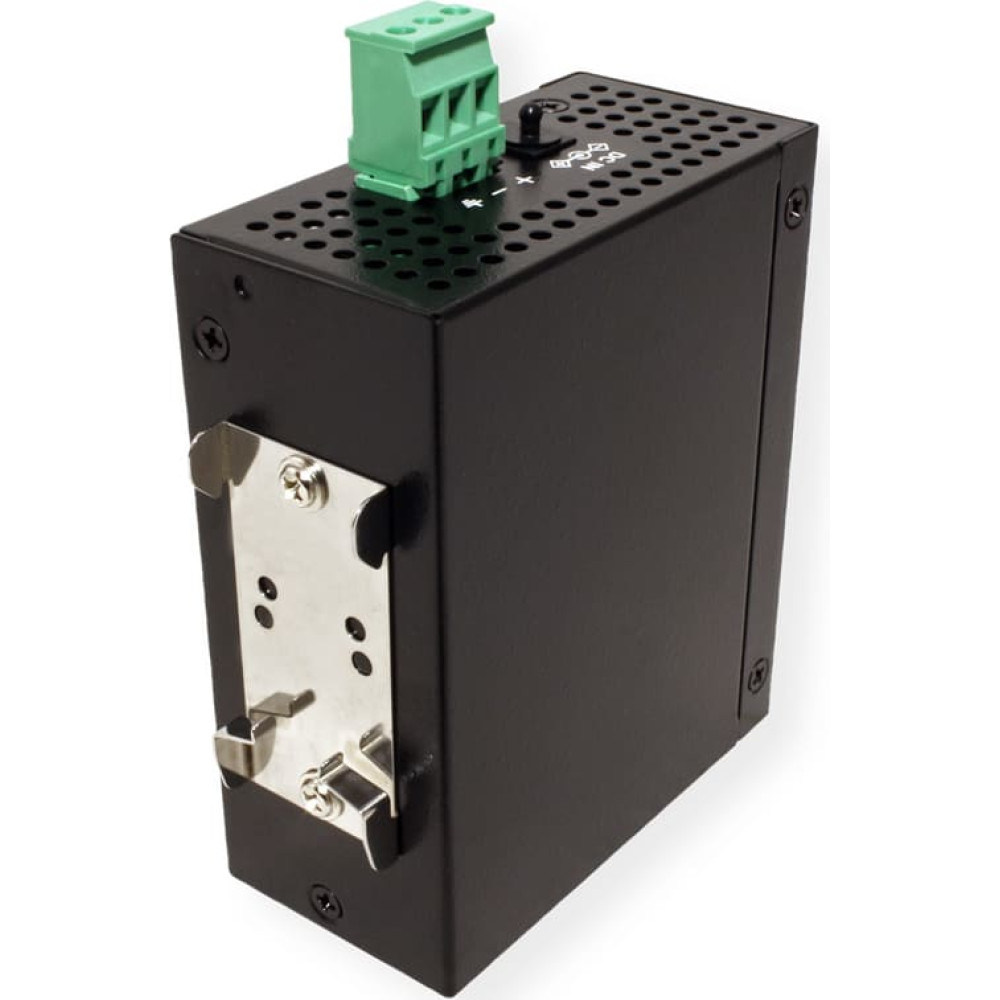

  • Supports DIN-rail mounting
  • Power: Input: 5 - 30V DC, Consumption: 2.2W (max.)
  • Operating Temperature: - 10 °C - +70 °C
  • DC Input via terminal block or DC power jack ( 6.3mm / 2.0mm)
  • Dimensions: 40 x 80 x 95 mm (WxDxH)
  • As according power supply we recommend 21.13.1226
