Home Network products Network sockets VALUE Cat.6a Flush Mount Wall Jack, STP, horizontal, white

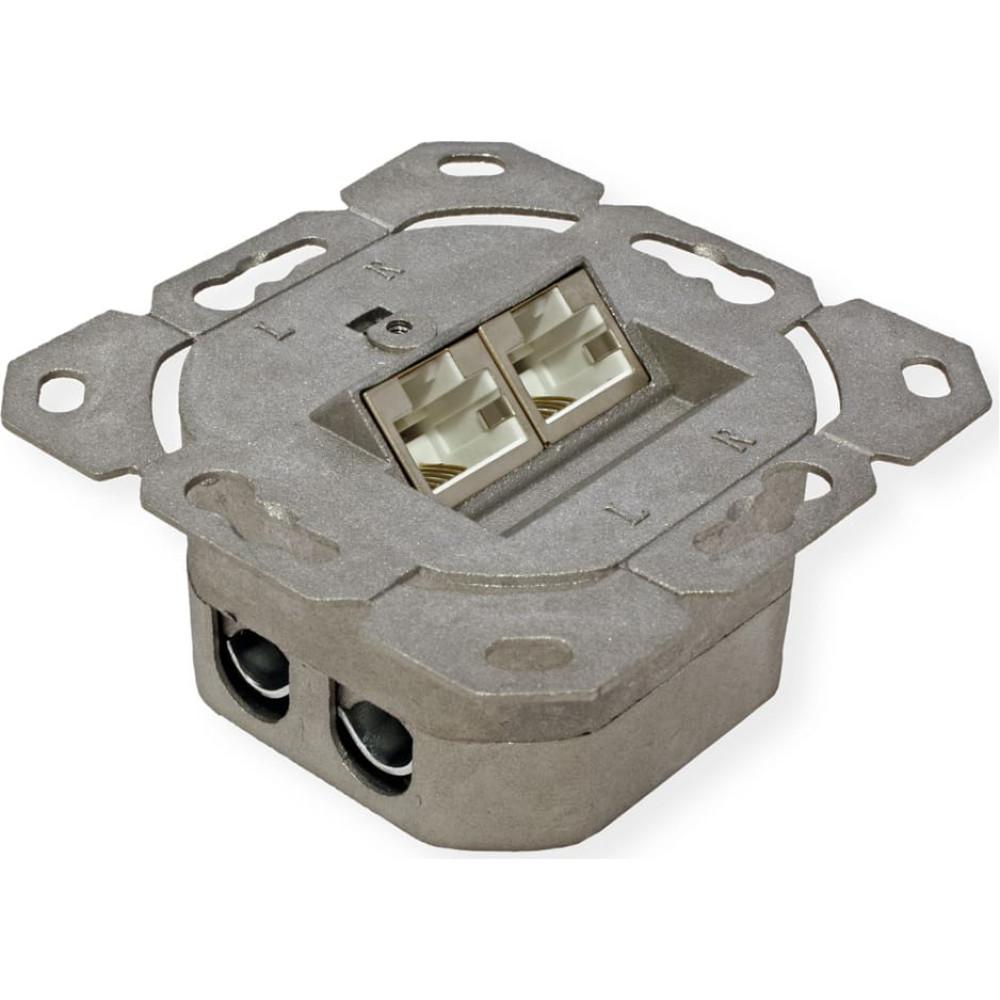

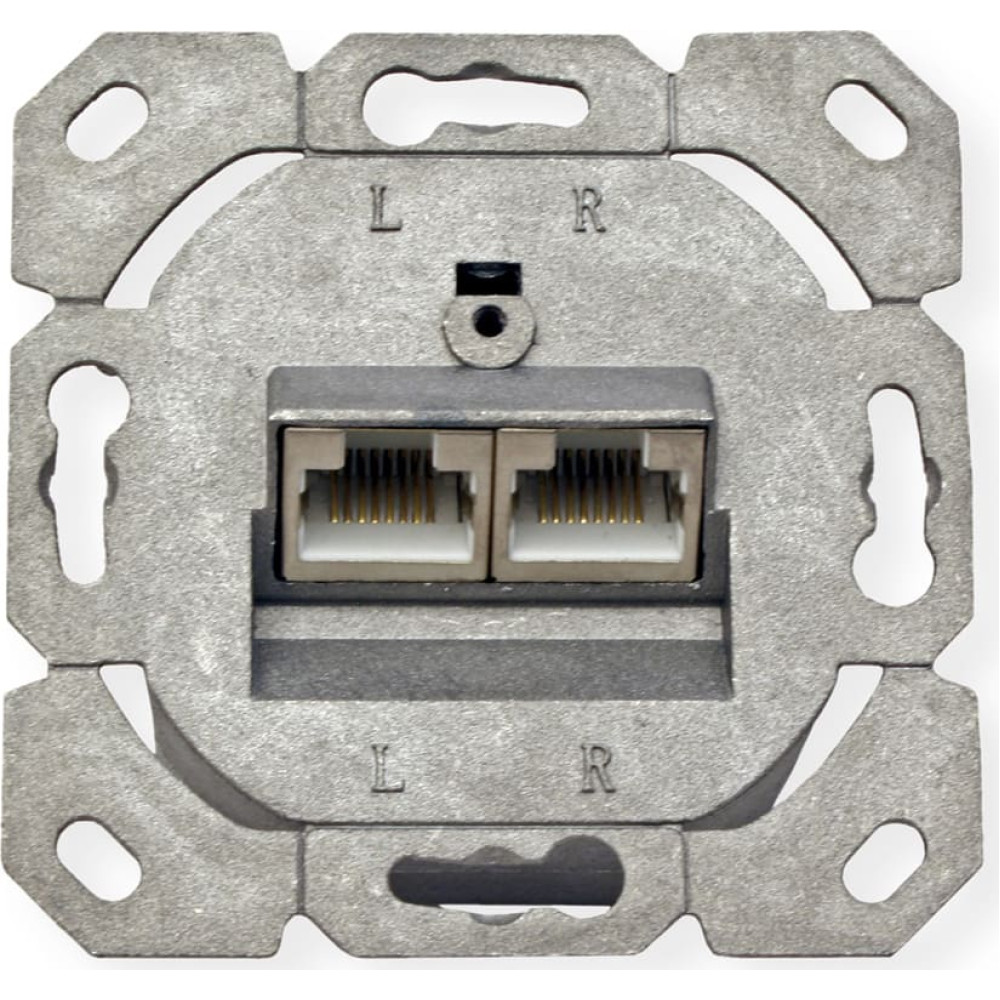

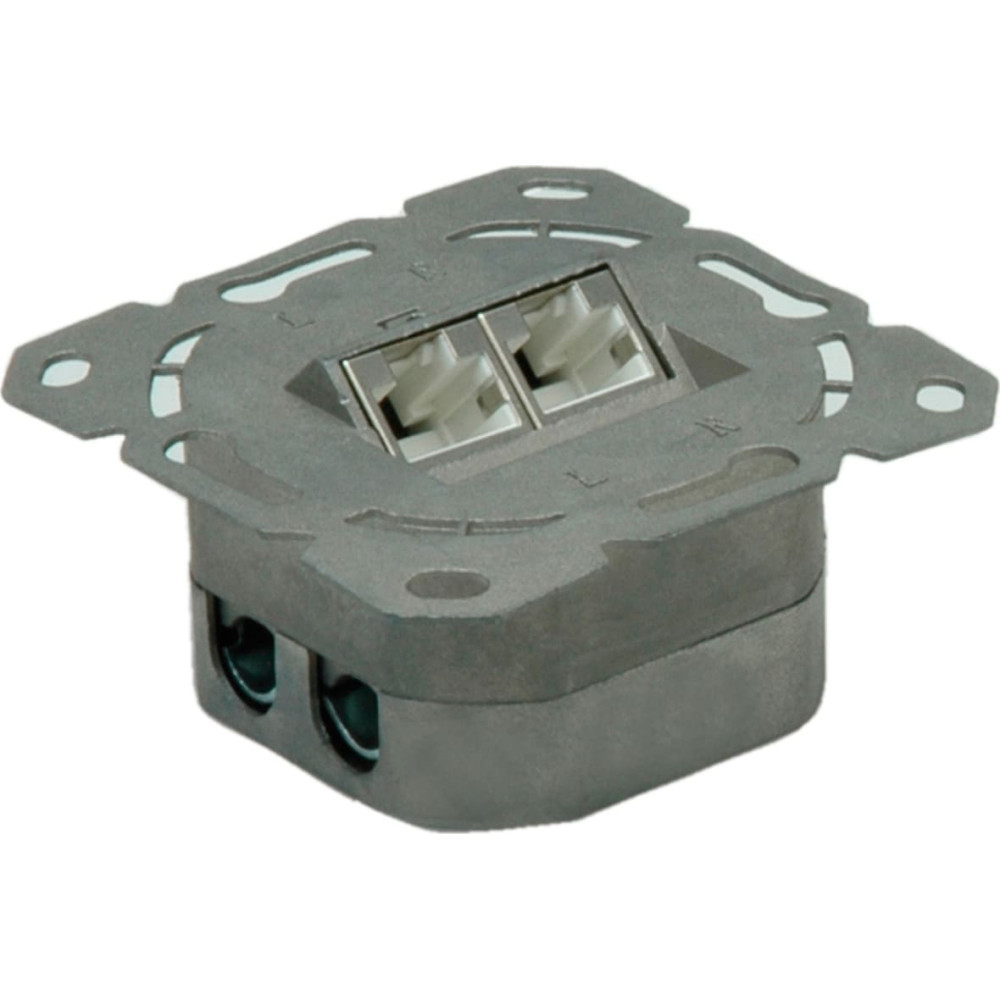

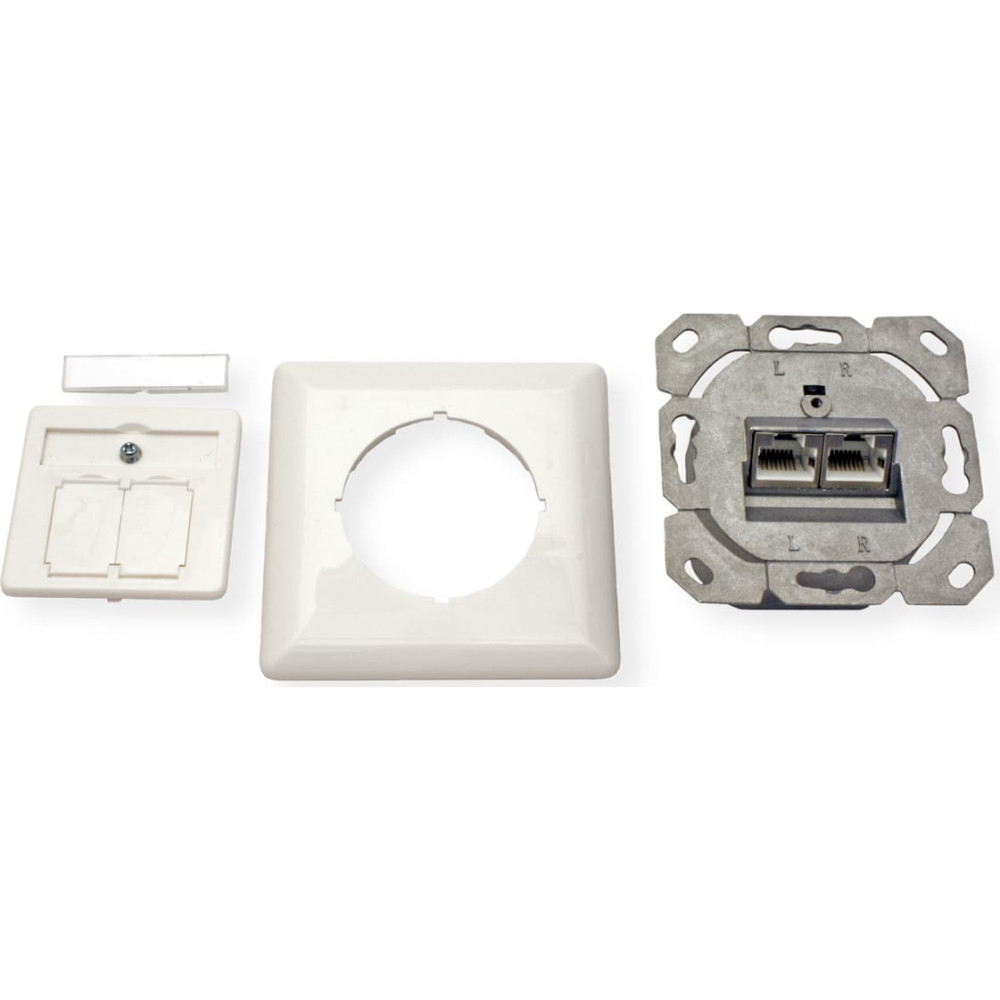

VALUE Cat.6a Flush Mount Wall Jack, STP, horizontal, white

Value

VALUE Cat.6a Flush Mount Wall Jack, STP, horizontal, white

Product Code: 25.99.8490
Barcode 7611990931354

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
assembly cable connection: Krone LSAplus
colour: white
connection direction: 45°-inclination
current catalog edition: C25-01.44
current catalog page: 1.54
depth: 39 mm
depth of packaging (single piece): 100 mm
gross weight: 0.158
height: 80 mm
height of packaging (single piece): 80 mm
manufacturer: VALUE
material (casing): metal
modular assembly: no
operating temperature max.: 70 °C
operating temperature min.: 0 °C
package weight (single piece): 0.158 kg
product group: Connection technology TP
product type: Connection box Cat.6A
quantity of ports: 2
shield contacts: Yes
shield type: Screened
transfer quality: Cat6A / Class EA
wall fixening: Flush mount
weight: 172.8 g
width: 80 mm
width of packaging (single piece): 90 mm
Description
  • The VALUE Cat.6a wall jacks fulfil the Cat.6/Class EA Permanent Link Standard and are ideal for gigabit ethernet networks

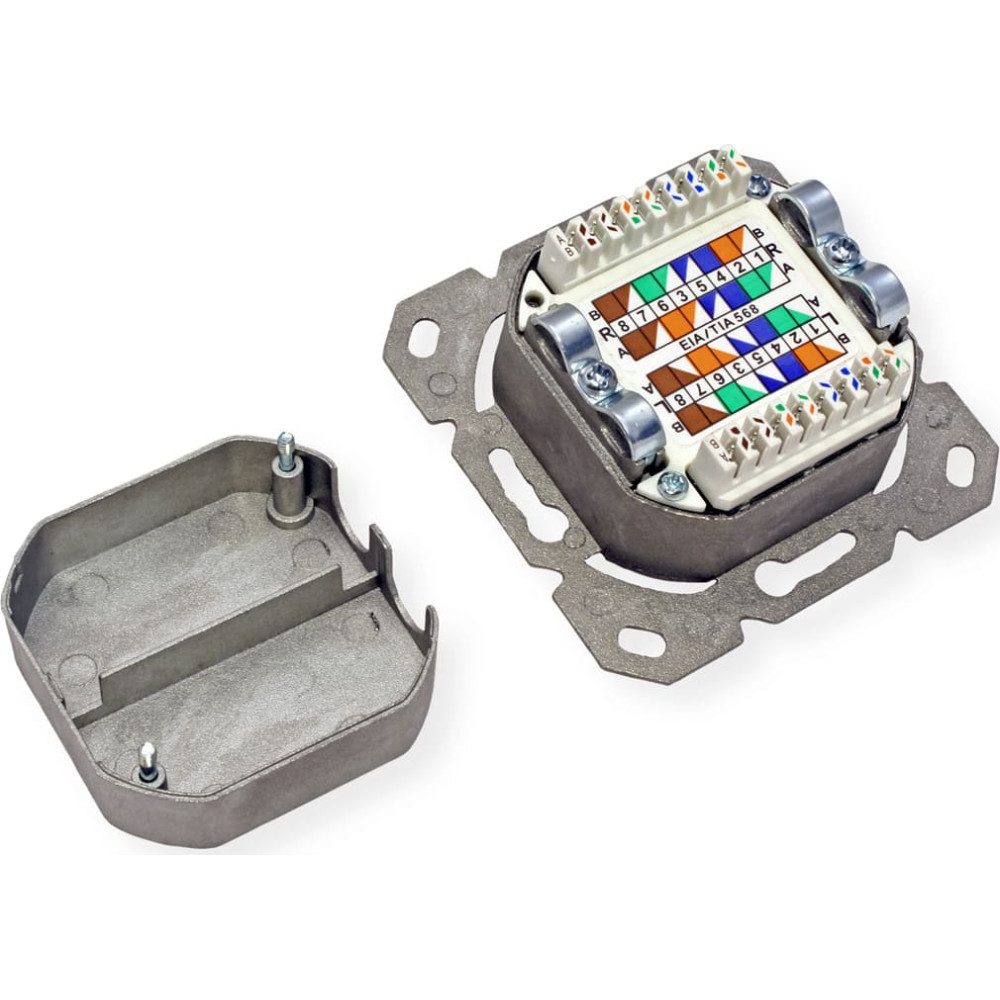

  • Fully screened box in a metal housing, provides security against EMI (shielded version)

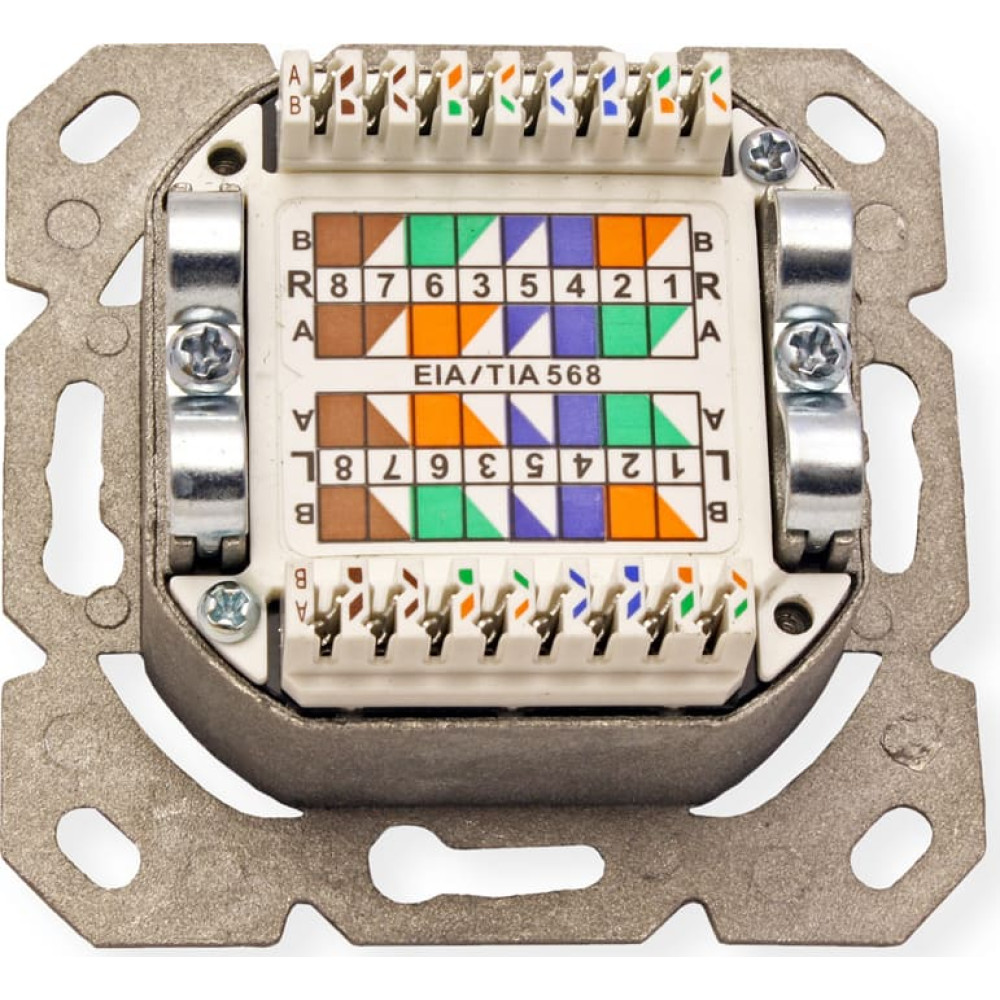

  • Cable assembly takes place using LSAplus piercing terminals with colour coding on the top in accordance with EIA/TIA 568
