Digitus CAT 5e, Class D, RJ45 Modular Coupler

Product Code: DN-93901

Barcode 4016032266488

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

country of origin: CN

depth: 0.010

height: 0.010

height(cm): 9

length(cm): 1.2

volume(cm3): 64.8

weight(kg): 0.009

width: 0.010

width(cm): 6

Description

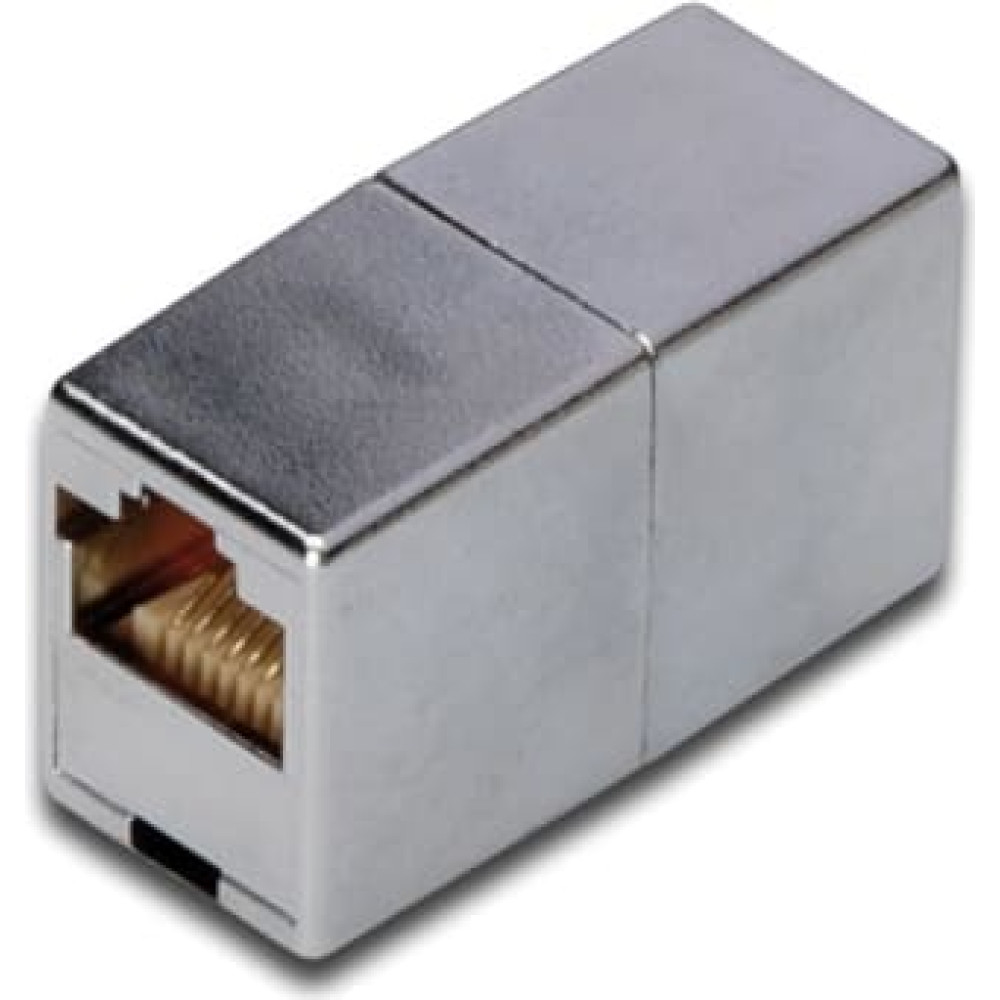

CAT 5e Modular Coupler, shielded RJ45 to RJ45

Quick and easy extention of patch cables
The RJ45 sockets are shielded which provides optimized safety
The coupler offers a long life time (mating cycles)

The modular CAT5e Class D coupler from DIGITUS® consists of two shielded RJ45 female ports. The assignment is "1:1".

Technical properties:
Housing material: ABS UL-94V-0
Contacts coating: Nickel, gold-plated 0.5 µ
Shielding: Tinned bronze
PCB:FR4, UL 94V-0
Material contacts: Phosphor bronze
Physical properties:
Mating cycles: >= 750 (ISO/IEC 11801, IEC 60603-7-5)
Insertion force: 30N max. (IEC 60603-7-5)
Retention strength: 7.7 kg between jack and plug
