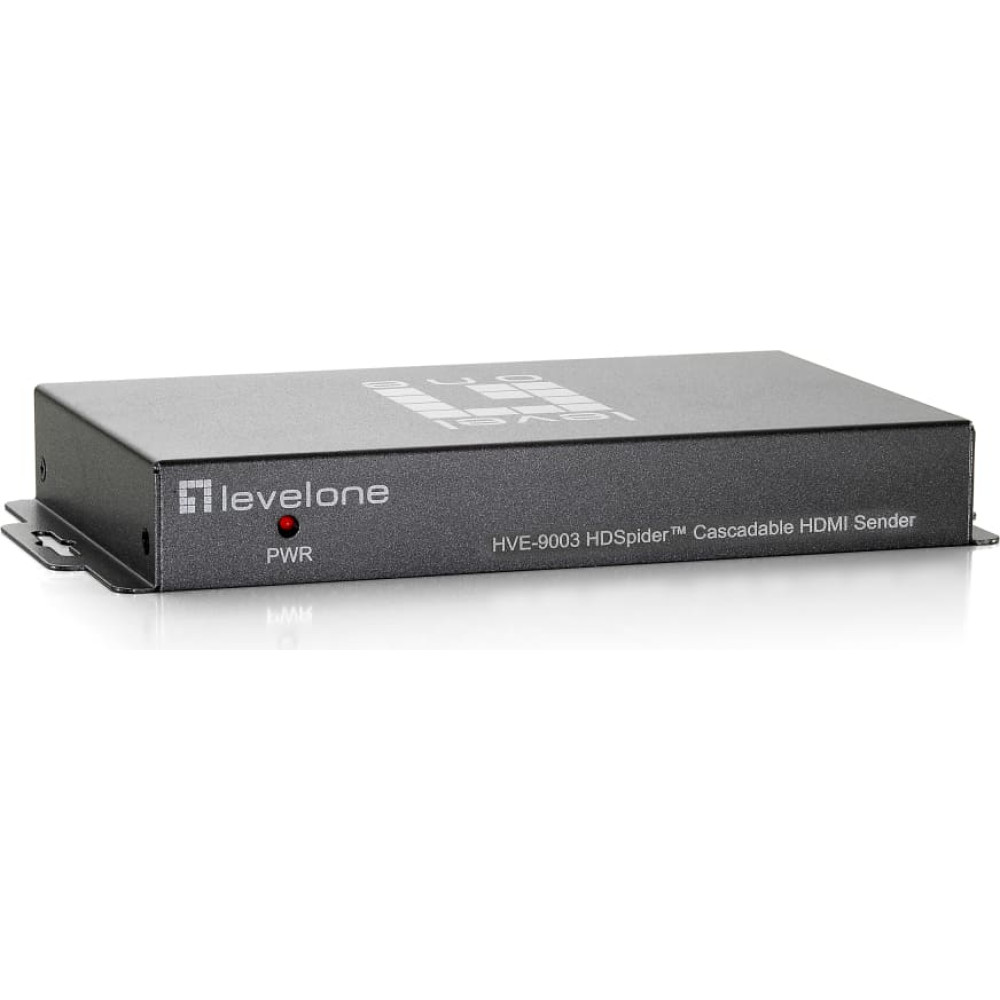

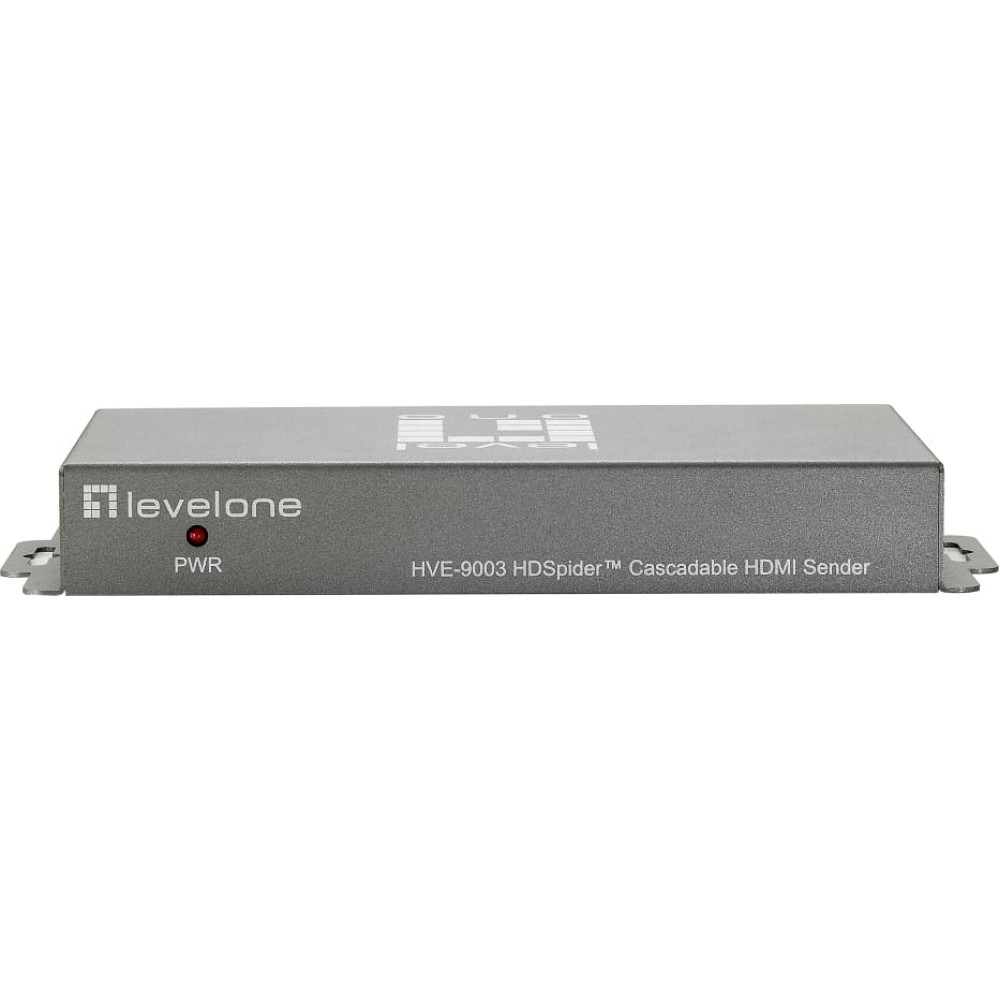

Level One LevelOne HVE-9003 Cat5 Audio/Video Transmitter HDMI HDSpider
To purchase this product you must be registered in our system.
Specification
ac adapter included: Yes
audio output: 1
audio system: Multichannel
bandwidth: 225 MHz
cable types supported: Cat5, Cat5e, Cat6
current: 4 A
dc-in jack: Yes
depth: 108 mm
dimensions (wxdxh): 210 x 108 x 27 mm
hdcp: Yes
hdmi version: 1.3c
height: 27 mm
manual: Yes
maximum resolution: 1920 x 1080 pixels
maximum transfer distance: 60 m
number of hdmi outputs: 1
operating relative humidity (h-h): 20 - 90%
operating temperature (t-t): 0 - 40 °C
operating voltage: 5 V
package depth: 320 mm
package height: 120 mm
package weight: 1 kg
package width: 200 mm
product colour: Grey
rj-45 input ports: 1
rj-45 output ports: 1
storage temperature (t-t): -20 - 60 °C
supported video modes: 720p, 1080i, 1080p
type: AV transmitter
weight: 530 g
width: 210 mm
Description
| What is HDMI? The High-Definition Multimedia Interface (HDMI) is a revolutionary technology that allows viewers to experience the highest quality digital images available. It is able to deliver top-quality video as well as audio over a single cable. This growing technology is great for displays in many different situations: movie theatres, concert halls, public transportation, malls, shops, airports, schools, etc. Is HDMI 1.3 backward compatible with prior releases of the HDMI and DVI spec.? HDMI 1.3 supports the demands of future high definition display devices, such as higher resolutions, high frame rates and Deep Color. Fully backward compatible with all prior releases of the HDMI spec, as well as DVI compliant devices. What Products or applications will take advantage of new HDMI 1.3 capabilities? New high-definition DVD formats (HD-DVD and Blu-Ray) and game machines (PS3 and X-Box) will make use of capabilities added in HDMI 1.3. Digital television will be able to present images that are closer to real life than previously has been possible. Introducing the HDSpider™ Series from LevelOne The HDSpider™ Series is a collection of HDMI Cat.5 senders and receivers, offering a full range of HDMI extender solutions. Choose from our 7different HDSpider extenders to build a flexible network to send your high-quality HDMI signals to greater distances, and at a reduced cost. What does a Cat.5 receiver do? This compact and simple to use device is deployed on the receiving end, where the HD monitor is located. Using Cat.5 cable to send the HDMI signal is the best way to reach extended distances and HVE-9003 also has a built-in equalization knob to help you fine tune your HD network. - Works with Cat.5, Cat.5e, Cat.6Ethernet cable - Transmission Distance of up to 60m for 1080i or 40m for 1080p - Minimize the cable skew using 8-level adjustable equalization knob - Provides Higher speed - 6.75Gbps - HDMI deep color enables display with more natural and vivid colors - HDMI 1.3c complaint |
