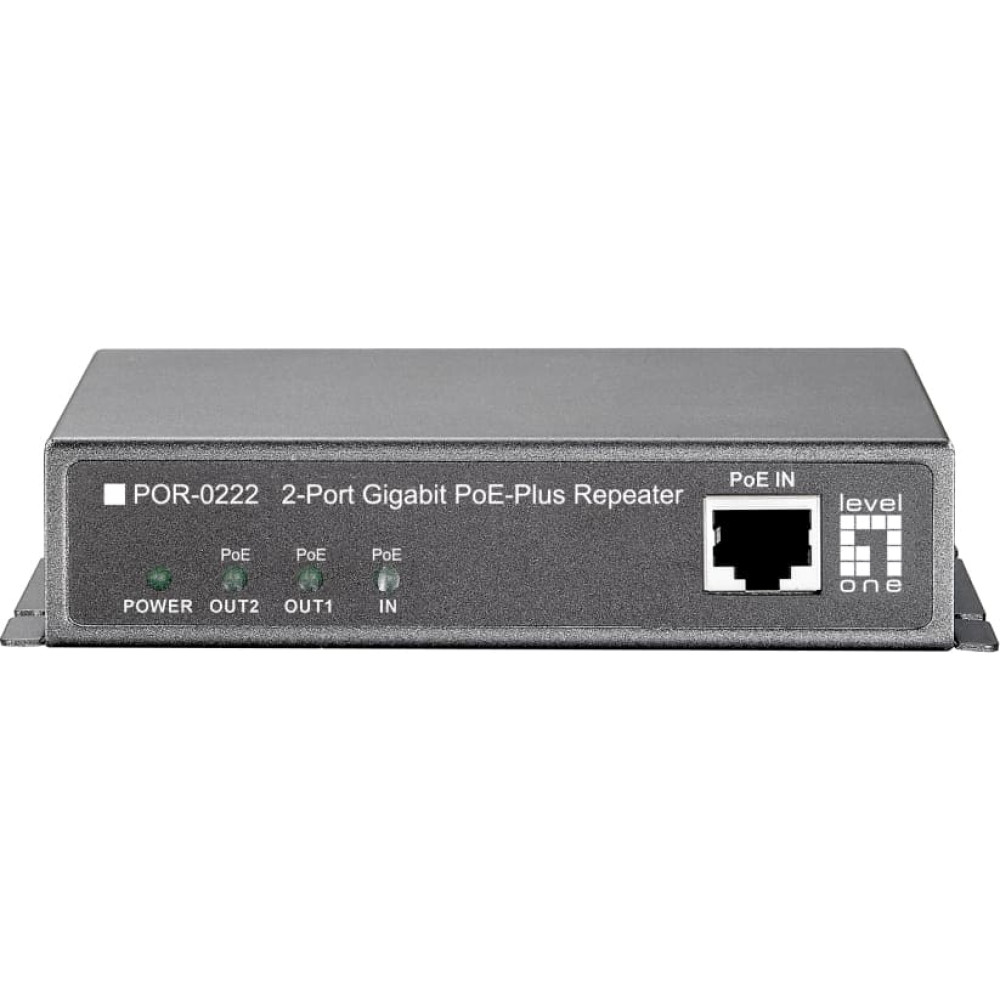

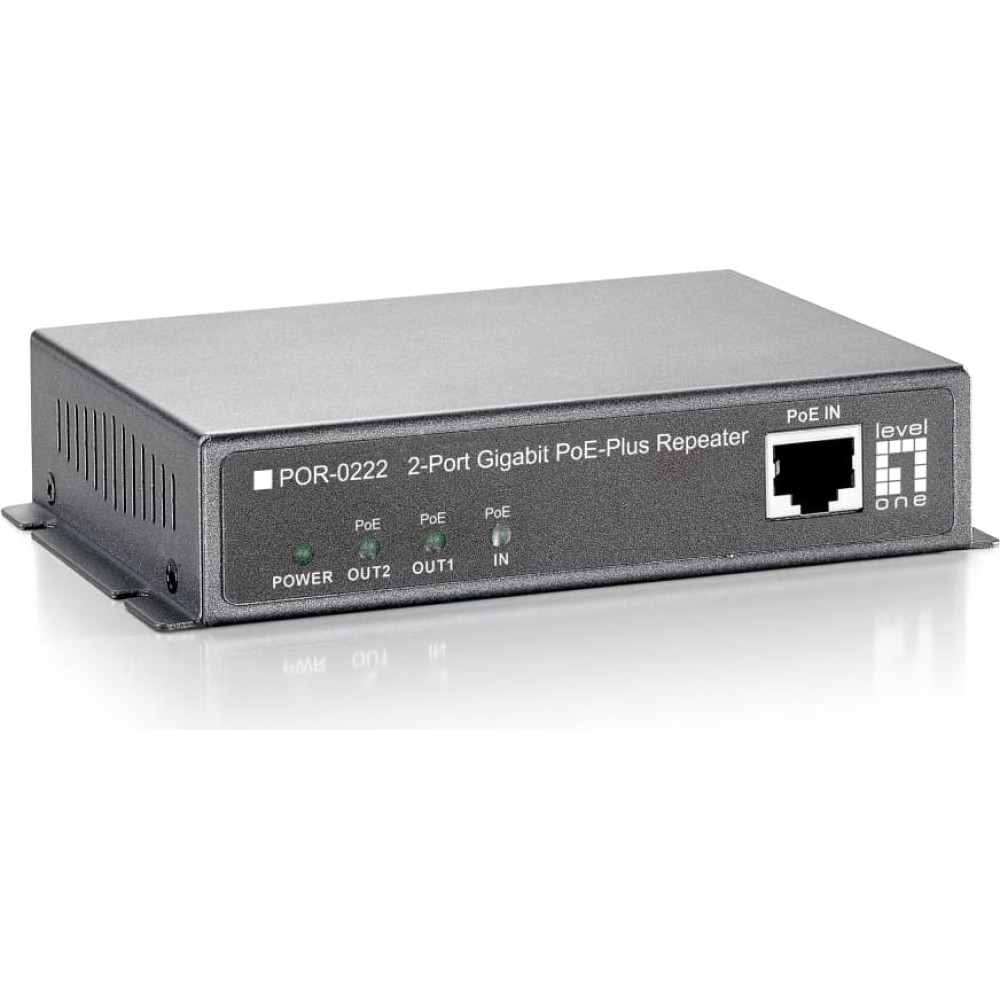

Level One LevelOne 2x GE PoE-Repeater POR-0222 PoE
To purchase this product you must be registered in our system.
Specification
cabling technology: 10/100/1000Base-T(X)
certification: FCC Part 15, CE
compliance certificates: RoHS
country of origin: Taiwan
data transfer rate: 1000 Mbit/s
depth: 90 mm
ethernet lan (rj-45) ports: 3
harmonized system (hs) code: 85176990
height: 28 mm
led indicators: PoE, Power
maximum transfer distance: 100 m
mounting type: Wall
networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
operating relative humidity (h-h): 5 - 95%
operating temperature (t-t): 0 - 50 °C
package depth: 222 mm
package height: 78 mm
package weight: 600 g
package width: 146 mm
power consumption (max): 2.5 W
power over ethernet (poe): Yes
power over ethernet (poe) ports quantity: 3
product colour: Black
quick start guide: Yes
storage relative humidity (h-h): 5 - 95%
storage temperature (t-t): 0 - 70 °C
type: Network repeater
weight: 400 g
width: 130 mm
Description

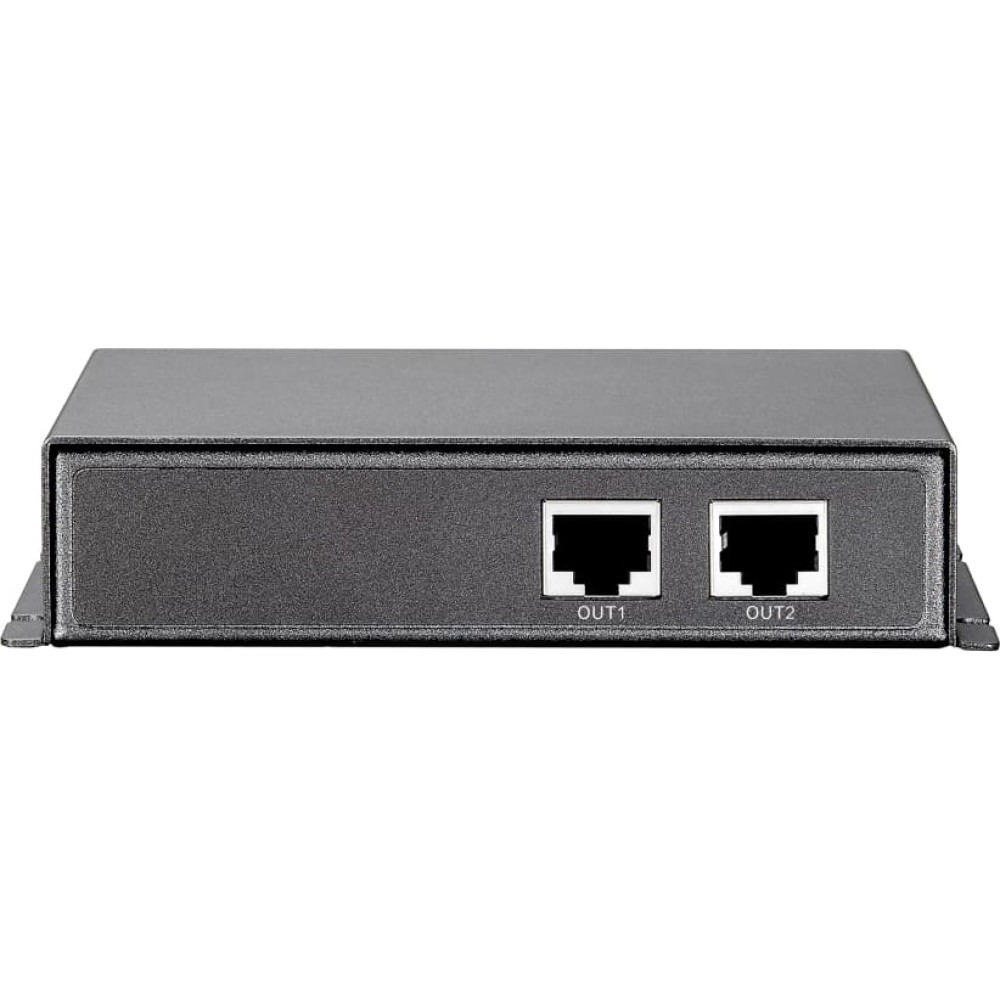

| Extend the reach of your Gigabit PoE-Plus devices For system integrators looking for a professional solution to help extend their Gigabit PoE (802.3af/at) network, POR-0222 is the perfect accessory to increase your network performance. As a 2-port repeater, it’s now easier to add more devices to the network for greater deployment flexibility. Normal cable runs only reach 100 meters, but with POR-0222 installers can extend the PoE network performance up to 200 meters. Furthermore, you can triple your range or even more by daisy-chaining* multiple PoE repeaters. * Maximum distance depends on the required Wattage of the PD. Simple yet durable, no software required As a Gigabit PoE-Plus Repeater, POR-0222 receives all power from the Power Sending Equipment (PSE), such as a Gigabit PoE-Plus switch. This means that POR-0222 uses no external power supply, making it the most flexible option for system integrators looking for an easy, affordable solution to increase the distance to the attached devices on a network. POR-0222 has 3 RJ-45 ports for easy deployment, 1 “IN” port that accepts the power and data for the first 100 meters, and 2 “OUT” ports that boosts and extends the power and data an additional 100 meters. With a durable metal housing, POR-0222 fits into any tight deployments. Applications POR-0222 is a long-ranged solution for deploying PoE IP Digital Signage and any Gigabit PoE PD powered by 802.3at Gigabit PSE. - High Power Midspan PoE compliant to simplify deployment and installation - Built-in 2 PoE output ports for PoE devices - 10/100/1000Mbps wire speed transmission and reception - Forwards Power over Ethernet to remote device - Extends Gigabit PoE connection for another 100 meters - Multiple PoE repeaters can be deployed by daisy chain to extend range - Simple Plug and Play installation, no additional power supply required |
