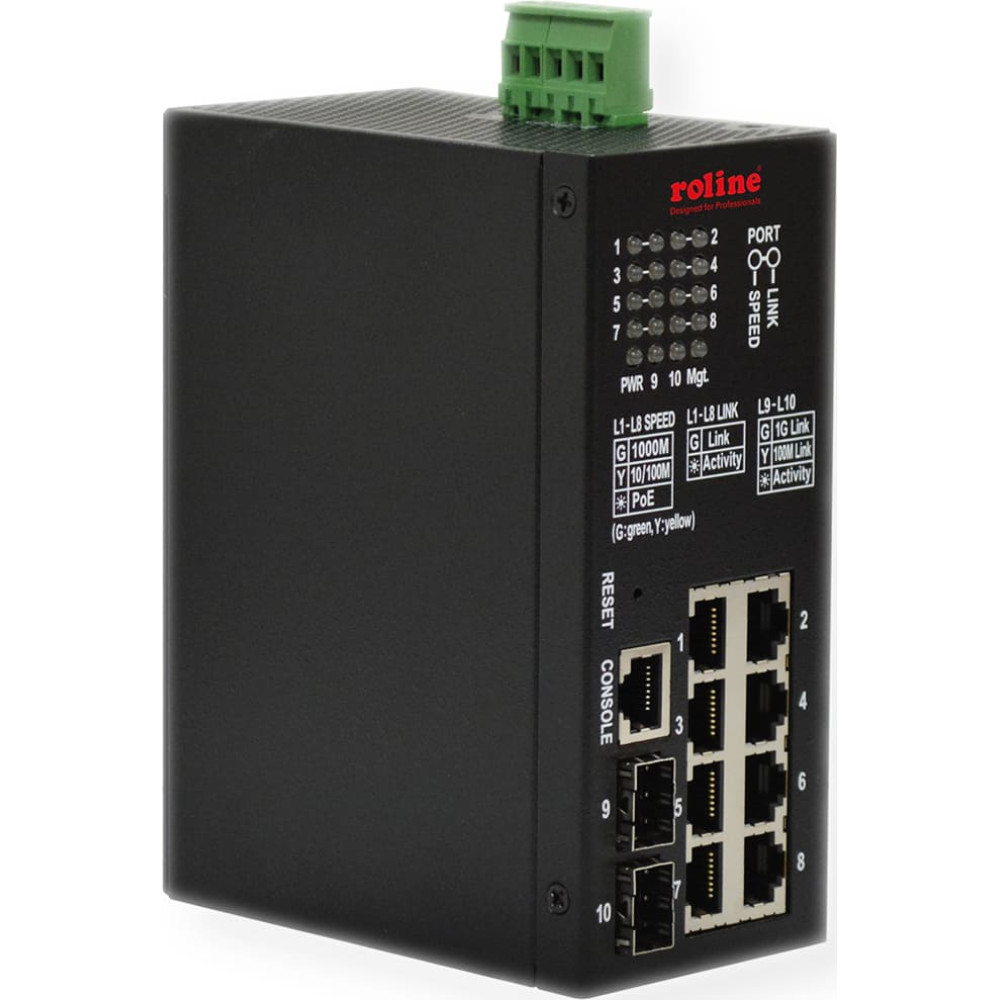

Roline Gigabit Switch 10-Port (8x RJ45+2x SFP) Layer2 PoE+ Smart Managed

ROLINE

Roline Gigabit Switch 10-Port (8x RJ45+2x SFP) Layer2 PoE+ Smart Managed

Product Code: 21.13.1137
Barcode 7630049614710

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
colour: black
current catalog edition: C24-01.12
current catalog page: 1.08
depth: 140 mm
depth of packaging (single piece): 270 mm
dimensions (hxwxd): 60 x 106 x 140 mm
free slots for sfps: 2
gigabit ethernet ports rj-45: 8
gross weight: 0.8
height: 60 mm
height of packaging (single piece): 80 mm
lan (mbps): 10/100/1000
mains connection: Loose cable / screw terminals
manufacturer: ROLINE
max. poe output power (total): 90 W
max. poe output power per port: 30 W
network standard: Gigabit Ethernet
package weight (single piece): 0.8 kg
power over ethernet (poe): PoE+
product group: Network Components
product type: PoE Gigabit Switch
quantity of poe ports: 8
quantity of ports: 10
weight: 768.1 g
width: 106 mm
width of packaging (single piece): 170 mm
Description

Gigabit Switch with 8x 10/100/1000Mbps RJ-45 and two dual-speed SFP slots

  • Eight 10/100/1000Mbps RJ-45 and two dual-speed SFP slots
  • All copper ports support auto-negotiation and auto-MDI/MDI-X detection
  • All copper ports are equipped with 802.3at-compliant PoE PSE
  • Two SFP slots support dual speed for 100BASE-FX and 1000BASE-X SFP transceivers
  • Full wire speed forwarding
  • Supports 802.3x flow control for full-duplex and backpressure for half-duplex
  • Supports SFP with Digital Diagnostic Monitoring (DDM)
  • Provides PoE PSE redundancy function
  • Provides fiber optical power alarm function, Automatic Laser Shutdown function
  • Power voltage DC 12V-30V

Management:

  • HTTP/HTTPS/SSHv2/CLI telnet/CLI console/SNMP v1/v2c/v3/RMON
  • DHCP/DHCPv6 client, DNS client, NTPv4
  • IPv6 support, System Syslog, Configuration down/upload, Software upload
  • private MIB for DDM monitoring, Remote boot, TFTP firmware update via SNMP

Security:
  • NAS, 802.1X, MAC-based/Web/CLI authentication, IP MAC binding, TACACS+, IP source guard

Layer 2:
  • QoS, 802.1Q/MAC-based/Protocol-based/Private/IP subnet VLAN, Port Isolation
  • Storm control for UC/MC/BC packets
  • Static MAC configuration
  • IGMP v2/v3 snooping, MLD v1/v2 snooping, DHCP snooping
  • Multiple Spanning Tree – MSTP, RSTP, STP

Auto Multi-Ring (KAMR) Technology:
  • Fast failover response time
  • Auto recovery when failure is repaired
  • Supports up to Five redundant rings
  • Works with RSTP network
  • Supports ring member status monitoring for up to 100 units

As a suitable power supply unit, we recommend the DIN rail power supply unit NDR-120-24 (21.13.1313).
