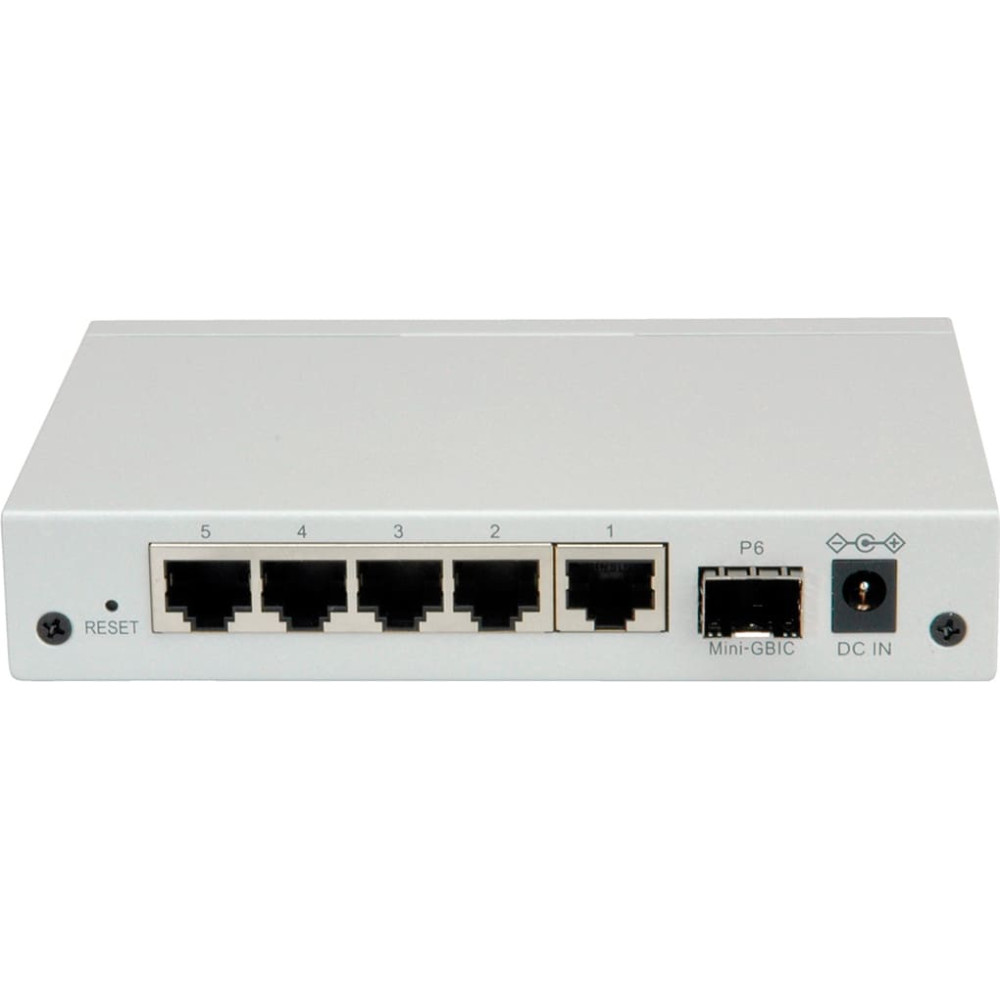

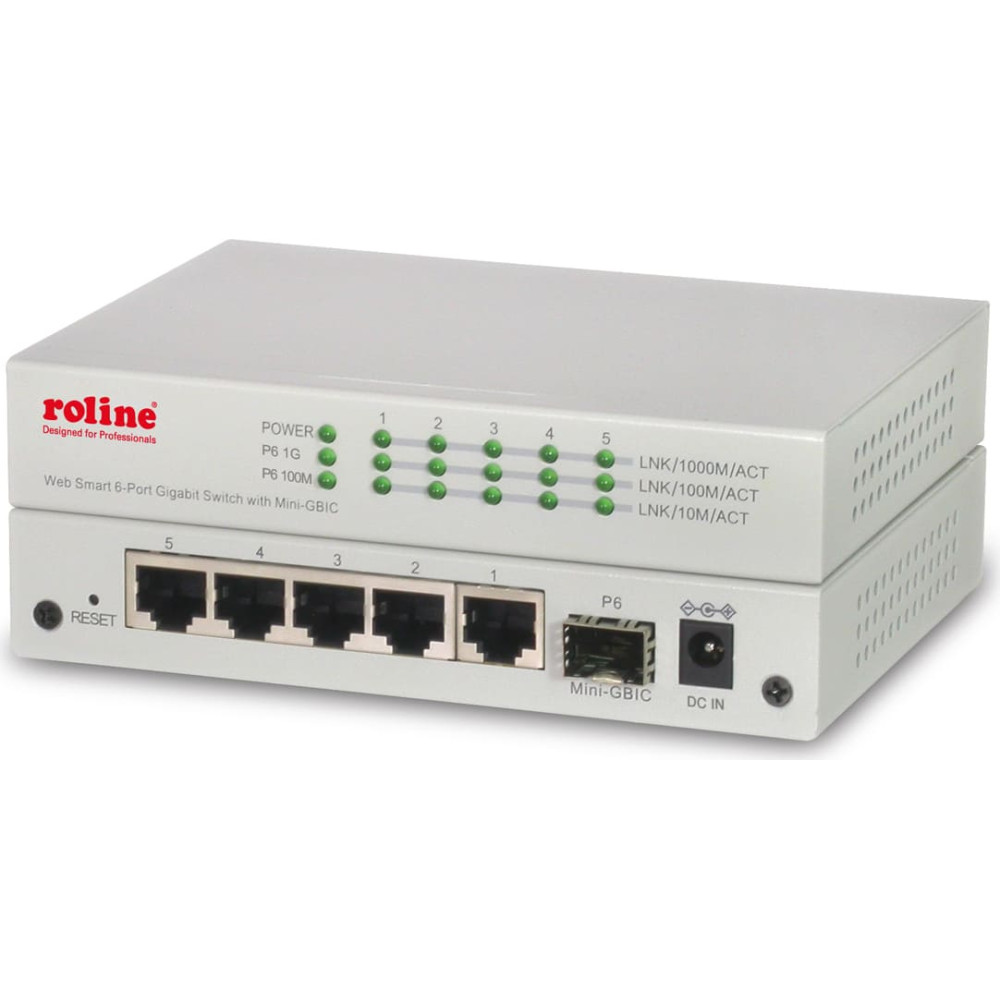

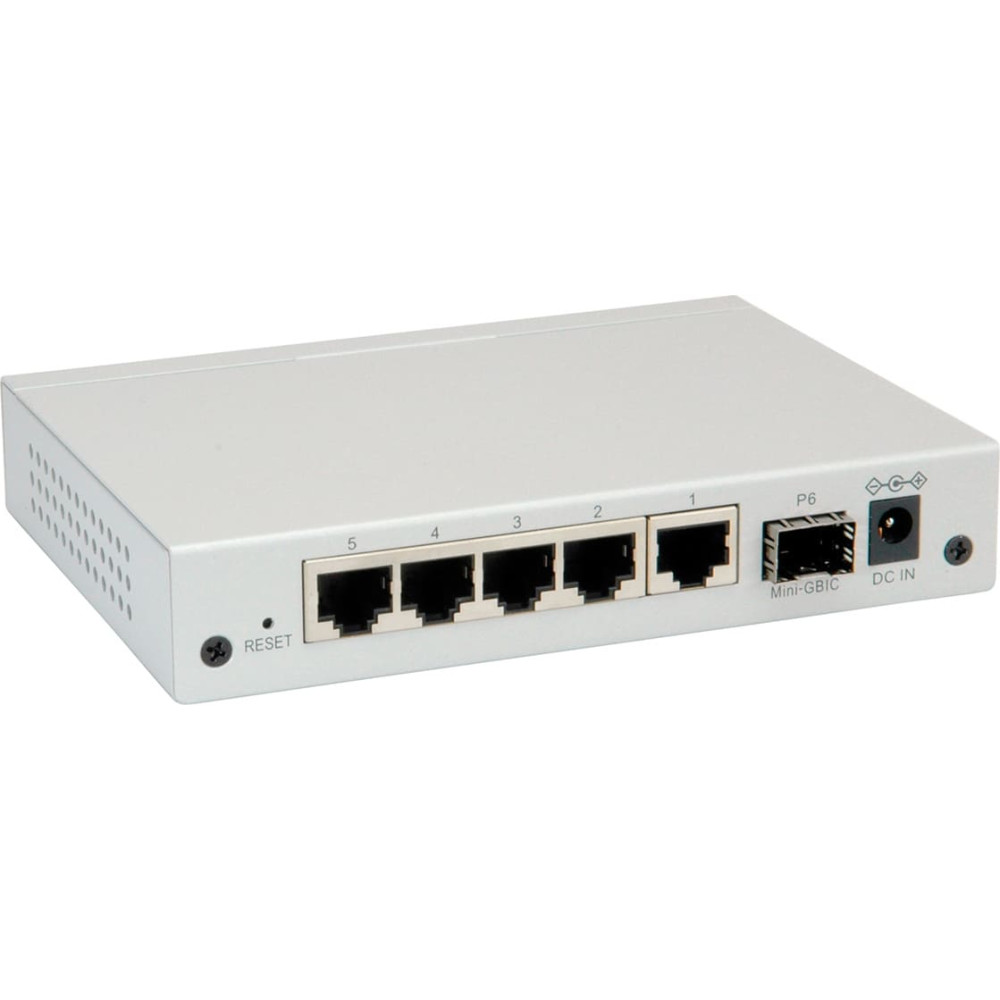

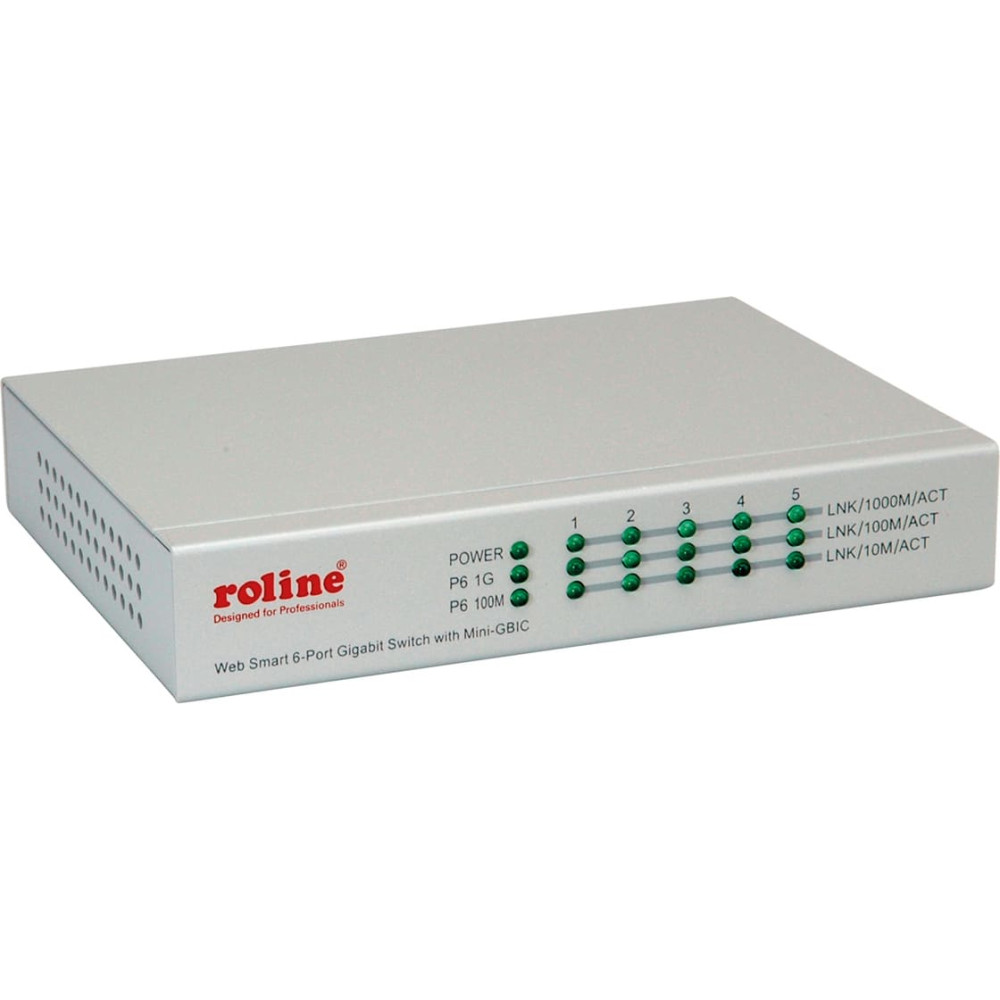

Roline Gigabit Ethernet Switch, 6x (5xGbE + 1x Gbic(SFP)), managed

ROLINE

Roline Gigabit Ethernet Switch, 6x (5xGbE + 1x Gbic(SFP)), managed

Product Code: 21.14.3523
Barcode 7611990138128

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
colour: grey
current catalog edition: C25-01.03
current catalog page: 1.05
depth: 26 mm
depth of packaging (single piece): 300 mm
dimensions (hxwxd): 144 x 104.5 x 26 mm
gigabit ethernet ports fibre: 1
gigabit ethernet ports rj-45: 5
gross weight: 0.6
height: 144 mm
height of packaging (single piece): 60 mm
lan (mbps): 10/100/1000
mains connection: Appliance Europlug, Type-C
manufacturer: ROLINE
network standard: Gigabit Ethernet
operating temperature max.: 45 °C
operating temperature min.: -10 °C
package weight (single piece): 0.6 kg
power supply unit (internal/external): External
product group: Network Switches
product type: Gigabit Ethernet Switch
quantity of ports: 6
scope of delivery: Switch, power supply (5V DC, 2A), manual
stackable: no
weight: 386.3 g
width: 104.5 mm
width of packaging (single piece): 200 mm
Description

Managed 5-Port Gigabit network switch for use in a industrial environment - including an additional SFP-Port!

  • Provides 5x TP 10/100/1000Mbps Gigabit Ethernet ports and 1x Gbic (SFP)) 100/1000Mbps Fibre: MultiMode 50/125μm, 60/125μm, SingleMode 9/125μm
  • All 10/100/1000M ports support auto-negotiation and auto-MDI/MDI-X detection
  • Supports full/half-duplex transfer mode for 10/100Mbps
  • Supports full-duplex transfer mode for 1000Mbps
  • Store-and-Forward switching method
  • Supports SFP with Digital Diagnostic Monitoring (DDM)
  • Provides Automatic Laser Shutdown (ALS) function
  • Provides fiber optical power Alarm (OPA) function
  • Alarm e-mail notification
  • Wire-speed packet filtering and forwarding rate
  • Supports IEEE 802.3x flow control
  • MAC Address Table: 8K
  • Buffer Memory: 0.5 MB
  • LED Indication
  • Environment Operating Temperature: 0°C - 40°C (main device)
  • Dimensions (WxDxH): 144 x 104.5 x 26 mm
