Home Network products Switches and Hubs Gigabit switches Intellinet Industrie Medienkonverter SC Singlemode 20km IP40

Intellinet Industrie Medienkonverter SC Singlemode 20km IP40

Product Code: 508322

Barcode 0766623508322

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

cable types supported: Cat5e

certification: FCC Class B, CE, RoHS

depth: 143 mm

ethernet interface type: Fast Ethernet

ethernet lan data rates: 10,100 Mbit/s

fiber cable diameters supported (core/cladding): 8/125,8.3/125,8.7/125,10/125 µm

fiber mode structure: Single-mode

harmonized system (hs) code: 85176990

height: 48 mm

housing material: Metal

input voltage: 12 - 58 V

internal: No

jumbo frames support: Yes

led indicators: Yes

manual: Yes

maximum transfer distance: 20000 m

networking standards: IEEE 802.3, IEEE 802.3u

operating relative humidity (h-h): 5 - 90%

operating temperature (t-t): -40 - 75 °C

product colour: Black

storage temperature (t-t): -40 - 85 °C

supported network protocols: UTP/STP

terminal block port: Yes

tx power (max): -3 dBmW

tx power (min): -9 dBmW

wavelength: 1310 nm

weight: 600 g

width: 104 mm

Description

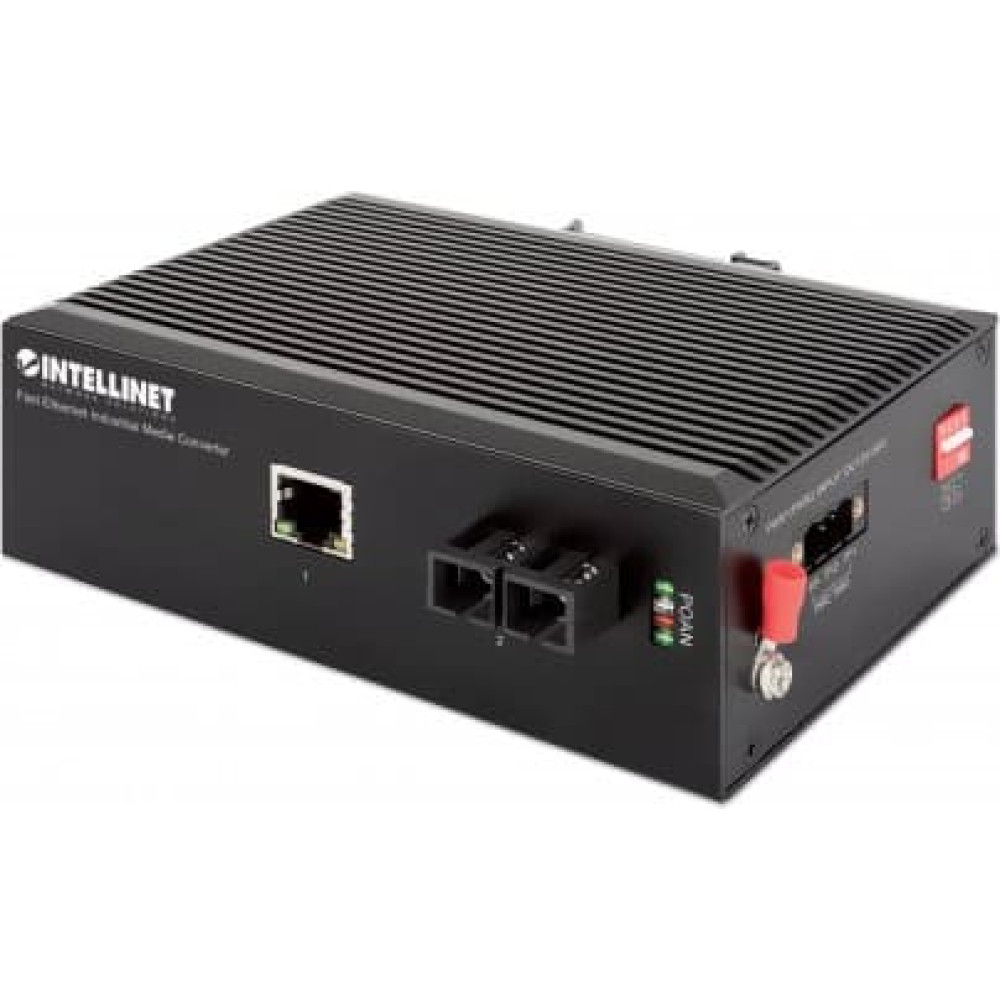

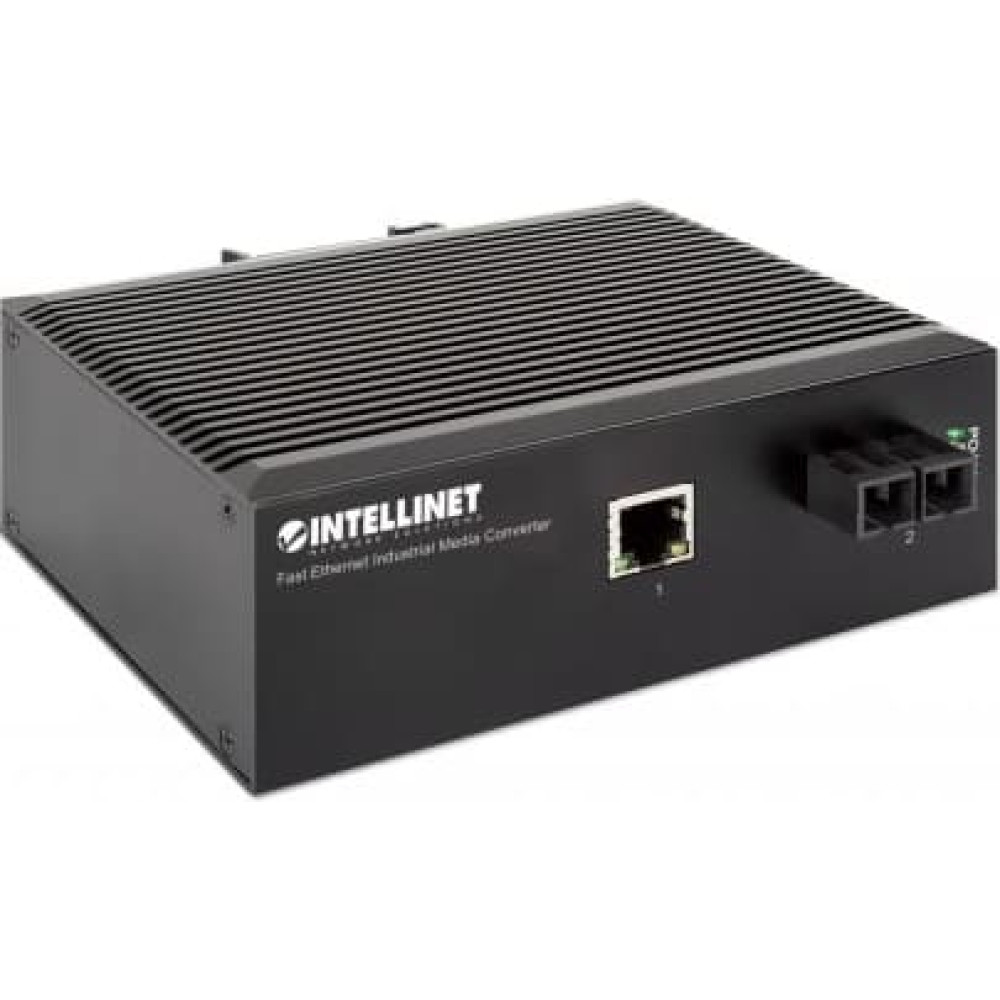

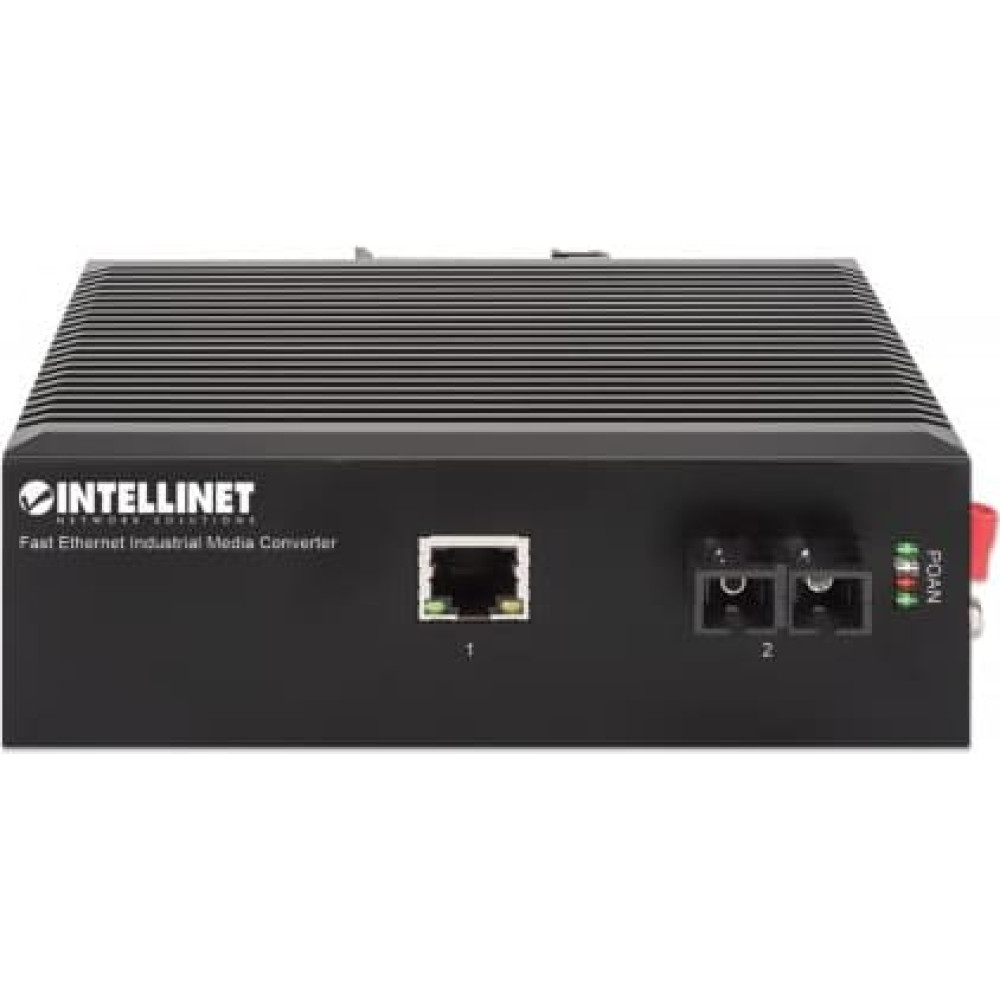

Industrial Media Converter - expand your existing network in harsh industrial environments
The Intellinet Network Solutions Fast Ethernet Industrial Media Converter offers the network designer a device for migration from copper-based Ethernet to Fiber Ethernet. Now, migration or expansion of existing networks can be achieved with minimum cost and complexity. The converter is completely transparent to the network, so the network performs exactly the way it did before, only now it can support both copper and fiber media. It provides fiber connectivity to Ethernet segments, allowing for even greater networking expansion between extended workgroups. It also provides building-to-building connectivity without the need for the cost and disruption associated with the installation of additional routers.

Equipped even for challenging environment conditions
With its rugged, protective, IP40-rated metal housing, the converter operates reliably, even in extreme temperatures from -40 - 75℃ (-40 - 167°F). In combination with its DIN-rail mounting option and two safe redundant DC power inputs with plenty of other safety features, this converter is ideal for IoT applications in Industry 4.0 and more.
