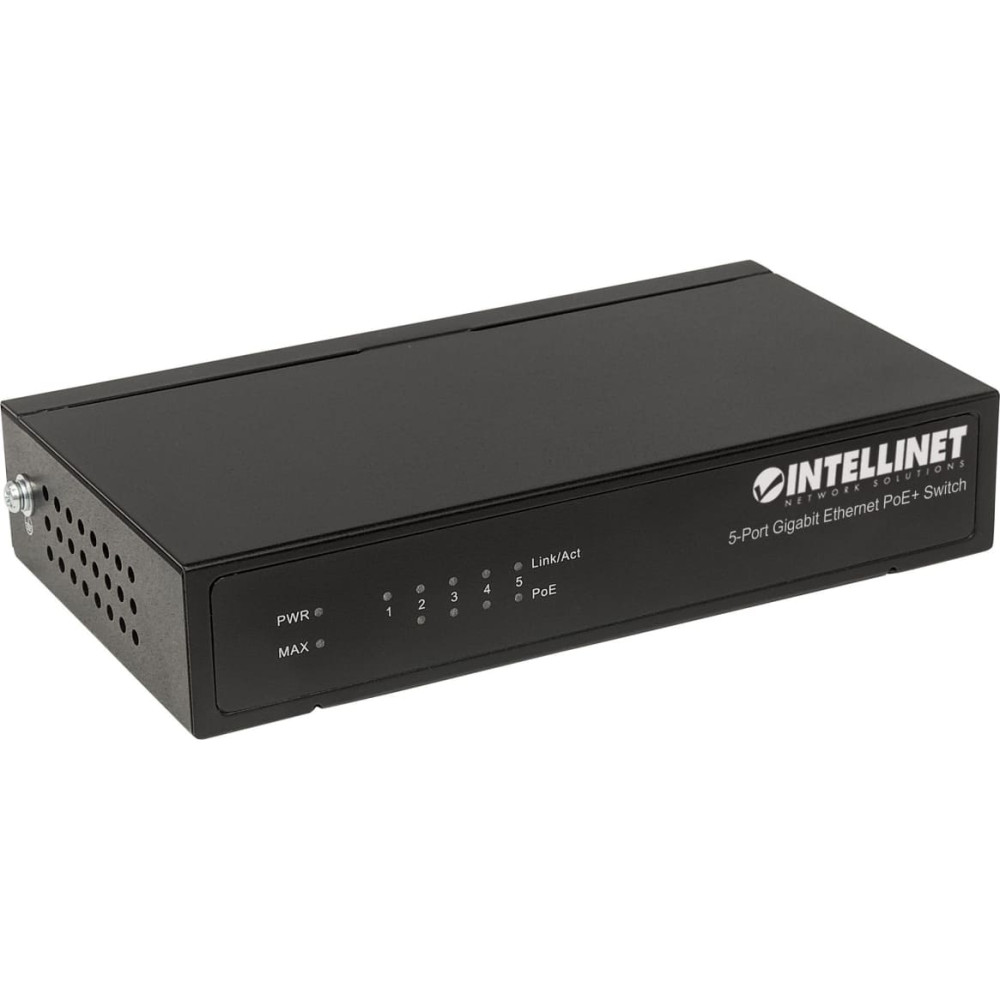

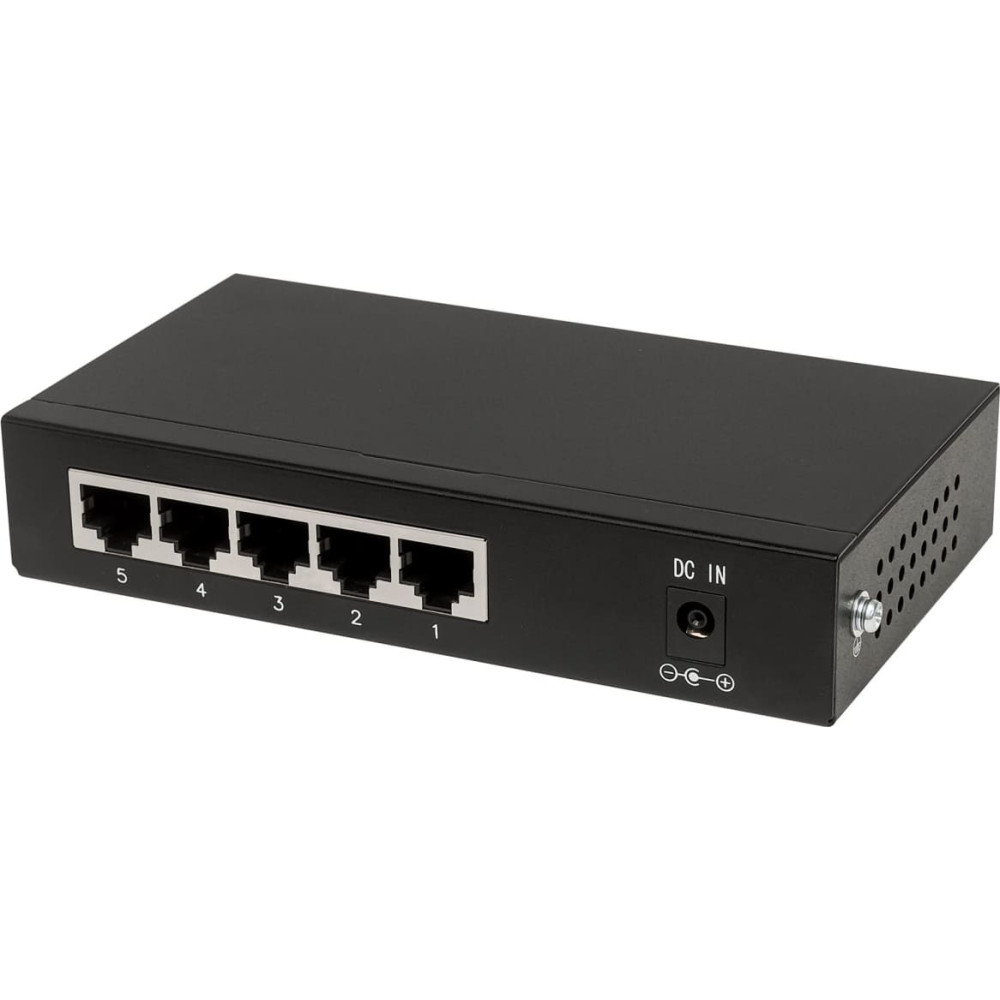

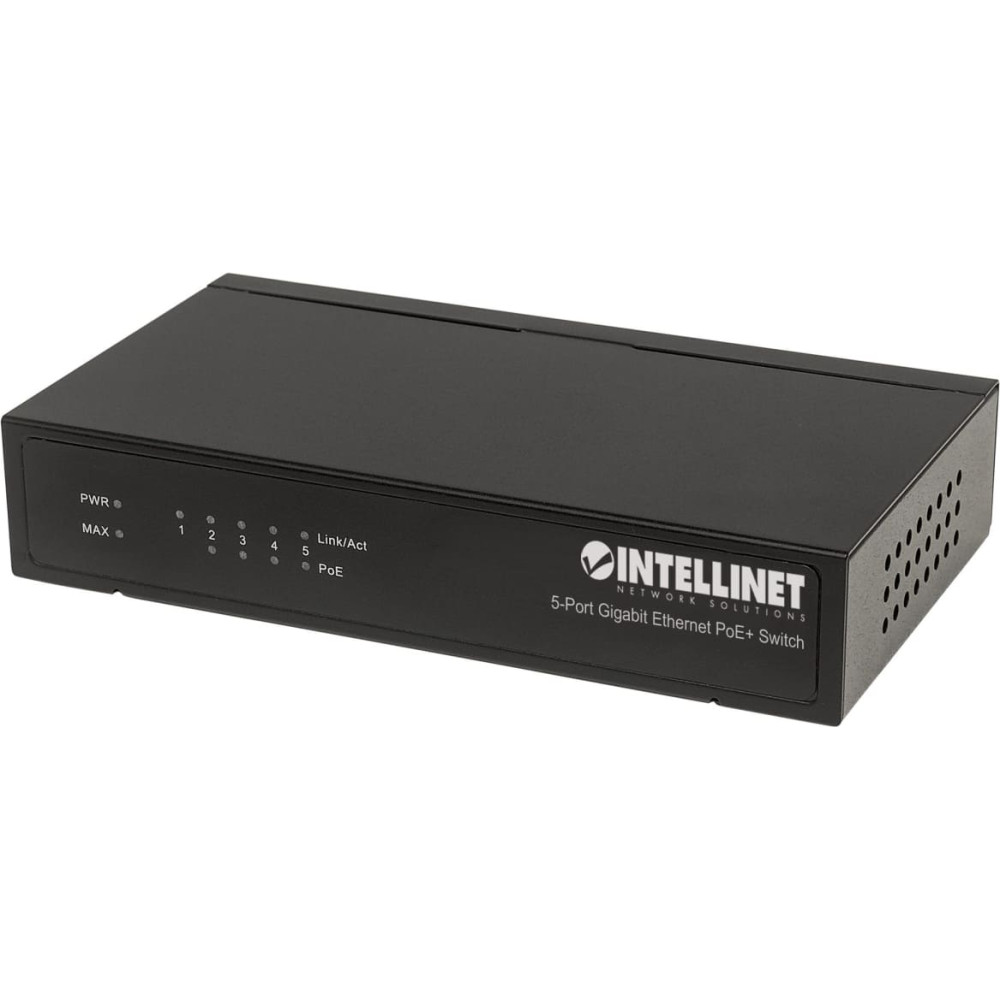

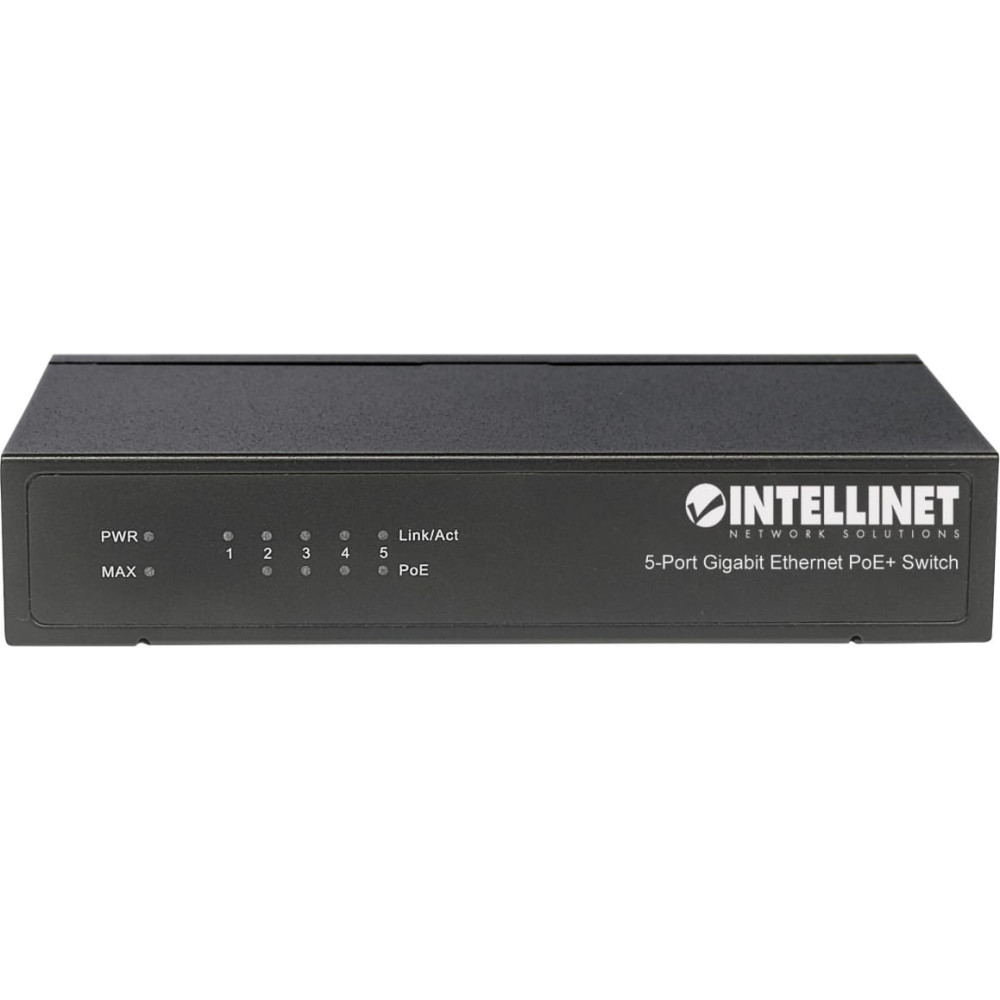

Intellinet PoE+ Switch 5-Port Gigabit Ethernet 60W Desktop
To purchase this product you must be registered in our system.
Specification
ac input frequency: 50 - 60 Hz
ac input voltage: 100 - 240 V
auto mdi/mdi-x: Yes
auto-negotiation: Yes
basic switching rj-45 ethernet ports quantity: 5
basic switching rj-45 ethernet ports type: Gigabit Ethernet (10/100/1000)
cables included: AC
certification: FCC Class B, CE
copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
depth: 76 mm
flow control support: Yes
harmonized system (hs) code: 85176990
height: 27 mm
housing material: Metal
jumbo frames: 9000
jumbo frames support: Yes
led indicators: Activity, Link, PoE, Power
mac address table: 2000 entries
networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u
operating relative humidity (h-h): 10 - 90%
operating temperature (t-t): 0 - 40 °C
packet buffer memory: 0.192 MB
packet forwarding rate (1 gbps): 1488000 pps
packet forwarding rate (10 mbps): 14880 pps
packet forwarding rate (100 mbps): 148800 pps
power consumption (max): 70 W
power over ethernet (poe): Yes
power over ethernet (poe) power per port: 30 W
power over ethernet plus (poe+) ports quantity: 5
power protection features: Over voltage, Overload, Short circuit

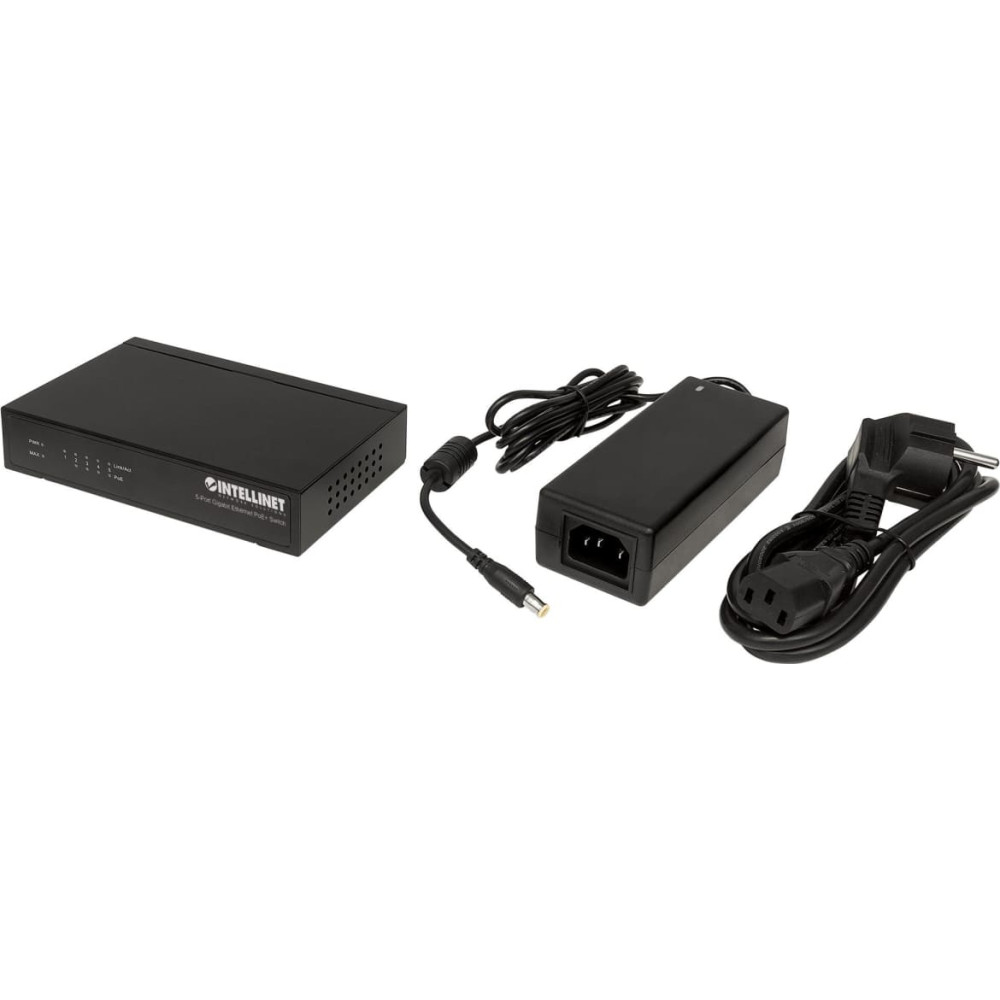

power supply included: Yes
product colour: Black
quick start guide: Yes
rack mount kit: Yes
rack mounting: No
storage temperature (t-t): -20 - 70 °C
store-and-forward: Yes
switch type: Unmanaged
switching capacity: 10 Gbit/s
total power over ethernet (poe) budget: 60 W
weight: 710 g
width: 140 mm
Description
| Save installation time and money with PoE. The Intellinet Network Solutions 5-Port Gigabit Ethernet PoE+ Switch passes both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with five Gigabit Ethernet ports - four of which are high-power PoE+ PSE ports - this switch can power wireless LAN access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds of up to 1000 Mbps. Power over Ethernet 802.3at The Intellinet Network Solutions 5-Port Gigabit Ethernet PoE+ Switch supports the IEEE 802.3at protocol and can inject up to 30 watts of power per port.* IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch require no additional power, which eliminates the time and expense of electrical rewiring and minimises the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short circuit, overload and high-voltage protection function, your equipment is well-protected. Green Ethernet Technology More often than not, a network switch does not utilize all of its ports at all times. Normally, when a computer, notebook, network printer or other network device powers down, the switch continues to consume the same amount of power as if it were active. To overcome this waste of energy, the Intellinet Network Solutions 5-Port Gigabit PoE+ Switch employs the new energy-efficient IEEE 802.3az technology, which detects link status to all connected devices and reduces the power usage of ports that are not in use. To facilitate maximum network performance, the Intellinet Network Solutions switch adjusts power output based on the length of the network cable that is connected to a particular port. When things slow down, it automatically scales back power usage to conserve energy and save money. * Total PoE budget for this switch is 60 watts. Per-port average power distribution is 15 watts; maximum per-port power usage cannot exceed 30 watts. |
