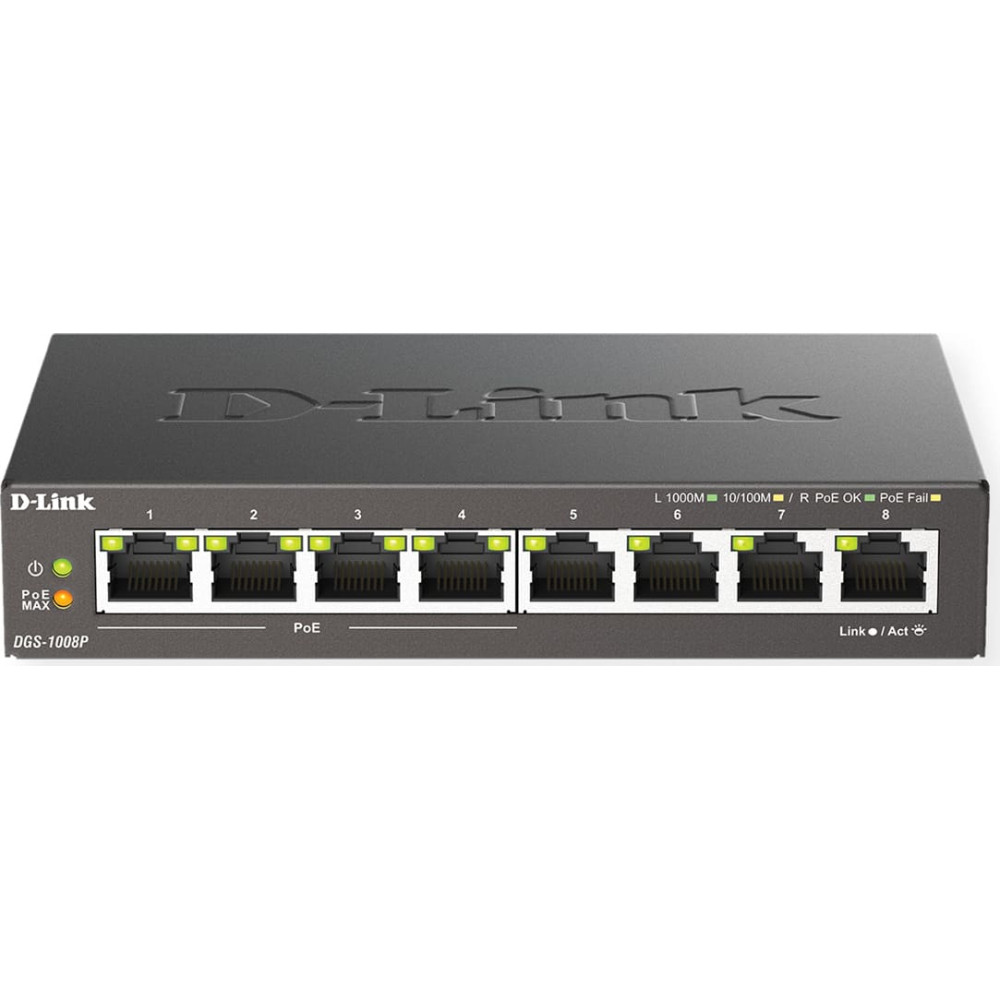

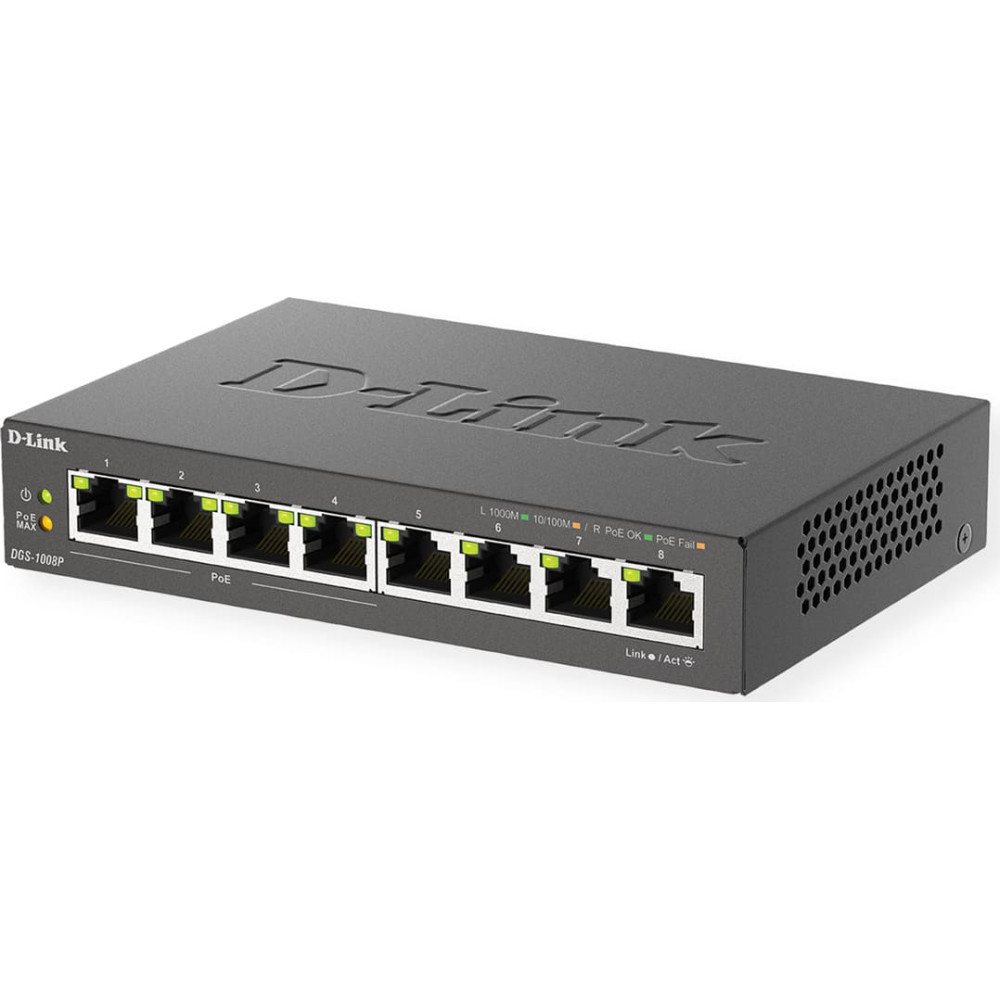

D-Link Switch D-Link DGS-1008P 8*GE PoE retail
To purchase this product you must be registered in our system.
Specification
auto mdi/mdi-x: Yes
basic switching rj-45 ethernet ports quantity: 8
colour: various
copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10BASE-T
current catalog edition: 24.1
current catalog page: 1.11
depth: 120 mm
depth of packaging (single piece): 70 mm
dimensions (wxdxh): 190 x 120 x 38 mm
full duplex: Yes
gigabit ethernet ports rj-45: 8
gross weight: 0.96
harmonized system (hs) code: 85176990
height: 38 mm
height of packaging (single piece): 160 mm
lan (mbps): 10/100/1000
led indicators: Yes
mac address table: 4000 entries
mains connection: Kaltgeräte-Anschluss
manufacturer: D-LINK
master (outer) cases per pallet (air): 25 pc(s)
master (outer) cases per pallet (sea): 25 pc(s)
max. poe output power (total): 68 W
maximum data transfer rate: 2 Gbit/s
mounting form: Desktop
network standard: Gigabit Ethernet
networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
package depth: 328 mm
package height: 108 mm
package weight: 1.7 kg
package weight (single piece): 0.96 kg
package width: 180 mm
pallet gross length: 120 cm
pallet gross weight (air): 467 kg
pallet gross weight (sea): 467 kg
pallet gross width: 100 cm
pallet height (air): 195 cm
pallet height (sea): 195 cm

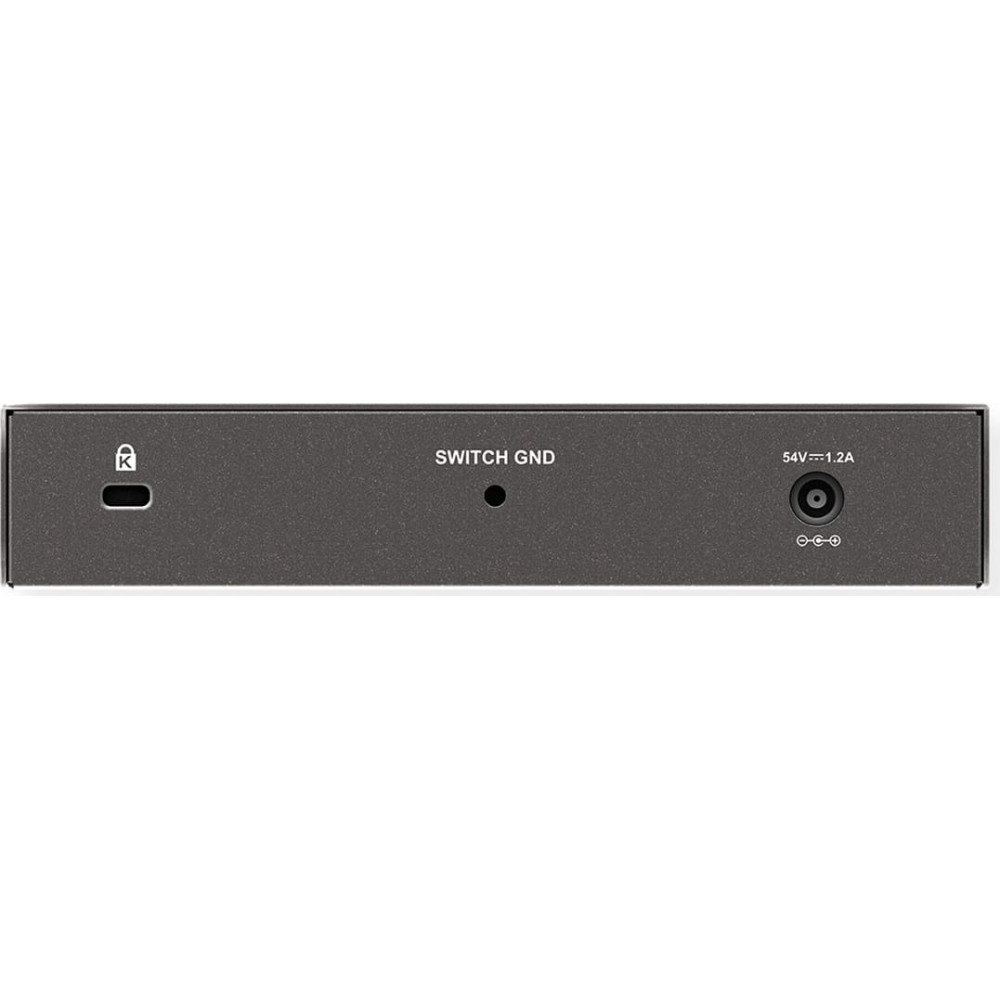

power connector: DC-in jack
power consumption (typical): 63.2 W
power over ethernet (poe): Yes
power over ethernet plus (poe+) ports quantity: 4
product colour: Black
product group: Netzwerk-Switches
product type: Gigabit Ethernet Switch
products per pallet (air): 250 pc(s)
products per pallet (sea): 250 pc(s)
products per shipping (inner) case: 10 pc(s)
quantity of ports: 8
rack mounting: No
shipping (inner) case gross weight: 17.9 kg
shipping (inner) case height: 36.3 cm
shipping (inner) case length: 57.2 cm
shipping (inner) case net weight: 12.4 kg
shipping (inner) case width: 38.4 cm
supported data transfer rates: 200, 100, 20, 10 Mbit/s
switch layer: L2
switch type: Unmanaged
switching capacity: 16 Gbit/s
weight: 760 g
width: 190 mm
width of packaging (single piece): 210 mm
Description
| Gigabit Connection for Small Business The D-Link® 8-Port Gigabit Ethernet PoE Switch (DGS-1008P) enables office users the ability to easily connect and supply power to Power over Ethernet (PoE) devices such as IP cameras, IP phones, and wireless access points (APs) to a network. The 8 Gigabit ports provide connectivity for devices and applications that require high speed network access and reduce bottlenecks that can interrupt communication. The DGS-1008P also provides the opportunity to add additional Ethernet devices like computers, printers, and Network Attached Storage (NAS) onto a network. This compact PoE switch operates quietly, making it ideal for use in virtually any room or office. Power Over Ethernet (PoE) The first four ports of the DGS-1008P supports the IEEE 802.3af PoE protocol. Each of these four ports can supply up to 15.4 watts for a total PoE budget of 52 watts, allowing users to attach an IEEE 802.3af compliant device to the DGS-1008P that requires no additional power. Use PoE for applications that are far from power outlets or when you want to minimize the clutter of extra cables. Auto MDI/MDIX Crossover All ports support automatic MDI/MDIX crossover, eliminating the need for crossover cables or uplink ports. Each port can be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables. Easy Installation, no Additional Setup The DGS-1008P 8-Port Gigabit Ethernet Switch is plug-and-play and requires no additional configuration. Its compact size and fan-less design allow for installation anywhere data or power is required. In addition, the switch supports IEEE 802.1p QoS, which automatically classifies and prioritizes compliant device traffic to ensure time sensitive data such as VoIP is forwarded without delay. Conserves Energy The DGS-1008P 8-Port Gigabit Switch makes use of D-Link Green™ eco-friendly technology, providing energy savings, reduced power consumption, and a longer product life without sacrificing operational performance or functionality. This switch helps to conserve energy through methods such as Link Status and Cable Length Detection. The Link Status feature automatically powers down ports that have no link, allowing the switch to save substantial amounts of energy by cutting power for unused ports or ports connected to computers that have been shut down. It can also detect connected cable lengths, and adjust power usage accordingly, helping you save energy without affecting networking performance. In addition, the fan-less design extends the product’s life and also reduces noise. |
