Digitus 4 port Gigabit Ethernet network PoE switch, industrial, unmanaged, 1 SFP uplink
To purchase this product you must be registered in our system.
Specification
country of origin: CN
depth: 0.170
height: 0.055
height(cm): 16.5
length(cm): 5.4
volume(cm3): 1202.85
weight(kg): 0.558333
width: 0.138
width(cm): 13.5
Description

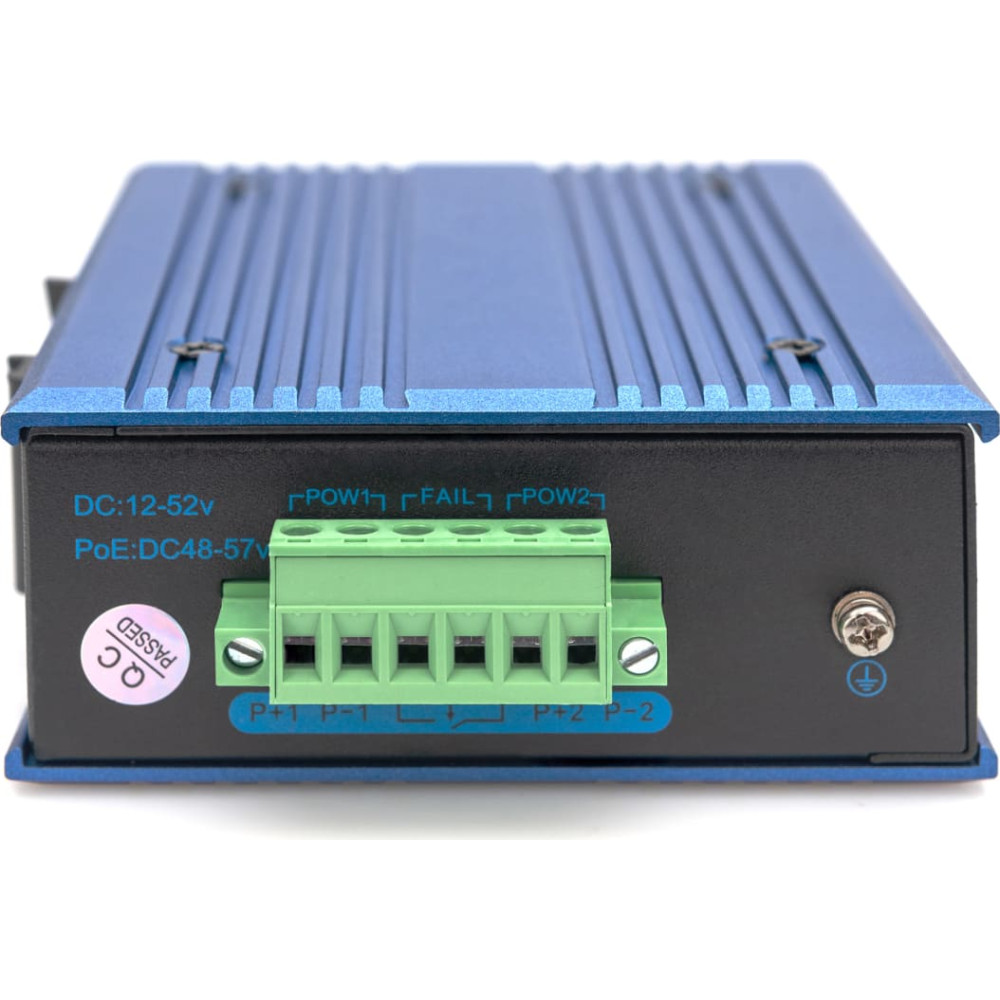

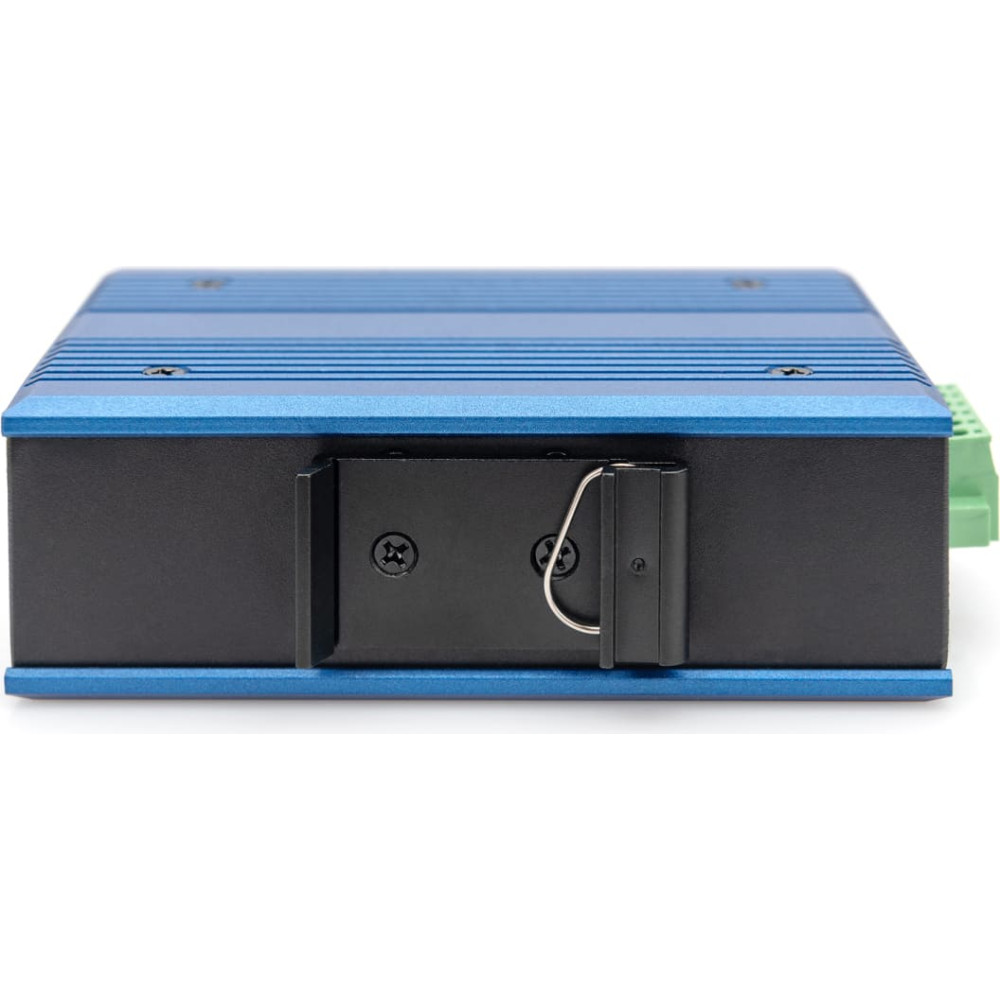

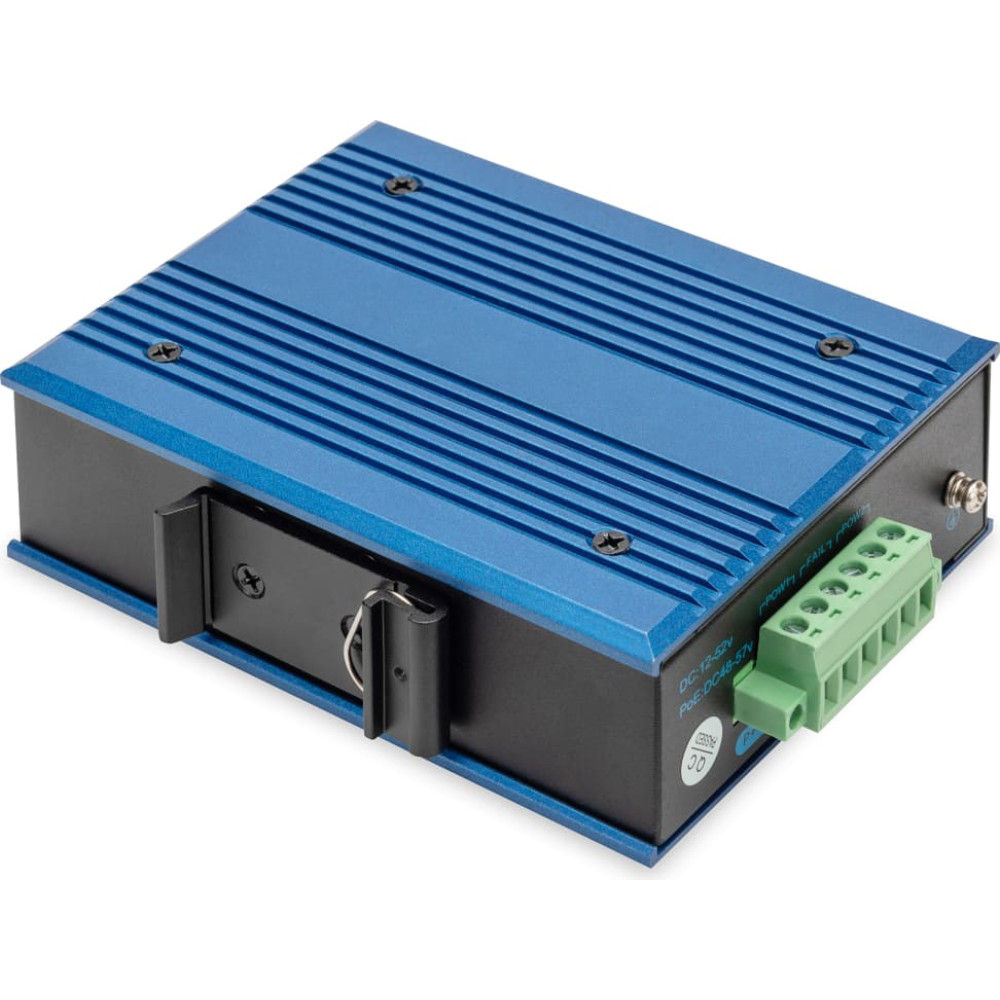

| Industrial 4+1-Port Gigabit Ethernet PoE Switch Unmanaged, 4 RJ45 Ports 10/100/1000 Mbits The DN-651135 is a 4+1 port PoE Gigabit Ethernet switch (IEEE 802.3 af/at) suitable for industrial applications (IP40) that offers interference-free data transfer performance in harsh industrial environments. The use of a high-quality photoelectric integration module ensures good transmission rates for optical and electrical connections. Ensures reliable data transmission Supports full-duplex or half-duplex mode, with automatic negotiation Network connection supports automatic cross-identification Uses "Store and Forward" technology The switch supports a variety of protocols complies with industrial operating standards Operating voltage: DC 48-57V Lightning surge protection (power): 5000A(8/20us) DN-651135 is an industrial Gigabit Ethernet PoE switch with 4 port 10/100/1000 Mbps RJ45 +1 port 1000 Mbps base-FX. The industrial switch has an operating temperature of -40°C ~ 80°C, is robustly manufactured and can be used in all types of harsh environments. The switch can be easily installed on a free DIN rail. The wide temperature range, IP40-rated housing and LED indicator make the DN-651135 an industrial-grade plug-and-play device that provides users with a reliable and convenient solution for networking their Ethernet devices. Number of ports: 4 PoE Power budget: 100 W PoE standard: IEEE802.3at (PoE+) Ethernet speed: Gigabit Industrial usage: true Managed: false Number of ports (Uplink): 1 Outdoorsuitable: false PoE (Power over Ethernet): true Protection against vanadlism: false Uplink port connection: SFP VLAN: false 4 ports 10/100/1000 Base-Tx RJ45 with autonegotiation and Auto-MDI/ MDI-X function, PoE IEEE 802.3af/at (up to 30W) 1-port 1000Base-Fx interface SFP 48V to 57V DC, redundant power connection possible Operating temperature: - 40°C to 80°C IP40 aluminum housing Supports 6KV DC Ethernet ESD protection Supports 6KV DC EFT protection for the power line Vibration, shock and drop protection Performance specification: Bandwidth: 14Gbps, Packet buffer memory: 1.2Mbit, Packet forwarding rate: 10.5Mpps, MAC address table: 2K Flow control: utilizes backpressure technology for half-duplex, utilizes "pause frame" technology in full-duplex mode Housing: aluminum housing with protection class IP40 LED display: Power: Red, Fiber: Link 2(Green), Ethernet: Yellow Power input: 48 to 57V DC, it is possible to install a redundant power supply Power consumption: < 3 watts Network protocols: IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x Industry standard: FCC CFR47 Part 15, EN55022/CISPR22, Class A, IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air), IEC61000-4-3 (RS): 10V/m (80~1000MHz), IEC61000-4-4 (EFT): power connection: ±4kV; data connection: ±2kV, IEC61000-4-5 (overvoltage) Dimensions (W x D x H): 118 x 92.4 x 40 mm Product weight: 0.55 kg Working environment: Operating temperature: -40 to max 80°C; Storage temperature: -40 to max 80°C Relative humidity: 5% to max. 95% (no condensation) Total PoE power budget (W): 100 W Package content: 4+1 port PoE Gigabit Ethernet switch Manual |
