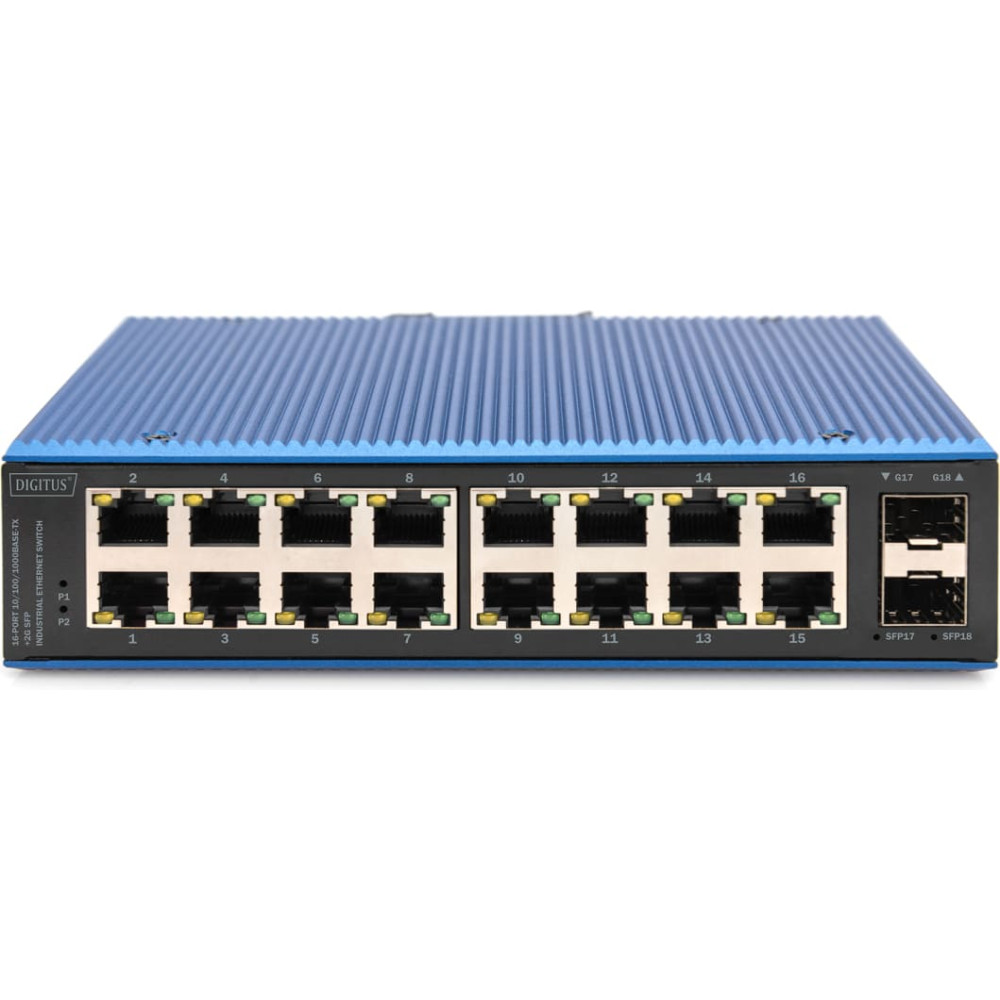

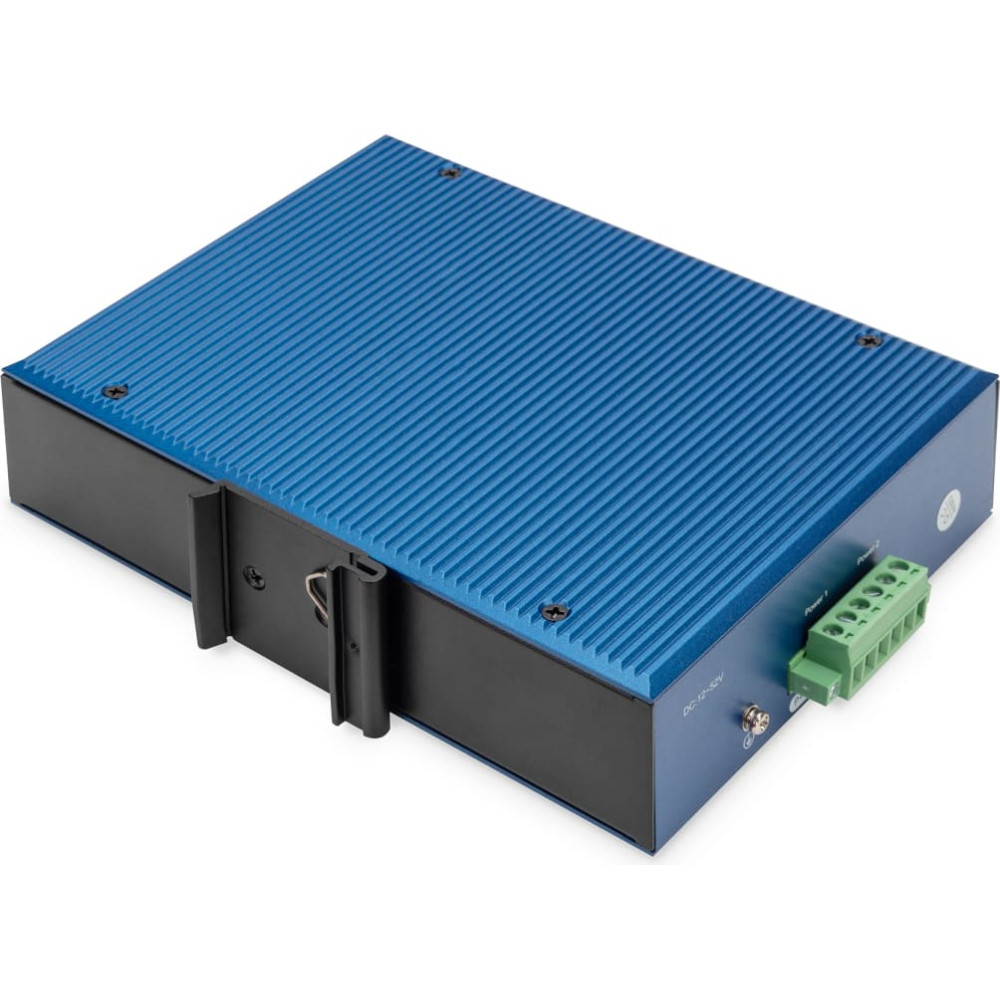

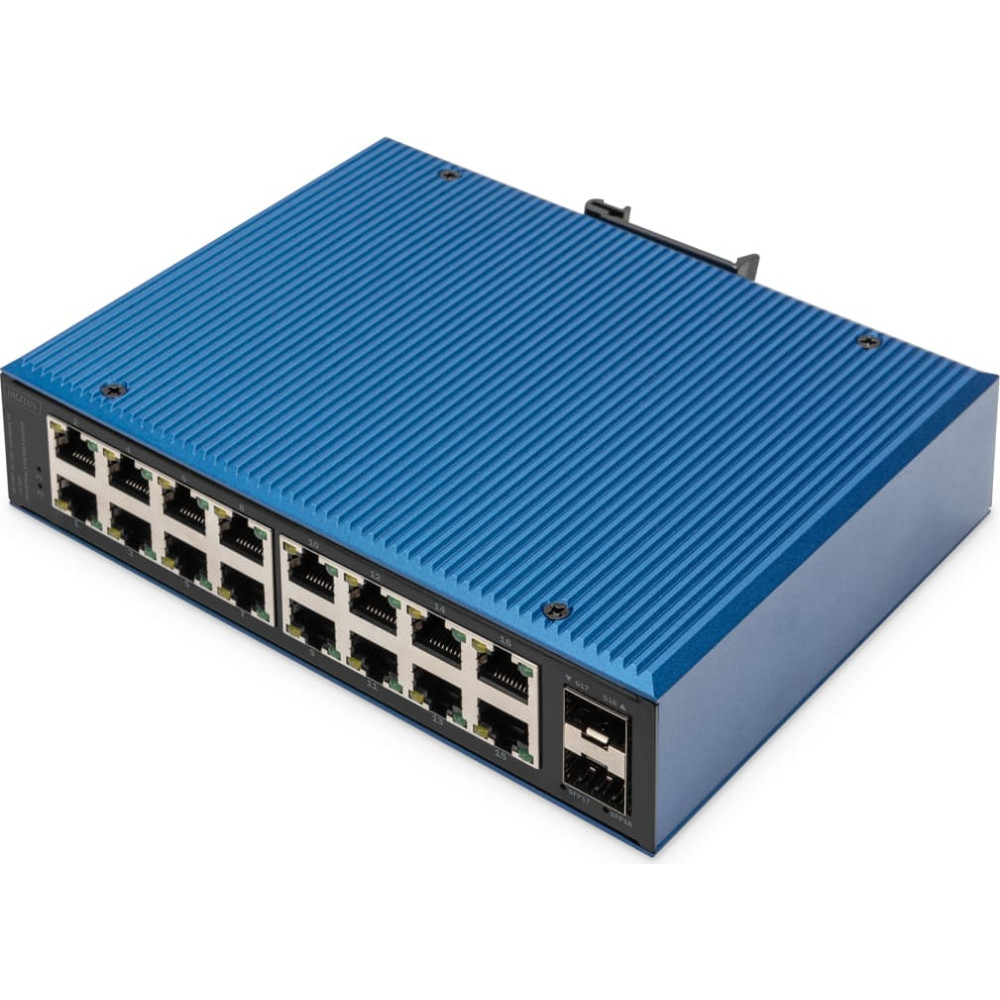

Digitus 16 port Gigabit Ethernet network switch, industrial, unmanaged, 2 SFP uplink
To purchase this product you must be registered in our system.
Specification
country of origin: CN
depth: 0.222
height: 0.075
height(cm): 20.8
length(cm): 7.25
volume(cm3): 2804.88
weight(kg): 1.16667
width: 0.190
width(cm): 18.6
Description

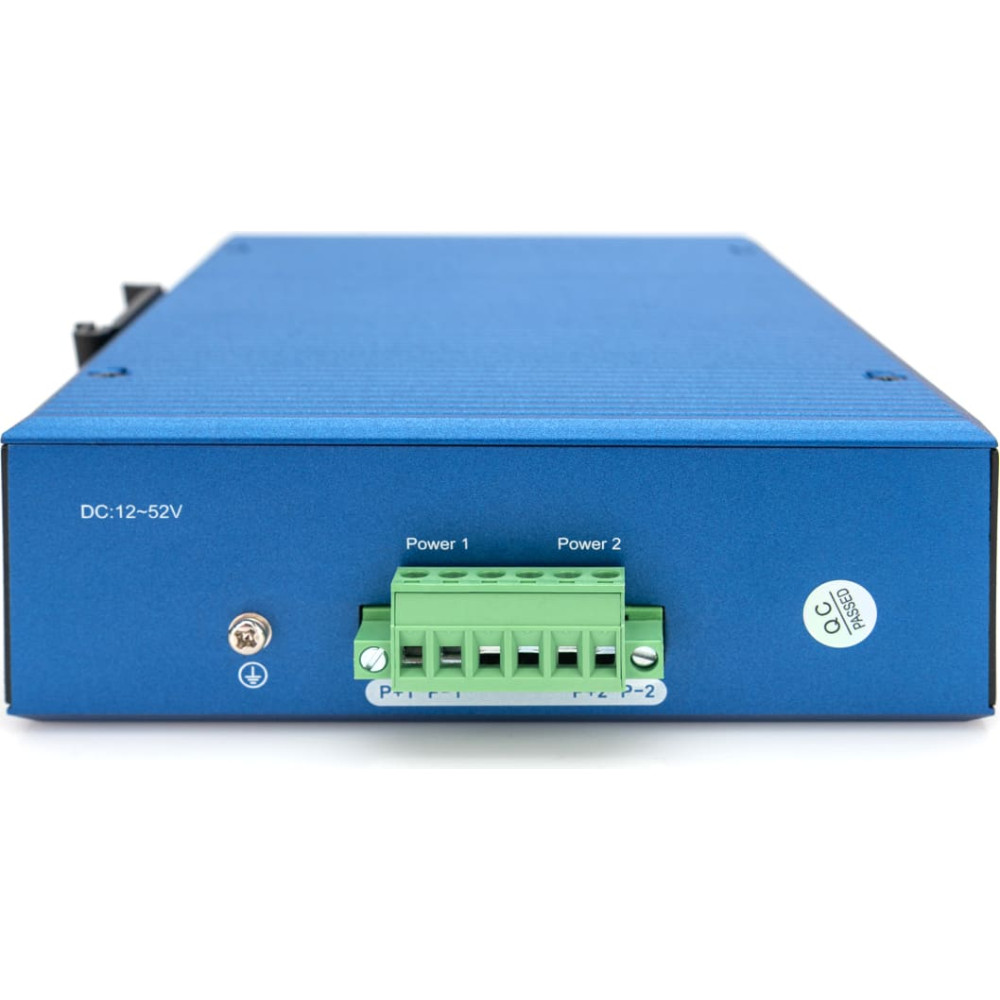

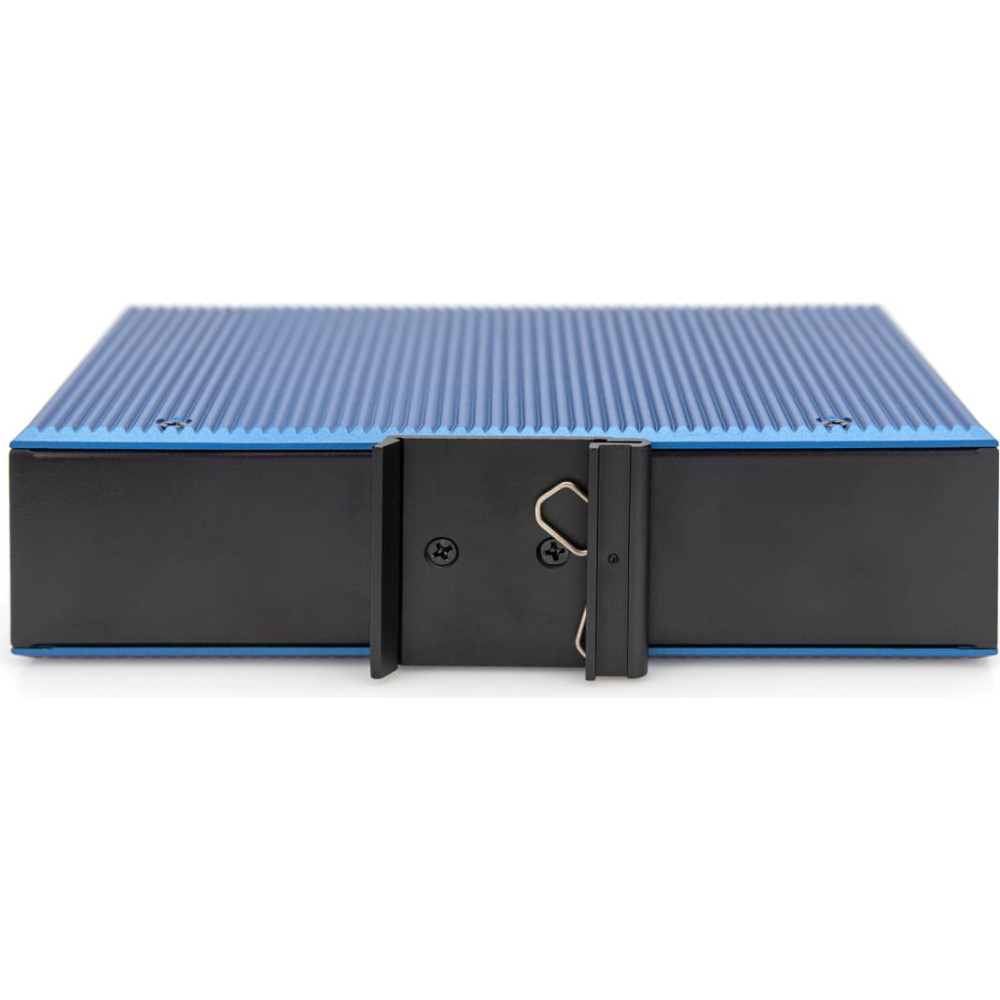

| Industrial 16+2 -Port Gigabit Ethernet Switch Unmanaged, 16 RJ45 Ports 10/100/1000 Mbits The DN-651138 is a 16+2 port Gigabit Ethernet switch suitable for industrial applications (IP40) that offers interference-free data transfer performance in harsh industrial environments. The use of a high-quality photoelectric integration module ensures good transmission rates for optical and electrical connections. Ensures reliable data transmission Supports full-duplex or half-duplex mode, with automatic negotiation Network connection supports automatic cross-identification Uses "Store and Forward" technology The switch supports a variety of protocols complies with industrial operating standards Operating voltage: DC 12-52V Lightning surge protection (power): 5000A(8/20us) DN-651138 is an industrial Gigabit Ethernet switch with 16 port 10/100/1000 Mbps RJ45 +2 port 1000 Mbps base-FX. The industrial switch has the operating temperature of -40°C ~ 80°C, has been manufactured ruggedly and can be used in all kinds of harsh environments. The switch can be easily installed on a free DIN rail. The wide temperature range, IP40-rated housing and LED indicator make the DN-651138 an industrial-grade plug-and-play device that provides users with a reliable and convenient solution for networking their Ethernet devices. Number of ports: 16 Ethernet speed: Gigabit Industrial usage: true Managed: false Number of ports (Uplink): 2 Outdoorsuitable: false PoE (Power over Ethernet): false Protection against vanadlism: false Uplink port connection: SFP VLAN: false 16 ports 10/100/1000 Base-Tx RJ45 with auto-negotiation and Auto-MDI/ MDI-X function 2-port SFP uplink 12V to 52V DC, redundant power connection possible Operating temperature: - 40°C to 80°C IP40 aluminum housing Supports 6KV DC Ethernet ESD protection Supports 6KV DC EFT protection for the power line Vibration, shock and drop protection Easy installation on DIN rail Performance specification: Bandwidth: 52Gbps, Packet buffer memory: 4.1Mbit, Packet forwarding rate: 38.7Mpps, MAC address table: 8K Flow control: utilizes backpressure technology for half-duplex, utilizes "pause frame" technology in full-duplex mode Housing: aluminum housing with protection class IP40 LED display: Power: Red, Ethernet: Yellow Power input: 48 to 57V DC, it is possible to install a redundant power supply Power consumption: < 10 watts Network protocols: IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x " Industry standard: IEC 61000-4-4 (EFT), Level 3 IEC 61000-4-5 (Surge), Level 3 Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6" Dimensions (W x D x H): 175.6 x 135 x 45.5 mm Weight: Product weight: 1.0KGS Working environment: Operating temperature: -40 to max 80°C; Storage temperature: -40 to max 80°C Relative humidity: 5% to max. 95% (no condensation) Package content: 16-port Ethernet switch Manual |
