Digitus Industrial 8+2 port Fast Ethernet switch
To purchase this product you must be registered in our system.
Specification
country of origin: CN
depth: 0.210
height: 0.070
height(cm): 21.3
length(cm): 6.6
volume(cm3): 2221.16
weight(kg): 0.7
width: 0.160
width(cm): 15.8
Description

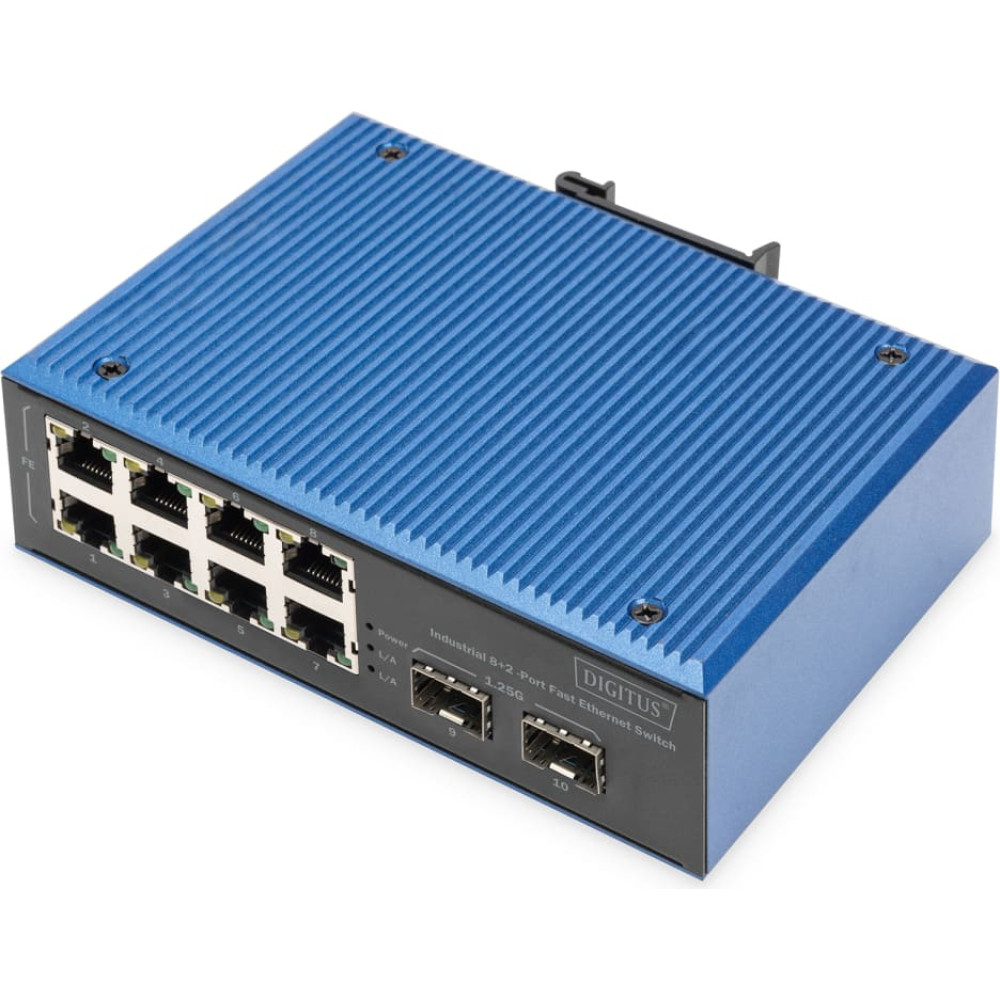

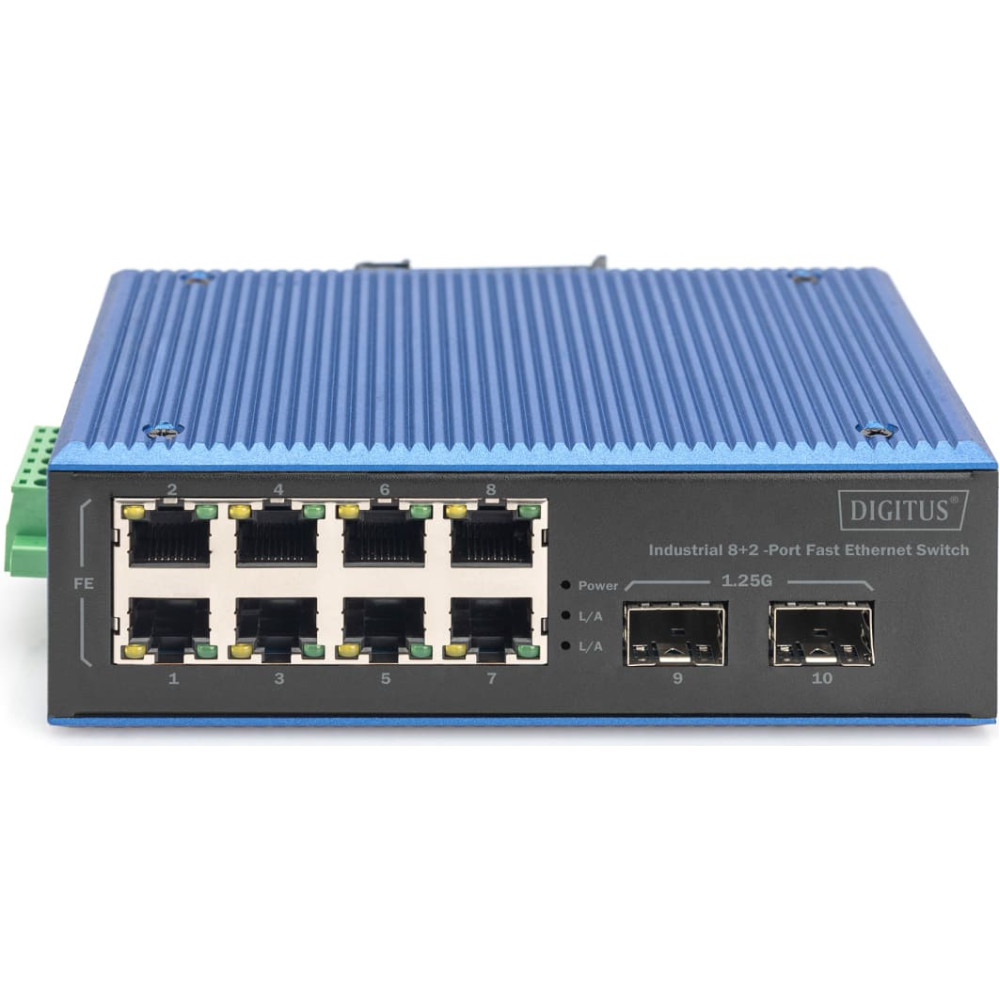

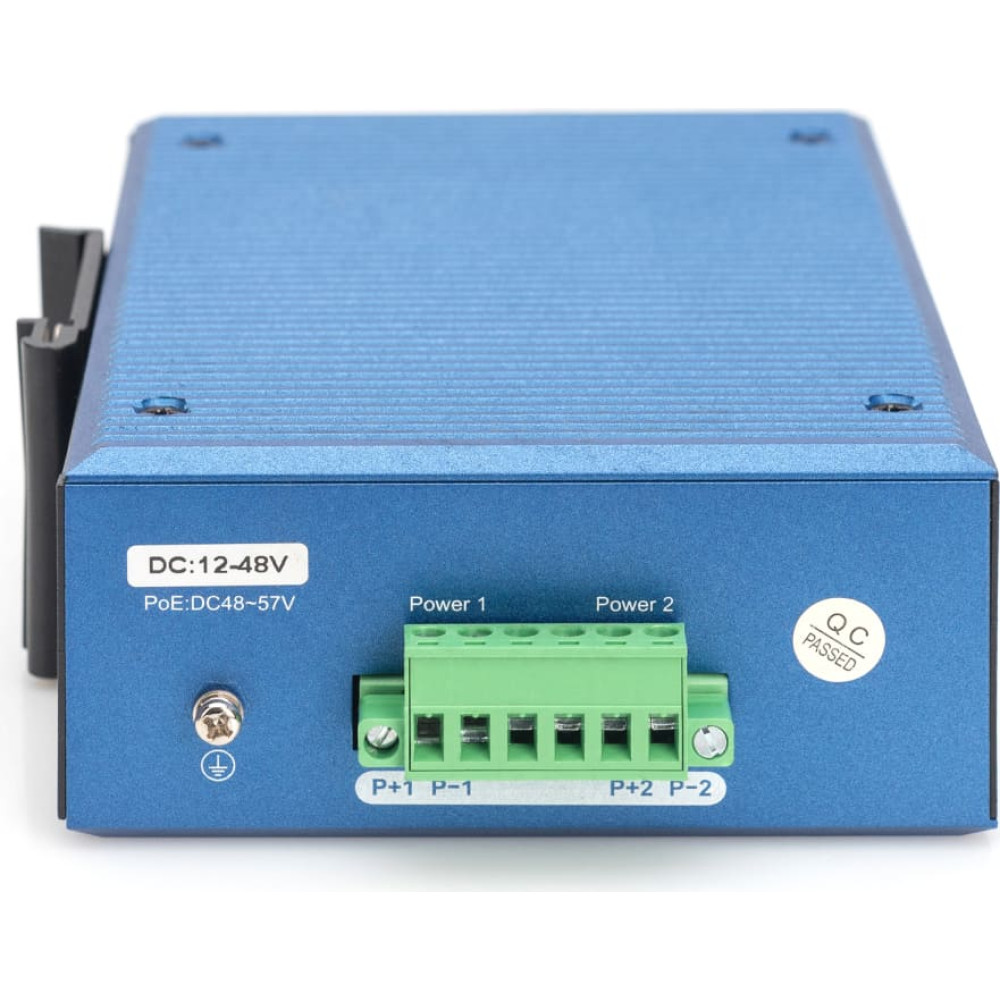

| Industrial 8+2-Port Fast Ethernet Switch 8 Port FE RJ45, 2 GE SFP Ports 8x 10/100BASE-TX RJ45 + 2x 1000Base-Fx ports. The IP40 enclosure with redundant power supply is ideal for monitoring, control management and wireless services at -40°C to 80°C. Number of network connections: 8 port FE, 2 SFP GE ports Transmission speed of the RJ45 network ports: 8 x 10/100 Mbit (RJ45) Transmission speed of the uplink ports: 2 x 10/100/1000 Mbit (SFP) Redundant power supply 12-48 V (DC) Metal housing to IP40 standard Simple mounting on a top-hat rail Operating temperature from - 40° up to 80° C Simple plug & play installation ESD & EFT protection up to 6 kV (DC) Ideal for connecting camera systems The DN-651146 is a robust 8+2 port Industrial Ethernet switch for harsh environments. With non-blocking wire-speed performance, it offers 8x 10/100BASE-TX RJ45 + 2x 1000Base-Fx ports. The IP40 housing with redundant power supply is ideal for monitoring, control management and wireless services at -40°C to 80°C. Number of ports: 8 Ethernet speed: Fast Ethernet Industrial usage: true Installation type: DIN rail Managed: false Number of ports (Uplink): 2 Outdoorsuitable: false PoE (Power over Ethernet): false Protection against vanadlism: false Uplink port connection: SFP VLAN: false Supports IEEE802.3x flow control, and backpressure Supports store-and-forward technology for optimized data transmission Automatic speed and half/full duplex detection/adjustment Bandwidth: 5.6 Gbps Packet buffer: : 1.2 Mbit Packet forwarding size: 4.2 Mbps Size of the MAC address table: 2K Jumbo frame rate: 9000 byte ESD protection: 6 kV (DC) EFT protection: 6 kV (DC) Metal housing, IP40 4 kV lightning protection and surge protection Redundant power supply with reverse polarity protection function Power supply: 12 to 48 V Power consumption: < 8 W Removable terminal connection Protection class: IP40 Dimensions: 143.7 x 104 x 47.7 mm Operating temperature: -40 to 80 ° C Storage temperature: -40 to 80 ° C Humidity: 5% to 95% (non-condensing) MTBF: 300,000 Package content: 1x Industrial Fast Ethernet Switch 1x user manual |
