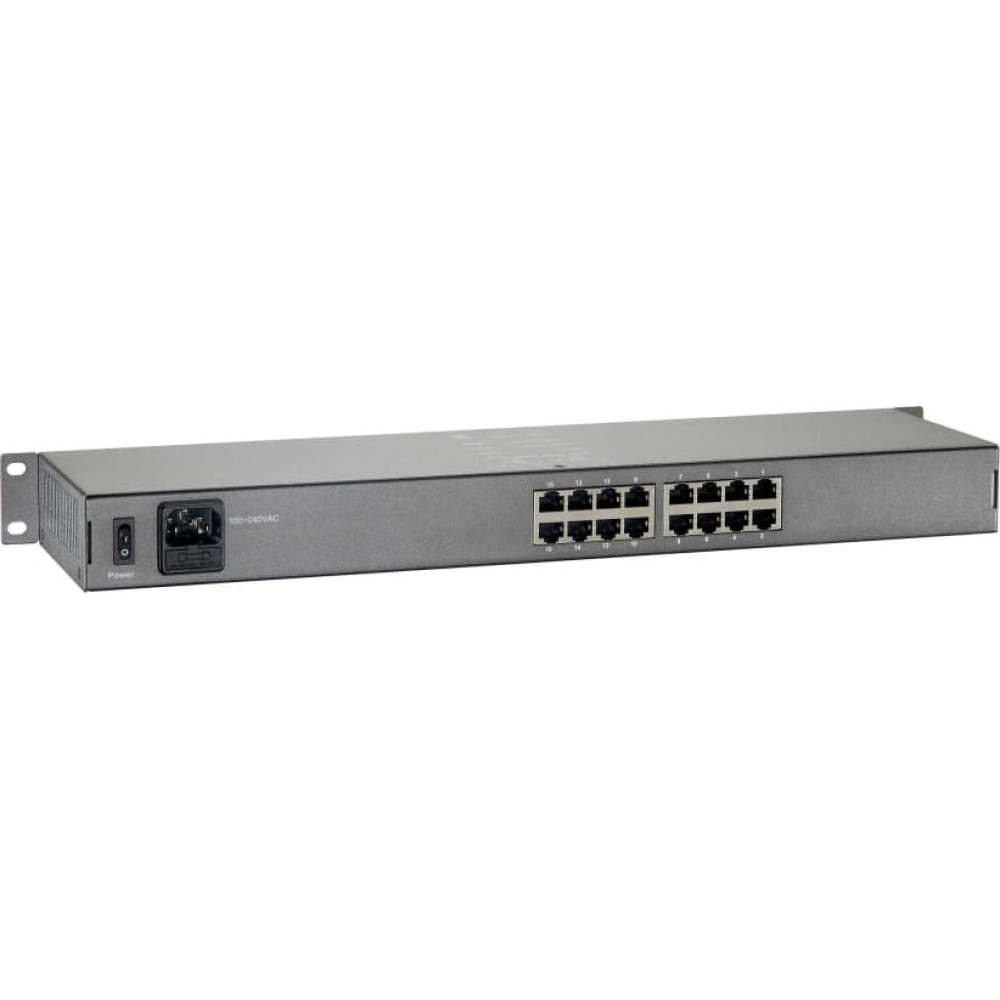

Level One LevelOne Switch 16x FE FEP-1601 19" 250W 16xPoE
To purchase this product you must be registered in our system.
Specification
10g support: No
ac input frequency: 50 - 60 Hz
ac input voltage: 100 - 240 V
auto mdi/mdi-x: Yes
auto-negotiation: Yes
basic switching rj-45 ethernet ports quantity: 16
basic switching rj-45 ethernet ports type: Fast Ethernet (10/100)
buffer size: 160 KB
cables included: AC
certification: FCC, CE, RoHS
copper ethernet cabling technology: 10BASE-T, 100BASE-TX
country of origin: Taiwan
depth: 118 mm
flow control support: Yes
full duplex: Yes
harmonized system (hs) code: 85176990
height: 44 mm
input current: 5 A
led indicators: Activity, PoE, Power
mac address table: 4096 entries
manual: Yes
networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
on/off switch: Yes
operating relative humidity (h-h): 10 - 90%
operating temperature (t-t): 0 - 45 °C
package depth: 146 mm
package height: 78 mm
package weight: 2.6 kg
package width: 222 mm
packet forwarding rate (10 mbps): 14880 pps
packet forwarding rate (100 mbps): 148000 pps
power connector: DC-in jack
power over ethernet (poe): Yes
power over ethernet (poe) ports quantity: 16
power over ethernet (poe) power per port: 30 W
power protection features: Over current, Short circuit
product colour: Grey, Metallic
rack mounting: Yes
storage relative humidity (h-h): 10 - 90%
storage temperature (t-t): -40 - 70 °C
store-and-forward: Yes
switching capacity: 3.2 Gbit/s
total power over ethernet (poe) budget: 240 W
weight: 2.2 kg
width: 480 mm
Description

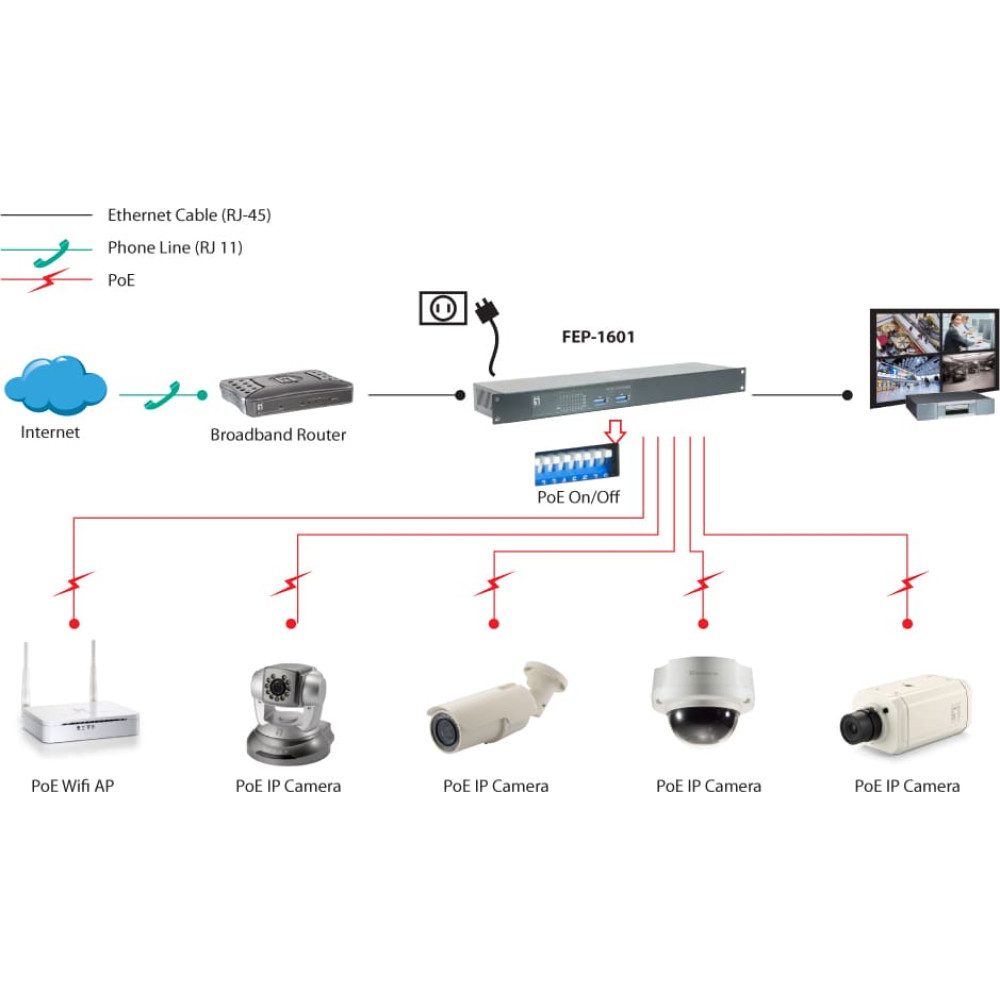

| FEP-1601 is a 16-port 10/100Mbps Fast Ethernet Switch with Power over Ethernet (PoE) capability. With 16 dip switches, each PoE port can be manually set for On-Off control. FEP-1601 supports up to 30W on each LAN port when the DIP switch is in the ON position . Using a LevelOne PoE repeater, it is possible to extend the connection a further 100 meters, or even daisy-chain several PoE repeaters together for greater distances. Dual 10/100Mbps ports can connect with other edge switches or NVR as uplink ports - IEEE 802.3x Flow Control protects against lost packets for reliable data transmission - 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX - PoE on/off control per port by dip switches - Total PoE power budget: 250W, up to 30W per port - 19-inch metal housing |
