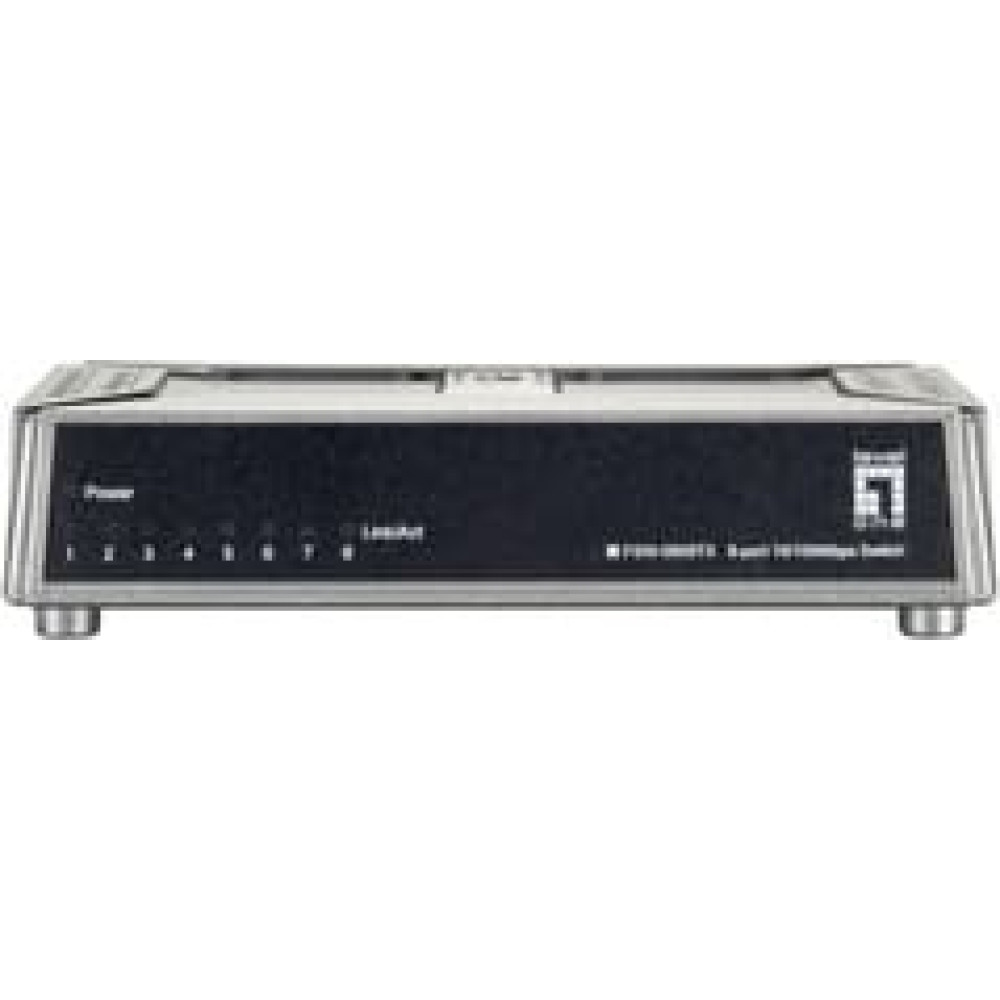

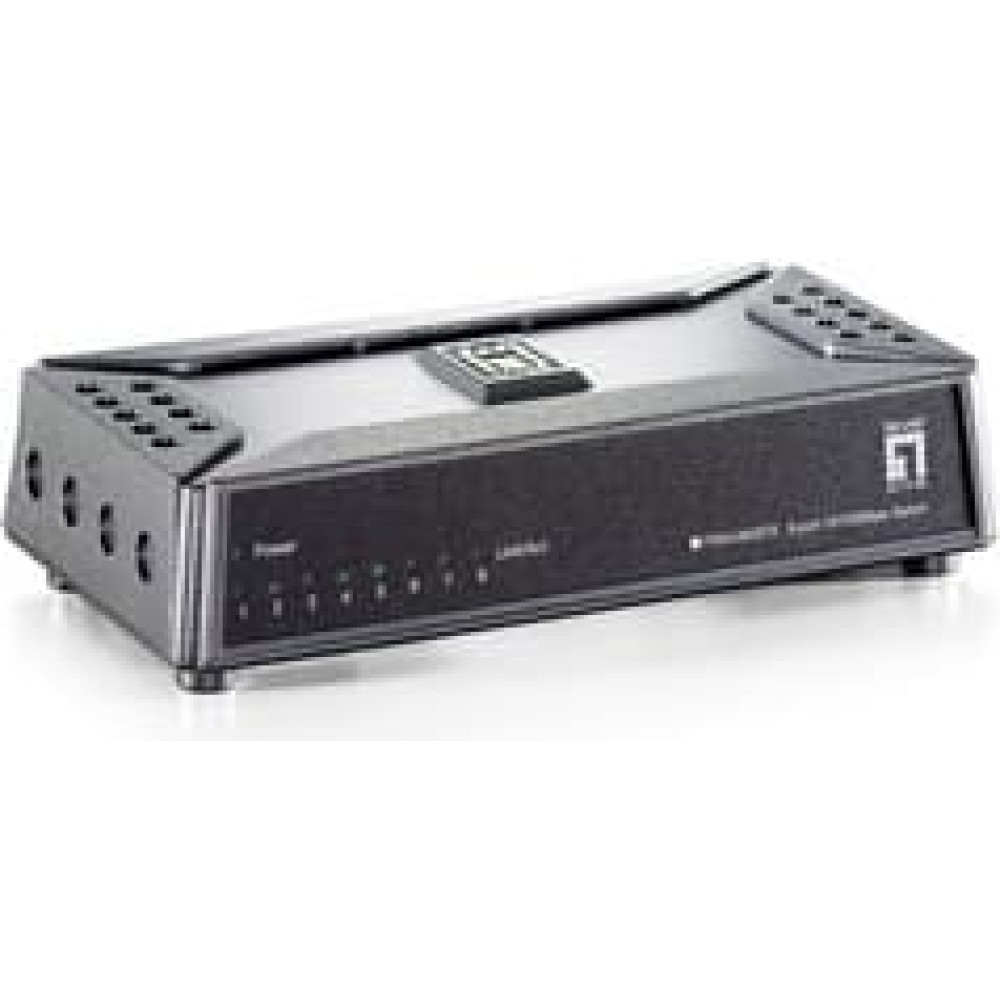

Level One LevelOne Switch 8x FE FSW-0808TX Kunststoff

Product Code: FSW-0808TX

Barcode 4015867109540

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

10g support: No

ac adapter included: Yes

ac input frequency: 50 - 60 Hz

ac input voltage: 100 - 240 V

auto mdi/mdi-x: Yes

auto-negotiation: Yes

basic switching rj-45 ethernet ports quantity: 8

basic switching rj-45 ethernet ports type: Fast Ethernet (10/100)

buffer size: 96 KB

certification: FCC, CE, RoHS

copper ethernet cabling technology: 10BASE-T, 100BASE-TX

country of origin: China

depth: 69 mm

flow control support: Yes

full duplex: Yes

harmonized system (hs) code: 85176990

height: 30 mm

led indicators: Activity, Link, Power

mac address table: 1024 entries

networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x

operating relative humidity (h-h): 5 - 90%

operating temperature (t-t): 0 - 40 °C

output current: 1 A

output voltage: 5 V

package depth: 130 mm

package height: 90 mm

package weight: 300 g

package width: 75 mm

packet forwarding rate (10 mbps): 14880 pps

packet forwarding rate (100 mbps): 148000 pps

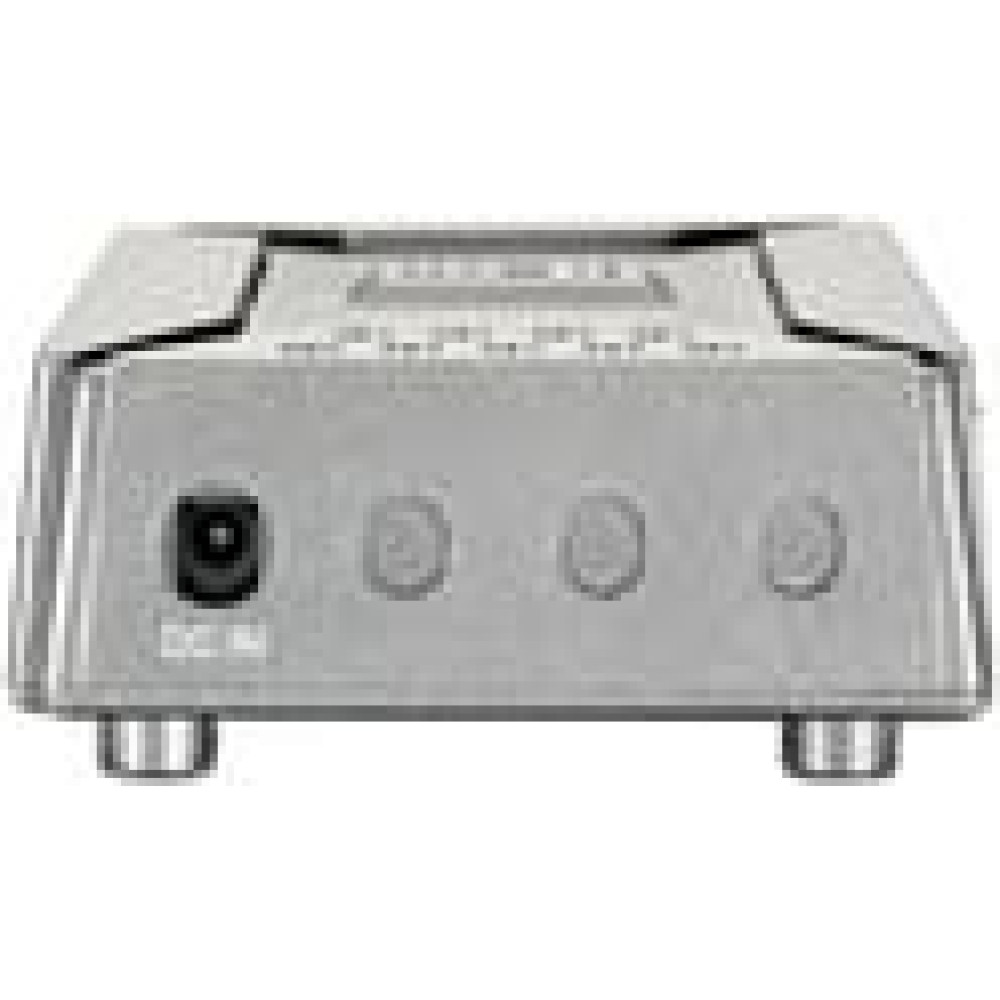

power connector: DC-in jack

power consumption (typical): 2.8 W

power over ethernet (poe): No

product colour: Grey

quick start guide: Yes

rack mounting: No

stackable: No

storage relative humidity (h-h): 10 - 90%

storage temperature (t-t): -40 - 70 °C

store-and-forward: Yes

switch type: Unmanaged

switching capacity: 1.6 Gbit/s

width: 125 mm

Description

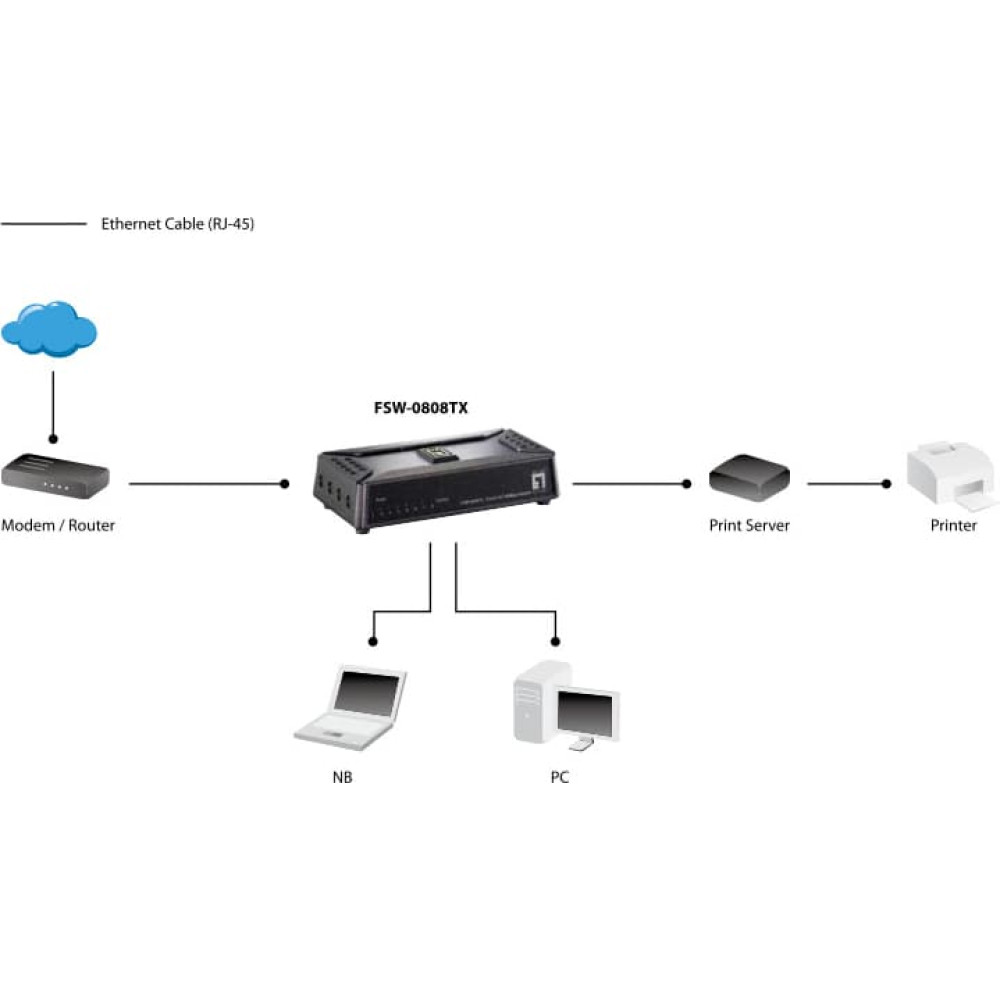

The LevelOne FSW-0808 is a wire-speed, non-blocking networking device that provides 8 ports 10/100Mbps Ethernet connections. All ports support auto-negotiation and auto-MDI/MDIX sensing, eliminating the need for crossover cables or Uplink Ports. Each port can be used as general network port or as connecting port into a router, server, hub or another network switch.

Easy Configuration and Maintenance
The LevelOne FSW-0808TX does not require software configuration. Users can immediately use any features of this product simply by attaching the cables and turning on the power. For instant error detection, the switch is equipped with a full range of LEDs to help you monitor and troubleshoot problems on your network.

Compact Size Design
This switch is compact specially designed to fit on the desktop or in other space-limited locations. The FSW-0808TX provides an ideal solution for businesses that crave a reliable network to exchange large data files and multimedia information with bandwidth-starving workgroup, departments, and offices.

- Provides flexibility of 8 x 10/100BASE-TX ports
- 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
- Supports 1K MAC address auto-learning and auto-aging
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission

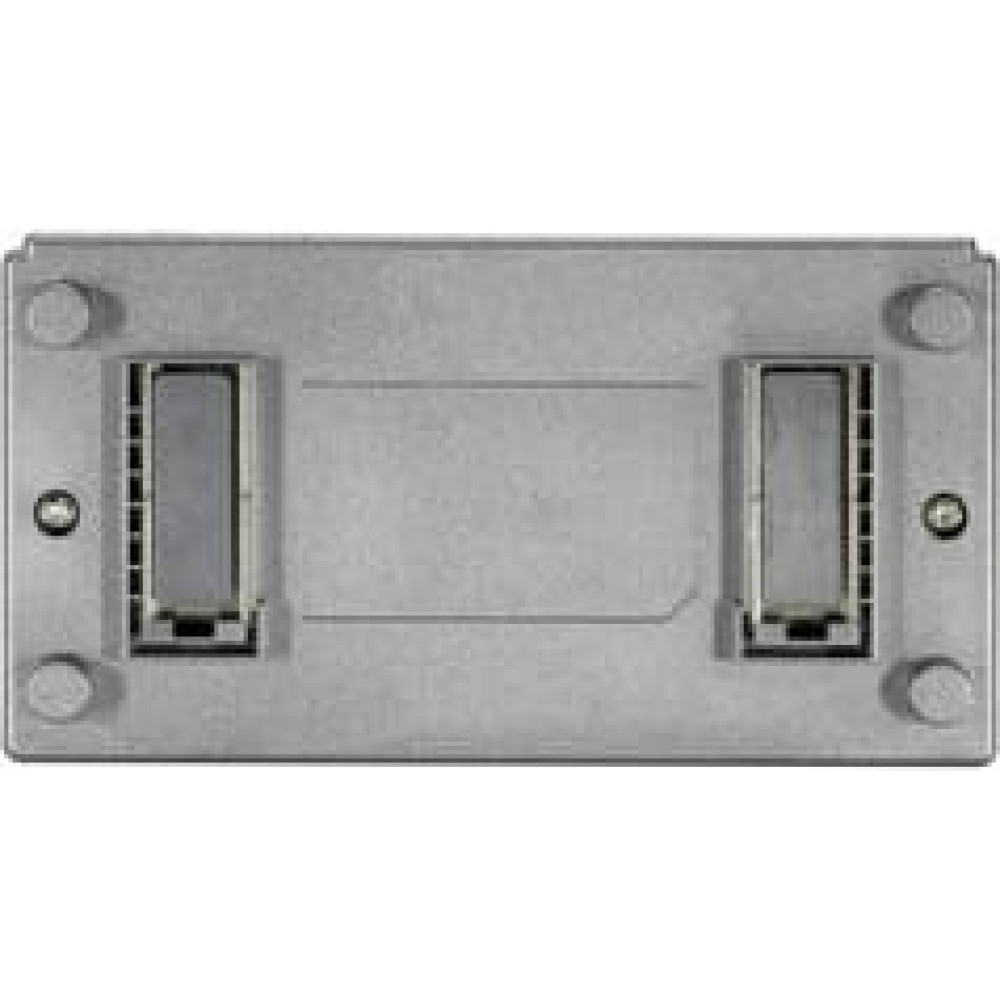

- Magnetic base for easy placement
- Quick and easy installation
