LEVEL ONE

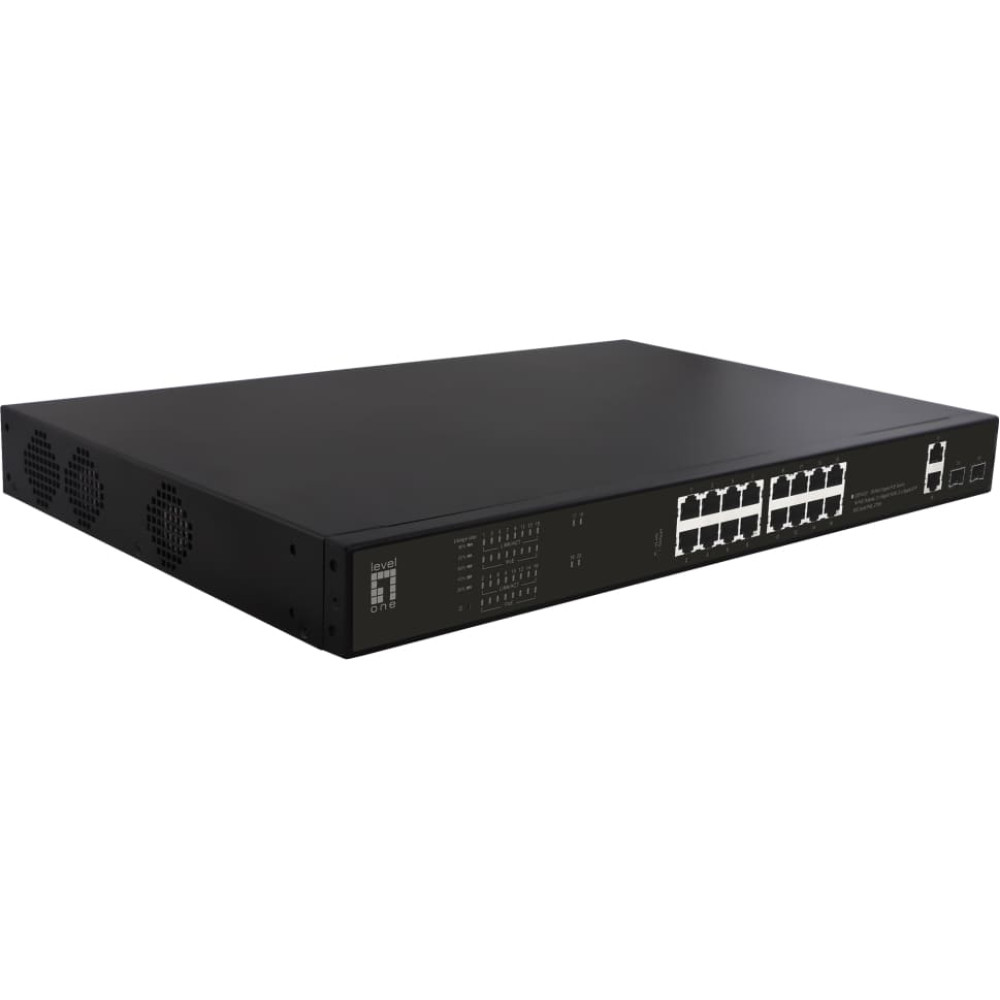

Level One LevelOne Switch 16x GE GEP-2021 2xGE 2xGSFP 19" 270W 16xPoE+

Product Code: GEP-2021
Barcode 4015867223895

To purchase this product you must be registered in our system.



Specification
10g support: No
ac input frequency: 50 - 60 Hz
ac input voltage: 100 - 240 V
basic switching rj-45 ethernet ports quantity: 20
basic switching rj-45 ethernet ports type: Gigabit Ethernet (10/100/1000)
built-in processor: Yes
cables included: AC
certification: CE, RoHS
country of origin: China
depth: 442 mm
fast ethernet (copper) ports quantity: 16
flash memory: 4 MB
form factor: 1U
gigabit ethernet (copper) ports quantity: 2
harmonized system (hs) code: 85176990
heat dissipation: 86.435 BTU/h
height: 44 mm
led indicators: Yes
mac address table: 8000 entries
mtbf (poe): 250000 h
networking standards: IEEE 802.1ab, IEEE 802.1af, IEEE 802.3, IEEE 802.3at, IEEE 802.3u, IEEE 802.3z
operating relative humidity (h-h): 0 - 90%
operating temperature (t-t): -10 - 85 °C
package depth: 90 mm
package height: 530 mm
package type: Box
package weight: 4.8 kg
package width: 395 mm
packet buffer memory: 29.8 MB
pallet net height: 140.4 cm
pallet net length: 80 cm
pallet net width: 120 cm
power over ethernet (poe): Yes
power over ethernet (poe) ports quantity: 16
power over ethernet (poe) power per port: 15.4 W
processor model: Realtek RTL8382L
product colour: Black
quick start guide: Yes
rack mount kit: Yes
rack mounting: Yes
sfp module slots quantity: 2
stackable: Yes
storage temperature (t-t): -40 - 90 °C
surge protection: Yes
surge protection voltage: 6 kV
switch type: Unmanaged
total power over ethernet (poe) budget: 270 W
transmission distance (max): 0.25 km
vlan support: Yes
weight: 4 kg
width: 285 mm

Description
The GEP-2021 is LevelOne latest generation of 20-Port Gigabit Unmanaged PoE Switch, with 2 Gigabit RJ45 and 2 Gigabit SFP Uplink ports. also offers powerful DIP switch button configuration for VLAN mode and Default mode features. Switch that gives you a high-performance, low-cost, easy-to-use, seamless upgrade to boost your network to 1000Mbps. Increase the speed of your network backbone to a massive 40Gbps and bring Gigabit speeds all the way to your computers.

The GEP-2021 PoE-enabled switches features an IEEE 802.3af/at certified, better PoE functionality with 270W PoE power budget and usability. supports up to 16 ports at 15.4W, or 9 ports at 30 W to meet the increasing power demands of users. giving you flexibility in power allocation for a variety of powered devices enabling you to scale your operations to meet business growth, operational cost savings, and ease of management.
