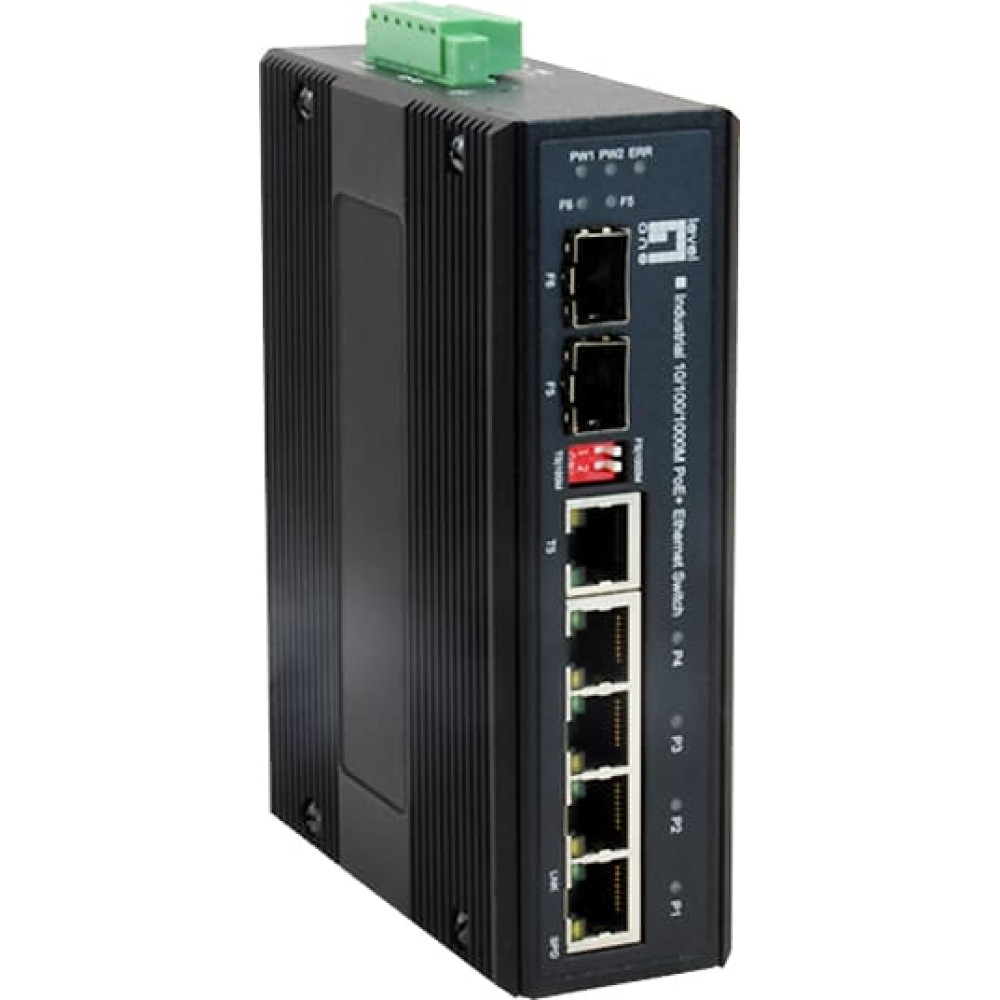

Level One LevelOne Switch 4x GE IES-0620 2xGSFP 126W 4xPoE
To purchase this product you must be registered in our system.
Specification
auto mdi/mdi-x: Yes
auto-negotiation: Yes
basic switching rj-45 ethernet ports quantity: 4
basic switching rj-45 ethernet ports type: Gigabit Ethernet (10/100/1000)
certification: FCC Part 15 Subpart B Class A
CE EN 55022 Class A
EN61000-4-2 (ESD) Level 3
EN61000-4-3 (RS) Level 3
EN61000-4-4 (EFT) Level 3
EN61000-4-5 (Surge) Level 3
EN61000-4-6 (CS) Level 3
EN61000-4-8 (Magnetic Field) Level 3
UL508 (Pending)
EN 50121-4 (Pending)
IEC 60068-2-27
IEC 60068-2-32
IEC 60068-2-6
UL 508
combo sfp ports quantity: 1
country of origin: Taiwan
depth: 105 mm
din rail mounting: Yes
flow control support: Yes
full duplex: Yes
harmonized system (hs) code: 85176990
height: 38 mm
housing material: Metal
input voltage: 12 - 55 V
international protection (ip) code: IP30
jumbo frames: 10000
led indicators: Activity, Link, Power
mac address table: 1024 entries
networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
operating relative humidity (h-h): 5 - 95%
operating temperature (t-t): -40 - 75 °C
package depth: 165 mm
package height: 65 mm
package weight: 120 g
package width: 215 mm
packet buffer memory: 1 MB
packet forwarding rate (1 gbps): 1488000 pps
packet forwarding rate (10 mbps): 14880 pps
packet forwarding rate (100 mbps): 148000 pps
power consumption (typical): 6 W
power over ethernet (poe): Yes
power over ethernet (poe) power per port: 30 W
power over ethernet plus (poe+) ports quantity: 4
power protection features: Overload, Reverse polarity
product colour: Black
quick start guide: Yes
sfp module slots quantity: 1
storage relative humidity (h-h): 5 - 95%
storage temperature (t-t): -40 - 85 °C
store-and-forward: Yes
switching capacity: 12 Gbit/s
terminal block port: Yes
total power over ethernet (poe) budget: 126 W
wall mountable: Yes
weight: 720 g
width: 40 mm
Description
| LevelOne IES-0620 Industry Ethernet Switch provides 4 PoE ports 10/100/1000Base plus 2 port Gigabit SFP to enable high speed network at mission-critical environment. With the industrial standard DIN-rain mount; this switch can be easily installed in the cabinet, plus the clearly visible status LEDs provide simple monitoring of port link activity. Moreover, the SFP slots support pluggable modules that enabling you to choose from a variety of transceivers. This switch is Power Sourcing Equipment (PSE), and it is fully complied with IEEE 802.3at PoE standard at maximum 30W power budget per port. It helps to save infrastructure wiring costs dramatically by eliminating electric wiring and less UPS needed. Also, it is compatible with IEEE802.3af standard PD devices. - 4 10/100/1000Base-T PoE ports - 1 Gigabit Combo + 1 Gigabit SFP(100/1G) slot - PoE ports can support the IEEE 802.3at standard and power up 30W - 1000 Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, - Auto-Negotiation, Auto-MDI/MDIX - 40°C to 75°C (-40°F to 167°F) operating temperature range - DIN-Rail mount installation - Metal case design and compliant with IP30 standard - Wide input power range 12 to 55VDC |
