Zyxel XGS1250-12 12-Port Smart Managed MultiGig Switch

Product Code: XGS1250-12-ZZ0102F

Barcode 4718937634453

Brand: ZYXEL

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

10g support: Yes

ac input frequency: 50/60 Hz

ac input voltage: 100 - 240 V

auto mdi/mdi-x: Yes

basic switching rj-45 ethernet ports quantity: 11

basic switching rj-45 ethernet ports type: 10G Ethernet (100/1000/10000)

broadcast storm control: Yes

depth: 104 mm

dhcp features: DHCP client

din rail mounting: No

ethernet lan data rates: 10,100,1000,2500,10000 Mbit/s

flow control support: Yes

forwarding rate: 71.42 Mpps

full duplex: Yes

harmonized system (hs) code: 85176990

height: 27 mm

housing material: Aluminium, Iron

igmp snooping: Yes

jumbo frames: 12000

jumbo frames support: Yes

led indicators: Yes

link aggregation: Yes

mac address table: 16000 entries

mib support: Y

multicast support: Yes

networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x

number of fans: 1 fan(s)

operating relative humidity (h-h): 10 - 90%

operating temperature (t-t): 0 - 40 °C

port mirroring: Yes

power connector: DC-in jack

power consumption (max): 20.06 W

power over ethernet (poe): No

power source: AC

power supply included: Yes

product colour: Grey

quality of service (qos) support: Yes

rack mounting: No

redundant fans support: Yes

reset button: Yes

sfp+ module slots quantity: 1

stackable: No

storage relative humidity (h-h): 10 - 90%

storage temperature (t-t): -40 - 70 °C

switch layer: L2

switch type: Managed

switching capacity: 96 Gbit/s

vlan support: Yes

wall mountable: Yes

web-based management: Yes

weight: 783 g

width: 250 mm

Description

Double the 10G Capability!
XS1250-12 features with three Multi-Gigabit ports supporting up to 10G and one additional 10G fiber port on top of the two 10G copper ports provided by the other vendors. With our additional fiber port and 10G connectivity boost the flexibility to adopt more 10G devices in your daily work.

Agile Network Applications

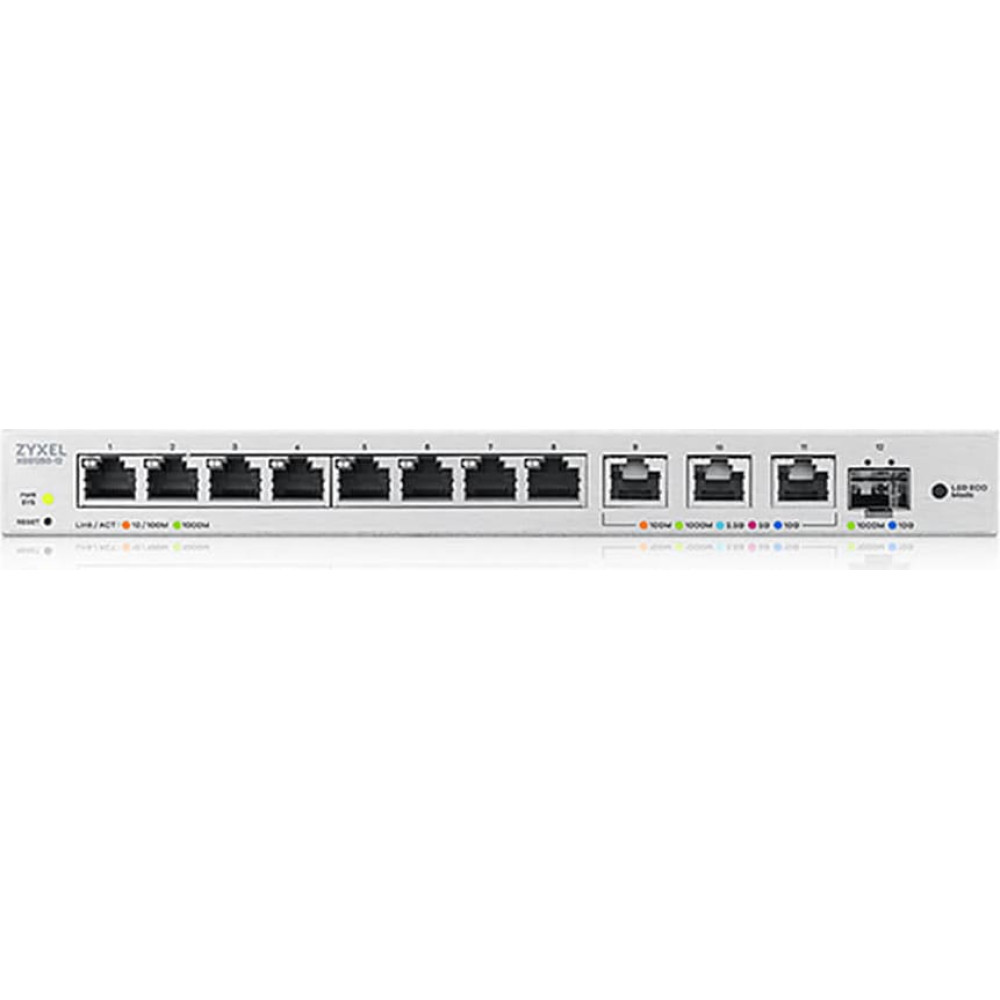

Featured with 1G ports, 10G Multi-Gigabit ports, as well as 10G fiber port, this port combination is capable of servicing a range of network devices such as iMac Pro, 10G NAS, servers, WiFi 6 APs, or new 2.5G motherboards. The unique 5-color LED on the front panel is designed for you to check the link speed instantly.

Why Multi-Gigabit?
Increasing new applications raise the demand for higher network speed requirement. The Multi-Gigabit RJ-45 ports provide more speed options for your network. Before upgrading the network, you should figure out network speed of motherboard, PC, or WiFi 6 AP, and you need to pick up the right network cable to achieve the maximum speed.

Using Your Current Cabling Is Fine!
The Multi-Gigabit support is able to leverage existing Cat 5e cable infrastructure to upgrade network speed up to 5 times for cost efficient network setup.

Whisper-silent, Energy-saving at Work
With the built-in smart fan which is designed to automatically adjust speeds based on the device temperature, you can barely hear the sound while the switch is in operation. Also, you can deactivate the Ethernet port LEDs for distraction-free operation by switching to LED ECO mode through the front panel button* or the web-based interface.
