DIGITUS

Digitus Click & Present Pro - Wireless Collaboration System

Product Code: DS-55317
Barcode 4016032478492

To purchase this product you must be registered in our system.



Specification
country of origin: CN
depth: 0.290
height: 0.110
height(cm): 11
length(cm): 19
volume(cm3): 6061
weight(kg): 1.60625
width: 0.200
width(cm): 29

Description
Click & Present Pro - BYOD Collaboration System HDMI, 2x TX, 1x RX

Wireless collaboration/presentation system - Present from your notebook, tablet or smartphone

Share, present and collaborate from your notebook, tablet or smartphone - Transmission distance of up to 50 m
Easy installation - No software or app required
Present simultaneously from up to 4 participants in split screen
Up to 30 participants (simultaneous connection to receiver)
Share notebook via HDMI transmitter or via wireless screen (Windows)/screen sync (macOS)
Share from a tablet/smartphone using the screen sync (iOS, iPadOS/Android) of your mobile device
Touch Panel Back Control - the touch back function of the receiver unit allows finger gestures/controls on a large touch screen to be sent back wirelessly to a Windows PC
Integrated Whiteboard - the main menu of the receiver provides a whiteboard function and in combination with a touchscreen, allows quick notes during the meeting, the presentation directly on the display
Supports Windows, macOS, iOS, iPadOS, Android
Expandable with additional HDMI transmitters - DS-55322

The Wireless Collaboration System from DIGITUS® brings together all your devices (notebook, tablet, smartphone) and offers a hardware-based presentation solution for wireless transfer of screen content for meeting and conference rooms. Up to 30 participants can be connected with the receiver. Up to 4 participants can present/collaborate simultaneously in split screen. Notebooks can be connected with the HDMI transmitter, the set can be extended with additional transmitters (DS-55322). Alternatively, stream directly from the notebook (without TX) via wireless screen (Windows)/screen sync (macOS) to the receiver. Share content conveniently from a tablet/smartphone using the sharing/cast function (iOS, iPadOS/Android) of your mobile device, to do so first connect your mobile device with the receiver (SSID) via WLAN. The configuration of the system has been optimally simplified here - no additional software/apps are required. Increase the efficiency of your meetings, save time and achieve optimal results. Share - Present - Collaborate.

Distance: 50 m
KVM: false
PoE (Power over Ethernet): false
Share, present and collaborate from your notebook, tablet or smartphone
Easy installation - No software or app required
Transmission distance: up to 50 m (unrestricted view)
Present simultaneously from up to 4 participants in split screen
Up to 30 participants (simultaneous connection to receiver)
Share notebook via HDMI transmitter or via wireless screen (Windows)/screen sync (macOS)
Share from a tablet/smartphone using the screen sync (iOS, iPadOS/Android) of your mobile device
Touch Panel Back Control - the touch back function of the receiver unit allows finger gestures/controls on a large touch screen to be sent back wirelessly to a Windows PC
Integrated Whiteboard - the main menu of the receiver provides a whiteboard function and in combination with a touchscreen, allows quick notes during the meeting, the presentation directly on the display
UHD 4K/60Hz (3840x2160p) on the receiver side - Connection of 4K displays
Supports Windows, macOS, iOS, iPadOS, Android
Supports HDR (High Dynamic Range)
BYOD System - Bring Your Own Device
Set comprising 2x TX (transmitter) and 1x RX (receiver)
Expandable with additional HDMI transmitters - DS-55322
Transmitter connections:
1x HDMI, plug (Full HD (1080p) - Connection to notebook, video output, cable length: 5 cm
1x USB-A, plug - Connection to notebook, power supply, cable length: 12 cm
1x Connection button - Easy sharing
1x LED status display

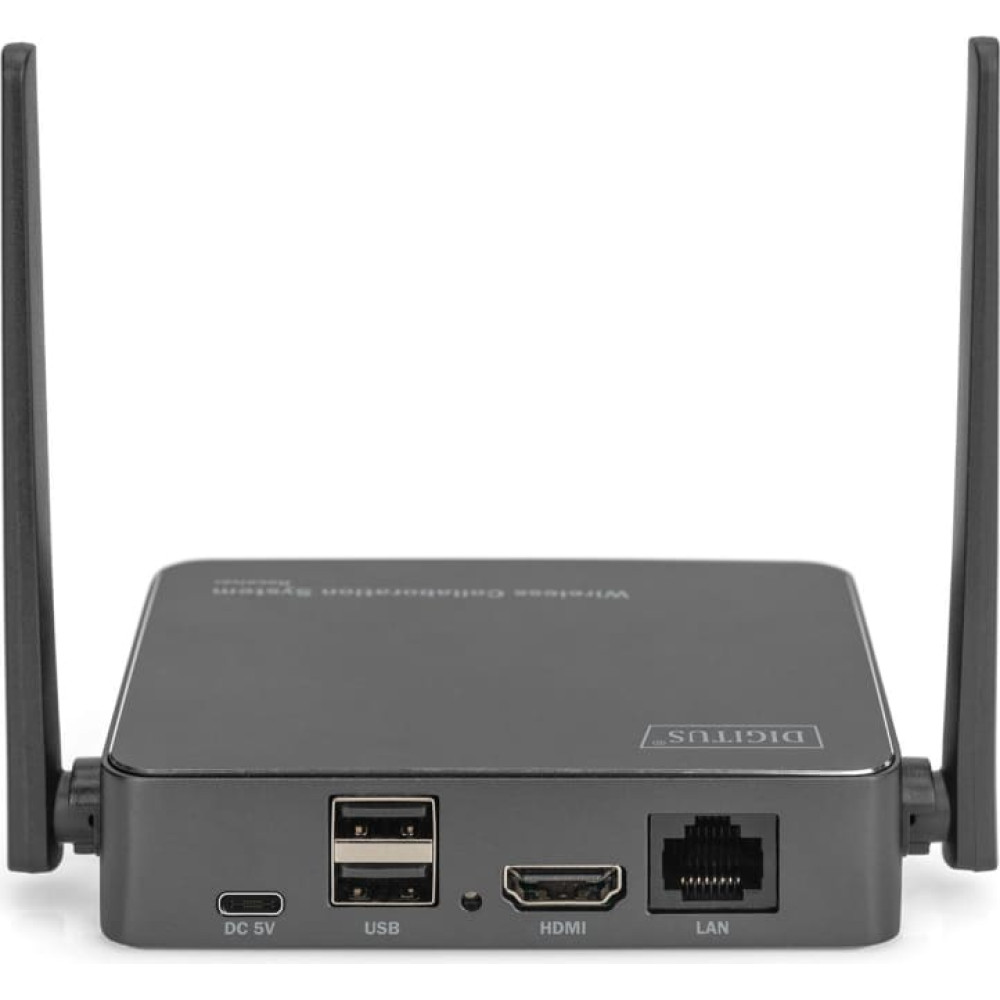

Receiver connections:
1x HDMI, jack (UHD, 4K2K/60Hz) - Connection to output device
1x RJ45, jack (Fast Ethernet, 10/100 Mbps) - Connection to network/internet
2x USB-A, jack (USB 2.0) - Connection of mouse & keyboard / Connection of touch display
1x USB-C, jack - Power supply (10W, 5V/2A)
1x LED status display
2x Radio antennas
Wireless standard: IEEE 802.11 b/g/n/ac, 2,4G/5GHz, 2T2R
AES 128 bit encryption
WPA2/WPA-PSK/WPA2-PSK authentication
Latency: approx. 100 ms
Housing: Transmitter - ABS / Receiver - Aluminum
Dimensions: Transmitter L 8.0 x W 8.0 x H 1.4 cm / Receiver L 8.5 x W 10.4 x H 2.3 cm
Color: grey/black
Note:
The transmission distance with a restricted visual range cannot be determined generally and depends on the specific circumstances where installed
Walls, glass etc. shorten the signal range or cause signal losses

Package content:
1x Receiver unit
2x HDMI transmitter
1x USB charging adapter (10W, 5V/2A)
1x Storage tray for HDMI transmitter
2x Graphics adapter (HDMI - USB-C™)
1x USB cable, 1.5 m
1x HDMI cable, 1.15 m
2x USB adapter (USB-A, jack - USB-C™, plug)
1x User manual
