Level One LevelOne Antenne omni-direktional innen/außen 5GHz
To purchase this product you must be registered in our system.
Specification

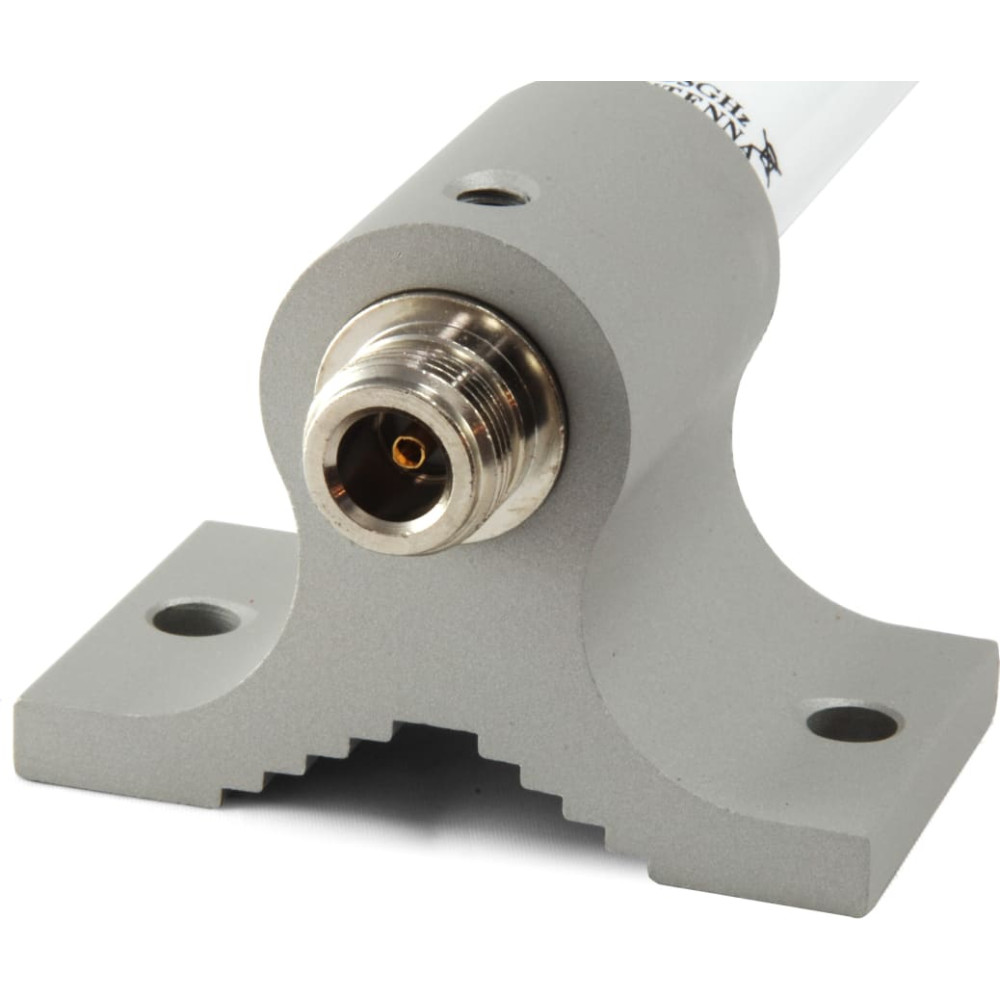

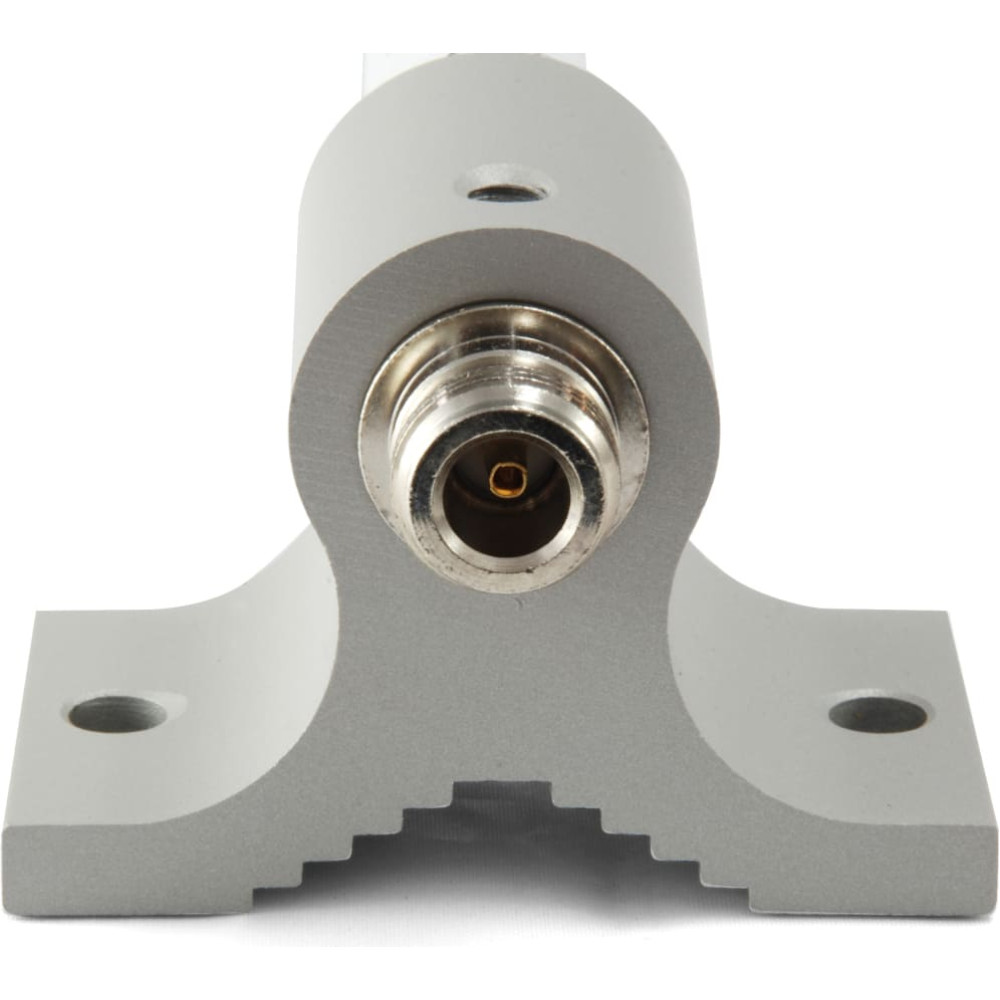

antenna connector type: N-type
antenna gain level (max): 10 dBi
antenna type: Omni-directional antenna
country of origin: Taiwan
depth: 409 mm
frequency band: 5.4 ~ 5.835 GHz
harmonized system (hs) code: 85177100
height: 53 mm
horizontal beam width: 360°
impedance: 50 Ω
master (outer) case gross weight: 11 kg
master (outer) case height: 505 mm
master (outer) case length: 465 mm
master (outer) case width: 330 mm
maximum cable loss with connectors: -10 dB
mounting: Pole
mounting kit: Yes
networking standards: IEEE 802.11a, IEEE 802.11n
operating relative humidity (h-h): 0 - 95%
operating temperature (t-t): -30 - 60 °C
package depth: 472 mm
package height: 72 mm
package type: Box
package weight: 470 g
package width: 86 mm
polarization: Vertical polarization
product colour: White
products per master (outer) case: 20 pc(s)
protection features: Dust resistant, Snow resistant, Water resistant
purpose: Indoor & outdoor
quick installation guide: Yes
survival wind speed: 180 km/h
vertical beam width: 9.6°
voltage standing wave ratio (vswr): 2.0
weight: 262 g
width: 70 mm
Description

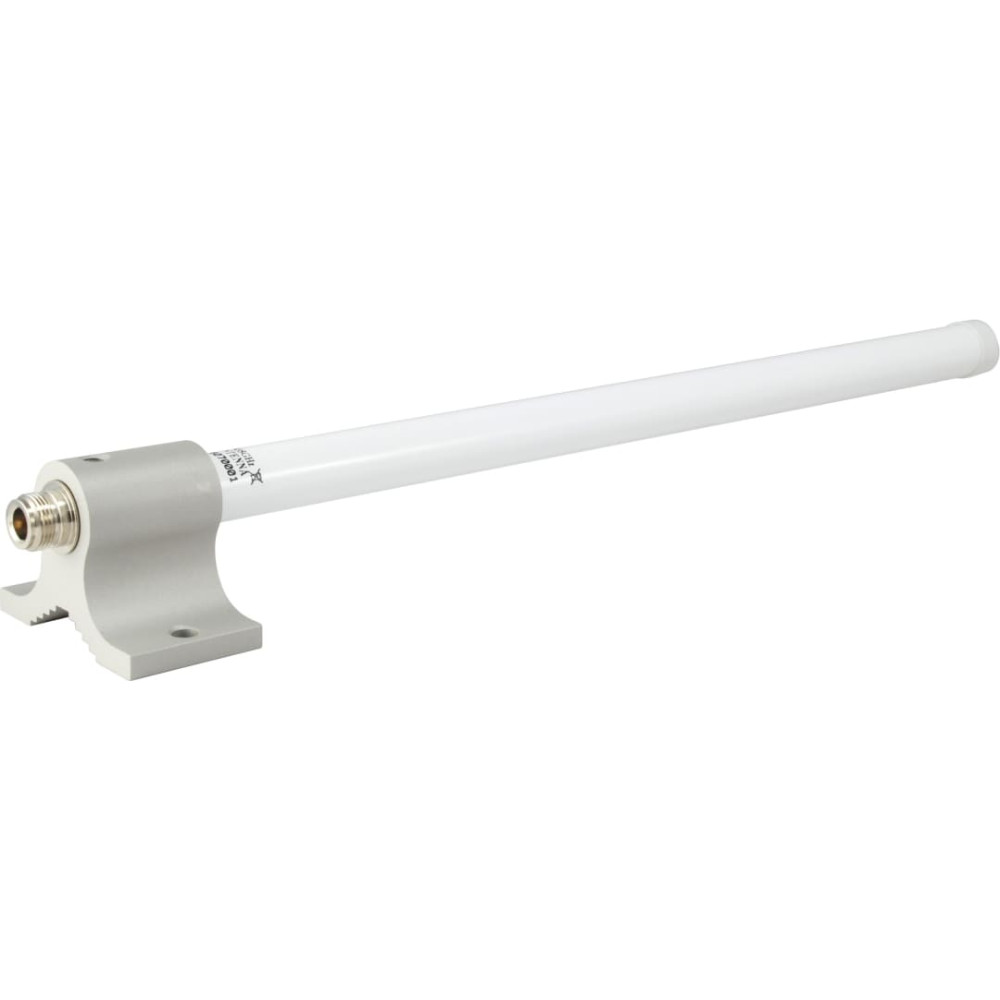

| The LevelOne OAN-4102 is an omni-directional antenna operating on the 5 GHz frequency that can be mounted either indoors or outdoors. The antenna’s gain value is 10dBi, and if mounted outdoors the weatherproof housing can withstand temperatures from minus 30°C up to 60°C, as well as rain, snow, dust and other harsh conditions. - For IEEE 802.11a/n Wireless applications in 5 GHz frequency range - Provides 10dBi omnidirectional operation - Low wind loading - 40°C to 70°C operating temperature range |
