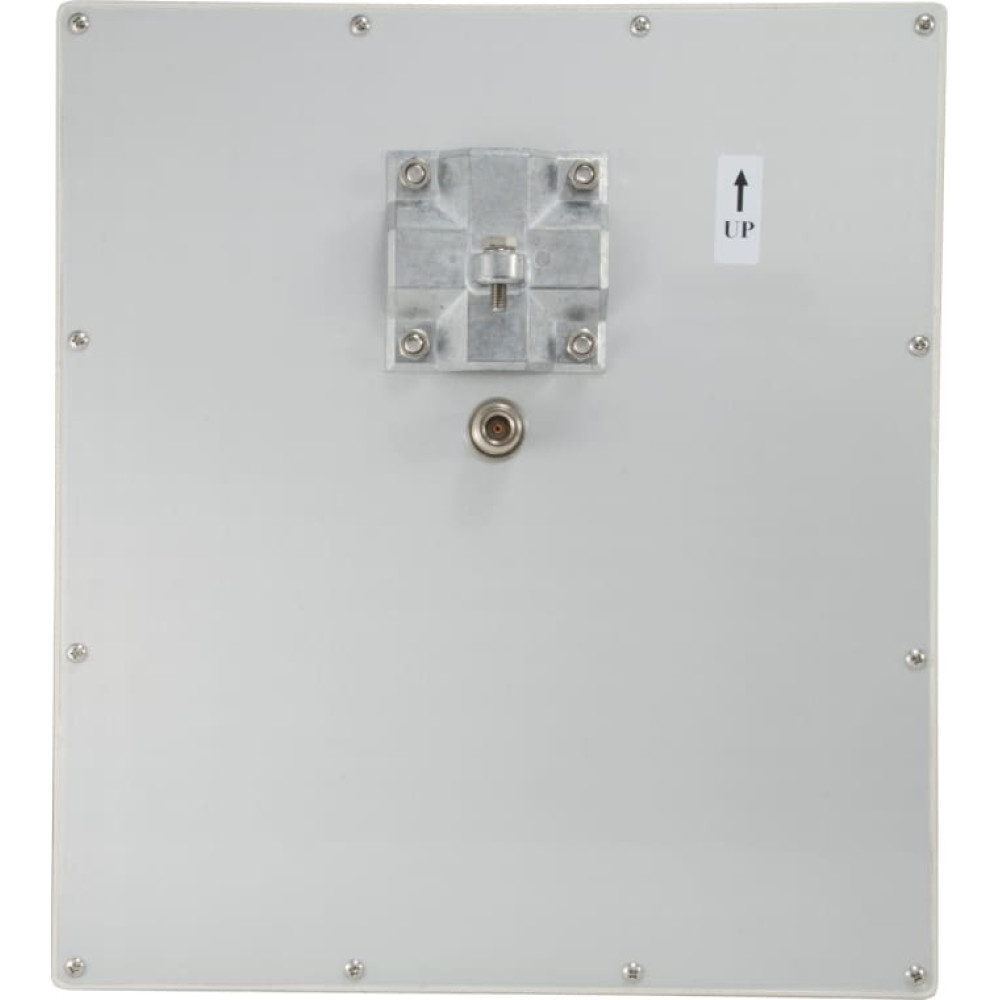

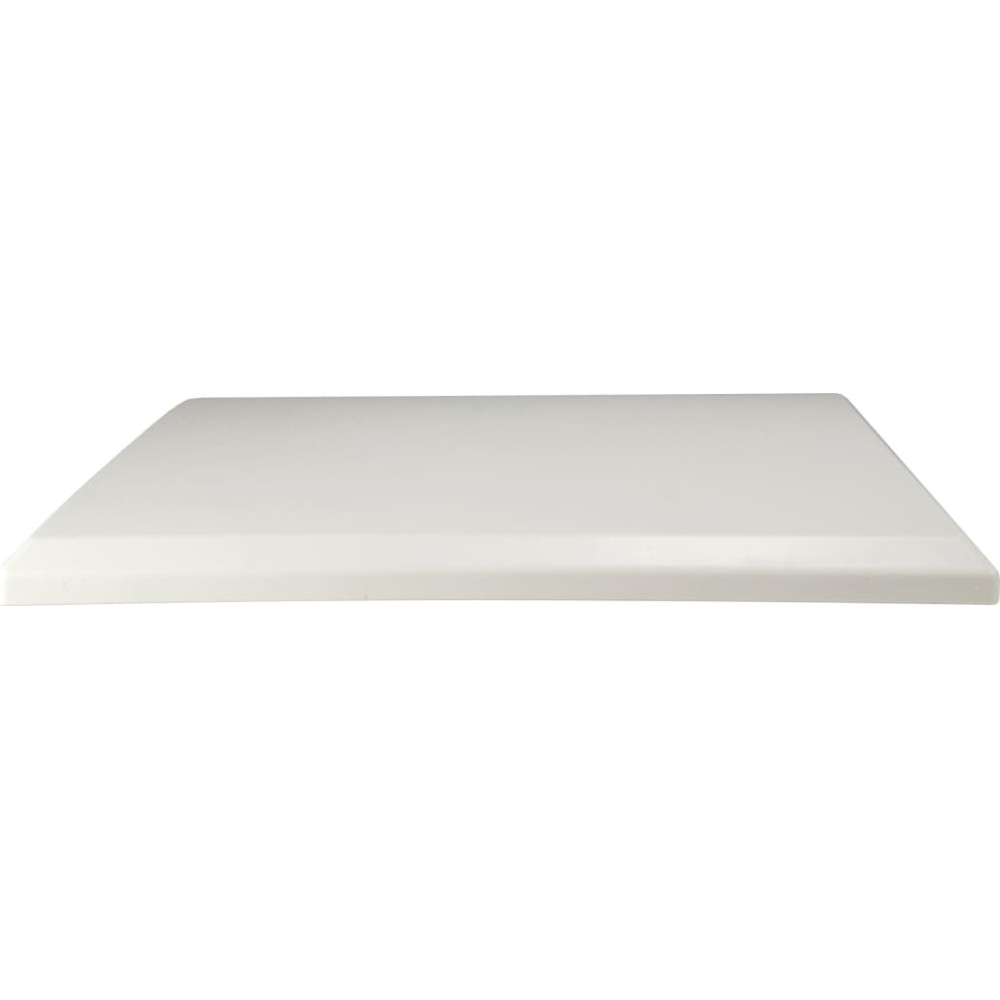

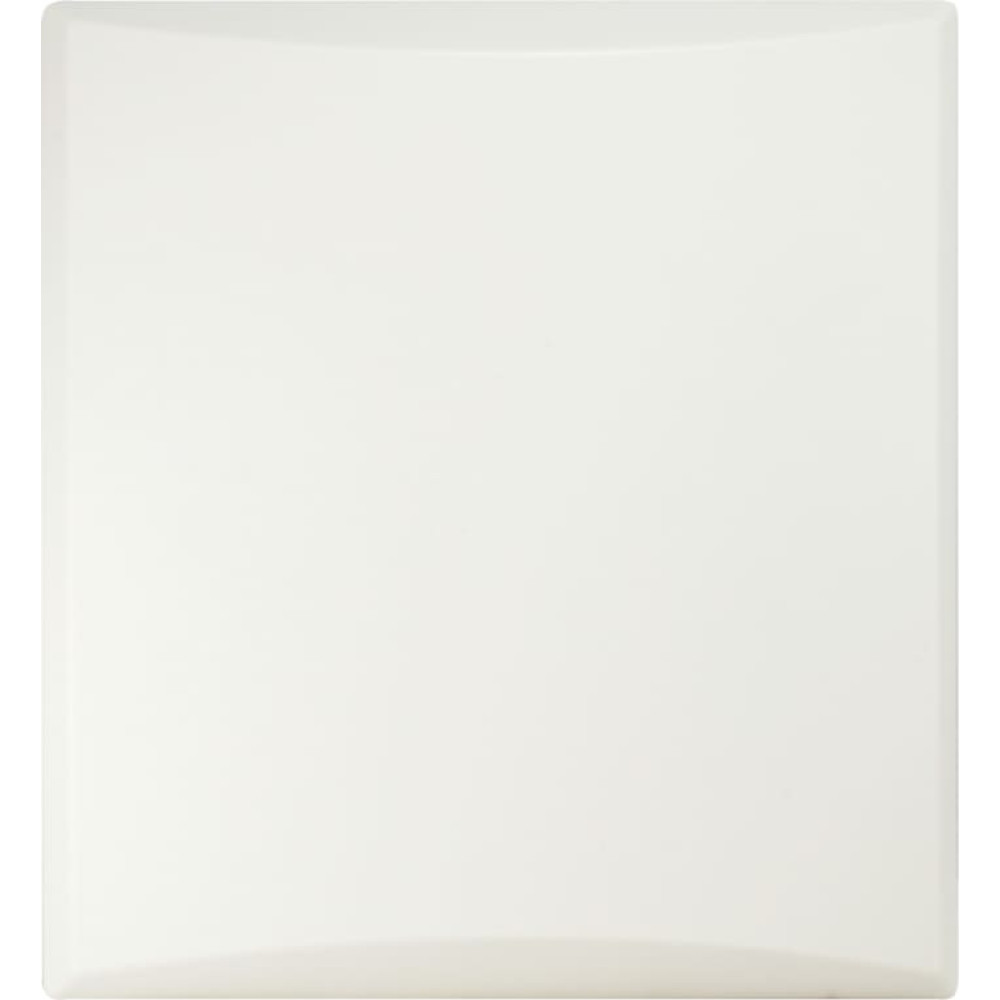

Level One LevelOne Antenne panel direktional innen/außen 5GHz 20dBi
To purchase this product you must be registered in our system.
Specification
antenna connector type: N-type
antenna gain level (max): 20 dBi
antenna type: Directional antenna
country of origin: Taiwan
depth: 330 mm
frequency band: 5.1 ~ 5.835 GHz
harmonized system (hs) code: 85177100
height: 35 mm
horizontal beam width: 15.9°
impedance: 50 Ω
master (outer) case gross weight: 18.4 kg
master (outer) case height: 370 mm
master (outer) case length: 690 mm
master (outer) case width: 460 mm
maximum cable loss with connectors: -10 dB

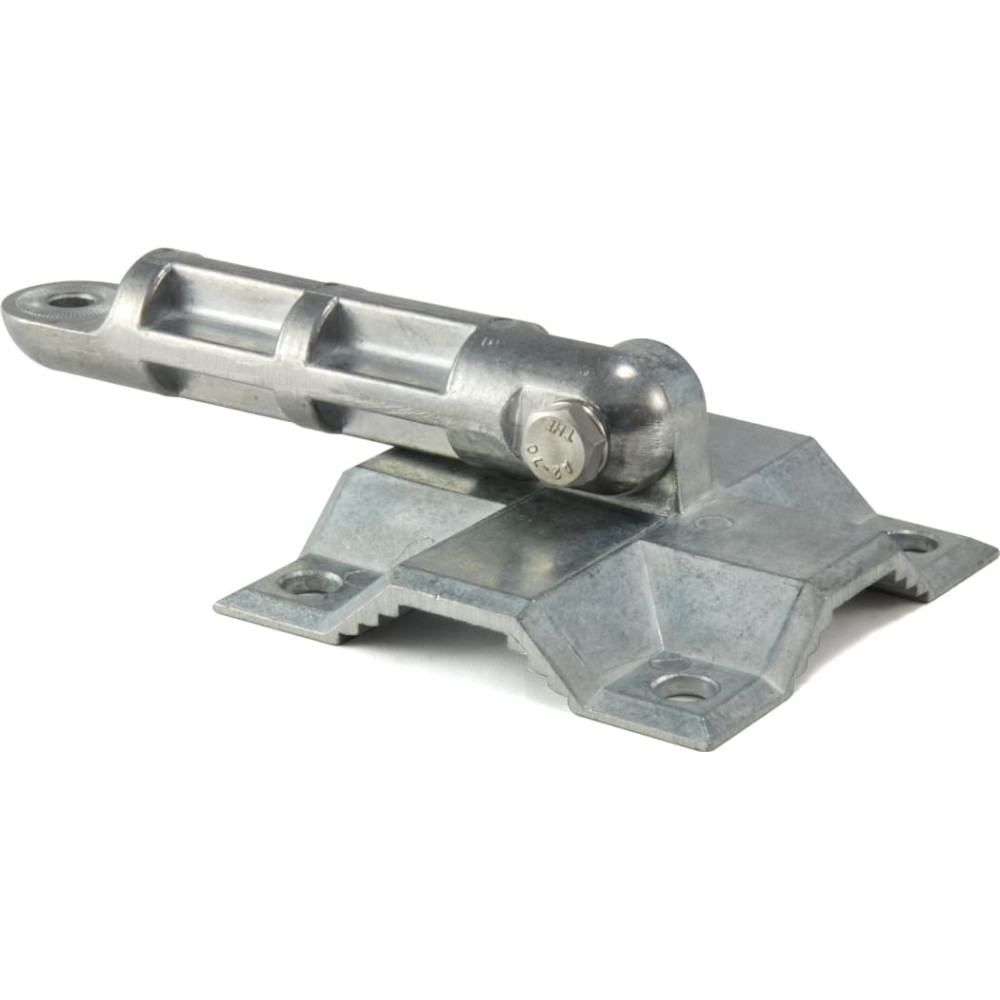

mounting kit: Yes
networking standards: IEEE 802.11a, IEEE 802.11n
operating relative humidity (h-h): 0 - 95%
operating temperature (t-t): -30 - 60 °C
package depth: 354 mm
package height: 84 mm
package type: Box
package weight: 1.69 kg
package width: 333 mm
polarization: Vertical polarization
product colour: Grey
products per master (outer) case: 10 pc(s)
protection features: Dust resistant, Snow resistant, Water resistant
purpose: Indoor & outdoor
quick installation guide: Yes
survival wind speed: 180 km/h
vertical beam width: 14.9°
voltage standing wave ratio (vswr): 2.0
weight: 1.04 kg
width: 295 mm
Description
| The LevelOne WAN-4201 is a directional antenna for increased performance and reduced interference, operating on the 5 GHz frequency. WAN-4201 can be mounted either indoors or outdoors. The antenna’s gain value is 20dBi, and if mounted outdoors the weatherproof housing can withstand temperatures from minus 30°C up to 60°C, as well as rain, snow, dust and other harsh conditions. - Provides 20dBi directional operation - Directional operation provides extended point to point coverage - For IEEE 802.11a/n Wireless applications in 5 GHz frequency range - Low wind loading - 40°C to 70°C operating temperature range |
