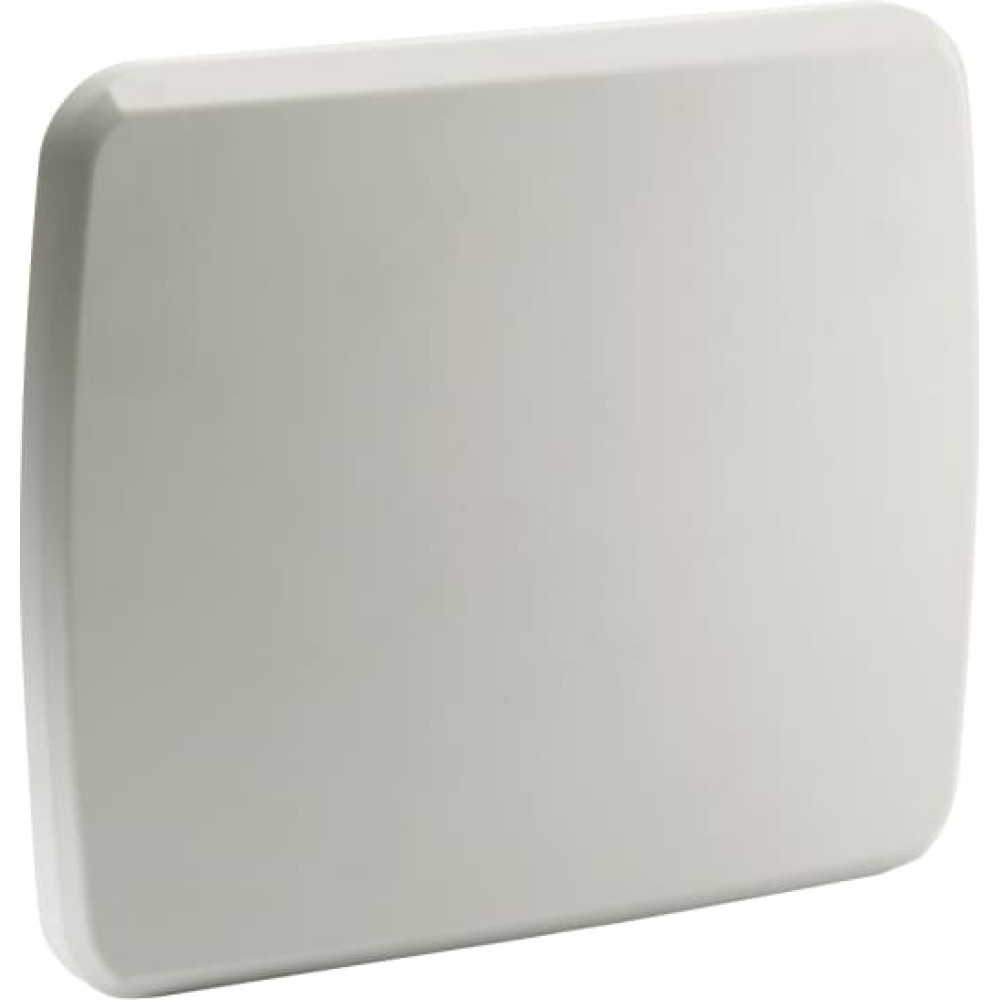

Level One LevelOne WL-Antenne WAN-9180 18dBi 5,0GHz Outdoor
To purchase this product you must be registered in our system.
Specification
antenna connector type: N-type
antenna gain level (max): 18 dBi
antenna type: Directional antenna
connector gender: Female
country of origin: Taiwan
depth: 227 mm
frequency band: 5.15 - 5.875 GHz
harmonized system (hs) code: 85177100
height: 19 mm
horizontal beam width: 15°
housing material: Acrylonitrile butadiene styrene (ABS), Aluminium
impedance: 50 Ω
mounting: Wall
mounting kit: Yes
networking standards: IEEE 802.11a, IEEE 802.11n
operating relative humidity (h-h): 0 - 95%
operating temperature (t-t): -40 - 80 °C
package depth: 235 mm
package height: 47 mm
package weight: 188 g
package width: 343 mm
polarization: Dual polarization
power handling: 10 W
product colour: Grey
purpose: Indoor & outdoor
quantity per pack: 1 pc(s)
quick installation guide: Yes
survival wind speed: 216 km/h
vertical beam width: 15°
voltage standing wave ratio (vswr): 2.2
waterproof: Yes
weight: 435 g
width: 256 mm
Description
| The LevelOne WAN-9180 18dBi Directional Dual-Polarization antenna is designed for outdoor wireless connections. With array pattern located at +45° and -45° polarization, you can improve signal strength in a crowded area with possible signal interference. It improves signal strength and coverage in 5GHz band, towards a concentrated enhanced direction. This panel antenna is easy to mount and install on flat areas such as wall or window. Designed for outdoor elevated installation with high sustainability in strong wind. With IP-67 rating, it is completely protected against dust and humidity ingress. - Operates in 5GHz band, according to IEEE 802.11a/n specifications - Antenna diversity at 18dBi high gain performance - Dual-Polarization to avoid interference - Easy to install on the wall surface - Wideband frequency performance enables future growth and increases flexibility |
