TELEGÄRTNER Karl Gärtner

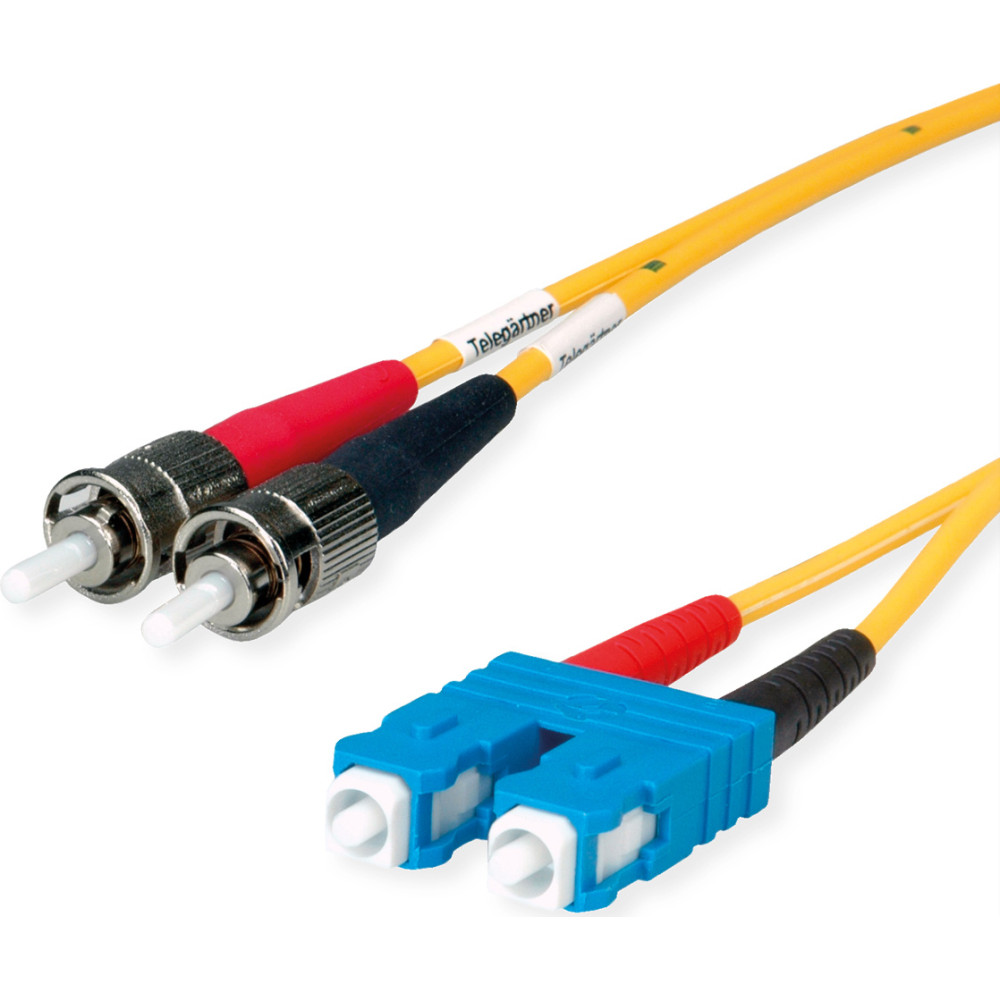

Telegärtner TELEGÄRTNER FO Duplex Adaptor Cables E9/125 OS2, 2x ST, 1x SC Duplex, yellow, 2 m

Product Code: 100010746
Barcode 4018359176624

To purchase this product you must be registered in our system.



Specification
bend radius: 15 mm
cable lsoh: yes
cable type: Duplex Cable
colour: yellow
connection ports: ST / SC
depth of packaging (single piece): 230 mm
fibre section: Single mode 9/125µm OS2
flame retardant according to iec 60332-1-2: yes
gross weight: 0.046
halogen free according to iec 60754-2: yes
height of packaging (single piece): 40 mm
length: 2 m
manufacturer: TELEGÄRTNER
operating temperature max.: 55 °C
operating temperature min.: -5 °C
package weight (single piece): 0.046 kg
product group: Network Passive Components
product type: Fibre Optic Jumper Cables OS2
side 1 connector type: ST
side 2 connector type: SC
weight: 55 g
width of packaging (single piece): 170 mm

Description

FO Duplex Adaptor Cables 1st 2xST, 2nd end SC Duplex E9/125 2,0 m

The LC duplex fibre optic patch cables from Telegärtner can be used within structural cabling (ISO/IEC 11801) in data centres, office buildings, telecommunications rooms and in all other places where fibre optic patch cables are required. Of all the components in a transmission path, patch cables are subjected to the highest stresses and the greatest wear. That’s why many users rely on patch cables from Telegärtner: perfectly matched components, the highest quality standards, a thoroughly controlled manufacturing process, and 100% attenuation testing ensure secure and reliable network operation. The patch cables in the OM3-OM5 (IEC 60793-2-10 type A1a.2-4, ITU G.651.1) and OS2 (IEC 60793-2-50 type B1.3, ITU G.657.A1) categories also feature bend-optimised fibres to enable optimum transmission even in confined spaces.
