Home Office / Staff accessories Stands / Holders / Furnishings LCD Lindy Dual Adjustable Display Mount - Black

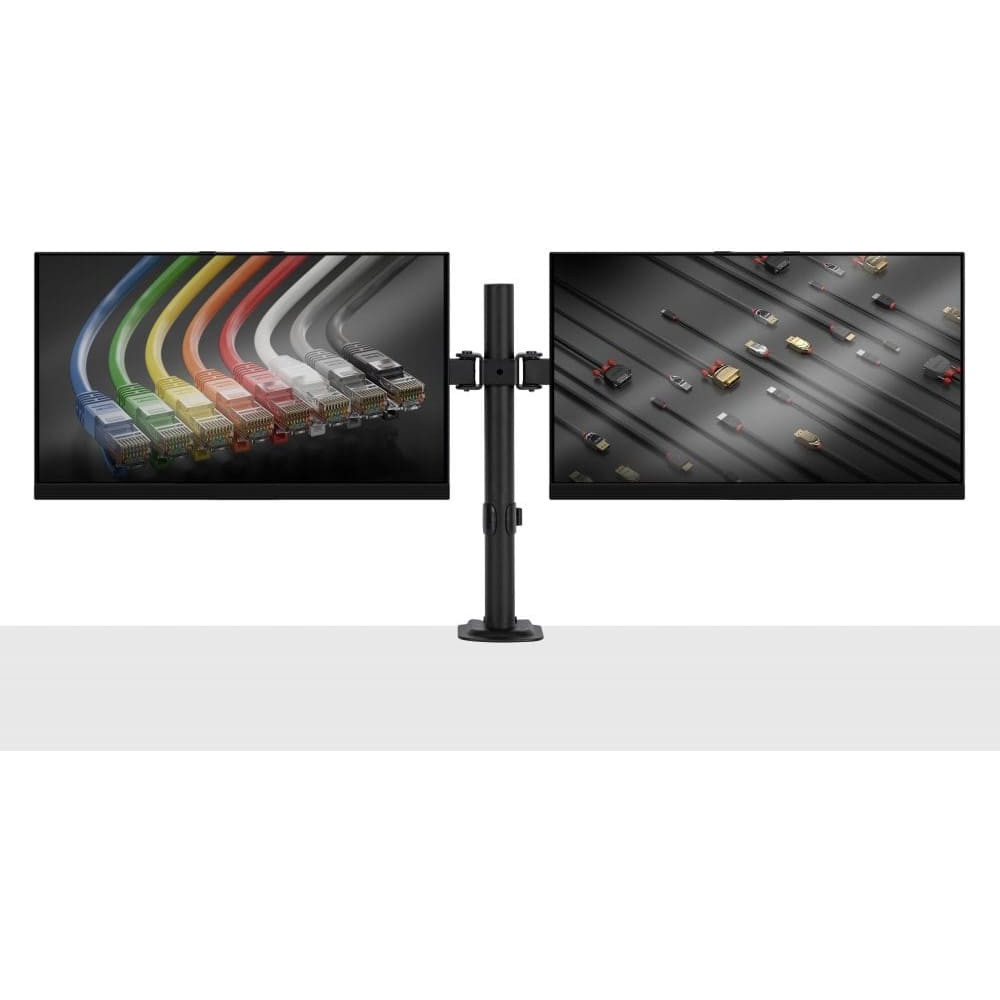

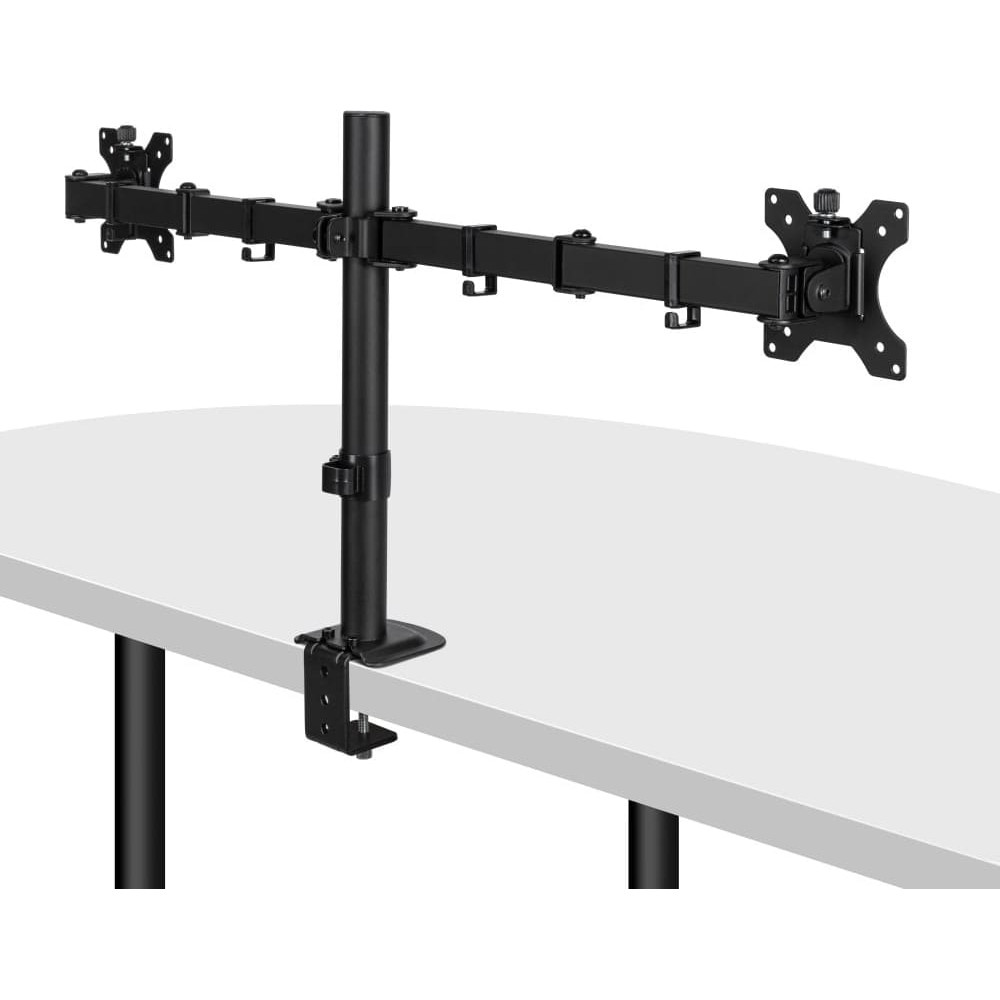

Lindy Dual Adjustable Display Mount - Black

LINDY

Lindy Dual Adjustable Display Mount - Black

Product Code: 40711
Barcode 4002888407113

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
angle of rotation: 180°
cable management: Yes
ce doc: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/7b/5f/fe/66/66fe5f7b9f146c0983628293/CE_40707-11.pdf
ce docs: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/7b/5f/fe/66/66fe5f7b9f146c0983628293/CE_40707-11.pdf
certification: RoHS, REACH & California Proposition 65
compliance certificates: REACH, RoHS
country of origin: CN
depth: 190 mm
desk thickness (max): 5 cm
desk thickness (min): 1 cm
gross weight: 2.80
height: 140 mm
housing material: Aluminium, Metal, Plastic
manual: Yes
maximum screen size: 81.3 cm (32")
maximum vesa mount: 100 x 100 mm
maximum weight capacity: 8 kg
maximum weight capacity (per display): 4 kg
minimum screen size: 33 cm (13")
minimum vesa mount: 75 x 75 mm
mounting type: Desk
net weight: 2.80
number of displays supported: 2
orientation: Landscape
package depth: 35 mm
package height: 400 mm
package type: Box
package weight: 2.8 kg
package width: 775 mm
packaging content: 1 x Dual Monitor Arm 1 x C Clamp 1 x C Clamp Plate 2 x VESA Mounting Plates 1 x Monitor Pole Arm 1 x Cable management clip 3 x Rubber Spacers 1 x 5mm Allen Key 1 x 6mm Allen Key 2 x Pole Spacers 2 x Detachable Arm Cable Tidy 2 x Thumb Screw 8 x M4x12mm Bolts 8 x M5x12mm Bolts 8 x Washers 1 x Lindy Manual
packaging height: 41.00
packaging lenght: 19.00
packaging width: 77.00
pivot angle: 0 - 90°
product colour: Black
quantity per pack: 1 pc(s)
rotating: Yes
tilt adjustment: Yes
tilt angle range: 0 - 180°
warranty: 2
weight: 3.17 kg
width: 440 mm
Description

Functionality

  • Minimum Supported Display Size: 13 Inch
  • Maximum Supported Display Size: 32 Inch
  • Maximum Supported Overall Weight: 16kg (35lb)
  • Maximum Supported Weight EACH Arm: 8kg (17lbs)
  • Minimum Desk Thickness: 10mm
  • Maximum Desk Thickness: 50mm
  • VESA Compliance: 75x75 / 100x100mm
  • Tilt Adjustment: +180°
  • Pivot Adjustment: +90°
  • Rotation: +180°
  • Cable Management: Built In

Physical Properties

  • Dimensions:  W 440mm x D 190 x H 140 (W 17.32 x D 7.48 x H 5.51 in)
  • Housing Material: Aluminium Metal / Plastic
  • Weight: 3.173kg (6.99lb)
  • Colour: Black

Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: W 775mm x D 35 x H 400 (W 30.51 x D 1.37 x H 15.74 in)
  • Gross Weight: 2.804kg (6.18 lb)
  • Warranty (Years): 2
  • Product Compliance: RoHS, REACH & California Proposition 65

Package Contents

  • 1 x Dual Monitor Arm
  • 1 x C Clamp
  • 1 x C-Clamp Plate
  • 2 x VESA Mounting Plates
  • 1 x Monitor Pole Arm
  • 1 x Cable management clip
  • 3 x Rubber Spacers
  • 1 x 5mm Allen Key
  • 1 x 6mm Allen Key
  • 2 x Pole Spacers
  • 2 x Detachable Arm Cable Tidy
  • 2 x Thumb Screw
  • 8 x M4x12mm Bolts
  • 8 x M5x12mm Bolts
  • 8 x Washers
  • 1 x Lindy Manual

Purchasing Information

  • No.: 40711
  • EAN: 4002888407113


CE Doc: CE_40707-11.pdf
