MANHATTAN

Manhattan TV-Wandhalterung 37"-70" 35kg Full Motion

Product Code: 462426
Barcode 0766623462426

To purchase this product you must be registered in our system.



Specification
adjustable depth: Yes
built-in spirit level: Yes
depth (max): 35.8 cm
distance to the wall (max): 35.8 cm
distance to the wall (min): 6.3 cm
height: 420 mm
housing material: Steel
manual: Yes
master (outer) case gross weight: 19.8 kg
master (outer) case height: 205 mm
master (outer) case length: 520 mm
master (outer) case width: 660 mm
maximum screen size: 177.8 cm (70")
maximum vesa mount: 600 x 400 mm
maximum weight capacity: 35 kg
minimum screen size: 94 cm (37")
minimum vesa mount: 100 x 100 mm
mounting kit: Yes
mounting type: Wall
number of displays supported: 1
package depth: 62 mm
package height: 250 mm
package weight: 3.02 kg
package width: 645 mm
packaging content: Full-Motion TV Wall Mount with Post-Leveling Adjustment Attachable bubble level Installation hardware with instructions
panel mounting interface: 100 x 100,100 x 150,100 x 200,150 x 100,150 x 150,200 x 100,200 x 200,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300,600 x 200,600 x 300,600 x 400
product colour: Black
products per master (outer) case: 6 pc(s)
quantity per pack: 1 pc(s)
swivel angle range: -60 - 60°
swivelling: Yes
tilt adjustment: Yes
tilt angle range: -15 - 5°
weight: 2.52 kg
width: 640 mm

Description

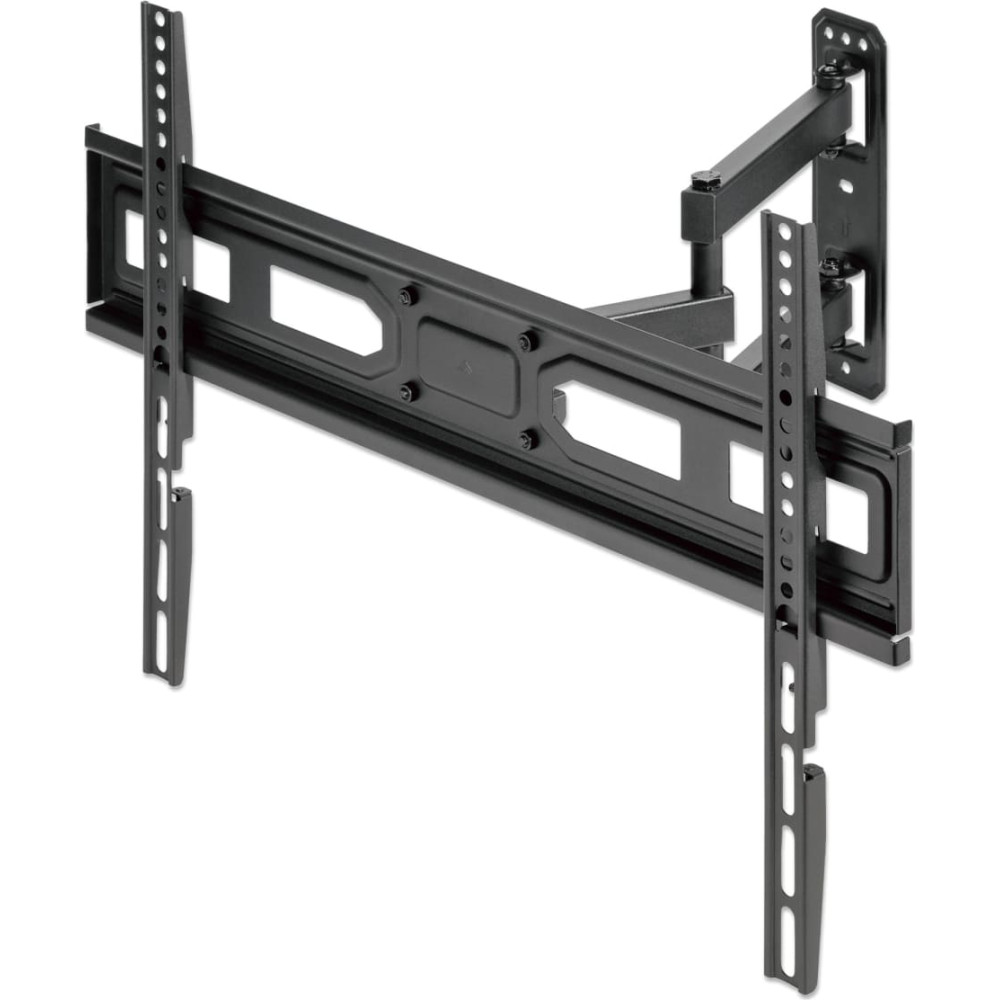

Articulating TV Wall Bracket – fully adjustable mounting bracket to fit almost any space
This strong full-motion TV Wall Mount Bracket from Manhattan safely holds your TV on two articulating arms and provides optimized views with +3 to -15° tilt and +/-60° swivel adjustment. It fits flat and curved LCD, OLED or plasma TVs up to 70"" and weighing up to 35 kg (77lbs.) with VESA compliance up to 600x400. You're all set for a confident above-the-floor installation with an included bubble level and +/-3° post-leveling adjustment that helps get the mount perfectly horizontal on the wall. This mount is ideal for residential, office, hospitality, classrooms, conference rooms, digital signage and other commercial applications. Wherever you install it, the universal Manhattan Full-Motion TV Wall Mount puts the best TV viewing experience front and center.
