Neomounts by Newstar WAH 10"-40" 1TFT 3Gelenke schw. Max.20

Product Code: FPMA-W835

Barcode 8717371443122

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

depth: 0.308

height: 0.296

width: 0.100

Description

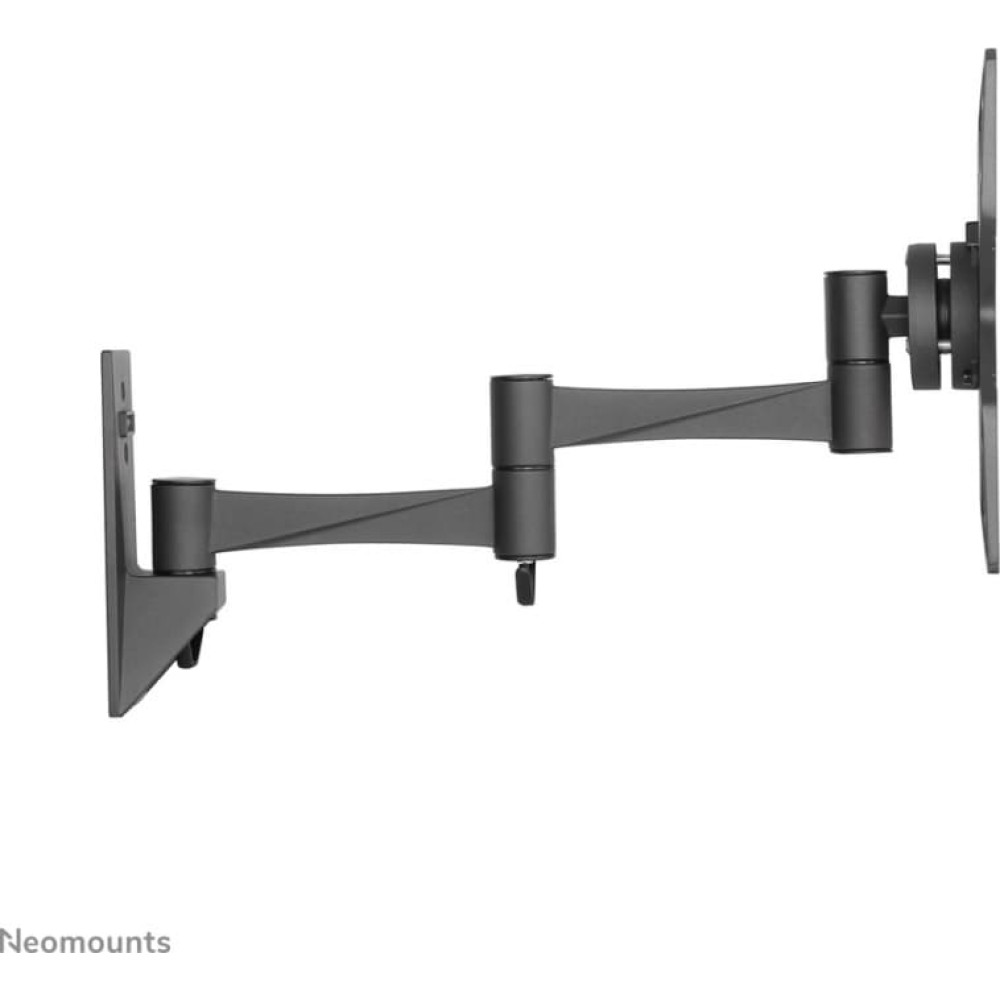

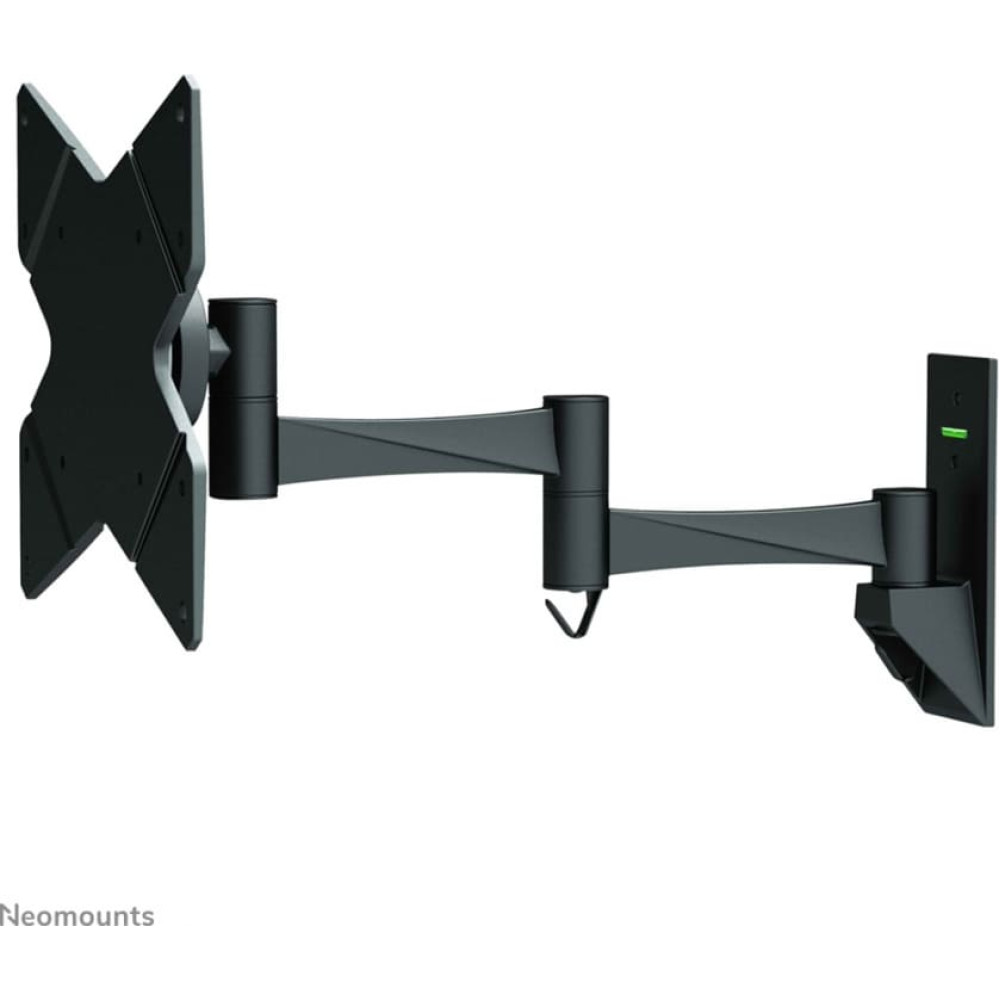

The Neomounts by Newstar wall mount, model FPMA-W835 is a tilt-, swivel and rotatable wall mount for flat screens up to 40". This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. Effortless pull the display out from the wall, position it in almost any direction, turn it around corners and then smoothly return it to the wall when finished. Neomounts by Newstars' tilt (30°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily depth adjustable from 9 to 42 centimetres. Cable management conceals and routes cables from mount to flat screen. Hide your cables to keep living room, bedroom or home cinema installation nice and tidy. Neomounts by Newstar FPMA-W835 has three pivot points and is suitable for screens up to 40" (102 cm). The weight capacity of this product is 20 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 75x75 to 200x200mm. Different hole patterns can be covered using Neomounts by Newstar VESA adapter plates. Create a clean design ambiance for your flat screen TV in the living room, bedroom or home cinema. All installation material is included with the product.

Maximum weight capacity	20 kg
Maximum screen size	101.6 cm (40")
Mounting type	Wall
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	200 x 200 mm
Minimum screen size	25.4 cm (10")
Number of displays supported	1
Tilt angle range	0 - 30°
Swivel angle	180°
Angle of rotation	360°
Distance to the wall (max)	42 cm
Distance to the wall (min)	9 cm
Product colour	Black
Package width	295 mm
Package depth	100 mm
Package height	305 mm
Master (outer) case width	825 mm
Master (outer) case length	325 mm
Master (outer) case height	310 mm
Master (outer) case gross weight	18.6 kg
Master (outer) case net weight	14.1 kg
Products per master (outer) case	8 pc(s)
Harmonized System (HS) code	85299097
Products per pallet (EU)	96 pc(s)
Country of origin	China
Package net weight	1.76 kg
