Neomounts by Newstar WAH 40"-75" 1TFT 1Gelenk schw. Max.70

Neomounts by Newstar WAH 40"-75" 1TFT 1Gelenk schw. Max.70

Product Code: WL35-550BL16
Barcode 8717371448738

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
depth: 0.076
height: 0.005
width: 0.021
Description

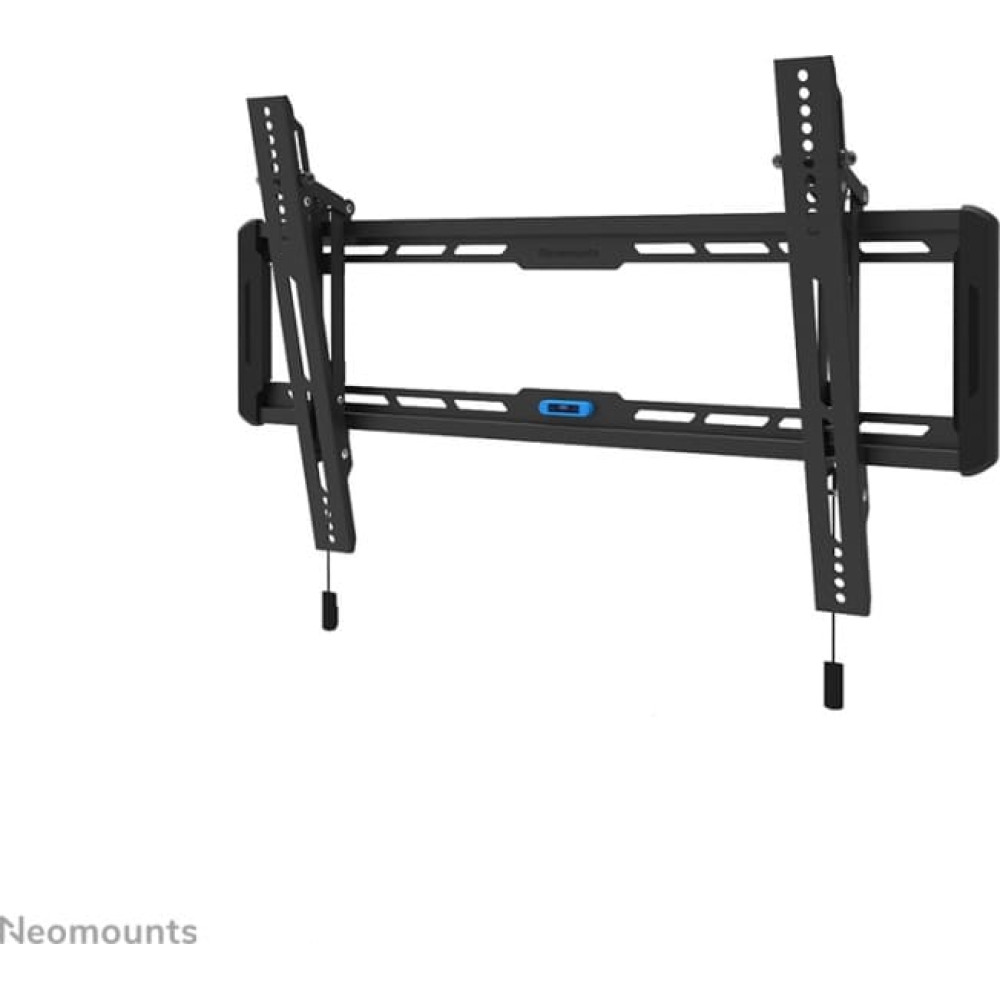

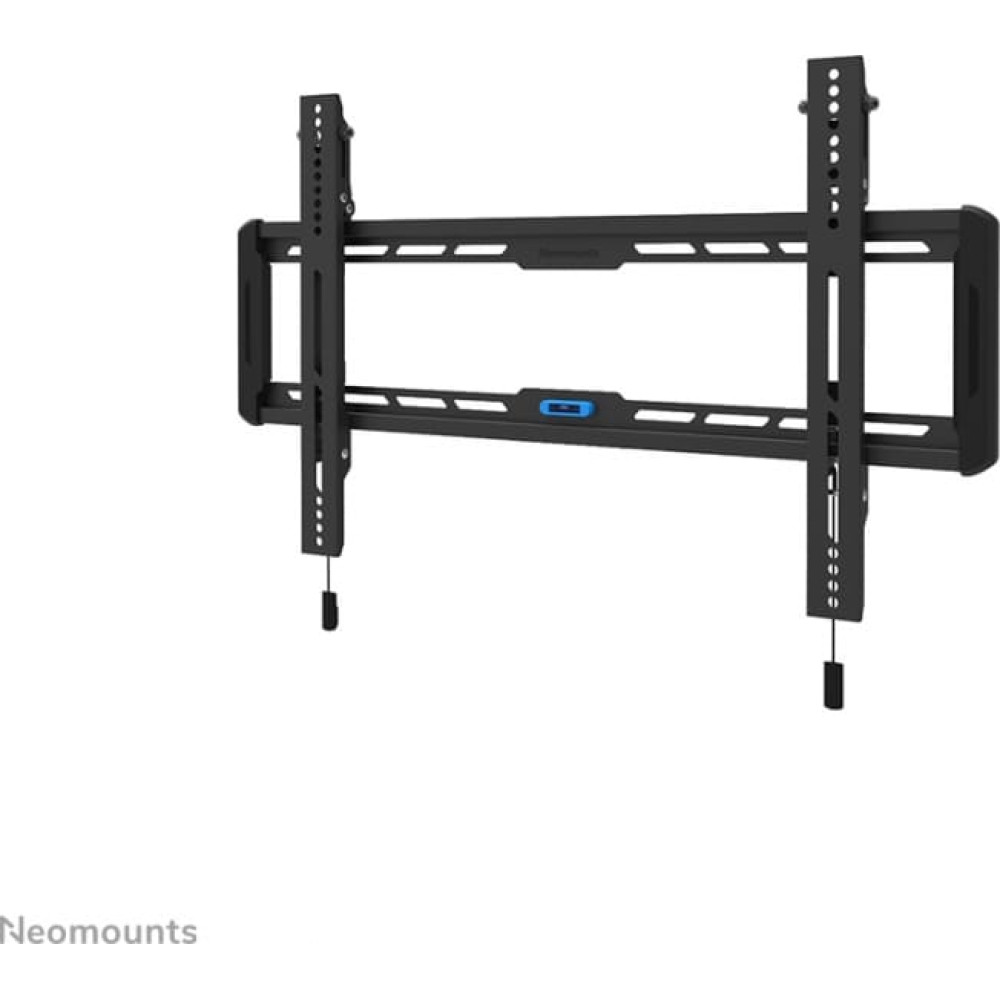

The Neomounts by Newstar WL35-550BL16 is a tiltable wall mount for flat screens up to 75" with a maximum weight capacity of 70 kg. The versatile tilt (12°) technology allows you to create the optimum viewing angle. The WL35-550BL16 has a depth of 3,3 cm and is suitable for screens that meet VESA hole pattern 100x100 to 600x400 mm. The mount features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. The integrated spirit level assures easy installation of the mount.

Maximum weight capacity 70 kg
Maximum screen size 190.5 cm (75")
Mounting type Wall
Minimum VESA mount 100 x 100 mm
Maximum VESA mount 600 x 400 mm
Minimum screen size 101.6 cm (40")
Panel mounting interface 100 x 100,100 x 150,100 x 200,120 x 120,200 x 100,200 x 200,200 x 300,200 x 400,300 x 300,300 x 100,300 x 200,350 x 350,400 x 200,400 x 400,400 x 300,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400
Number of displays supported 1
Height adjustment N
Tilt angle range 0 - 12°
Distance to the wall (max) 3.3 cm
Product colour Black
Quantity per pack 1 pc(s)
Width 735 mm
Depth 33 mm
Height 425 mm
Package width 758 mm
Package depth 208 mm
Package height 44 mm
Master (outer) case width 773 mm
Master (outer) case length 285 mm
Master (outer) case height 230 mm
Master (outer) case net weight 12.5 kg
Products per master (outer) case 6 pc(s)
Harmonized System (HS) code 7326909890
Products per pallet (EU) 144 pc(s)
Country of origin China
Package net weight 2.9 kg
