Home Office / Staff accessories Stands / Holders / Furnishings TV and Projector Neomounts by Newstar WAH 17"-32" 1TFT 3Gelenk schw. Max.9K

Neomounts by Newstar WAH 17"-32" 1TFT 3Gelenk schw. Max.9K

Product Code: WL70-450BL11

Barcode 8717371449049

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

depth: 0.405

height: 0.031

width: 0.090

Description

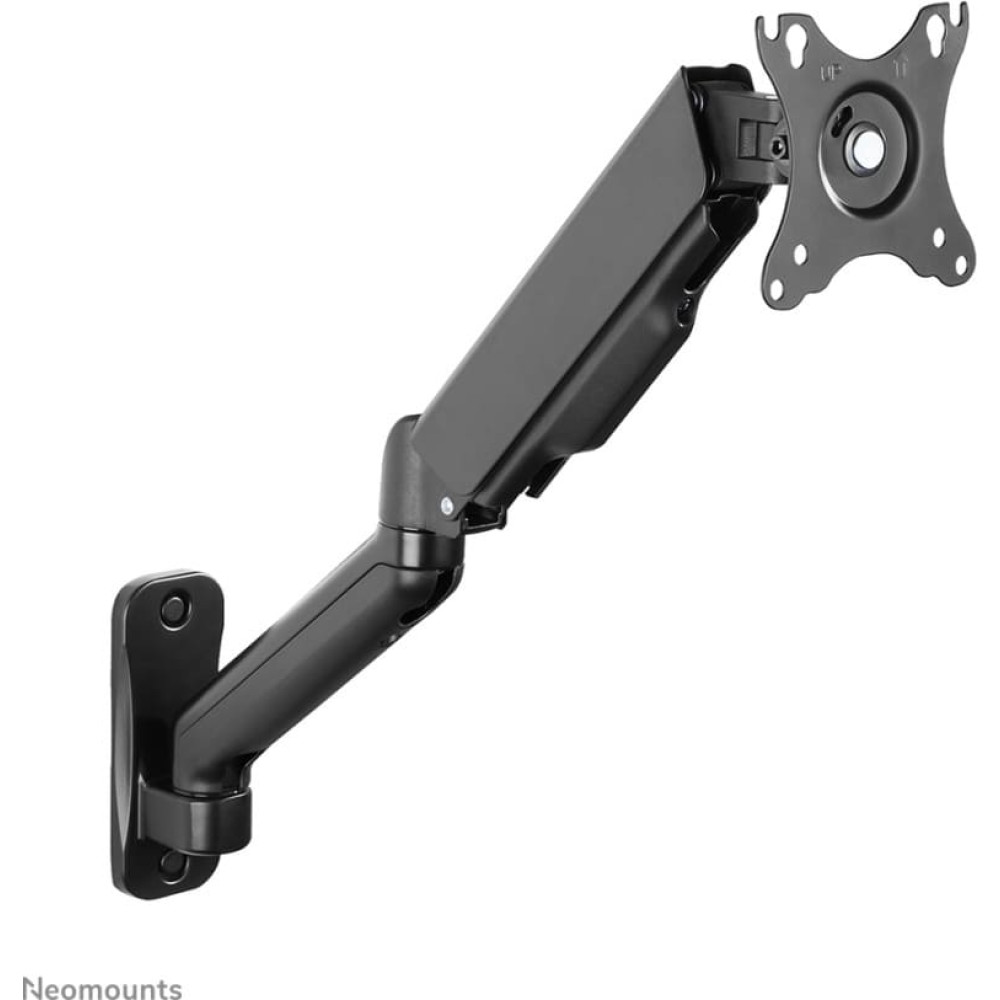

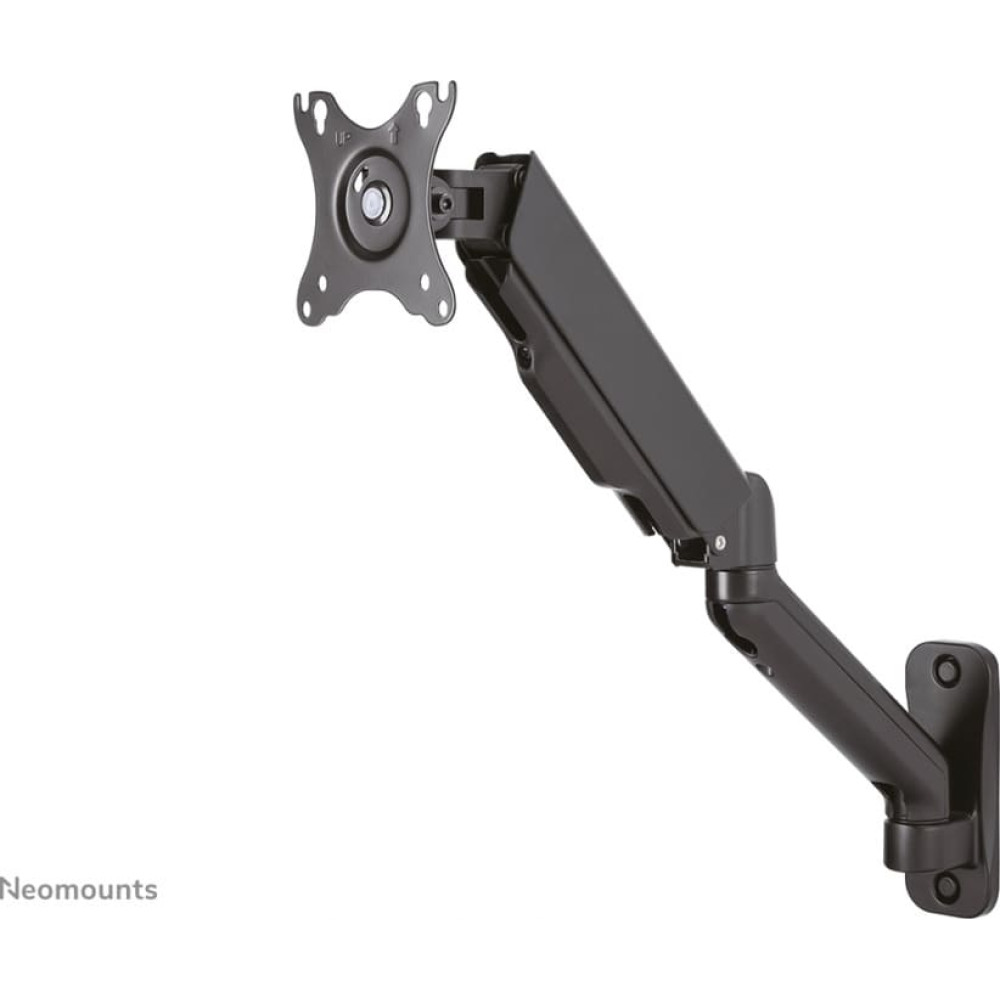

The Neomounts by Newstar WL70-450BL11 is a full motion wall mount for flat screens up to 32" with a maximum weight capacity of 9 kg. The versatile tilt (135°), rotate (360°) and swivel (180°) technology allows you to create the optimum viewing angle. The WL70-450BL11 has a depth of 9-54 cm and is suitable for screens that meet VESA hole pattern 75x75 to 100x100 mm. The mount can be easily adjusted in height using the gas spring. The cable management system allows you to route and secure any loose cables at the back of the screen. Additionally, the mount features an Easy-release VESA, that allows you to attach the TV in a wink of an eye.

Maximum weight capacity	9 kg
Maximum screen size	81.3 cm (32")
Mounting type	Wall
Minimum screen size	43.2 cm (17")
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Number of displays supported	1
Mounting	Screws
Suitable for TV	Y
Panel mounting interface	75 x 75,100 x 100 mm
Distance to the wall (min)	9 cm
Distance to the wall (max)	54 cm
Height adjustment	Y
Height adjustment type	Gas spring
Height adjustment range	0 - 250 mm
Tilt angle range	-45 - 90°
Swivel angle	180°
Angle of rotation	360°
Cable management	Y
Tilt adjustment	Y
Product colour	Black
Width	117 mm
Depth	475 mm
Height	491 mm
Package width	305 mm
Package depth	405 mm
Package height	90 mm
Quantity per pack	1 pc(s)
Master (outer) case width	305 mm
Master (outer) case length	405 mm
Master (outer) case height	90 mm
Products per master (outer) case	1 pc(s)
Master (outer) case net weight	1.6 kg
Harmonized System (HS) code	7326909890
Products per pallet (EU)	90 pc(s)
Country of origin	China
Package net weight	2.3 kg
