Delock LTE Antenna N Jack 3 dBi omnidirectional fixed black roof mount outdoor

Product Code: 12456

Barcode 4043619124565

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

depth: 0.000

height: 0.000

width: 0.000

Description

This antenna by Delock allows the usage of different LTE bands indoors and outdoors. It is completely compatible to GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave and LoRa 868 MHz / 915 MHz.

System requirements:
• Device with a free N plug

Specification:

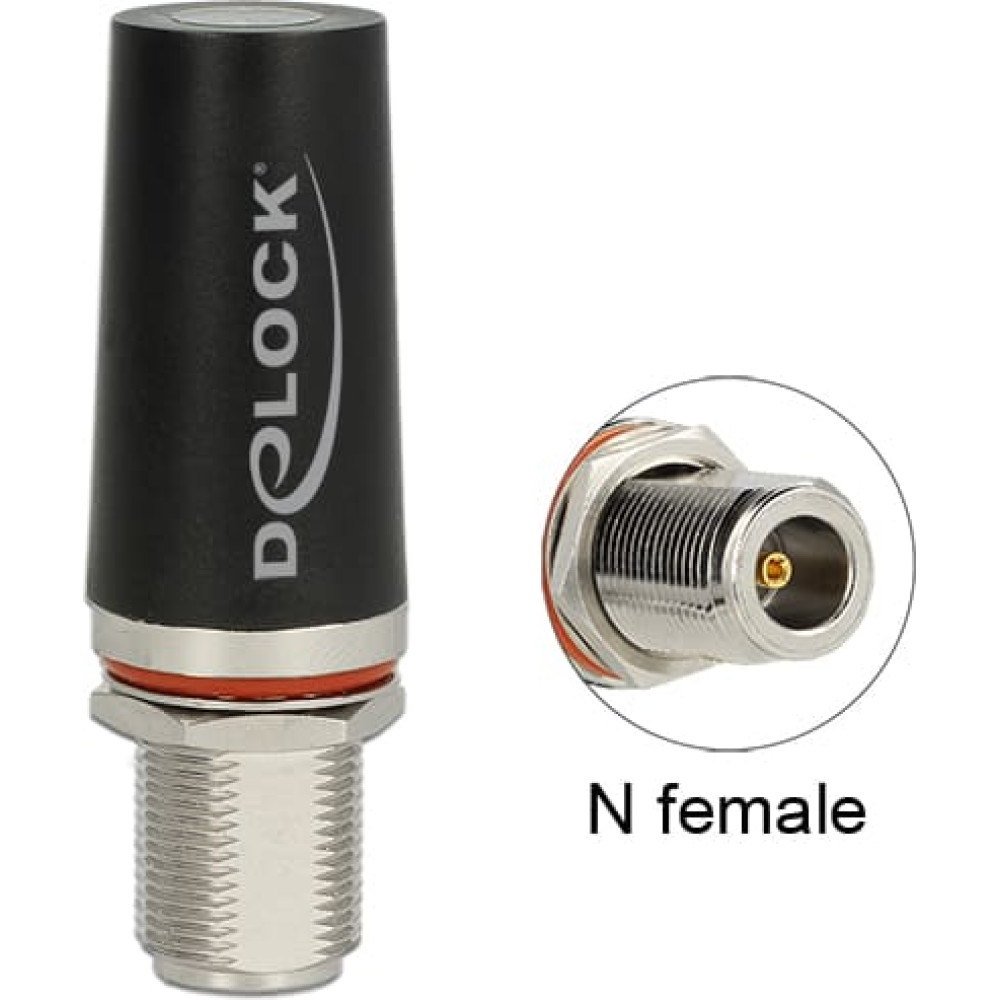

• Connector: 1 x N jack
• Frequency range:
  698 MHz - 960 MHz
  1710 MHz - 2170 MHz
  2500 MHz - 2700 MHz
• ZigBee, LoRa, DECT, Z-Wave, NB-IoT, Bluetooth, GSM, UMTS, LTE, ISM, WLAN
2.4 GHz
• Antenna gain: 3 dBi
• Impedance: 50 Ohm
• VSWR: 2.0
• Polarisation: vertical
• Mounting type: screw mounting
• Mounting hole diameter: 13.5 mm
• Operating temperature: -40 °C ~ 70 °C
• Housing material: ABS
• Protection class: IP67
• Colour: black

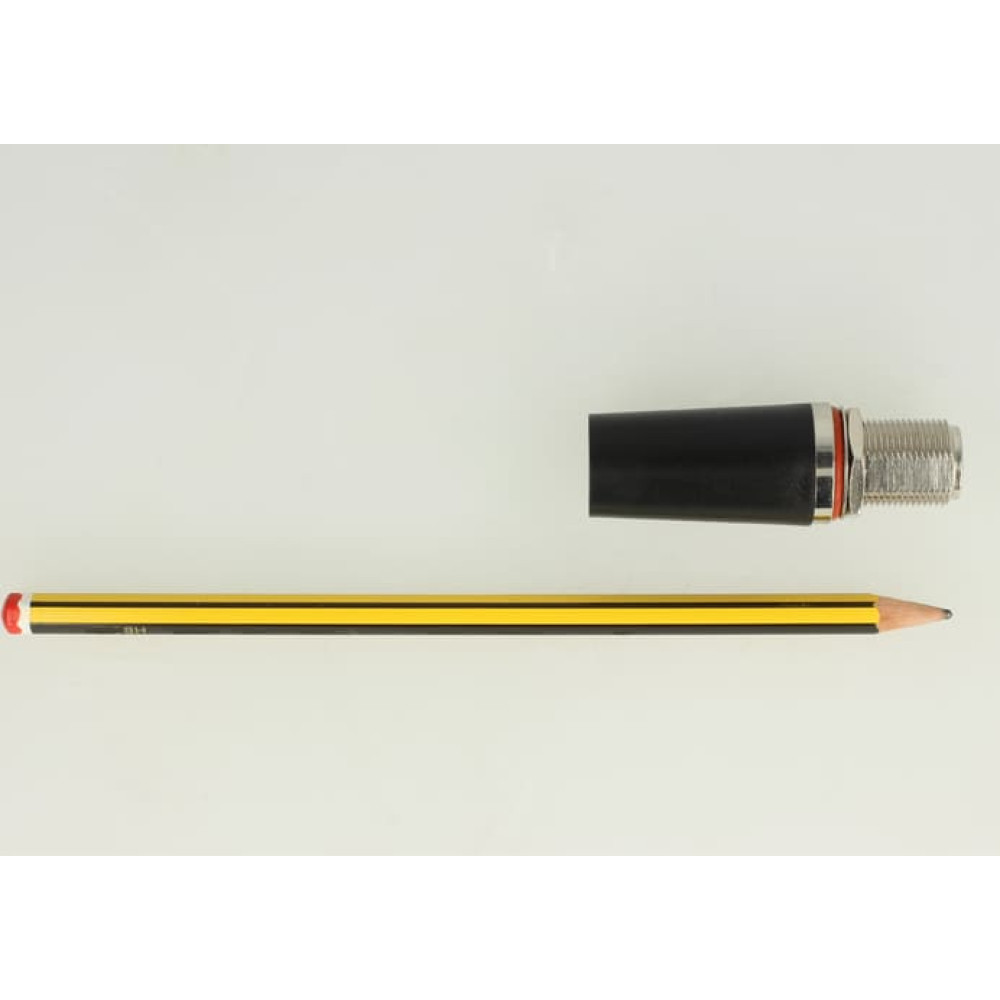

• Dimensions (LxWxH): ca. 66 x 22 x 22 mm

Package content:
• LTE antenna
• Nut, washer

Data sheet:
http://www.delock.de/produkt/12456/pdf.html?sprache=en
