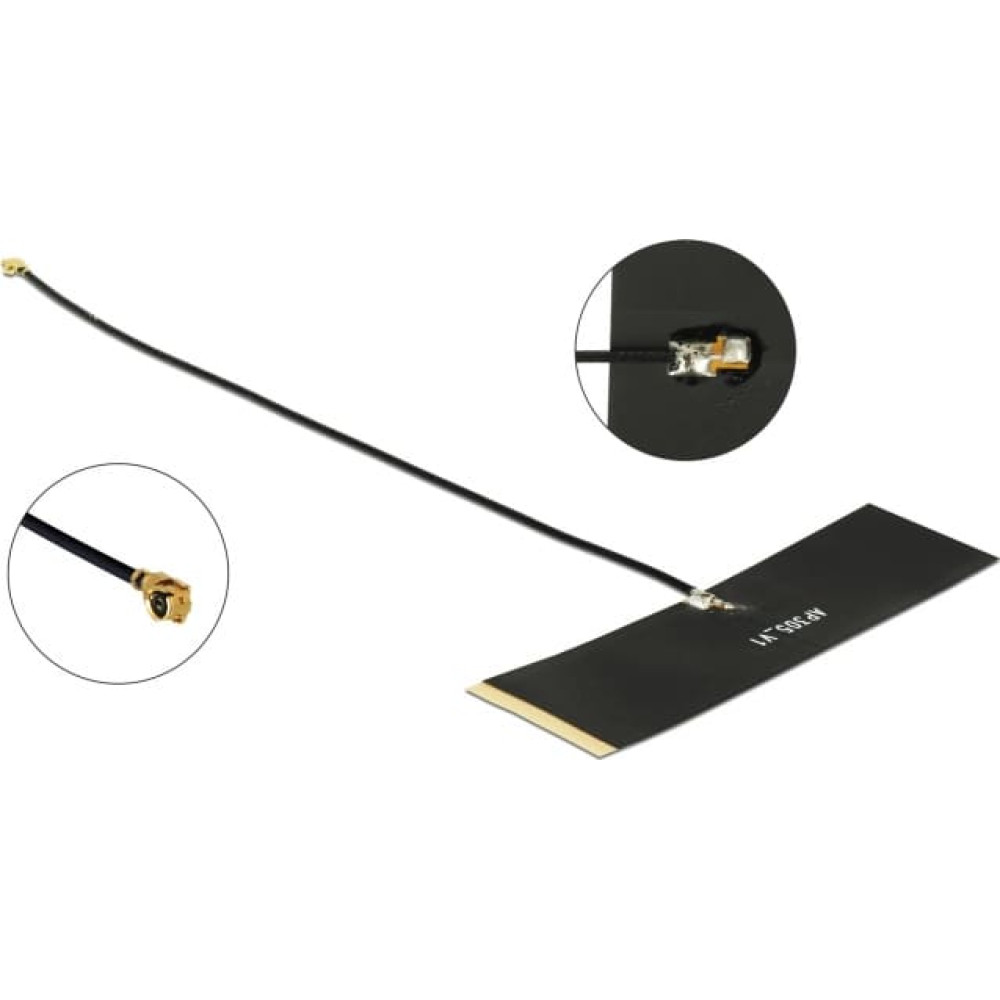

Delock TETRA 430 - 470 MHz Antenna MHF plug 0 dBi 1.13 15 cm black self adhesive

Product Code: 12539

Barcode 4043619125395

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

depth: 0.000

height: 0.000

width: 0.000

Description

This antenna by Delock allows the usage of the TETRA 430 - 470 MHz band indoors.

System requirements:
• Device with one free I-PEX Inc., MHF® I port

Specification:
• Connector: 1 x I-PEX Inc., MHF® I plug
• Frequency range: 430 - 470 MHz
• ISM, TETRA
• Antenna gain: 0 dBi
• Impedance: 50 Ohm
• VSWR: 4.0
• Polarisation: linear, vertical
• Mounting type: self adhesive
• Operating temperature: -10 °C ~ 55 °C
• Housing material: FPC
• Colour: black
• Cable: coaxial
• Cable type: 1.13
• Cable colour: black
• Cable diameter: ca. 1.13 mm
• Cable attenuation: 2.5 dB @ 2400 MHz per meter
• Smallest bending radius: 4.5 mm
• Length incl. connectors (L): ca. 15 cm
• Dimensions (LxW): ca. 67.5 x 20 mm

Package content:
• Antenna

Data sheet:
http://www.delock.de/produkt/12539/pdf.html?sprache=en
