Home RF radio frequency technologies Antenna Delock LPWAN 868 MHz Antenna SMA plug 1.6 dBi omnidirectional fixed black

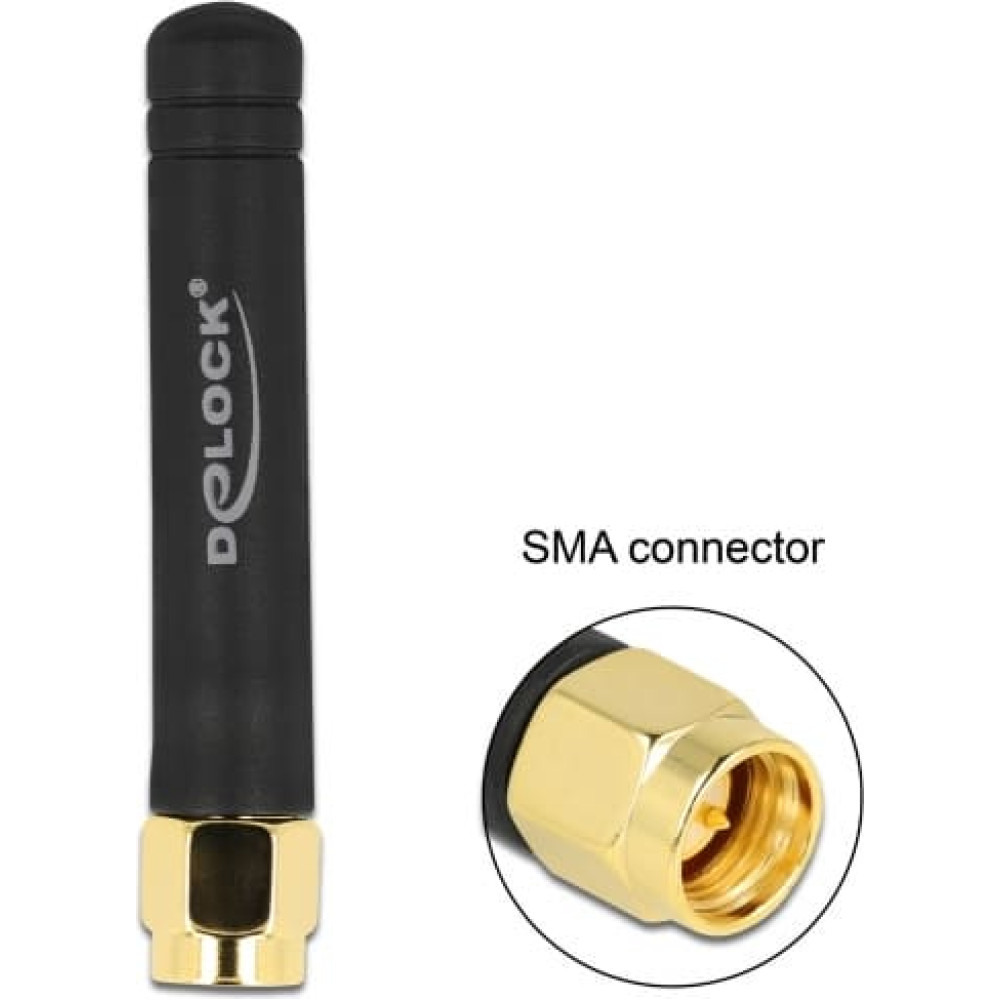

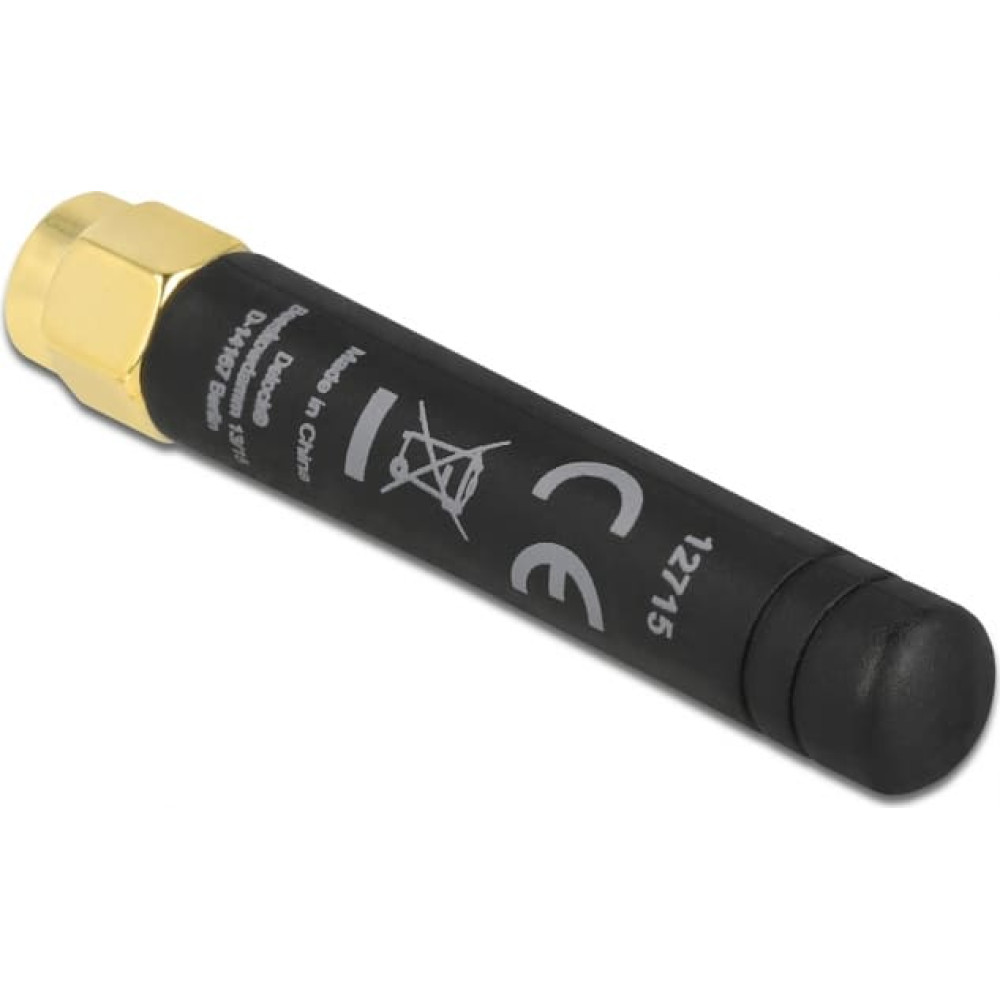

Delock LPWAN 868 MHz Antenna SMA plug 1.6 dBi omnidirectional fixed black

Product Code: 12715

Barcode 4043619127153

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

depth: 0.130

height: 0.010

width: 0.080

Description

This antenna by Delock allows the usage of the 868 MHz band indoors and outdoors.

System requirements:
• Device with a free SMA jack

Specification:
• Connector: 1 x SMA plug
• Frequency range: 860 - 870 MHz
• ZigBee 868 MHz, Z-Wave 868 MHz, LoRa 868 MHz
• Antenna gain: 1.6 dBi
• Impedance: 50 Ohm
• Efficiency: 43.97 %
• VSWR: 1.26
• Polarisation: vertical
• Operating temperature: -40 °C ~ 85 °C
• Housing material: ABS
• Colour: black
• Antenna length: ca. 5.15 cm

Package content:
• Antenna

Data sheet:
http://www.delock.de/produkt/12715/pdf.html?sprache=en
