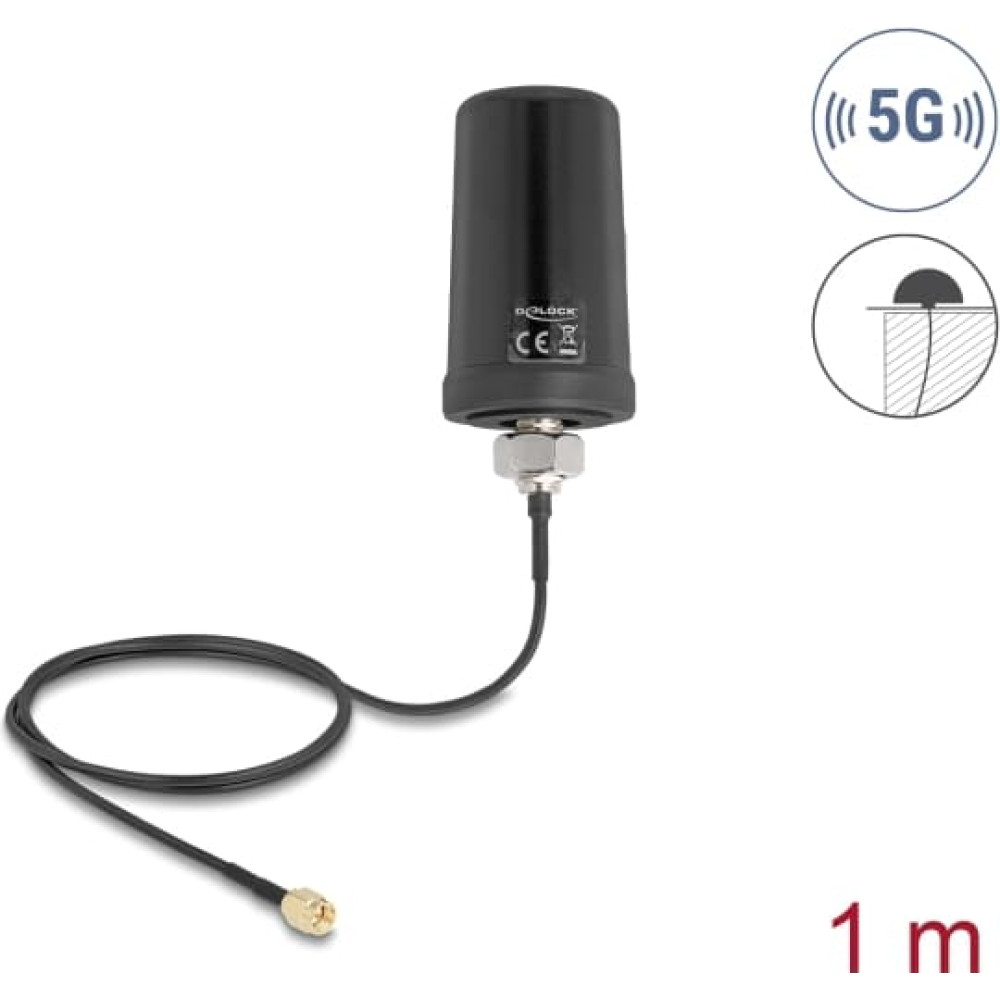

| This 5G LTE GNSS WiFi 6 antenna by Delock allows the usage of different 5G LTE bands inside and outside. It is completely compatible to GSM, UMTS, LTE, ZigBee, Z-Wave, NB-IoT, WiFi 6, Bluetooth, ISM and LoRa. 5G the new mobile radio standard 5G unlike its predecessors LTE (4G) and UMTS (3G) will use more and wider frequency spectrums. The 5G standard promises more throughput, capacity and low latency. System requirements: • Device with a free SMA jack Specification: • Connector: 1 x SMA plug • Frequency range: 617 - 960 MHz 1166 - 1610 MHz 1710 - 2200 MHz 2300 - 2690 MHz 3300 - 5925 MHz • Antenna gain: 1.1 - 4.0 dBi • Impedance: 50 Ohm • VSWR: < 3.5 - < 5.0 • Polarisation: linear, vertical • Operating temperature: -40 °C ~ 85 °C • Housing material: PC • Colour: black • Protection class: IP67 • Cable type: ULA100 • Cable attenuation: 1 dB @ 1500 MHz per meter • Cable colour: black • Cable length: ca. 1 m • Dimensions (LxD): ca. 77 x 45 mm • Weight: ca. 135 g Package content: • Antenna • Nut Data sheet: https://www.delock.de/produkt/81473/pdf.html?sprache=en |
