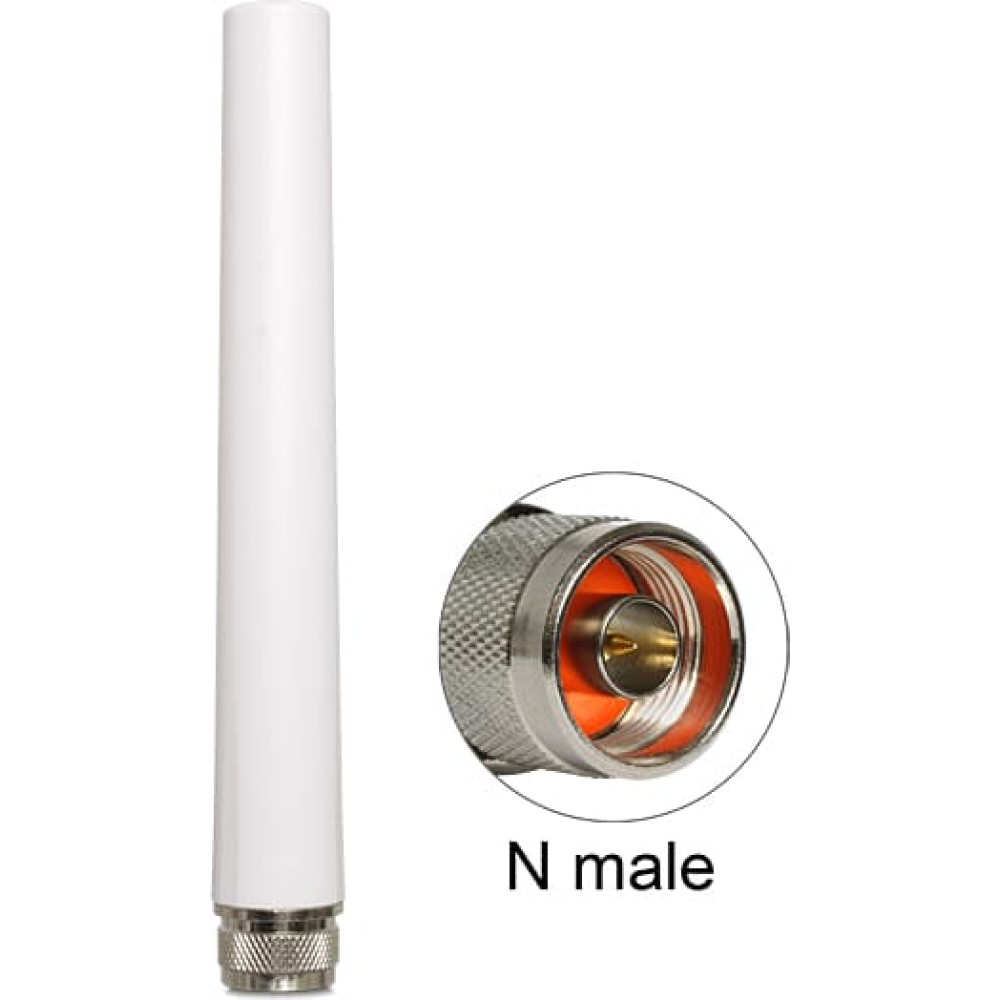

Delock GSM UMTS Antenna N Plug 2.5 dBi Omnidirectional White Outdoor

Product Code: 88453

Barcode 4043619884537

To purchase this product you must be registered in our system.

Description

Related products

Description

This GSM / UMTS / LTE antenna can be connected to a GSM / UMTS / LTE device with N interface, in order to send and receive signals.

System requirements:
• Device with a free N jack

Specification:
• Connector: N plug
• Frequency range:
825 - 960 MHz
1710 - 2170 MHz
• Antenna gain:
1.2 - 2.5 dBi @ 825 - 960 MHz
0 - 2.4 dBi @ 1710 - 2170 MHz
• Impedance: 50 Ohm
• Polarisation: linear, vertical
• VSWR: 2.5
• Operating temperature: -40 °C ~ 80 °C
• Housing material: Sabic 943A
• IP67 protection class
• Length: ca. 166.5 mm
• Diameter:
ca. 18.30 mm (top)
ca. 22.50 mm (N)
• Maximum wind speed: 216 km/h

Package content:
• GSM / UMTS antenna

Data sheet:
http://www.delock.de/produkt/88453/pdf.html?sprache=en
