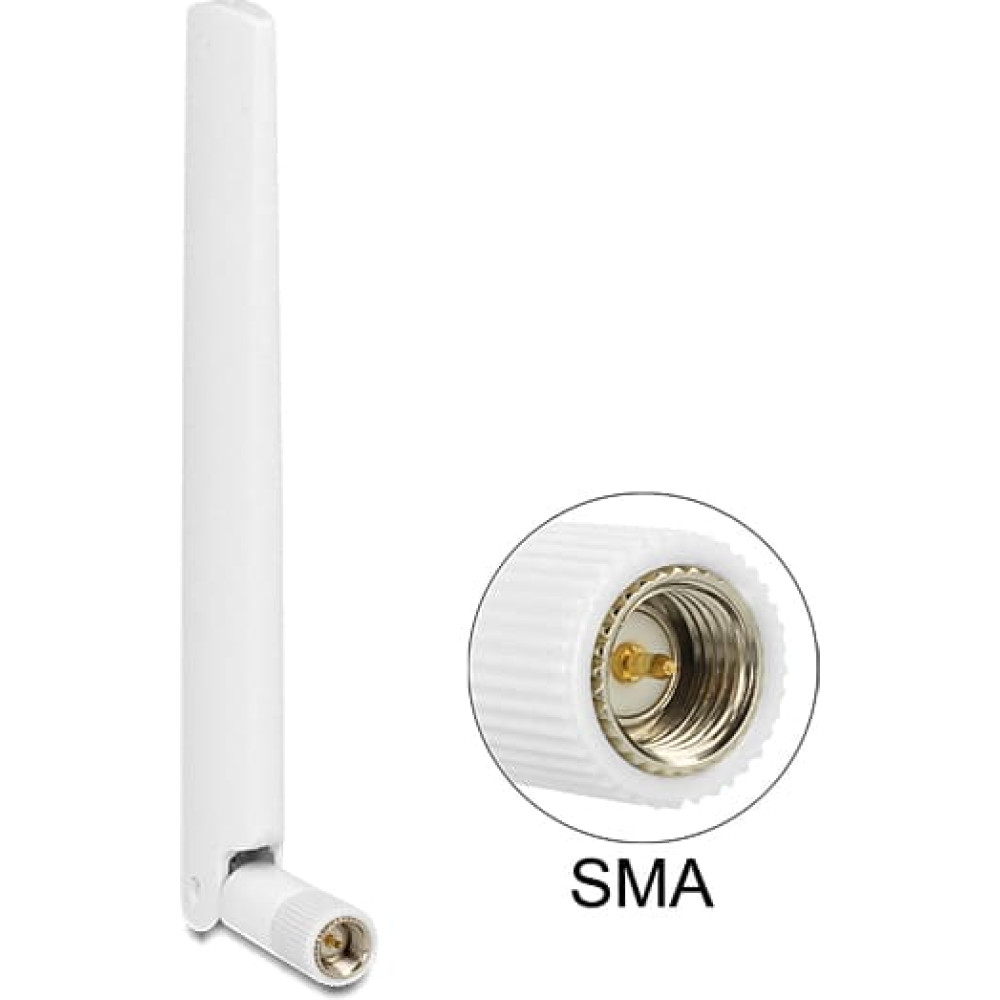

Delock LTE Antenna SMA 1 ~ 2.5 dBi Omnidirectional With Flexible Joint White

Product Code: 88790

Barcode 4043619887903

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

depth: 0.144

height: 0.015

width: 0.207

Description

This GSM / UMTS / LTE antenna can be connected to a GSM / UMTS / LTE device with SMA interface, in order to send and receive signals.

System requirements:
• Device with a free SMA jack

Specification:
• Connectors: SMA plug
• Frequency range:
790 - 870 MHz
1710 - 1880 MHz
2500 - 2690 MHz
• Antenna gain:
-1.0 - 0.0 dBi @ 790 - 870 MHz
-0.5 - 0.5 dBi @ 1710 - 1880 MHz
0.5 - 2.5 dBi @ 2500 - 2690 MHz
• Impedance: 50 Ohm
• Polarisation: linear, vertical
• VSWR: 3.0
• Operating temperature: -10 °C ~ 55 °C
• Housing material: ABS
• Colour: white
• Length:
ca. 137.70 mm (with tilt joint)
ca. 115.00 mm (without tilt joint)
• Diameter:
ca. 18.80 mm (top)
ca. 10.00 mm (SMA)

Package content:
• LTE antenna

Data sheet:
http://www.delock.de/produkt/88790/pdf.html?sprache=en
