Home RF radio frequency technologies Antenna Delock WLAN Antenna 802.11 acahbgn 6 ~ 8 dBi 280 mm omnidirectional pole mounting fixed white outdoor
Delock WLAN Antenna 802.11 acahbgn 6 ~ 8 dBi 280 mm omnidirectional pole mounting fixed white outdoor

DELOCK

Delock WLAN Antenna 802.11 acahbgn 6 ~ 8 dBi 280 mm omnidirectional pole mounting fixed white outdoor

Product Code: 89440
Barcode 4043619894406

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
depth: 0.291
height: 0.021
width: 0.021
Description
This WLAN antenna by Delock allows the usage of different WLAN bands inside and outside.
System requirements:
• Device with one free N port
Specification:
• Connector: 1 x N jack
• Frequency range:
  2.4000 - 2.4835 GHz
  5.1500 - 5.8750 GHz
• Antenna gain: 6 - 8 dBi
• Impedance: 50 Ohm
• VSWR: 1.5
• Polarisation: vertical

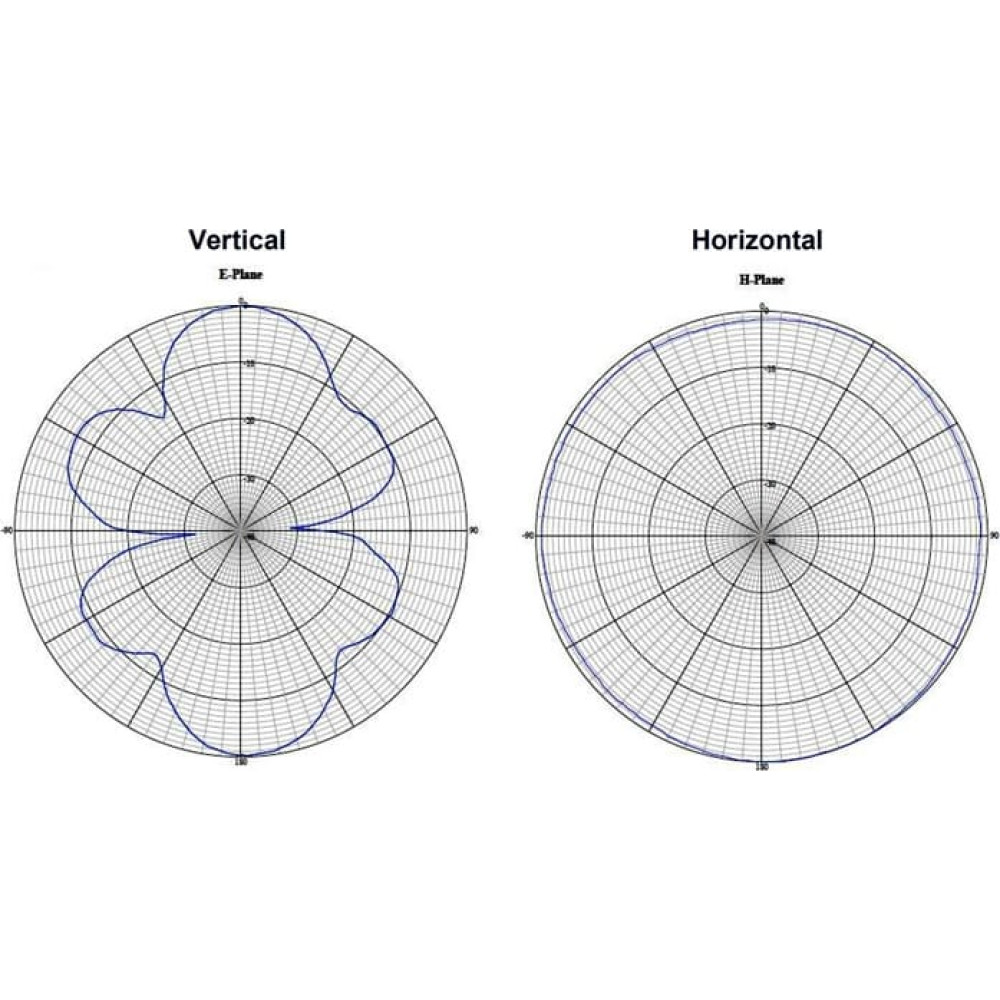

• HBW horizontal beamwidth: 360°

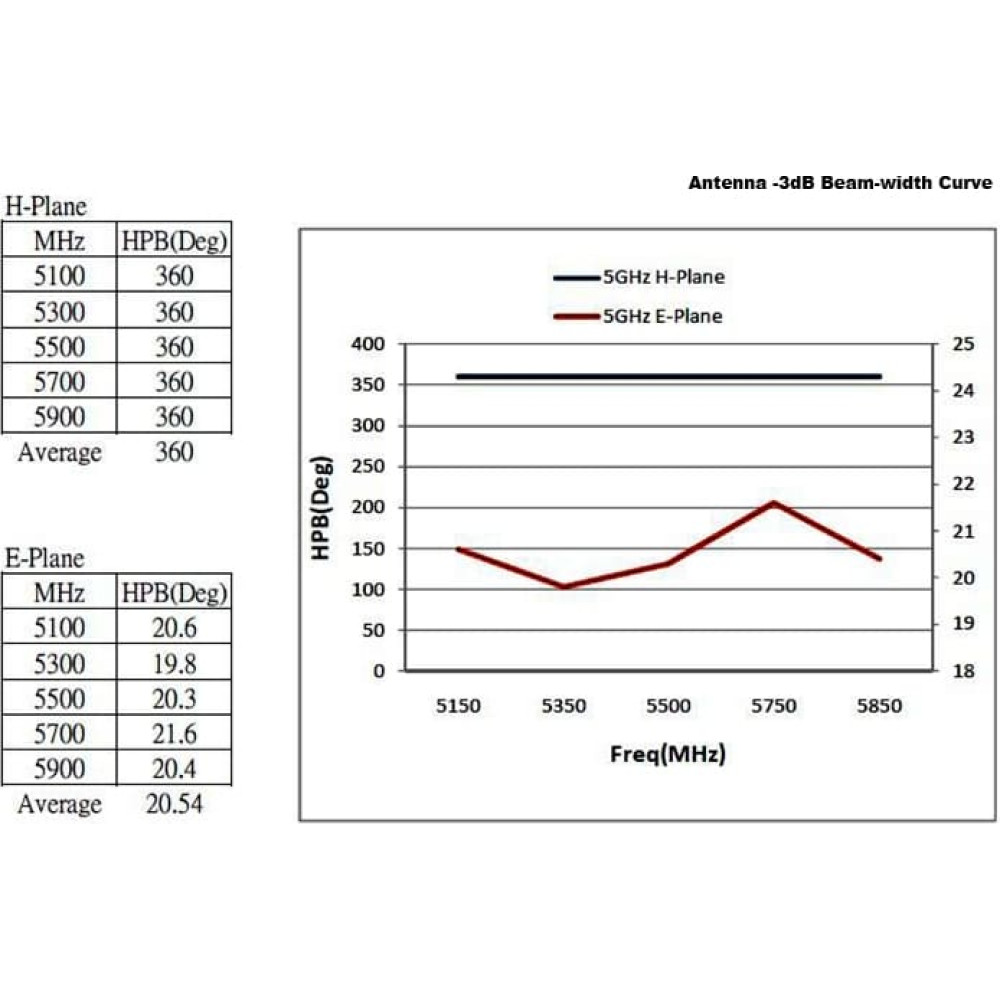

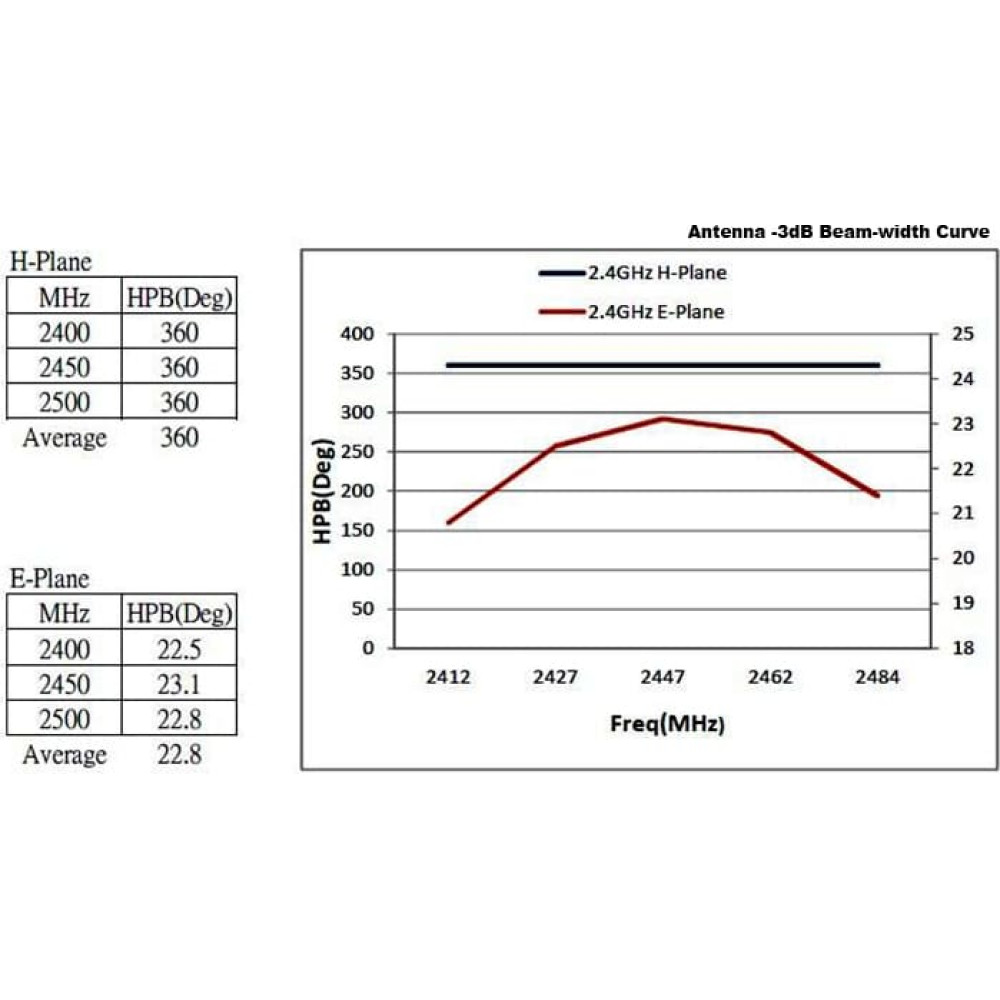

• VBW vertical beamwidth: 23°
• Transmission power: max. 100 W
• Operating temperature: -40 °C ~ 80 °C
• Housing material: GFRP
• Colour: white
• Weight: ca. 120 g

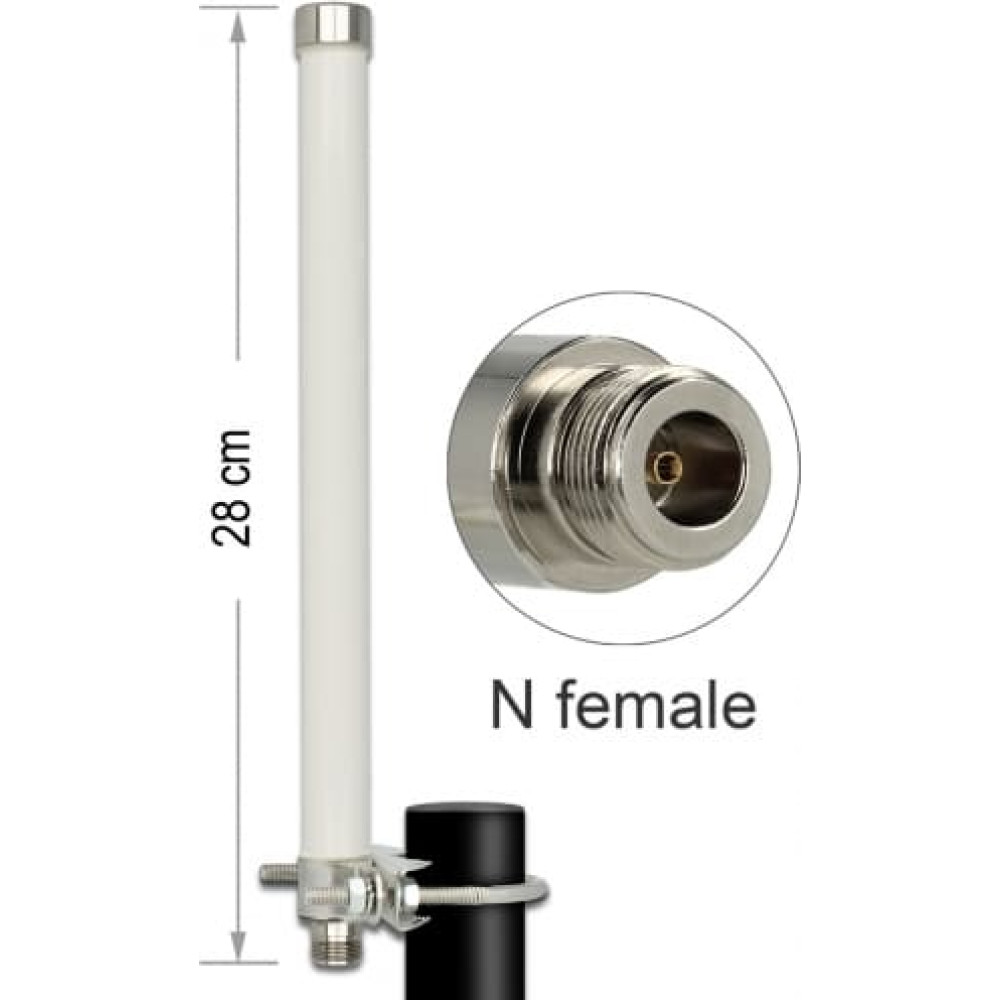

• Dimensions (LxD): ca. 282 x 22.5 mm
Package content:
• Antenna
• Pole mounting kit
Data sheet:
http://www.delock.de/produkt/89440/pdf.html?sprache=en
